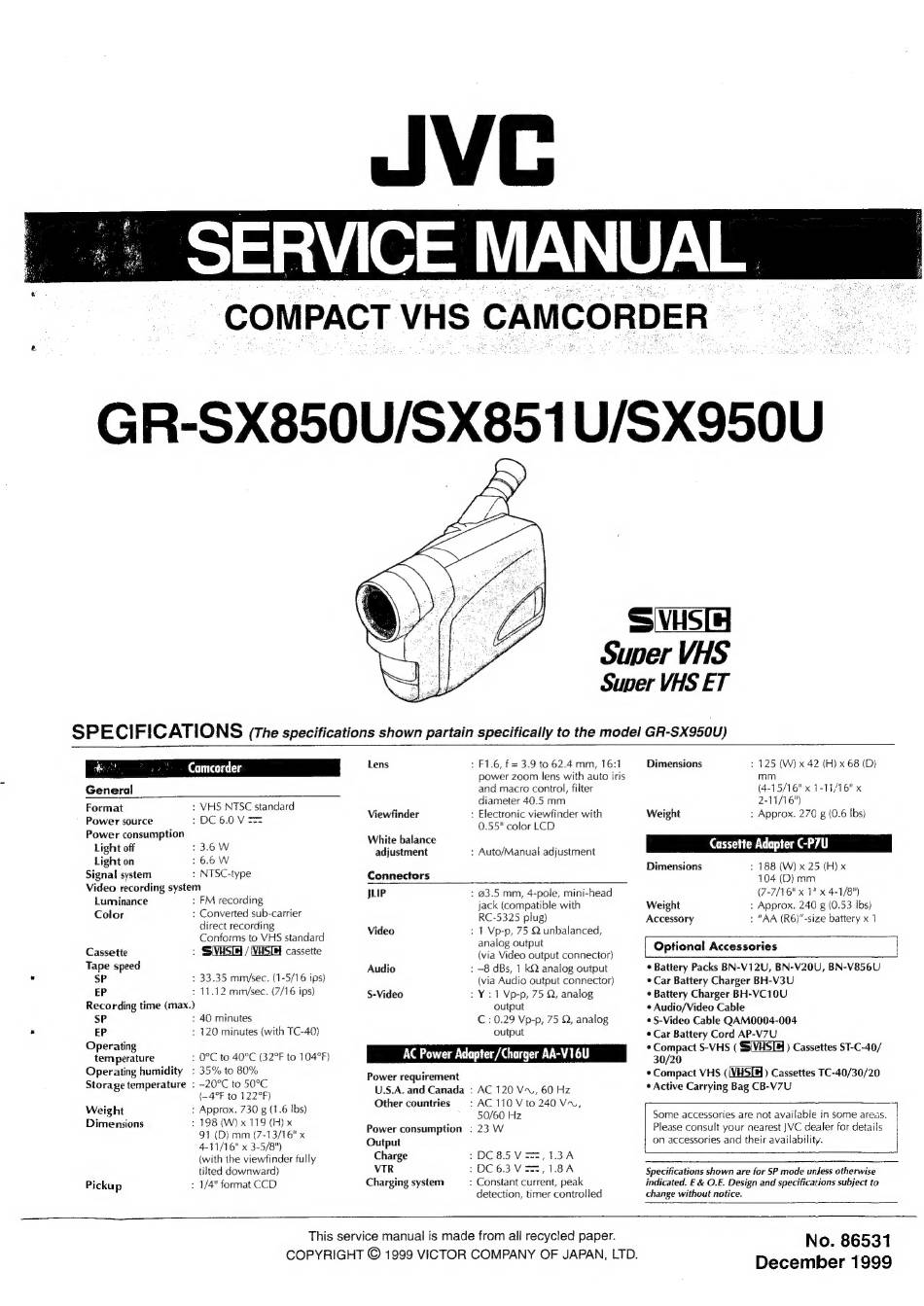

JVC GR-SX950U Service Manual

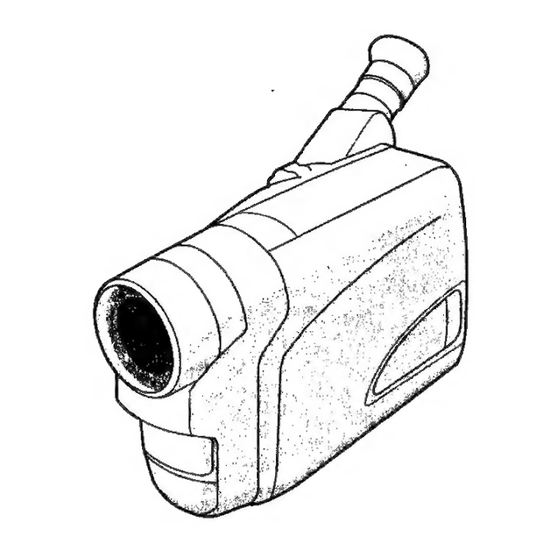

COMPACT VHS CAMCORDER
GR- SX850U/SX851 U/SX950U
SVHSIe
Super VHS
Super VHS ET
: F1.6, f = 3.9 to 62.4 mm, 16:1
Viewfinder
White balance
Camcorder Lens
General
Format : VHS NTSC standard
Power source : DC 6.0 V tz
Power consumption
Light off :3.6W
Light on : 6.6 W
Signal system : NTSC-type
Video recording system
Luminance : FM recording
Color : Converted sub-carrier
direct recording
Conforms to VHS standard
Cassette : S(VHSIH / WSIS cassette
Tape speed
SP : 33.35 mmésec. (1-5/16 ips)
EP : 11.12 mm/sec. (7/16 ips)
Recording time (max.)
SP : 40 minutes
EP : 120 minutes (with TC-40)
Operating
temperature : OPC to 40°C (32°F to 104°F)
Operating humidity: 35% to 80%
Storage temperature : -20°C to 50°C
(-4°F to 122°F)
Weight : Approx. 730 g (1.6 Ibs)
Dimensions : 198 (W) x 119 (H) x
91 (Dj) mm (7-13/16" x
4-41/16" x 3-5/8")
(with the viewfinder fully
tilted downward)
Pickup : 1/4" format CCD
power zoom lens with auto iris
and macro control, filter
diameter 40.5 mm
: Electronic viewfinder with
0.55" color LCD
adjustment : Auto/Manual adjustment
Connectors
JLIP : 93.5 mm, 4-pole, mini-head
jack (compatible with
RC-5325 plug)
Video : 1 Vp-p, 75 Q unbalanced,
analog output
(via Video output connector)
Audio : -8 dBs, 1 kQ analog output
(via Audio output connector)
S-Video > Y¥:1 Vp-p, 75 Q, analog
AC Power Adapter /Charger AA-V16U
Power requirement
U.S.A. and Canada
Other countries
Power consumption
Output
Charge
VIR
Charging system
output
C : 0.29 Vp-p, 75 Q, analog
output
: AC 120 V~u, 60 Hz
: AC 110 V to 240 V~,
50/60 Hz
> 23W
>DC85V=2,1.3A
:DC6.3V==2,1.8A
: Constant current, peak
detection, timer controlled
Dimensions : 125 (W) x 42 (HA) x 68 (D)
mm
(4-15/16" x 1-11/16" x
2-11/16")
Weight
Cassette Adapter C-P7U
: Approx. 270 g (0.6 Ibs)
Dimensions : 188 (W) x 25 (H) x
104 (D) mm
(7-7/16" x 1" x 4-1/8")
Weight : Approx. 240 g (0.53 Ibs)
Accessory : "AA (R6)"-size battery x 1
Optional Accessories
¢ Battery Packs BN-V12U, BN-V20U, BN-V856U
¢ Car Battery Charger BH-V3U
¢ Battery Charger BH-VC10U
e Audio/Video Cable
¢ S-Video Cable QAM0004-004
¢ Car Battery Cord AP-V7U
° i a S-VHS ( SIVHSTH ) Cassettes ST-C-40/
30/20
* Compact VHS (iVHSIW) Cassettes TC-40/30/20
* Active Carrying Bag CB-V7U
Some accessories are not available in some areas.
Please consult your nearest JVC dealer for details
on accessories and their availability.
Specifications shown are for SP mode unless otherwise
indicated. E & O.E. Design and specifications subject to
change without notice.
This service manual is made from all recycled paper.
COPYRIGHT © 1999 VICTOR COMPANY OF JAPAN, LTD.
No. 86531
December 1999
