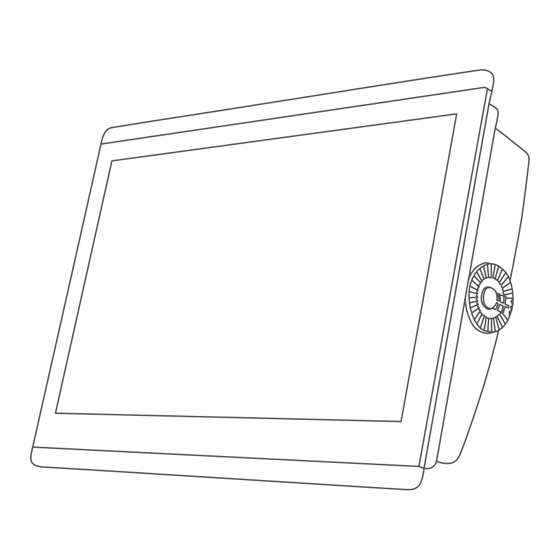

Garmin GPSMAP8416xsv Owner's Manual
  1. Manuals
  2. Brands
  3. Garmin Manuals
  4. Plotter
  5. GPSMAP8416xsv
  6. Owner's manual

Garmin GPSMAP8416xsv Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GPSMAP
84XX/86XX/87XX
®
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GPSMAP8416xsv and is the answer not in the manual?

Questions and answers

Related Manuals for Garmin GPSMAP8416xsv

Summary of Contents for Garmin GPSMAP8416xsv

  • Page 1 GPSMAP 84XX/86XX/87XX ® Owner’s Manual...
  • Page 2 © 2019 Garmin Ltd. or its subsidiaries All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Garmin. Garmin reserves the right to change or improve its products and to make changes in the content of this manual without obligation to notify any person or organization of such changes or improvements. Go to www.garmin.com...

  • Page 3: Table Of Contents

    ActiveCaptain App........ 22 Accessing the Manuals from the Updating Charts with ActiveCaptain..22 Web............9 Chart Subscriptions......22 Garmin Support Center......9 Purchasing a Chart Subscription with Memory Cards........10 ActiveCaptain........23 Inserting Memory Cards (GPSMAP Activating the Chart Subscription 8x10/8x12/8x16).......10...
  • Page 4 Viewing Boat Data on a Garmin Adding a Label to a Garmin Quickdraw Watch............. 25 Contours Map........44 Viewing Boat Data on a Garmin Nautix™ Garmin Quickdraw Community.... 44 Device............ 26 Connecting to the Garmin Quickdraw Community with ActiveCaptain..44 Charts and 3D Chart Views.....
  • Page 5 Split-Frequency Sonar View....68 Deleting a Saved Track..... 58 Split-Zoom Sonar View..... 69 Deleting All Saved Tracks....59 Garmin ClearVü Sonar View....69 Retracing the Active Track....59 Garmin SideVü™ Sonar View....70 Clearing the Active Track....59 SideVü Scanning Technology... 71...
  • Page 6 Sonar Sharing........79 Enabling and Adjusting a Radar No Transmit Zone........96 Zooming in a Panoptix LiveVü or LiveScope Sonar View......80 Adjusting the Radar Range....96 Adjusting the Level of Detail....80 Tips for Selecting a Radar Range..97 Adjusting the Color Intensity....
  • Page 7 Adjusting the Autopilot Response..109 Position Tracking........ 118 Enabling the Autopilot Controls on a Viewing a Position Report....118 Garmin Watch........109 Navigating to a Tracked Vessel..118 Customizing the Autopilot Button Creating a Waypoint at the Position of Actions..........109 a Tracked Vessel......
  • Page 8 Enabling Status Alarms for Engine Tide Station Information..... 132 Gauges..........121 Current Station Information....132 Enabling Some Engine Gauge Status Celestial Information......132 Alarms..........122 Viewing Tide Station, Current Station, or Yamaha Engine Gauges..... 122 Celestial Information for a Different Engine Condition Icons....
  • Page 9 Weather Warnings and Weather Video Camera Movement Control.. 147 Bulletins..........140 Configuring the Video Appearance..148 Viewing Precipitation Information..140 Garmin VIRB® Action Cameras..148 Storm Cell and Lightning Information........141 Connecting a VIRB 360 Action Camera..........148 Hurricane Information..... 141 Connecting a VIRB Action Camera 149 Forecast Information......
  • Page 10 Screenshots........179 Calibrating a Water-Speed Device.. 167 Capturing Screenshots....179 Other Vessels Settings....... 167 Copying Screenshots to a Settings that are Synced on the Garmin Computer......... 179 Marine Network........168 Troubleshooting........179 Restoring the Original Chartplotter My device will not acquire GPS Factory Settings........

  • Page 11: Introduction

    The support ® pages will provide answers to frequently asked support questions, and you can download software and chart updates. There is also contact information to Garmin support should you have any questions. Protective Cover NOTICE Before moving the vessel, remove the sun cover.

  • Page 12: Using The Touchscreen

    Using the Touchscreen • Tap the screen to select an item. • Drag or swipe your finger across the screen to pan or scroll. • Pinch two fingers together to zoom out. • Spread two fingers apart to zoom in. Introduction...

  • Page 13: On-Screen Buttons

    On-Screen Buttons These on-screen buttons may be displayed on some screens and functions. Some buttons are accessible only in a combination page or SmartMode layout or when accessories, such as a radar, are connected. ™ Button Function Clears the on-screen icons and re-centers the screen on the boat Opens a full-screen view of the item Creates a new waypoint Creates a route, with turns, to the destination...

  • Page 14: Locking And Unlocking The Touchscreen

    Button Function Opens the Presets menu for the page or function Locking and Unlocking the Touchscreen You can lock the touchscreen to prevent inadvertent screen touches. 1 Select > Lock Touchscreen to lock the screen. 2 Select to unlock the screen. Introduction...

  • Page 15: Connector View (8X10, 8X12, And 8X16 Models)

    Composite video in AUDIO NMEA 0183 and audio out ® POWER Power Micro-USB to connect a compatible Garmin card reader, or to connect and control a computer using the chartplotter touchscreen 12-PIN XDCR 12-pin transducer LVS XDCR LiveScope single-array transducer ™...

  • Page 16: Connector View (8X17, 8X22, And 8X24 Models)

    CVBS IN Composite video in NMEA 0183 NMEA 0183 and audio out Micro-USB to connect a compatible Garmin card reader, or to connect and control a computer using the chartplotter touchscreen NMEA 2000 NMEA 2000 network ENGINE/J1939 J1939 engine network...

  • Page 17: Connector View (8700 Models)

    Micro-USB input from compatible Garmin card reader , computer, or other supported USB USB OTG accessory NMEA 2000 NMEA 2000 network J1939 J1939 network Only compatible Garmin card readers recommended. Third-party card readers are not guaranteed to be fully compatible. Introduction...

  • Page 18: Tips And Shortcuts (Mfd Models)

    Tips and Shortcuts (MFD models) • Press to turn on the chartplotter. • From any screen, press repeatedly to scroll through the brightness levels, if available. This can be helpful when the brightness is so low you cannot see the screen. •...

  • Page 19: Tips And Shortcuts (8700 Model)

    Tips and Shortcuts (8700 model) • Press to turn on the GPSMAP 8700 device. You can also turn on and off the device using a Garmin chartplotter on the network, a GMM monitor, or a ™ GRID remote control. ™...

  • Page 20: Memory Cards

    You can use optional memory cards with the chartplotter. Map cards allow you to view high-resolution satellite imagery and aerial reference photos of ports, harbors, marinas, and other points of interest. You can use blank memory cards to record Garmin Quickdraw Contours mapping, record sonar (with a compatible transducer), ™...

  • Page 21: Inserting A Memory Card (Gpsmap 8X17/8X22/8X24/87Xx)

    NOTE: The memory card reader is not included with the chartplotter. It is sold as a separate accessory. You must connect a memory card reader or a chartplotter model with a built-in memory card slot to the Garmin Marine Network.

  • Page 22: Customizing The Chartplotter

    When multiple displays are installed on the Garmin Marine Network, you can group them together into a station. A station enables the displays to work together, instead of as several separate displays. You can customize the...

  • Page 23: Pinning A Feature Button

    layout of the screens on each display, making each screen different on each display. When you change the layout of a screen in one display, the changes appear on only that display. When you change the name and symbol of the layout, those changes appear on all displays in the station, to maintain a consistent appearance. Pinning a Feature Button You can add features, such as a chart, combo screen, or gauge to the Pinned category.

  • Page 24: Menu Bar

    Menu Bar The menu bar along the bottom of the screen provides access to many functions of the chartplotter, the options menu, and the home screen. Engages and disengages the autopilot Creates a waypoint at your location Opens the Information menu Shows certain active function such as, radar Opens the home screen TIP: Use the arrows to scroll through the Pinned features.

  • Page 25: Adjusting The Color Mode

    PIN. NOTICE If you enable the Screen Lock feature, Garmin Support cannot retrieve the PIN or access your device. It is your responsibility to provide the PIN to anyone authorized to use the vessel. 1 Select Options > Settings > System > Sounds and Display > Screen Lock > Setup.

  • Page 26: Creating A New Combination Page

    Recommended Startup Image Dimensions For the best fit for the startup images, use an image that has the following dimensions, in pixels. Display resolution Image width Image height WVGA WSVGA WXGA 1080 1240 WUXGA 1700 Creating a New Combination Page You can create a custom combination page to suit your needs.

  • Page 27: Adding A Smartmode Layout

    Adding a SmartMode Layout You can add SmartMode layouts to suit your needs. Each customization made to one SmartMode layout in a station appears on all displays in the station. 1 Select SmartMode™ > Options > Add Layout. 2 Select an option: •...

  • Page 28: Customizing The Data Overlays

    Customizing the Data Overlays You can customize the data in the data overlays shown on a screen. 1 Select an option based on the type of screen you are viewing: • From a full screen view, select Options > Edit Overlays. •...

  • Page 29: Saving A New Preset

    You can use the app to easily and quickly transfer user data, such as waypoints and routes, connect to the Garmin Quickdraw Contours Community, update device software, and plan your trip. You can also control the GPSMAP device from the app using the Garmin Helm ™...

  • Page 30: Getting Started With The Activecaptain App

    8 From your mobile device settings, open the Wi‑Fi connections page and connect to the Garmin device, using ® the name and password you entered in the Garmin device. Enabling Smart Notifications WARNING Do not read or reply to notifications while operating the vessel. Failure to pay attention to the conditions on the water can result in vessel damage, personal injury, or death.

  • Page 31: Receiving Notifications

    Receiving Notifications WARNING Do not read or reply to notifications while operating the vessel. Failure to pay attention to the conditions on the water can result in vessel damage, personal injury, or death. Before your GPSMAP device can receive notifications, you must connect it to your mobile device and enable the Smart Notifications feature (Enabling Smart Notifications, page 20).

  • Page 32: Updating Software With The Activecaptain App

    Chart Subscriptions A chart subscription allows you to access the latest chart updates and additional content using the ActiveCaptain mobile app or the Garmin Express desktop app. You can download updated charts and content each day. You can purchase chart subscriptions in a variety of ways.

  • Page 33: Purchasing A Chart Subscription With Activecaptain

    Purchasing a Chart Subscription with ActiveCaptain 1 Connect your mobile device to the internet and open the ActiveCaptain app. 2 Select Chart > > My Charts > Add a Subscription. 3 Select a chart. 4 Select Subscribe Now. NOTE: It might take a few hours to display the new subscription. Activating the Chart Subscription Card If you purchased a chart subscription memory card, you must activate it before you can use it.

  • Page 34: Communication With Wireless Devices

    You do not need to change the wireless channel of devices connected to this network. Changing the Wi‑Fi Host If there are multiple chartplotters with Wi‑Fi technology on the Garmin marine network, you can change which chartplotter is the Wi‑Fi host. This can be helpful if you are having trouble with Wi‑Fi communications. Changing the Wi‑Fi host allows you to select a chartplotter that is physically closer to your mobile device.

  • Page 35: Turning On And Off The Remote Backlight

    6 Select Done. Viewing Boat Data on a Garmin Watch You can connect a compatible Garmin watch to a compatible chartplotter to view data from the chartplotter. 1 Bring the Garmin watch within range (3 m) of the chartplotter. 2 From the watch clock screen, select START > Boat Data > START.

  • Page 36: Viewing Boat Data On A Garmin Nautix™ Device

    Viewing Boat Data on a Garmin Nautix Device ™ You can connect a Garmin Nautix device to the chartplotter to view charplotter data on the Garmin Nautix device. NOTE: You can connect a Garmin Nautix device to multiple compatible devices for better coverage on larger vessels.

  • Page 37: Navigation Chart And Fishing Chart

    Navigation Chart and Fishing Chart NOTE: The Fishing chart is available with premium charts, in some areas. The Nav. Chart is optimized for navigation. You can plan a course, view map information, and use the chart as a navigational aid. To open the Nav. Chart, select Charts > Nav. Chart. The Fishing Chart provides a detailed view with more bottom detail and fishing content.

  • Page 38: Measuring A Distance On The Chart

    Measuring a Distance on the Chart 1 From a chart, select a location. 2 Select Measure. A push pin appears on the screen at your present location. The distance and angle from the pin is listed in the corner. TIP: To reset the pin and measure from the current location of the cursor, select Set Reference. Creating a Waypoint on the Chart 1 From a chart, select a location or object.

  • Page 39: Navigating To A Point On The Chart

    Navigating to a Point on the Chart WARNING All route and navigation lines displayed on the chartplotter are only intended to provide general route guidance or to identify proper channels, and are not intended to be precisely followed. Always defer to the navaids and conditions on the water when navigating to avoid groundings or hazards that could result in vessel damage, personal injury, or death.

  • Page 40: Premium Charts

    Fish Eye 3D Chart View Using the depth contour lines of the premium charts, such as Garmin Navionics Vision+, the Fish Eye 3D chart view provides an underwater view of the sea floor or lake bottom. Suspended targets, such as fish, are indicated by red, green, and yellow spheres. Red indicates the largest targets and green indicates the smallest.

  • Page 41: Viewing Tide Station Information

    Viewing Tide Station Information WARNING Tide and current information is for information purposes only. It is your responsibility to heed all posted water- related guidance, to remain aware of your surroundings, and to use safe judgment in, on, and around the water at all times.

  • Page 42: Showing Satellite Imagery On The Navigation Chart

    Showing Satellite Imagery on the Navigation Chart NOTE: This feature is available with premium charts, in some areas. You can overlay high-resolution satellite images on the land or on both land and sea portions of the Navigation chart. NOTE: When enabled, high-resolution satellite images are present only at lower zoom levels. If you cannot see high-resolution images in your optional chart region, you can select to zoom in.

  • Page 43: Ais Targeting Symbols

    AIS Targeting Symbols Symbol Description AIS vessel. The vessel is reporting AIS information. The direction in which the triangle is pointing indicates the direction in which the AIS vessel is moving. Target is selected. Target is activated. The target appears larger on the chart. A green line attached to the target indicates the heading of the target.

  • Page 44: Heading And Projected Course Of Activated Ais Targets

    Heading and Projected Course of Activated AIS Targets When heading and course over ground information are provided by an activated AIS target, the heading of the target appears on a chart as a solid line attached to the AIS target symbol. A heading line does not appear on a 3D chart view.

  • Page 45: Setting The Safe-Zone Collision Alarm

    Setting the Safe-Zone Collision Alarm CAUTION The Beeper setting must be turned on to make alarms audible (Sounds and Display Settings, page 156). Failure to set audible alarms could lead to injury or property damage. Before you can set a collision alarm, you must connect an AIS device or radar to the same network as a compatible chartplotter.

  • Page 46: Ais Aids To Navigation

    AIS Aids to Navigation An AIS aid to navigation (ATON) is any kind of navigational aid that is transmitted over the AIS radio. ATONs are displayed on the charts and have identifying information, such as position and type. There are three main kinds of AIS ATONs. Real ATONs physically exist and send their identifying and location information from their actual location.

  • Page 47: Ais Distress Signals

    AIS Distress Signals Self-contained AIS distress signal devices transmit emergency position reports when activated. The chartplotter can receive signals from Search and Rescue Transmitters (SART), Emergency Position Indicating Radio Beacons (EPIRB), and other man overboard signals. Distress signal transmissions are different than standard AIS transmissions, so they appear differently on the chartplotter.

  • Page 48: Chart Menu

    (Other Vessels Layer Settings, page 40). Water: Shows and hides depth items (Water Layer Settings, page 41). Quickdraw Contours: Shows and hides Garmin Quickdraw Contours data (Garmin Quickdraw Contours Settings, page 46). Weather: Shows and hides weather-related items (Weather Layer Settings, page 42).
  • Page 49 Depth Layer Settings From a chart, select Options > Layers > Chart > Depth. Depth Shading: Specifies an upper and lower depth to shade between. Shallow Shading: Sets the shades from the shoreline to the specified depth. Spot Depths: Turns on spot soundings and sets a dangerous depth. Spot depths that are equal to or more shallow than the dangerous depth are indicated by red text.
  • Page 50 Laylines Settings To use the laylines features, you must connect a wind sensor to the chartplotter. When in sailing mode (Setting the Vessel Type, page 14), you can display laylines on the navigation chart. Laylines can be very helpful when racing. From the Navigation chart, select Options >...
  • Page 51 For inland fishing, a maximum of five depth ranges can help reduce map clutter. The depth ranges apply to all charts and all bodies of water. Some Garmin LakeVü and premium supplemental charts have multiple depth range shading by default.

  • Page 52: Chart Settings

    Weather Layer Settings From the Navigation or Fishing chart, select Options > Layers > Chart > Weather > From a weather chart, select Options > Layers > Chart > Weather. Observed Layers: Sets which observed weather items are shown. Observed weather is the present weather condition that are visible now.

  • Page 53: Fish Eye 3D Settings

    1,500 hours of data onto a 2 GB memory card. When you record data on a memory card in your chartplotter, the new data is added to your existing Garmin Quickdraw Contours map, and is saved on the memory card. When you insert a new memory card, the existing data does not transfer onto the new card.

  • Page 54: Mapping A Body Of Water Using The Garmin Quickdraw Contours Feature

    Mapping a Body of Water Using the Garmin Quickdraw Contours Feature Before you can use the Garmin Quickdraw Contours feature, you must have sonar depth, your GPS position, and a memory card with free space. 1 From a chart view, select Options > Quickdraw Contours > Start Recording.

  • Page 55: Connecting To The Garmin Quickdraw Community With Garmin Connect

    Sharing Your Garmin Quickdraw Contours Maps with the Garmin Quickdraw Community Using ActiveCaptain You can share Garmin Quickdraw Contours maps that you have created with others in the Garmin Quickdraw Community. When you share a contour map, only the contour map is shared. Your waypoints are not shared.

  • Page 56: Garmin Quickdraw Contours Settings

    Survey Coloring: Sets the color of the Garmin Quickdraw Contours display. When this setting is turned on, the colors indicate the quality of the recording. When this setting is turned off, the contour areas use standard map colors.

  • Page 57: Navigation With A Chartplotter

    Navigation with a Chartplotter WARNING All route and navigation lines displayed on the chartplotter are only intended to provide general route guidance or to identify proper channels, and are not intended to be precisely followed. Always defer to the navaids and conditions on the water when navigating to avoid groundings or hazards that could result in vessel damage, personal injury, or death.

  • Page 58: Basic Navigation Questions

    For example, the roue segment is red striped when the route crosses under a very low bridge or is in shallow waters. This line is red striped in Garmin Navionics+ and Garmin Navionics Vision+ charts only; it is magenta and gray striped in previous versions of the charts.

  • Page 59: Searching For A Destination By Name

    Searching for a Destination by Name You can search for saved waypoints, saved routes, saved tracks, and marine services destinations by name. 1 Select Info > Services > Search by Name. 2 Enter at least a portion of the name of your destination. 3 If necessary, select Done.

  • Page 60: Waypoints

    Waypoints Waypoints are locations you record and store in the device. Waypoints can mark where you are, where you are going, or where you have been. You can add details about the location, such as name, elevation, and depth. Marking Your Present Location as a Waypoint From any screen, select Mark.

  • Page 61: Moving A Saved Waypoint

    Moving a Saved Waypoint 1 Select Info > User Data > Waypoints. 2 Select a waypoint. 3 Select Review > Edit > Position. 4 Indicate a new location for the waypoint: • To move the waypoint using coordinates, select Enter Coordinates, enter the new coordinates, and select Done or Cancel.

  • Page 62: Routes

    Routes A route is a path from one location to one or more destinations. Creating and Navigating a Route From Your Present Location You can create and immediately navigate a route on the Navigation chart or the Fishing chart. This method does not save the route.

  • Page 63: Finding And Navigating A Saved Route

    Finding and Navigating a Saved Route Before you can browse a list of routes and navigate to one of them, you must create and save at least one route (Creating and Saving a Route, page 52). 1 Select Info > User Data > Routes. 2 Select a route.

  • Page 64: Initiating A Search Pattern

    Initiating a Search Pattern You can initiate a search pattern to search an area. Different patterns are better suited for different search situations. 1 Select Info > User Data > Routes > New > Route Using SAR Pattern. 2 Select a pattern: •...

  • Page 65: Creating And Saving An Auto Guidance Path

    Creating and Saving an Auto Guidance Path 1 Select Info > User Data > Routes > New > Auto Guidance. 2 Select a starting point, and select Next. 3 Select a destination, and select Next. 4 Select an option: • To view a hazard and adjust the path near a hazard, select Hazard Review. •...

  • Page 66: Auto Guidance Path Configurations

    If a section of an Auto Guidance path is shallower than the Preferred Depth or lower than the Vertical Clearance settings, the section of the Auto Guidance path appears as a solid orange line or a red striped line in Garmin LakeVü g4 and BlueChart ®...

  • Page 67: Tracks

    Adjusting the Distance from Shore The Shoreline Distance setting indicates how close to the shore you want the Auto Guidance line to be placed. The Auto Guidance line may move if you change this setting while navigating. The available values for the Shoreline Distance setting are relative, not absolute.

  • Page 68: Setting The Color Of The Active Track

    Setting the Color of the Active Track 1 Select Info > User Data > Tracks > Active Track Options > Track Color. 2 Select a track color. Saving the Active Track The track currently being recorded is called the active track. 1 Select Info >...

  • Page 69: Deleting All Saved Tracks

    Deleting All Saved Tracks Select Info > User Data > Delete User Data > Saved Tracks. Retracing the Active Track The track currently being recorded is called the active track. 1 Select Info > User Data > Tracks > Follow Active Track. 2 Select an option: •...

  • Page 70: Creating A Boundary

    Creating a Boundary 1 Select Info > User Data > Boundaries > New. 2 Select a boundary shape. 3 Follow the on-screen instructions. Converting a Route to a Boundary 1 Select Info > User Data > Routes. 2 Select a route. 3 Select Review >...

  • Page 71: Deleting A Boundary

    Deleting a Boundary 1 Select Info > User Data > Boundaries. 2 Select a boundary. 3 Select Review > Edit Boundary > Delete. Deleting All Saved Waypoints, Tracks, Routes, and Boundaries Select Info > User Data > Delete User Data > Delete All User Data > OK. Sailing Features Setting the Vessel Type for Sailing Features You must select a sailing vessel type to use the sailing features.

  • Page 72: Starting The Race Timer

    Using the Starting Line Guidance You can use the starting line guidance feature to help get you cross the start line, at the optimal speed during a sailing race. 1 Mark the starting line (Setting the Starting Line, page 61). 2 From the Sail Racing combination screen, select Options >...

  • Page 73: Laylines Settings

    Polar Tables WARNING This feature allows you to load and use data from a third party. Garmin makes no representations about the accuracy, reliability, completeness or timeliness of the data generated by third parties. Any use or reliance on data generated by third parties is at your own risk.

  • Page 74: Importing A Polar Table Manually

    Importing a Polar Table Manually If you save the polar table file as polar.plr and place it in the Garmin/polars/ folder on the memory card, the chartplotter imports the data automatically after you insert the memory card. If it does not import the data automatically, or if you want to load a different set of data, you can initiate the import manually.

  • Page 75: Setting The Keel Offset

    Setting the Keel Offset You can enter a keel offset to compensate the water depth reading for the transducer installation location. This allows you to view the depth of the water below the keel or the true depth of the water, depending on your needs.

  • Page 76: Sailboat Autopilot Operation

    3 Select if the transducer is installed at the water line, or select if the transducer is installed at the bottom of the keel. 4 Enter the distance measured in step 1. Sailboat Autopilot Operation CAUTION When engaged, the autopilot controls only the rudder. You and your crew remain responsible for the sails while the autopilot is engaged.

  • Page 77: Heading Line And Angle Markers

    Tacking and Gybing from Wind Hold Before you can engage wind hold, you must have a wind sensor installed. 1 Engage wind hold (Engaging Wind Hold, page 66). 2 Select Options. 3 Select an option. The autopilot steers your boat through a tack or gybe, and information about the progress of the tack or gybe appears on the screen.

  • Page 78: Sonar Fishfinder

    Sonar Fishfinder When properly connected to a transducer, your compatible chartplotter can be used as a fishfinder. Chartplotter models without an xsv or xs in their names require a Garmin sounder module and transducer to display sonar information. For more information about which transducer is best for your needs, go to garmin.com/transducers.

  • Page 79: Split-Zoom Sonar View

    NOTE: To receive Garmin ClearVü scanning sonar, you need a compatible transducer. For information about compatible transducers, go to garmin.com/transducers. Garmin ClearVü high-frequency sonar provides a detailed picture of the fishing environment around the boat in a detailed representation of structures the boat is passing over.

  • Page 80: Garmin Sidevü™ Sonar View

    Sonar View ™ Not all models provide built-in Garmin SideVü sonar support. If your model does not provide built-in SideVü sonar, you need a compatible sounder module and compatible SideVü transducer. If your model does provide built-in SideVü sonar, you need a compatible SideVü transducer.

  • Page 81: Sidevü Scanning Technology

    SideVü Scanning Technology Instead of a more common conical beam, the SideVü transducer uses a flat beam to scan the water and bottom to the sides of your boat. Measuring Distance on the Sonar Screen You can measure the distance between two points on the SideVü sonar view. 1 From the SideVü...

  • Page 82: Livevü Down Sonar View

    LiveVü Down Sonar View This sonar view shows a two-dimensional view of what is below the boat and can be used to see a bait ball and fish. Panoptix down view history in a scrolling sonar view Boat Range Trails Drop shot rig Bottom Sonar Fishfinder...

  • Page 83: Livevü Forward Sonar View

    LiveVü Forward Sonar View This sonar view shows a two-dimensional view of what is in front of the boat and can be used to see a bait ball and fish. Boat Range Fish Trails Bottom Sonar Fishfinder...

  • Page 84: Realvü 3D Forward Sonar View

    RealVü 3D Forward Sonar View This sonar view shows a three-dimensional view of what is in front of the transducer. This view can be used when you are stationary and you need to see the bottom and the fish approaching the boat. Color legend Boat Ping indicator...

  • Page 85: Realvü 3D Down Sonar View

    RealVü 3D Down Sonar View This sonar view shows a three-dimensional view of what is below the transducer and can be used when you are stationary and want to see what is around your boat. Color legend Boat Sonar beam Range Fish Bottom...

  • Page 86: Realvü 3D Historical Sonar View

    RealVü 3D Historical Sonar View This sonar view provides a three-dimensional view of what is behind your boat as you are moving and shows the entire water column in 3D, from the bottom to the top of the water. This view is used for finding fish. Color legend Boat Range...

  • Page 87: Frontvü Sonar View

    FrontVü Sonar View The Panoptix FrontVü sonar view increases your situational awareness by showing obstructions under the water, up to 91 meters (300 feet) in front of the boat. The ability to effectively avoid forward collisions with FrontVü sonar decreases as your speed rises above 8 knots.

  • Page 88: Perspective View

    When you are using more than one sonar data source for a particular sonar view, you can select the source to use for that sonar view. For example, if you have two sources for Garmin ClearVü, you can select the source to use from the Garmin ClearVü...

  • Page 89: Renaming A Sonar Source

    2 Select Back to exit history. Sonar Sharing You can view the sonar data from all compatible sources on the Garmin Marine Network. You can view sonar data from a compatible external sonar module, such as a GCV sonar module. In addition, you can view the ™...

  • Page 90: Zooming In A Panoptix Livevü Or Livescope Sonar View

    You can control the level of detail and noise shown on the sonar screen either by adjusting the gain for traditional transducers or by adjusting the brightness for Garmin ClearVü transducers. If you want to see the highest intensity signal returns on the screen, you can lower the gain or brightness to remove lower intensity returns and noise.

  • Page 91: Adjusting The Color Intensity

    You can adjust the intensity of colors and highlight areas of interest on the sonar screen by adjusting the color gain for traditional transducers or the contrast for Garmin ClearVü/SideVü transducers. This setting works best after you have adjusted the level of detail shown on the screen using the gain or brightness settings.

  • Page 92: Setting The Zoom Level On The Sonar Screen

    • To scroll more slowly, select Down. Adjusting the Range You can adjust the range of the depth scale for traditional and Garmin ClearVü sonar views. You can adjust the range of the width scale for the SideVü sonar view.

  • Page 93: Sonar Noise Rejection Settings

    Sonar Noise Rejection Settings From a sonar view, select Options > Sonar Setup > Noise Reject. Interference: Adjusts the sensitivity to reduce the effects of interference from nearby sources of noise. The lowest interference setting that achieves the desired improvement should be used to remove interference from the screen.

  • Page 94: Sonar Appearance Settings

    Depth Line: Shows a quick-reference depth line. Edge: Highlights the strongest signal from the bottom to help define the hardness or softness of the signal. View Selection: Sets the direction of the Garmin SideVü sonar view. Fish Symbols: Sets how the sonar interprets suspended targets.

  • Page 95: Sonar Alarms

    resolution, but has wider targets. With echo stretch and filter width set to high, the display has the lowest resolution, but is the least susceptible to noise. It is not recommended to set echo stretch to low and filter width to high. Overlay Data: Sets the data shown on the sonar screen.

  • Page 96: Transducer Installation Settings

    • From a Traditional sonar view, select Options > Sonar Setup > Installation. • From a Garmin ClearVü sonar view, select Options > ClearVü Setup > Installation. • From a Garmin SideVü sonar view, select Options > SideVü Setup > Installation.

  • Page 97: Turning On The A-Scope

    Selecting the Transducer Frequency NOTE: You cannot adjust the frequency for all sonar views and transducers. You can select which frequencies appear on the sonar screen. NOTICE Always be aware of local regulations on sonar frequencies. For example, to protect orca whale pods, you might be prohibited from using frequencies between 50 to 80 khz within ½...

  • Page 98: Panoptix Sonar Setup

    Panoptix Sonar Setup Adjusting the RealVü Viewing Angle and Zoom Level You can change the viewing angle of the RealVü sonar views. You can also zoom in and out of the view. From a RealVü sonar view, select an option: •...
  • Page 99 Setting the LiveVü and FrontVü Transducer Transmit Angle This feature is available only with RealVü capable Panoptix transducers, such as the PS30, PS31, and PS60. You can change the transducer transmit angle to aim the transducer at a particular area of interest. For example, you might aim the transducer to follow a bait ball or focus on a tree as you pass it.

  • Page 100: Realvü Appearance Settings

    RealVü Appearance Settings From a RealVü sonar view, select Options > Sonar Setup > Appearance. Point Colors: Sets a different color palette for the sonar return points. Bottom Colors: Sets the color scheme for the bottom. Bottom Style: Sets the style for the bottom. When you are in deep water, you can select the Points option and manually set the range to a shallower value.
  • Page 101 Setting the Bow Offset For forward view Panoptix transducers, you can enter a bow offset to compensate the forward distance readings for the transducer installation location. This allows you to view the forward distance from the bow instead of the transducer installation location. This feature applies to Panoptix transducers in the FrontVü, LiveVü...

  • Page 102: Livescope And Perspective Sonar Settings

    Calibrating the Compass Before you can calibrate the compass, the transducer must be installed on the shaft far enough away from the trolling motor to avoid magnetic interference, and deployed in the water. Calibration must be of sufficient quality to enable the internal compass. NOTE: To use the compass, you must mount the transducer on the transom or the trolling motor shaft.

  • Page 103: Livescope And Perspective Sonar Setup

    LiveScope and Perspective Sonar Setup From the LiveScope or Perspective sonar view, select Options > Sonar Setup. Appearance: Configures the appearance of the sonar screen (LiveScope and Perspective Appearance Settings, page 93). Layout: Configures the layout of the sonar screen (LiveScope and Perspective Layout Settings, page 93).

  • Page 104: Livescope And Perspective Transducer Installation Settings

    To avoid possible personal injury, do not look directly at the antenna at close range when the radar is transmitting. Eyes are the most sensitive part of the body to electromagnetic energy. When you connect your compatible chartplotter to an optional Garmin marine radar, such as a GMR Fantom ™...

  • Page 105: Radar Interpretation

    Vessel Radar Overlay When you connect your chartplotter to an optional Garmin marine radar, you can use overlay radar information on the Navigation chart or on the Fishing chart. Data appears on the radar overlay based on the most recently used radar mode and all settings configurations applied to the radar overlay are also applied to the last-used radar mode.

  • Page 106: Transmitting Radar Signals

    Transmitting Radar Signals NOTE: As a safety feature, the radar enters standby mode after it warms up. This gives you an opportunity to verify the area around the radar is clear before beginning radar transmission. 1 With the chartplotter off, connect your radar as described in the radar installation instructions. 2 Turn on the chartplotter.

  • Page 107: Tips For Selecting A Radar Range

    Tips for Selecting a Radar Range • Determine what information you need to see on the Radar screen. For example, do you need information about nearby weather conditions or targets and traffic, or are you more concerned about distant weather conditions? •...

  • Page 108: Defining A Partial Guard Zone

    Defining a Partial Guard Zone You can define the boundaries of a guard zone that does not completely surround your boat. 1 From a radar screen, select Options > Radar Options > Guard Zone > 2 Drag the cursor to the location of the outer guard-zone corner 3 Select Corner 2.

  • Page 109: Acquiring Marpa Targets Automatically

    Acquiring MARPA Targets Automatically You can acquire MARPA targets automatically based on MotionScope, guard zones, or boundaries. 1 From a radar screen, select Options > Layers > Other Vessels > MARPA > Auto Acquire. 2 Select , and adjust additional settings (optional). Assigning a MARPA Tag to an Object Before you can use MARPA, you must have a heading sensor connected and an active GPS signal.

  • Page 110: Echo Trails

    Showing and Adjusting the VRM and the EBL You can adjust the diameter of the VRM and the angle of the EBL, which moves the intersection point of the VRM and the EBL. The VRM and the EBL configured for one mode are applied to all other radar modes. 1 From a radar screen, select Options >...

  • Page 111: Radar Gain

    Radar Gain Adjusting Gain on the Radar Screen Automatically The automatic gain setting for each radar mode is optimized for that mode, and may differ from the automatic gain setting used for another mode. NOTE: Depending upon the radar in use, the gain setting configured for use in one radar mode may or may not be applied to other radar modes or to the Radar overlay.

  • Page 112: Radar Filter Settings

    Radar Filter Settings Adjusting Sea Clutter on the Radar Screen You can adjust the appearance of clutter caused by choppy sea conditions. The sea clutter setting affects the appearance of nearby clutter and targets more than it affects the appearance of distant clutter and targets. A higher sea clutter setting reduces the appearance of clutter caused by nearby waves, but it can also reduce or eliminate the appearance of nearby targets.

  • Page 113: Radar Options Menu

    Radar Options Menu From a radar screen, select Options > Radar Options. MotionScope™: Uses the Doppler effect to detect and highlight moving targets to help you avoid potential collisions, find flocks of birds, and track weather formations (MotionScope Doppler Radar Technology, ™...

  • Page 114: Radar Installation Settings

    Radar Installation Settings Front of Boat: Compensates for the physical location of the radar when it is not on the boat axis (Measuring and Setting the Front-of-Boat Offset, page 104). Antenna Configuration: Sets the radar antenna size and sets the position in which the radar stops (Setting a Custom Park Position, page 104).

  • Page 115: Autopilot

    The system also allows manual steering and several modes of automatic-steering functions and patterns. When the chartplotter is connected to a compatible Garmin autopilot system, you can engage and control the autopilot from the chartplotter. For information about compatible Garmin autopilot systems, go to garmin.com.

  • Page 116: Autopilot Screen

    Autopilot Screen Actual heading Intended heading (heading the autopilot is steering toward) Actual heading (when in standby mode) Intended heading (when engaged) Rudder position indicator (This functionality is available only when a rudder sensor is connected.) Adjusting the Step Steering Increment 1 From the Autopilot screen, select Options >...

  • Page 117: Enabling Shadow Drive

    Enabling Shadow Drive ™ NOTE: The Shadow Drive feature is not available on all autopilot models. From the autopilot screen, select Options > Autopilot Setup > Shadow Drive > Enabled. Autopilot Overlay Bar NOTE: Not all options are available on all autopilot models. Autopilot mode Enables the heading hold Steers left...

  • Page 118: Chartplotter In Step Steering Mode

    Adjusting the Heading with the Chartplotter in Step Steering Mode 1 Engage a heading hold (Engaging the Autopilot, page 107). 2 Select an option: • Select <1° or 1°> to initiate a single 1° turn. • Select <<10° or 10°>> to initiate a single 10° turn. •...

  • Page 119: Setting Up And Following The Cloverleaf Pattern

    2 Follow the on-screen instructions. Customizing the Autopilot Button Actions Before you can set the autopilot button actions, you must install and configure a compatible Garmin autopilot. You can select up to three autopilot actions for your Garmin watch to perform.

  • Page 120: Controlling The Autopilot With A Grid 20 Remote Control

    You can update the Reactor autopilot remote control software using the chartplotter. 1 Insert a memory card into the card slot on the computer. 2 Go to garmin.com/software/autopilot_remote_control, and select Software. 3 Select Download. 4 Read and agree to the terms.

  • Page 121: Yamaha Autopilot

    Yamaha Autopilot WARNING You can use the autopilot feature only at a station installed next to a helm, throttle, and helm control device. You are responsible for the safe and prudent operation of your vessel. The autopilot is a tool that enhances your capability to operate your boat.

  • Page 122: Yamaha Autopilot Overlay Bar

    Yamaha Autopilot Settings From a Yamaha engine screen, select Options > Autopilot Setting. Pattern Set: Allows you to select an autopilot pattern. Direction: Sets a port or starboard direction for the pattern. Spacing: Sets the spacing for the pattern. Length: Sets the length of the pattern. Amplitude: Sets the angle for the zigzag pattern.

  • Page 123: Force Trolling Motor Control

    You can connect the Force trolling motor to the chartplotter to view and control the motor using the chartplotter. Connecting to a Trolling Motor You can connect the chartplotter wirelessly to a compatible Garmin Force trolling motor on your boat to control the trolling motor from the chartplotter.

  • Page 124: Trolling Motor Control Bar

    Trolling Motor Control Bar The trolling motor control bar allows you to control a Force trolling motor and see the status of the motor. Select an item to engage it. The button illuminates when selected. Select the item again to disengage it. Trolling motor battery status.

  • Page 125: Trolling Motor Settings

    Trolling Motor Settings From the trolling motor bar, select Calibrate: Calibrates the trolling motor compass (Calibrating the Trolling Motor Compass, page 115) and sets the trolling motor bow offset (Setting the Bow Offset, page 116). Anchor Gain: Sets the response of the trolling motor when in anchor lock mode. If you need the trolling motor to be more responsive and move quicker, increase the value.

  • Page 126: Setting The Bow Offset

    • The chartplotter can track the positions of vessels sending position reports. If you have a Garmin NMEA 2000 VHF radio connected to your chartplotter, these features are also enabled. • The chartplotter allows you to quickly set up and send individual routine call details to your Garmin VHF radio.

  • Page 127: Turning On Dsc

    Man-Overboard and SOS Distress Calls Initiated from the Chartplotter When your chartplotter is connected to a Garmin NMEA 2000 compatible radio and you mark an SOS or man- overboard location, the radio shows the Distress Call page so you can quickly initiate a distress call.

  • Page 128: Position Tracking

    Position Tracking When you connect the chartplotter to a VHF radio using NMEA 0183, you can track vessels that send position reports. This feature is also available with NMEA 2000, when the vessel sends the correct PGN data (PGN 129808; DSC Call Information).

  • Page 129: Viewing Vessel Trails On The Chart

    Individual Routine Calls When you connect the chartplotter to a Garmin VHF radio, you can use the chartplotter interface to set up an individual routine call. When setting up an individual routine call from your chartplotter, you can select the DSC channel on which you want to communicate.

  • Page 130: Viewing The Gauges

    Viewing the Gauges 1 Select Vessel. 2 Select a gauge, such as Vessel. 3 Select to view a different gauge page. Engine Alert Icons If an icon lights up on the gauges page, it indicates an issue with the motor. Low oil level or oil pressure alert Temperature alert Battery voltage alert...

  • Page 131: Customizing The Gauges

    Customizing the Gauges You can add a gauge page, change the layout of the gauge page, change how the gauges are displayed, and change the data in each gauge. 1 Open a gauge page. 2 Select Options > Edit Gauge Pages. 3 If necessary, select a gauge view or gauge to edit.

  • Page 132: Enabling Some Engine Gauge Status Alarms

    Enabling Some Engine Gauge Status Alarms 1 From the engine gauges screen, select Options > Installation > Status Alarms > Custom. 2 Select one or more engine gauge alarms to turn on or off. Yamaha Engine Gauges Select Vessel > YAMAHA to view the Yamaha engine gauges. This screen varies based on the engine network and throttle controller.

  • Page 133: Engine Condition Icons

    Engine Condition Icons Orange icons indicate engine conditions. Yamaha security system is on. Engines are under synchronization control. Engines are warming up. Engine Alert Icons Red icons indicate engine abnormalities. NOTICE Consult your Yamaha dealer if the problem cannot be located and corrected. Low cooling water pressure.

  • Page 134: Setting Up The Gauges

    Setting Up the Gauges Configuring the Number of Engines 1 From a gauges screen, select Options > Num. Engines. 2 Select the number of engines. Configuring the Tank Level Sensors 1 From a gauges screen, select Options > Tank Preset. 2 Select a tank level sensor to configure.
  • Page 135 Helm Master EX system equipped with an autopilot or joystick. GPS is not available on the Helm Master system. Autopilot Setting: Configures the Yamaha autopilot settings. Available on the Helm Master EX system equipped with an autopilot. For Garmin autopilot information, see (Autopilot, page 105).

  • Page 136: Mercury® Engine Gauges

    Mercury Engine Gauges ® NOTE: This feature is available only when connected to the Mercury SmartCraft Connect gateway. Select Vessel > Mercury to view the Mercury engine gauges. This screen varies based on the engine network. Engine voltage Boat status Boat speed Fuel Transmission gear...

  • Page 137: Synchronizing The Fuel Data With The Actual Vessel Fuel

    Synchronizing the Fuel Data with the Actual Vessel Fuel If you are using fuel flow sensors, you must synchronize the fuel levels in the chartplotter with the actual fuel in the vessel when you add fuel to your vessel. If you are using fuel tank sensors, the level is adjusted automatically based on the tank level sensor data and it is not necessary to synchronize fuel levels manually (Fuel Settings, page 166).

  • Page 138: Customizing The Close-Hauled Wind Gauge

    Customizing the Close-Hauled Wind Gauge You can specify the range of the close-hauled wind gauge for both the upwind scale and the downwind scale. 1 From the wind gauge, select Options > Compass Gauge > Gauge Type > Close Hauled Gauge. 2 Select an option: •...

  • Page 139: Setting Up The Battery Management Page

    • To dismiss the pop-up notification, select OK or wait for the notification to close automatically. Sending an inReach Preset Message Preset messages are messages that you created at explore.garmin.com. Preset messages have predefined text and recipients. 1 From the InReach® page, select Messages > Send inReach Preset.

  • Page 140: Replying To An Inreach Message

    To access the digital switching controls, select Vessel > Switching. For more information about purchasing and configuring a digital switching system, contact your Garmin dealer. Adding and Editing a Digital Switching Page You can add and customize digital switching pages to the chartplotter.

  • Page 141: Optimus Overlay Bar Overview

    Optimus Overlay Bar Overview To use the overlay bar, you must connect your Optimus system to your chartplotter and add the overlay bar to the necessary screens (Activating the Optimus Overlay Bar, page 130). Control mode Optimus control buttons Rudder Standby button You must press a mode button on the overlay bar to engage or disengage the mode.

  • Page 142: Optimus Limp Home Mode

    Optimus Limp Home Mode WARNING In the event of a steering failure, Optimus Limp Home mode becomes available. Limp Home mode is a system override that may severely limit your boat's control. It should only be used in an emergency if you are unable to call for assistance.

  • Page 143: Viewing Tide Station, Current Station, Or Celestial Information For A Different Date

    Viewing Tide Station, Current Station, or Celestial Information for a Different Date 1 Select Info > Tides & Currents. 2 Select Tides, Currents, or Celestial. 3 Select an option: • To view information for a different date, select Change Date > Manual, and enter a date. •...

  • Page 144: Media Player

    NOTE: Not all features are available on all connected media players. If you have a Fusion-Link compatible stereo connected to the NMEA 2000 network or Garmin Marine Network, ™ you can control the stereo using the chartplotter. The chartplotter should automatically detect the media player when it is first connected.

  • Page 145: Setting A Song To Repeat

    Setting a Song to Repeat 1 While playing a song, select Options > Repeat. 2 If necessary, select Single. Setting All Songs to Repeat From the media screen, select Options > Repeat > All. Setting Songs to Shuffle 1 From the media screen, select Options > Shuffle. 2 If necessary, select an option.

  • Page 146: Radio

    Radio For instructions on connecting an AM/FM antenna, see the stereo installation instructions. To listen to SiriusXM radio, you must have the appropriate equipment and subscriptions (SiriusXM Satellite ® Radio, page 138). For instructions on connecting a SiriusXM Connect Vehicle Tuner, see the stereo installation instructions.

  • Page 147: Setting The Dab Tuner Region

    Setting the DAB Tuner Region You must select the region you are in to receive DAB stations properly. 1 From the media screen, select Options > Installation > Tuner Region. 2 Select the region you are in. Scanning for DAB Stations NOTE: Because DAB signals are broadcast in select countries only, you must set the tuner region to a location where DAB signals are broadcast.

  • Page 148: Siriusxm Satellite Radio

    SiriusXM Satellite Radio When you have a FUSION-Link capable stereo and SiriusXM Connect Tuner installed and connected to the ™ chartplotter, you may have access to SiriusXM satellite radio, depending on your subscription. Locating a SiriusXM Radio ID Before you can activate your SiriusXM subscription, you must have the radio ID of your SiriusXM Connect Tuner. You can locate the SiriusXM Radio ID on the back of the SiriusXM Connect Tuner, on the back of its packaging, or by tuning your chartplotter to channel 0.

  • Page 149: Setting The Device Name

    Updating the Media Player Software You can update the software on compatible connected stereos and accessories. See the stereo Owner's Manual at support.garmin.com for instructions on updating the software. Audio Return Channel The HDMI Audio Return Channel (ARC) enables you to play the audio from the chartplotter over the stereo system speakers and play HDMI audio on the chartplotter using only one HDMI cable.

  • Page 150: Siriusxm Weather

    You acknowledge and agree that you shall be solely responsible for use of the weather information and all decisions taken with respect to navigating in weather. Garmin will not be responsible for any consequences of using SiriusXM weather information.

  • Page 151: Storm Cell And Lightning Information

    Storm Cell and Lightning Information Storm cell are represented by the icon on the weather precipitation chart. They indicate both the present position of a storm and the projected path of that storm in the immediate future. Red cones appear with a storm cell icon, and the widest part of each cone points in the direction of the projected path of the storm cell.

  • Page 152: Weather Fronts And Pressure Centers

    Weather Fronts and Pressure Centers Weather fronts appear as lines that indicate the leading edge of an air mass. Front Symbol Description Cold front Warm front Stationary front Occluded front Trough Pressure-center symbols often appear near weather fronts. Pressure-Center Description Symbol Indicates a low-pressure center, which is a region of relatively lower pressure.

  • Page 153: Viewing Fish Mapping Data

    Viewing Fish Mapping Data NOTE: This feature requires a GXM 54 antenna and a SiriusXM Fish Mapping service subscription. ™ The Fish Mapping weather chart shows information that can help you locate fish species. 1 Select Charts > Fish Mapping. 2 If necessary, select Options >...

  • Page 154: Viewing Sea Temperature Information

    Viewing Sea Temperature Information The Sea Temperature weather chart shows the present water temperature and present surface pressure conditions. Select Charts > Sea Temperature. Surface Pressure and Water Temperature Data Surface-pressure information appears as pressure isobars and pressure centers. Isobars connect points of equal pressure.

  • Page 155: Viewing Local Weather Information Near A Buoy

    Before you can view video, you must connect to a compatible source. Compatible devices include video devices connected to the ports on the chartplotter or to the Garmin Marine Network, as well as supported network (IP-based) video cameras, encoders, and thermal cameras. Protected HDMI content, HDCP, cannot be shared across the Garmin Marine Network.

  • Page 156: Networked Video Devices

    PoE Isolation Coupler. You can connect multiple supported video cameras and up to two video encoders to the Garmin Marine Network. You can select and view up to four video sources at once. Chartplotters with multiple composite built- in video inputs can display a single built-in video input only.

  • Page 157: Video Settings

    Video Settings Some cameras provide additional setup options. NOTE: Not all options are available on all camera models and chartplotter models. You may need to update the camera software to use this feature. From the video screen, select Options > Video Setup. Set Input: Associates the camera with a video source.

  • Page 158: Configuring The Video Appearance

    • To adjust the color saturation, select Saturation, and select Up, Down, or Auto. • To adjust the contrast, select Contrast, and select Up, Down, or Auto. • To allow the chartplotter to automatically select the source format, select Standard > Auto. Garmin VIRB Action Cameras ®...

  • Page 159: Connecting A Virb Action Camera

    Connecting a VIRB Action Camera You connect a VIRB action camera to the chartplotter using the camera settings. If you are connecting a VIRB 360 camera, connect through the VIRB app (Connecting a VIRB 360 Action Camera, page 148). 1 Set up the chartplotter's Wi‑Fi network (Setting Up the Wi‑Fi Network, page 24).
  • Page 160 Deleting a VIRB Video You can delete a video or image from the VIRB action camera. 1 Open the VIRB video or image to delete. 2 Select Options > Delete File. Starting a VIRB Video Slideshow You can view a slideshow of the videos and images on the VIRB action camera. 1 From the VIRB®...

  • Page 161: Adding The Virb Action Camera Controls To Other Screens

    Adding the VIRB Action Camera Controls to Other Screens Before you can control a VIRB action camera with the chartplotter, you must connect the devices using a wireless connection (Connecting a Wireless Device to the Chartplotter, page 24). You can add the VIRB action camera control bar to other screens. This allows you to start and stop recording from other functions in the chartplotter.

  • Page 162: Hdmi Video Considerations

    You cannot view HDCP content on an external screen. The Garmin GPSMAP HDMI accessory cable is 4.5 m (15 ft) long. If you need a longer cable, you should use an active HDMI cable only. You need an HDMI coupler to connect the two HDMI cables.

  • Page 163: Controlling Hdmi Audio

    1 With the camera within an unobstructed 76 m (250 ft.) of the chartplotter, quickly press three times. 2 On the chartplotter, select Options > Settings > Communications > Wireless Devices > Garmin Camera > Start. 3 Follow the on-screen instructions.

  • Page 164: Surround View Camera System

    Surround View Camera System WARNING Do not solely rely on this system for vessel docking and operation purposes. Objects displayed by the cameras may be closer than they appear. This system is only intended to enhance situational awareness when used properly. If used improperly, you could become distracted by the display.

  • Page 165: Viewing A Camera Feed Full Screen

    Viewing a Camera Feed Full Screen You can switch to a full-screen view any of the live camera feeds. NOTE: You can also view each of the cameras in the surround view camera system in the Video screen. 1 From the surround view camera screen, select the camera you want to view full screen. 2 Select The camera switches to a full-screen view, and you can zoom and pan using the controls.

  • Page 166: Device Configuration

    Device Configuration System Settings Select Options > Settings > System. Sounds and Display: Adjusts the display settings and the audio settings (if available). GPS: Provides information about the GPS satellites and settings. System Information: Provides information about the devices on the network and the software version. Station Information: Adjusts the setup of the station.

  • Page 167: Gps Settings

    You can view the software version, the basemap version, all supplemental map information (if applicable), the software version for an optional Garmin radar (if applicable), and the unit ID number. You may need this information to update the system software or to purchase additional map data information.

  • Page 168: Preferences Settings

    Preferences Settings Select Options > Settings > Preferences. Units: Sets units of measure. Language: Sets the on-screen text language. Navigation: Sets navigation preferences. Filters: Smooths out the values shown in the data fields, which can decrease the noise or show longer term trends.
  • Page 169 Clearance settings, the section of the Auto Guidance path appears as a solid orange line or a red striped line in Garmin LakeVü g4 and BlueChartg4 Vision charts and appears as a magenta and gray striped line in previous versions. When your boat enters one of those areas, a warning message appears (Route Color Coding, page 48).
  • Page 170 Adjusting the Distance from Shore The Shoreline Distance setting indicates how close to the shore you want the Auto Guidance line to be placed. The Auto Guidance line may move if you change this setting while navigating. The available values for the Shoreline Distance setting are relative, not absolute.

  • Page 171: Communications Settings

    • To support the input or output of standard NMEA 0183 data for most AIS receivers, select NMEA High Speed. • To support the input or output of Garmin proprietary data for interfacing with Garmin software, select Garmin. 4 Repeat steps 2 and 3 to configure additional input or output ports.

  • Page 172: Marine Network

    Marine Network The Marine Network allows you to share data from Garmin peripheral devices with the chartplotters quickly and easily. You can connect a chartplotter to the Marine Network to receive data from and share data with other devices and chartplotters that are compatible with the Marine Network.

  • Page 173: Sonar Alarms

    Sonar Alarms WARNING The sonar alarms feature is a tool for situational awareness only and may not prevent grounding in all circumstances. It is your obligation to ensure safe operation of the vessel. CAUTION The Beeper setting must be turned on to make alarms audible (Sounds and Display Settings, page 156).

  • Page 174: My Vessel Settings

    My Vessel Settings NOTE: Some settings and options require additional charts or hardware. Select Options > Settings > My Vessel. Transducers: Shows all transducers on the network, allows you to change transducers, and allows you to view diagnostic information (Selecting the Transducer Type, page 78).

  • Page 175: Setting The Keel Offset

    Setting the Keel Offset You can enter a keel offset to compensate the water depth reading for the transducer installation location. This allows you to view the depth of the water below the keel or the true depth of the water, depending on your needs.

  • Page 176: Setting The Water Temperature Offset

    3 Select if the transducer is installed at the water line, or select if the transducer is installed at the bottom of the keel. 4 Enter the distance measured in step 1. Setting the Water Temperature Offset The temperature offset compensates for the temperature reading from a temperature sensor or temperature- capable transducer.

  • Page 177: Calibrating A Water-Speed Device

    4 If the message appears again, stop the boat, and ensure the speed-sensor wheel is not stuck. 5 If the wheel turns freely, check the cable connections. 6 If you continue to get the message, contact Garmin product support. Other Vessels Settings...

  • Page 178: Settings That Are Synced On The Garmin Marine Network

    Settings that are Synced on the Garmin Marine Network Garmin ECHOMAP and GPSMAP chartplotters sync certain settings when connected to the Garmin Marine ™ Network. The following settings are synced, if applicable, to the device. Alarm Settings (also syncs alarm acknowledgment): •...

  • Page 179: Restoring The Original Chartplotter Factory Settings

    • To clear saved data and reset device settings to the factory default values, disconnect the chartplotter from the Garmin Marine Network, and select Delete Data and Reset Settings. This does not affect maps or software updates. Sharing and Managing User Data WARNING This feature allows you to import data from other devices that may have been generated by third parties.

  • Page 180: Copying User Data To A Memory Card

    (Memory Cards, page 10). 2 Open the Garmin Express application. If you do not have the Garmin Express application installed on your computer, you can download it from garmin.com/express. 3 If necessary, register your device (Registering Your Device Using the Garmin Express App, page 172).

  • Page 181: Saving System Information To A Memory Card

    Control the chartplotter with Garmin Helm Garmin Express App The Garmin Express desktop app allows you to use your computer and a memory card to download and update Garmin device software and charts and register your devices. We recommend it for larger downloads and updates for faster data transfer and to avoid possible data charges with some mobile devices.

  • Page 182: Installing The Garmin Express App On A Computer

    The Garmin Express application searches the memory card for the device information. 12 Select Add Device to register the device. When registration is complete, the Garmin Express application searches for additional charts and chart updates for your device. When you add devices to the chartplotter network, repeat these steps to register the new devices using the Garmin Express app.

  • Page 183: Updating Your Charts Using The Garmin Express App

    You can use the ActiveCaptain mobile app to update the device software (Updating Software with the ActiveCaptain App, page 22). You can also use the Garmin Express desktop app to update your chartplotter software (Loading the New Software on a Memory Card Using Garmin Express, page 174).
  • Page 184 Loading the New Software on a Memory Card Using Garmin Express You can copy the software update to a memory card using a computer with the Garmin Express app. This device supports up to a 32 GB memory card, formatted to FAT32 with speed class 4 or higher. Use of an 8 GB or larger memory card with speed class 10 is recommended.

  • Page 185: Nmea 0183 With Audio Cable Pinout

    Fusion stereos. You can purchase this cable from garmin.com or your local Garmin dealer. After installing the cable, you can connect the RCA connectors to the AUX input of the stereo. The HDMI input is then output to the stereo.

  • Page 186: Touchscreen Controls For A Connected Computer (Mfd Models)

    HDMI IN port. To control the computer, you must connect the computer to the USB port. The Garmin HDMI accessory cable (010-12390-20) is 4.5 m (15 ft) long. If you need a longer cable, you should use an active HDMI cable only. You need an HDMI coupler to connect the two HDMI cables.

  • Page 187: Touchscreen Controls For A Connected Computer (8700 Model)

    You need an HDMI coupler to connect the two HDMI cables. The Garmin OTG Adapter Cable (010-12390-11) is 1.8 m (6 ft) long and the Garmin USB Cable (010-12390-10) is 4.5 m (15 ft) long. If you need a longer cable, you should use a USB hub or USB repeater extension cable only.

  • Page 188: Controlling A Computer With The Chartplotter

    NMEA 2000 network connection. Before you can pair the GRID device with the chartplotter, you must connect it to the Garmin Marine Network. 1 Select Options > Settings > System > Station Information > GRID™ Pairing > Add.

  • Page 189: Viewing Images On A Memory Card

    1 Remove the memory card from the chartplotter, and insert it into a card reader that is attached to a computer. 2 From Windows Explorer, open the Garmin\scrn folder on the memory card. 3 Copy a .bmp file from the card and paste it to any location on the computer.

  • Page 190: My Device Will Not Turn On Or Keeps Turning Off

    To check the voltage, measure the female power and ground sockets of the power cable for DC voltage. If the voltage is less than 12 Vdc, the device will not turn on. • If the device is receiving enough power but does not turn on, contact Garmin product support. My device is not creating waypoints in the correct location You can manually enter a waypoint location to transfer and share data from one device to the next.

  • Page 191: Specifications

    Polycarbonate plastic and die-cast aluminum IEC 60529 IPX7 The device withstands incidental exposure to water of up to 1 m for Water rating up to 30 min. For more information, go to www.garmin.com/water­ rating. Fuse 10 A, 125 V fast-acting Input voltage From 10 to 32 Vdc Max.

  • Page 192: Gpsmap 8X12 Specifications

    Polycarbonate plastic and die-cast aluminum IEC 60529 IPX7 The device withstands incidental exposure to water of up to 1 m for Water rating up to 30 min. For more information, go to www.garmin.com/water­ rating. Fuse 10 A, 125 V fast-acting Input voltage From 10 to 32 Vdc Max.

  • Page 193: Gpsmap 8X16 Specifications

    Polycarbonate plastic and die-cast aluminum IEC 60529 IPX7 The device withstands incidental exposure to water of up to 1 m for Water rating up to 30 min. For more information, go to www.garmin.com/water­ rating. Fuse 10 A, 125 V fast-acting Input voltage From 10 to 32 Vdc Max.

  • Page 194: Gpsmap 8X17 Specifications

    Polycarbonate plastic and die-cast aluminum IEC 60529 IPX7 Water rating The device withstands incidental exposure to water of up to 1 m for up to 30 min. For more information, go to www.garmin.com/waterrating. Fuse 15 A Input voltage From 10 to 35 Vdc Max.

  • Page 195: Gpsmap 8X22 Specifications

    Polycarbonate plastic and die-cast aluminum IEC 60529 IPX7 Water rating The device withstands incidental exposure to water of up to 1 m for up to 30 min. For more information, go to www.garmin.com/waterrating. Fuse 15 A Input voltage From 10 to 35 Vdc Max.

  • Page 196: Gpsmap 8X24 Specifications

    Polycarbonate plastic and die-cast aluminum IEC 60529 IPX7 Water rating The device withstands incidental exposure to water of up to 1 m for up to 30 min. For more information, go to www.garmin.com/waterrating. Fuse 15 A Input voltage From 10 to 35 Vdc Max.

  • Page 197: Gpsmap 8700 Specifications

    Sonar depth 5,000 ft. at 1 kW The device withstands incidental exposure to water of up to 1 m for up to 30 min. For more information, go to www.garmin.com/waterrating. Dependent upon the transducer. Dependent upon the transducer rating and depth.

  • Page 198: Nmea 2000 Pgn Information

    NMEA 2000 PGN Information Transmit and Receive Description 059392 ISO acknowledgment 059904 ISO request 060160 ISO transport protocol: Data transfer 060416 ISO transport protocol: Connection management 060928 ISO address claimed 065240 Commanded address 126208 Request group function 126996 Product information 126998 Configuration information 127237...
  • Page 199 Description 130312 Temperature (obsolete) Transmit Description 126464 Transmit and receive PGN list group function 126984 Alert Response 127497 Trip parameters: Engine Receive Description 065030 Generator average basic AC quantities (GAAC) 126983 Alert 126985 Alert text 126987 Alert threshold 126988 Alert value 126992 System time 127251...
  • Page 200 Description 129799 Radio frequency/mode/power 129802 AIS safety-related broadcast message 129808 DSC call Information 129809 AIS class B "CS" static data report, part A 129810 AIS class B "CS" static data report, part B 130313 Humidity 130314 Actual pressure 130316 Temperature: Extended range 130576 Trim tab status 130577...

  • Page 201: J1939 Information

    J1939 Information The chartplotter can receive J1939 sentences. The chartplotter cannot transmit over the J1939 network. Description Engine percent load at current speed 61443 Engine speed 61444 Engine manifold exhaust gas temperature - right manifold 65031 2433 Engine manifold exhaust gas temperature - left manifold 65031 2434 Engine auxiliary coolant...

  • Page 202: Nmea 0183 Information

    NMEA 0183 Information Transmit Sentence Description GPAPB APB: Heading or track controller (autopilot) sentence "B" GPBOD BOD: Bearing (origin to destination) GPBWC BWC: Bearing and distance to waypoint GPGGA GGA: Global positioning system fix data GPGLL GLL: Geographic position (latitude and longitude) GPGSA GSA: GNSS DOP and active satellites GPGSV...
  • Page 203 Sentence Description Heading, magnetic Wind direction and speed Meteorological composite Wind speed and angle AIS VHF data-link message You can purchase complete information about National Marine Electronics Association (NMEA) format and sentences from www.nmea.org. Appendix...

  • Page 204: Index
