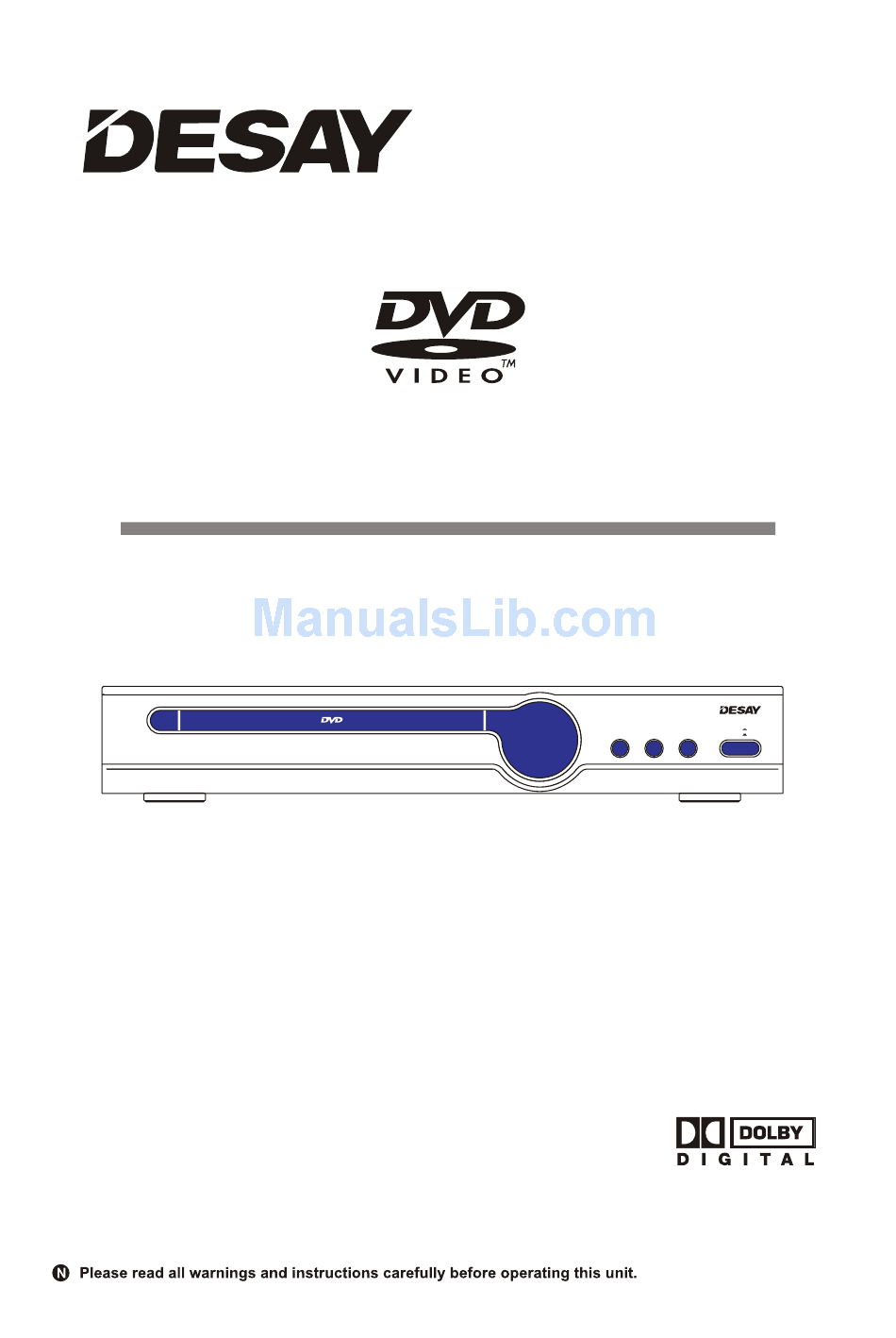

OWNER'S MANUAL
MODEL:DS-5701
ON
OPEN/CLOSE
PLAY/PAUSE
STOP
POWER
OFF
DS-5701
DVD/CD/MP3/CD-R/CD-RW/JPEG/KODAK PICTURE CD PLAYER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-5701 and is the answer not in the manual?

Questions and answers

Summary of Contents for Desay DS-5701

  • Page 1 OWNER'S MANUAL MODEL:DS-5701 OPEN/CLOSE PLAY/PAUSE STOP POWER DS-5701 DVD/CD/MP3/CD-R/CD-RW/JPEG/KODAK PICTURE CD PLAYER...
  • Page 2: Table Of Contents

    BEFORE USE Safety Precautions Important Safety Instructions Notice Disc Protection Playable Discs Accessories CONTROL and CONNECTION Panel Basic connection Remote control BASIC PLAYBACK Preparations Basic Playback Stop Playback Previous and Next Fast forward and Fast reverse Pause/Step Playback Advanced Playback V.MODE TABLE OF CONTENTS SUBTITLE...
  • Page 3: Safety Precautions

    WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE, DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET, REFER SERVICING TO QUALIFIED PERSONNEL ONLY. CAUTION: When replace the direct plug in power supply or a separable, cord-connected power supply, the replacement must be exact duplicate, or one recommended by the manu- facturer.
  • Page 4: Notice

    In case of 525 or 625 progressive scan picture problems, it is recommended that he used switch the connection to the "standard definition" output. If there are questions regarding our TV set compatibility with this model 525p and 625p DVD player, please contact our customer service centre.
  • Page 5: Important Safety Instructions

    CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS MANUAL AND THOSE MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE. This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard.
  • Page 6: Disc Protection

    The pickup may be condensed with water under the following situation.
  • Page 7: Playable Discs

    The performance of recorded disc is depend on the method and quality of disc-burning. In some cases, the disc may not be played. ACCESSORIES Audio/Video cable ... Remote control ... Owner's manual ... PLAYABLE DISCS and ACCESSORIES OWNER'S MANUAL MODEL:DS-5701 OPEN/CLOSE PLAY/PAUSE STOP POWER DS-5701 DVD/CD/MP3/CD-R/CD-RW/JPEG/KODAK PICTURE CD PLAYER Owner's manual...
  • Page 8: Rear Panel Output

    MODEL:D S-5701 AC: 110V-240V~ 50/60Hz S/N: POWER: 15W 1. 2 CHANNELS OUTPUT 2. S-VIDEO OUTPUT 3. COAXIAL OUTPUT DS-5701 4. PLAY/PAUSE 5. STOP 6. POWER SWITCH Tested To Comply CLASS 1 LASER PRODUCT With FCC Standards For Home or Office Use...
  • Page 9: Basic Connection

    To video input(yellow) To audio inputs(red, white) If the TV has an S-video input, connect the DVD player with an S-video cable. When using an S-video cable, do not connect the yellow video cable. Connecting to a audio system and TV equipped with YUV video input...
  • Page 10: Remote Control

    REMOTE CONTROL STANDBY MENU OPEN/CLOSE V.MODE SUBTITLE TITLE/PBC ANGLE SEARCH SETUP ZOOM PROG PREV F.REV F.FWD NEXT STOP VOLUME PAUSE/STEP MUTE REPEAT A-B RPT AUDIO Loading Batteries Function 1. OSD(On Screen Display) 2. STANDBY 3. V.MODE 4. SUBTITLE 5. TITLE/PBC 6.
  • Page 11: Basic Playback

    Basic playback 1. Press POWER switch on the front panel to ON, the DVD player turns on, the TV screen will display the start logo and DVD indicator light. If a disc is already in the tray, it will begin to play once the power is on.
  • Page 12: Advanced Playback

    IMPORTANT NOTE: ALL DESCRIBING FUNCTION IS FOR DVD DISCS. IF YOU PLAY OTHER FORMAT DISC, THE OPERATION AND DISPLAY ON SCREEN WILL BE DIFFERENT. Press this button and the screen will display some information about disc, such as : " Title Elapsed " , "...
  • Page 13: Audio

    AUDIO CHANNEL CHOOSE Press this button on remote control to change the mode of audio. For example: Audio 1/2: AC 3 2 CH English Audio 2/2: AC 3 5.1 CH English MP3 PLAYBACK KODAK PICTURE CD DISC PLAYBACK When playing Kodak Picture CD disc, a navigation menu will be displayed automatically if the disc is loaded in succession.
  • Page 14: General Setup Page

    When you press SETUP key on the remote control, the setup menu will be displayed. 1.Within the setup menu, you can use UP, DOWN, LEFT and RIGHT buttons on the remote control to move the cursor, and then press the ENTER/PLAY button to make your selection.
  • Page 15: Dual Mono

    This DVD player includes three kinds of audio output: 1. SPDlF OFF: An analog surround sound format is output through the back-paneI connections for 2-CH audio out or 5.1 CH audio out. 2. SPDlF/RAW or SPDIF/PCM: This surround sound format is output to a Dolby Digital / DTS decoder through the optical and coaxial connectors on the back-panel of the product.
  • Page 16: Video Setup Page

    4. VIDEO SETUP PAGE 4.1 COMPONENT COMPONENT: Sets the video output. Dolby General Audio Video Video Setup Page Component CVBS CVBS TV Mode Sharpness Brightness Contrast Component 4.2 TV MODE SETUP PAGE TV MODE: Sets the scan mode to same of your TV. Dolby General Audio...
  • Page 17: Preference Setup Page

    4.5 CONTRAST CONTRAST: Sets the contrast level of Video output. Dolby General Audio Video Video Setup Page Component TV Mode Sharpness Brightness Contrast Contrast Press right button the TV will display below. Dolby Audio Video General Contrast Contrast Press LEFT / RIGHT button to adjust, then press ENTER/PLAY button to confirm and return upon menu.
  • Page 18: Password Mode

    Change Password General Audio Old Password New Password Confirm PWD 5.7 DEFAULT DEFAULT: Resets to all the manufacturer's original settings for this DVD player(except password), Press ENTER/PLAY to perform the reset. General Audio Preference Page TV Type Audio Subtitle Disc Menu...
  • Page 19: Trouble Shooting

    Please check the following guide for the possible cause and solution for a problem before contacting the nearest service center or dealer for repairs. SYMPTOMS AND CORRECTIONS SYMPTOMS No power Check to make sure that the power connection is secure. Make sure the connection between the player and the TV is secure.
  • Page 20: Dvd Characteristics

    DVD player is the ticket of your home theater. Every technical index of this machine is far more superior to any previous audio-visual equipment. This completely new digital technology has compressed the audio visual effect of cinema into 12cm diameter disc which is the same in dimension as the CD disc. Especially the Dolby digital output can provide prominent digital surround effect.
  • Page 21: Setting The Tv Screen Size

    SETTING THE TV SCREEN SIZE Multi-aspect ratio suit to different TV screen size. Picture format on Disc Pan Scan 16:9 Functions supported by DVD discs There are many functions available on DVD discs and the functions vary per player and per manufacturer. Regional code and signal system Dolby digital surround sound Number of languages...
  • Page 22: Specification

    System and Outputs VF Signal NTSC/PAL system CD: 20Hz-20KHz(EIAJ) Frequence DVD: 20Hz-44KHz(96KHz)(Sample result) response 20Hz-22KHz(48KHz)(Sample result) Audio S/N ratio > 90 dB MPEG1 V2.0; MPEG2 Video/Picture Audio MPEG LAYER2 standard Audio output Electric level output: 1.8V (analog audio) Audio output Electric level output: 0.5Vp--p (digital audio) Video output...
  • Page 23 1.4301.xxxx--0...
