- Page 1 WhatMiner Immersion Cooling Server Operation Guide V1.0 深圳比特微电子科技有限公司...
-
Page 2: Table Of Contents
content 1.Product Description ........................2 2.Product parameters ........................3 3.Installation location and installation precautions ................. 4 4.Properties and safety requirements of insulating liquid ...............5 5.Network Configuration ........................5 6.Data Configuration（Configuration on the web page） .............. 6 6.1 Query the dynamic IP address obtained by the miner ............6 6.2 Configuration Pool &... -
Page 3: Product Description

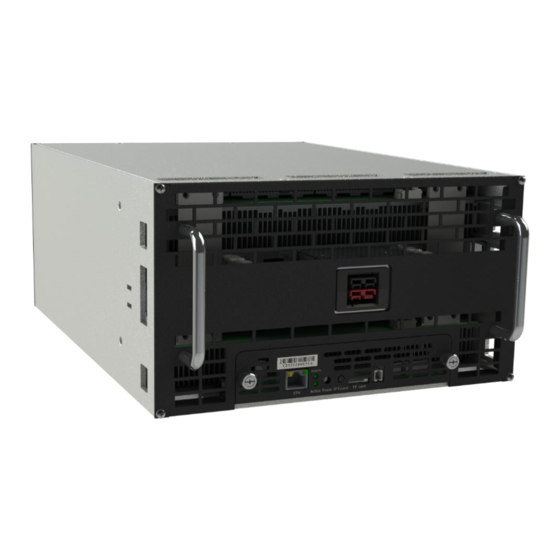

1.Product Description Whatsminer Immersion Cooling Server host model：M36S+、M36S++、M56、M56S、 M56S+、M56S++... This guide takes M56S++ as an example to introduce various operations in detail, and the operations of other models are similar Upper panel... -
Page 4: Product Parameters
Bottom panel ①liquid outlet ②Handle ③Power interface ④Network cable port ⑤Control board ⑥SN ⑦liquid inlet The single-phase liquid-cooled miner adopts the liquid circulation flow method of bottom-in and top-out for heat dissipation. Its control panel, network cable interface, and power line interface are all on the upper panel of the miner, which is convenient for maintenance. -
Page 5: Installation Location And Installation Precautions
the liquid medium uses other types of coolant, the liquid flow parameters need to be calculated separately. Calculation method: In the case of the same calorific value of the miner, the product of liquid specific heat, density, and flow is a fixed value, that is, the flow is inversely proportional to the product of density and specific heat. -
Page 6: Properties And Safety Requirements Of Insulating Liquid
4.Properties and safety requirements of insulating liquid 1) It has good thermodynamic properties (relatively high thermal conductivity, high liquid specific heat value, and low viscosity among similar substances); 2) It should have good chemical and thermal stability relative to the life cycle of the electronic system and the specified working temperature;... -
Page 7: Data Configuration（Configuration On The Web
The miner defaults to DHCP to obtain dynamic IP. Therefore, the mine network must be configured with a DHCP server, or the router can enable DHCP to dynamically allocate the IP address service. The running time of the miner, the correctness of the calculation statistics, etc. depend on the network NTP time. - Page 8 WhatsMinerTools software. Notes： （1）If all the lights on the panel of the control board are not lit after power-on, please check whether the PSU of the 220V power cable and the 16A power cable are reliable and the connection is correct. （2）If the indicator on the right side of the panel of the control board is on, but the network port is not lit, or the green light is not flashing, check whether the switch is normal, the whether network cable connection is reliable.
-
Page 9: Configuration Pool & Worker
6.2 Configuration Pool & Worker （1）After logging in, go to the Configuration - BTMiner Configuration page. （2）In the Configuration - BTMiner Configuration page, modify the mine pool address, mine worker name, and after modifying click “Save & Apply” in the lower right corner to save the modified configuration. -
Page 10: Modify The Ntp Synchronization Server Address (Optional)
（4）Restart the control board and check whether the configuration modification takes effect. (If you do not choose to restart BTMiner, after the configuration is modified and saved, you can also restart the control board to make the configuration take effect.) In the System interface, click ”Reboot”. -
Page 11: Configuration The Static Ip Address (Optional)
6.4 Configuration the Static IP Address (optional) （1）After logging in to the miner, in the miner interface, select: Configuration->Interfaces to enter the network interface configuration interface. （3）In the "Configuration" interface, click "Edit". （4）In the interface modification page, select "Static address" for the protocol and click "Switch protocol". -
Page 12: Miner Operation Status Check
After saving the application, you need to re-use the newly set static IP address to log in to the mining miner (otherwise the page will display as loading until the loading fails). 7.Miner Operation Status Check After the mine is connected to the operation network, log in to the miner and check the running status of the miner. -
Page 13: Batch Configuration
it will automatically perform a frequency search test. The frequency search test phase takes about 40 minutes. After the frequency search is completed, it enters the formal working stage. Computing power for normal operation. If the frequency search is not over, the computing power seen will be lower than the normal operating computing power 8.Batch configuration You can use the WhatsMinerTool software to carry out batch data configuration, status check... -
Page 14: Psu Removal And Installation
（4） The installation of the control board can be reversed according to the removal steps 9.2 PSU removal and installation （1）Power off the device first，Unscrew the four screws on the panel, and then unscrew the four screws on the side；... - Page 15 （2）Open the panel, unplug the power cable and the black ribbons （3）Unscrew the screw on the copper plate of the PSU Pull up the handle of the PSU, buckle the buckle of the PSU, lift up with both hands, and the PSU can be disassembled...
- Page 17 （5）The installation of the psu can be reversed according to the removal steps...
