2246BN/2246EBN
Facial Chair
Welcome to use our products. A1
Please read the user manual carefully before using the products.
Our company reserves the right to improve design and modify
the products without prior notice.
ExamTablesDirect.com
Shop tables & accessories at

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2246EBN and is the answer not in the manual?

Questions and answers

Related Manuals for SilverFox 2246EBN

Summary of Contents for SilverFox 2246EBN

  • Page 1 2246BN/2246EBN Facial Chair Welcome to use our products. A1 Please read the user manual carefully before using the products. Our company reserves the right to improve design and modify the products without prior notice. ExamTablesDirect.com Shop tables & accessories at...

  • Page 2: About This Manual

    This manual shall only be used for the reference of operation of this particular model. If the manual is used for other purposes, SILVERFOX will not undertake any according consequences and responsibility. All information of this manual shall be protected by copyright and shall not be copied and translated in any part of this specification without the written consent of our company SILVERFOX.
  • Page 3 4. I n s t a l l a t i o n 1. Put the product to a proper location, according to the overall layout, the daylighting or artificial lightings and operation condition of the salon's or the home. And keep it in the clean, dry and cool environment. 2.

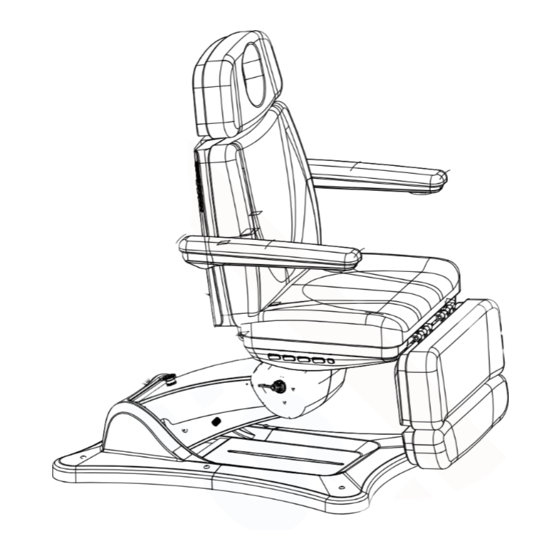

  • Page 4 This product includes angle adjustment of the backrest, angle adjustment of the seat cushion and lifting adjustment which is an overall and integral structure. (As shown in the photo) 2246EBN 2246BN angle adjustment of the backrest lifting adjustment angle adjustment of the seat...
  • Page 5 6. Operation Instruction 2246BN/2246EBN Standard Configuration (Key Switches) Press button right (left), backrest moves up (down), angle increases (decreases) at a constant speed. Press button right (left), seat moves up (down), height increases (decreases) at a constant speed. Press button right (left), seat inclines backward.
  • Page 6 Memory/Programmable postion setting: After adjusting the chair to the requested position, press "M2" button for 2~3seconds, when there is sound of "beep...beep...beep", it means the position is set successfully. 2246EBN ExamTablesDirect.com Shop tables & accessories at...

  • Page 7: Adjustable Headrest

    Keep pressing the “safe-lock button” for about two seconds, lighting up the red light around the button, all the buttons can not be operated except safe-lock button. Keep pressing the safe-lock button for about two seconds again, the red button lights go out, all the buttons return to normal operation status.

  • Page 8: Lighting Adjustment

    Lighting adjustment The adjustment is controlled by buttons on backrest and seat. 1. Short press the button " " to enter the lighting adjustment mode. The light around the buttons will rapidly blink. 2. Press the button "M1" to change the color(total 16 kinds of modes） 3.

  • Page 9: Operation Cautions

    7. Operation Cautions Should disassemble foot extendor before bed goes to the lowest position Please do not sit on the backrest/footrest or jump to the backrest/footrest, avoid the risk of falling due to excessive force fracture of the backrest/footrest joint Emergency Switch Allows the operator to immediately stop the bed in case of an unexpected situation ExamTablesDirect.com...
  • Page 10 Guidelines：Replace the Rotary Table Block Handle rubber sleeve Handle rubber sleeve screws Seat covers Loosen the screws of the handle rubber sleeve, pull out the handle rubber sleeve Plastic Screws Pull out the plastic screws, remove the seat covers Quick Clip Screws Rotary Table Block Fillister...
  • Page 11 Guidelines: Cushion Replacement Seatrest: Backrest: Adjust the legrest and backrest as picture. Then pull Pull up on the end of Backrest (near the seat up the end of Seatrest (near the legrest) in direction 1 cushion). Then push it forward to remove the and push it in direction 2, easily remove the cushion cushion Fixed Footrest:...

  • Page 12: Technical Parameters

    8. Technical Parameters AC 100-120V or AC 220-240V or AC 100-240V,50/60Hz Power Maximum Power 300W 0℃ ~ + 40℃ Environment Temperature 30% ~ 90% Relative Humidity Lifting Rated Load 200kg Package Size 140×78×58cm Rotary -120~+120° ExamTablesDirect.com Shop tables & accessories at...

  • Page 13: Maintenance

    1810 9. Maintenance 1. After every treatment, please only use neutral solution to clear the dust, stains on leather, metal part or other parts. Disinfecting solution like alcohol, acid or alkaline solution are forbidden. This is to prevent the lifetime of the components from being shortened. 2.
  • Page 14 10. Circuit System Connection Diagram 2246BN Circuit System Diagram Backrest motor Seatrest motor Footrest motor height motor Power C-012 Control box Control panel EMIModule input circuit board Seat Backrest Key switches Key switches Hand control Function switches ExamTablesDirect.com Shop tables & accessories at...
  • Page 15 10. Circuit System Connection Diagram 2246EBN Circuit System Diagram Backrest motor Seatrest motor Footrest motor height motor Power C-012 Control box Control panel EMIModule input circuit board Seat Backrest Key switches Key switches Foot control Hand control divider Function switches Foot control ExamTablesDirect.com Shop tables &...

  • Page 16: Troubleshooting

    12. Troubleshooting The Fault Phenomenon Reason Solution 1. The power cord is unconnected or Connect the power cord or plug it well. not plugged well. Replace the hand controller or foot 2. Poor quality of the hand controller controller. or foot controller. 3.
