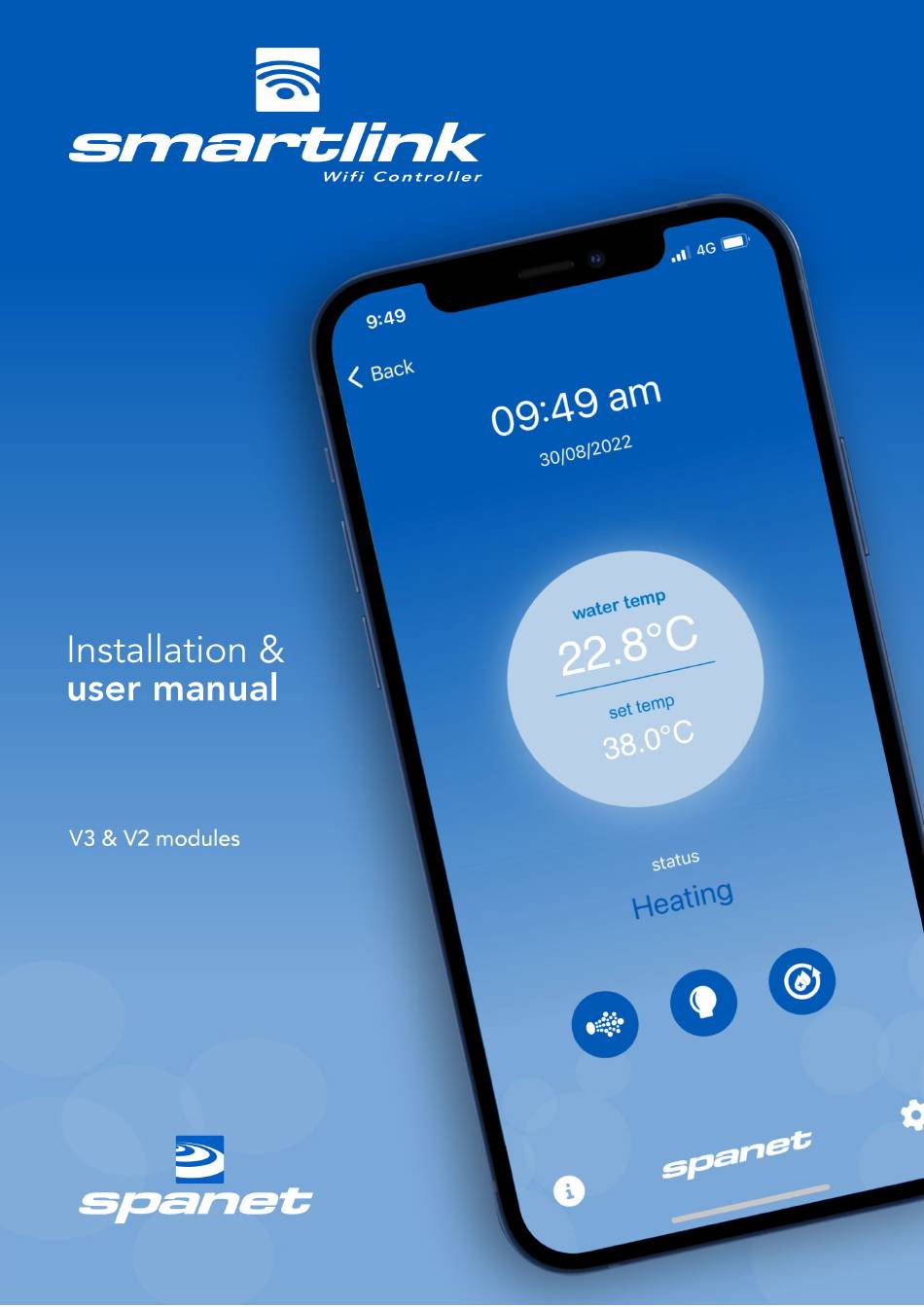

Smartlink V2 Installation & User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V2 and is the answer not in the manual?

Questions and answers

Related Manuals for Smartlink V2

Summary of Contents for Smartlink V2

  • Page 2: Table Of Contents

    Install the SmartLink App ........................ 10 Register a user account ........................10 Sign in with Apple ID or Goggle Account ................... 11 SmartLink App setup process ......................11 V3 module app setup ........................11 V2 module app setup (Apple ® iOS Devices) ................14 V2 module app setup (Android Devices) ..................

  • Page 3: Introduction

    Android™ device to ® connect to and take control of your spa remotely from any location at any time. The SmartLink module connects to any model SV controller and then uses your home WiFi network to facilitate communication between the app server and the spa. The SmartLink app becomes a mobile, wireless remote for your spa, enabling complete control of all settings and accessories including pumps, blowers and LED lights.

  • Page 4: Module Overview

    Bluetooth functionality making the initial app setup process slightly faster and easier, once the app setup is complete, either of the V2 or V3 modules will perform equally well on our app servers providing you finger-tip remote control of your spa pool.

  • Page 5: Module Installation

    The SmartLink module has been designed as an external unit, so if WiFi strength is weak or your module has not been pre-fitted to your spa, please consider the below points before determining your final installation location.
  • Page 6 Step 3: Connect data cable to EXP1 socket on SV Series Spa Control Note: If EXP1 socket already populated, remove that cable from EXP1 and connect it to the LOOP socket inside module. Ensure data cable coming from SmartLink connects directly to EXP1 socket V.2303...

  • Page 7: Wifi Internet Access

    Know your SSID name and router password Before beginning the SmartLink App setup process you must be aware of your WiFi router’s SSID (network name) and password. Failure to have these login credentials on hand whilst you are beside the spa completing the setup process may lead to a failed setup.

  • Page 8: Wifi Signal Strength

    WiFi signal strength is extremely important for reliable communication between the SmartLink WiFi module and your router. A strong WiFi signal to the SmartLink will result in the app being stable, respond faster and the spa will remain online. A weak WiFi signal can cause the app to respond slowly, timeout or cause the spa to drop offline.

  • Page 9: V3 Modules

    V3 modules Associated (Red LED) On – module is receiving 12V power Off – Data cable disconnected or no 12V power Data Transfer (Blue LED) On or Flashing – data is being transferred Connection Status (Green, Purple, Blue or Flashing LED) Green –...

  • Page 10: Install The Smartlink App

    The SmartLink App is available for both Apple ® or Android™ devices. Open App Store or Google Play and search, “Spanet Smartlink” or use the QR codes below. Register a user account With the SmartLink App now installed you need to...

  • Page 11: Sign In With Apple Id Or Goggle Account

    SmartLink WiFi module with your router’s login credentials (SSID and password) for Internet access and links the spa to your user account on the SmartLink Servers. Unless your router login credentials change, you won’t need to run the setup process again.
  • Page 12 Step 3: Press on the SmartLink V3 module Step 2: Ensure you know your WiFi password picture to begin setup. or have it with you and press Begin. Step 4: (Apple ioS) Bluetooth is required for Step 4: (Android ) Bluetooth is required for ®...
  • Page 13 Step 6: Select WiFi network to connect to. Step 5: Select SV-Wifi-V3.1 module to start scanning for nearby WiFi networks. Note: If no WiFi network found, relocate Note: If no WiFi network found, relocate module to a better position and use the...

  • Page 14: V2 Module App Setup (Apple ® Ios Devices)

    Now setup is complete you will be returned Assuming your WiFi network signal was to the spa list page, where the spa instance reasonable, and password entered correctly, will be displayed as offline. after a short period the spa will show online. Note: If you only have one spa, or if you wish the app to automatically open to the dashboard page of a particular spa (where multiple spas are listed on the one account) rather than opening to...
  • Page 15 Step 3: Press on the SmartLink V1 or V2 Step 2: Ensure you know your WiFi password or have it with you and press Begin. module picture to begin setup. Step 4: You are prompted to use the spa Learn More: Provides instructions on how...
  • Page 16 Step 8: Once connected to the SVx-xxxxxx connect to the SVx-xxxxxxx or SVMx-xxxxxxx network and “No Internet Connection” network and wait for a short period. appears, press or slide the Apple ® Home button to switch back to the SmartLink app. V.2303 Page | 16...
  • Page 17 “Keep Trying Wi-Fi” Note: If no WiFi network found, relocate SmartLink module to a better position and use the refresh button to conduct a new WiFi scan to see if signal has improved. Signal strengths closer to 0 are stronger V2 modules require a minimum signal strength of -70dB for reliable operation.
  • Page 18 WiFi settings. Do NOT press Next. ® Note: Take care when entering password, the SmartLink module or app cannot check or verify If password is incorrect, you must the password. delete the spa and start the setup process again. V2 modules DO NOT support the % character or spaces in the password.
  • Page 19 Step 16: Press Next to proceed to the final Step 17: Enter name for your spa then press step of naming your spa. Continue, then Finish to complete setup. Now setup is complete you will be returned Assuming your WiFi network signal was to the spa list page, where the spa instance reasonable, and password entered correctly, will be displayed as offline.

  • Page 20: Tm Devices)

    WiFi network or 4G/5G mobile data. If these smart features remain enabled, during certain parts of the setup process the phone will deem the V2 SmartLink network weak, the connection will be dropped, causing the app to crash or hang.
  • Page 21 Step 2: Ensure you know your WiFi password Step 3: Press on the SmartLink V1 or V2 or have it with you and press Begin. module picture to begin setup. Step 4: You are prompted to use the spa Learn More: Provides instructions on how...
  • Page 22 Step 5: Once you have executed the HOT Step 6: You are prompted to connect to the command via the spa keypad and display SV WiFi network. Press Next to launch has returned to temp reading press Next. directly into your Android WiFi settings.
  • Page 23 Step 10: Select WiFi network to connect to. icon to check it is correct before saving. Note: If no WiFi network found, relocate SmartLink module to a better position and Note: Take care when entering password, use the refresh button to conduct a new WiFi the SmartLink module or app cannot check scan to see if signal has improved.
  • Page 24 Step 14: Once reconnected to your home your phone has reconnected to your home WiFi network, press the Android Back WiFi network. If this has not occurred button to return to the SmartLink app. automatically, manually select it. V.2303 Page | 24...
  • Page 25 Step 15: Enter name for your spa then press Now setup is complete you will be returned Continue, then Finish to complete setup. to the spa list page, where the spa instance will be displayed as offline. Assuming your WiFi network signal was Enable default spa slider to auto launch to reasonable, and password entered correctly, spa dashboard and skip this page each time...

  • Page 26: Myspapool Voice Control

    MySpaPool Voice Control The MySpaPool vocal skill allows you to control any spa pool fitted with our SmartLink module by voice commands. Available on both Google Assistant and Amazon Alexa platforms, you can now ® ® talk to your spa to activate accessories and alter settings or ask it questions about active modes, settings and status.

  • Page 27: Step 2: Set Google ® Assistant Pin Within Smartlink App

    To meet new Google security requirements, you must set a pin number for the Google Assistant voice action to work. From within the SmartLink app Setting list once again tap on the Google Assistant option and set a four digit pin.

  • Page 28: Step 4: Link Your Spa To Myspapool Action

    Once the account has been linked, the final step is to choose which spa to issue commands to. Say, “List my spa”, and Google will then list the name(s) of any spa setup on your SmartLink app. Please select the spa number and not the spa name for Google to recognise your preference.

  • Page 29: Step 2: Search The My Spa Pool Skill

    Step 2: Search the My Spa Pool skill Open the Amazon Alexa app using your smart phone, then using the menu bar of the app, navigate to Skills & Games, then in the search bar type “my spa pool” then tap on it to select. V.2303 Page | 29...

  • Page 30: Step 3: Link Your Amazon ® Alexa Tm App To Myspapool Skill

    Using either the Amazon Alexa app or an Alexa device, start by saying, “Hey Alexa... ask my spa pool... list my spa”. and Alexa will then list the name(s) of any spa setup on your SmartLink app. Please select the spa number and not the spa name for Alexa to recognise your preference.
