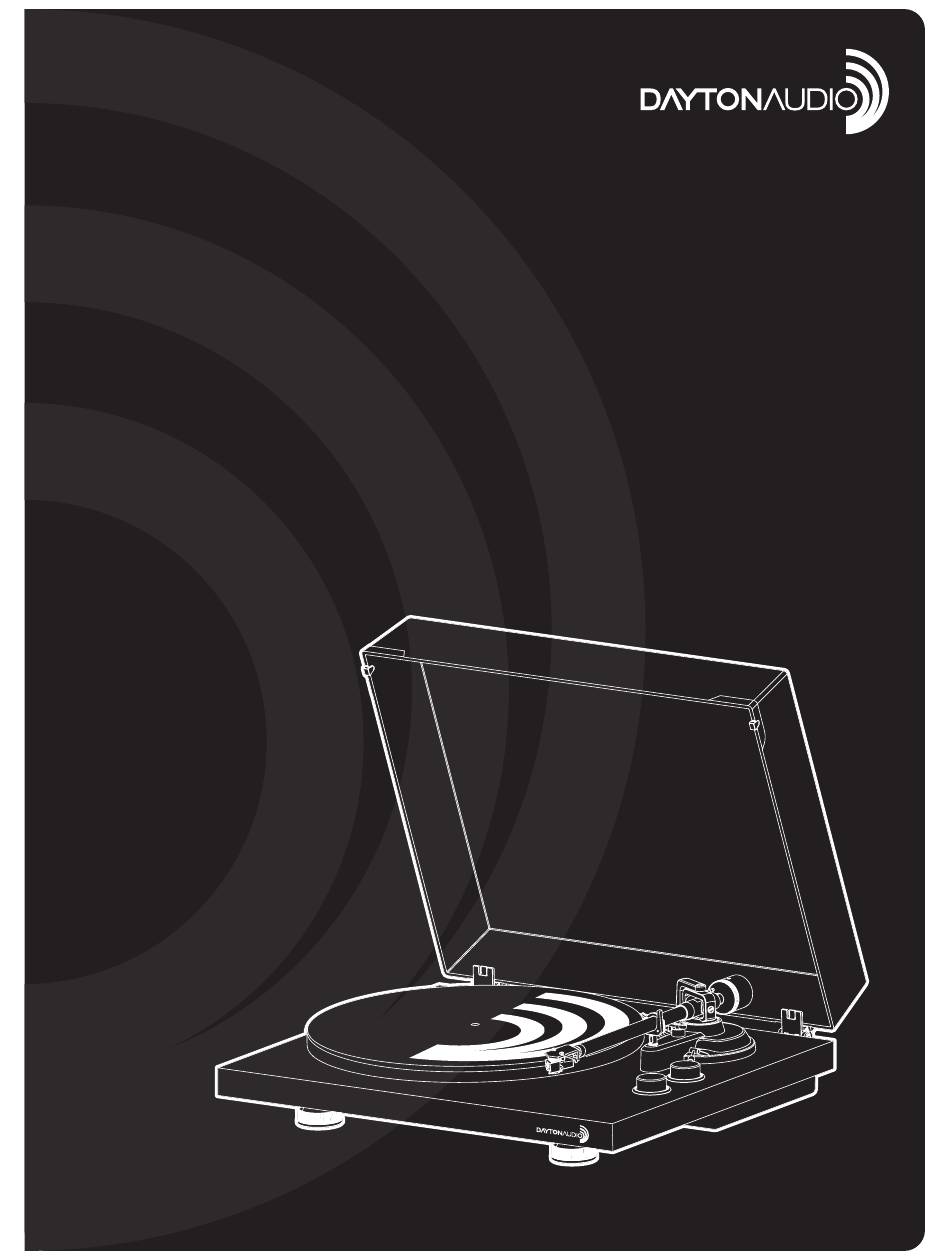

- Page 1 HIGH FIDELITY BELT DRIVE TURNTABLE WITH UNIVERSAL TONEARM/HEADSHELL Model: TT-1BTB / TT-1BTW User Manual...
- Page 2 Safety Information IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified personnel. To reduce the risk of fire and shock do not expose unit to rain or moisture. The unit should be connected to an earth grounded AC electrical socket.
-
Page 3: Table Of Contents
Welcome Thank you for purchasing The Dayton Audio TT-1BT Turntable. This belt drive turntable can play 33-1/3RPM and 45RPM records and can connect to any audio system with a variety of outputs. Before using this product, read through the entire user manual to ensure proper setup and operation. Please keep this manual for future reference. Contents Controls and Functions .............................. -
Page 4: Controls And Functions
Controls and Functions Top Panel • • • STOP • START 1. Turntable Plinth 3. Turntable Platter 5. Speed Selection Dial 2. Motor Pulley 4. Tonearm Assembly (p.5) 6. Start/Stop Dial Rear Panel DC IN PHONO LINE USB-PC 1. Dust Cover 4. -
Page 5: Tonearm Assembly
Tonearm Assembly 1. Antiskating Weight 2. Antiskating Weight Wire Support 3. Counterweight 4. Tracking Forge Gauge Ring 5. Antiskate Stub 6. Tonearm Lift 7. Tonearm Lift Control Lever 8. Tonearm Locking Ring 9. Tonearm 10. Headshell and Cartridge... -
Page 6: Setup
Setup The initial setup of your new turntable should take about five minutes. Follow the instructions in this manual or you can view our handy how-to video at daytonaudio.com/topic/turntablesetup Useful Tip The turntable should be positioned on a low-resonance surface such as wood or multiple-layer plywood board to avoid structural vibrations disturbing playback. -
Page 7: Cartridge Downforce Adjustment
Remove the red ribbon from the belt. Place the felt slipmat on top of the platter. Placing records directly on the aluminum platter is not recommended. The felt slipmat is reversible and can be used with the Dayton Audio logo facing up or down. Cartridge Downforce Adjustment The counterweight needs to be adjusted to ensure that the cartridge applies the proper force to the record. - Page 8 Remove the cartridge protection cap, tie-wrap, and unlock the tonearm. Lower the tonearm lift and position the cartridge in the space between the tonearm rest and the platter. Carefully rotate the counterweight until the tonearm achieves a neutral, level balance. The tonearm should return to the balanced position if it is moved up or down.
-
Page 9: Anti-Skating Force Adjustment
Anti-Skating Force Adjustment The anti-skating weight is designed to keep a properly balanced tonearm and counterweight from drifting to the center of the record improperly. Properly setting the anti-skate mechanism will provide a clear and balanced stereo image from your records. The directions here are designed for use with the supplied AT-VM95E cartridge. Slip the looped end of the line over the anti-skating weight adjustment stub and into Groove 3 (the correct anti- skating force for the factory-fitted AT-VM95E cartridge). -
Page 10: Output Connections
Output Connections Phono and Line Outputs This product has a built-in phono equalizer function. The turntable can be used with any amplifier regardless of whether it was a phono input or not. Use The Phono-Line Out Switch as follows Connected Device being Used Position of Phono-Line Out Switch Device with phono Input Phono... -
Page 11: Bluetooth Connection
Bluetooth Connection The TT-1BT has a built-in Bluetooth transmitter for connecting to any Bluetooth headphones, speakers, or other receivers. To pair the TT-1BT to your Bluetooth device, first make sure that the device is turned on and in pairing mode and that the TT-1BT is powered off. -
Page 12: Operation
Operation Before Playing a Record 1. Remove the cartridge’s protector. 2. Turn the power switch to the ON position. 3. Place the record on the platter so that the center hole aligns with the spindle. • Some records will require the use of the included 45RPM adaptor 4. -
Page 13: Maintenance And Cleaning
Maintenance and Cleaning The TT-1BT turntable requires little regular maintenance. Remove dust with a slightly damp antistatic cloth. Never use a dry cloth, this will create static electricity and attract more dust. Antistatic cleaning agents are available at specialist stores but must be applied sparingly to avoid damage to rubber parts. It is recommended to install the needle cover or remove the headshell assembly before cleaning or maintenance is carried out to avoid damage. -
Page 14: Troubleshooting
Troubleshooting Problem Cause Solution The unit fails to The power cable is not Check to make sure both ends of the power cable are turn on connected properly connected properly. The main power switch Check that the power switch on the rear of the turntable is is turned off turned on. -
Page 15: Specifications
Specifications Motor Drive Type ............Belt Drive Nominal Speeds ..........33-1/3 RPM, 45 RPM Speed Variance ........... ±1.0% Wow and Flutter ..........≤0.15% Signal-to-noise Ratio ........... 55 dB Tonearm Type ..............Static Balance Tonearm Effective Length ........8.6” (218.5 mm) Overhang ............. - Page 16 5-Year Limited Warranty See daytonaudio.com for details daytonaudio.com 705 Pleasant Valley Dr. tel + 937.743.8248 Springboro, OH 45066 info@daytonaudio.com Dayton Audio Last Revised: 7/17/2023 ®...
