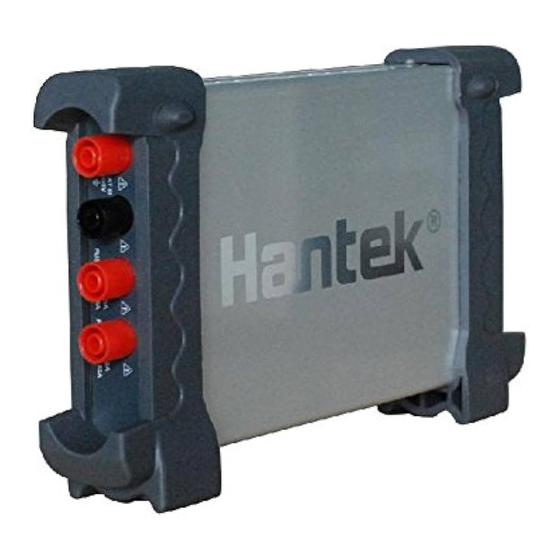

Hantek 365C User Manual

Bluetooth/usb data logger
Hide thumbs
Table of Contents

Advertisement

Quick Links

Bluetooth/USB Data Logger
USER'S MANUAL
Hantek 365A/B/C/D/E/F
V 1.0.3
www.hantek.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 365C and is the answer not in the manual?

Questions and answers

Related Manuals for Hantek 365C

Summary of Contents for Hantek 365C

  • Page 1 Bluetooth/USB Data Logger USER’S MANUAL Hantek 365A/B/C/D/E/F V 1.0.3 www.hantek.com...

  • Page 2: Table Of Contents

    Content General Safety Summary ....................1 Chapter 1 Getting Start ....................3 1.1 General Check ..................... 4 1.2 The User interface ....................5 1.3 Install Software ..................... 7 1.4 Install Driver ....................... 10 1.5 Communication with Bluetooth（Hantek365C/D） ..........13 1.6 Communication with Bluetooth（Hantek365E/F） ..........16 Chapter 2: Operating Data Logger ................

  • Page 3: General Safety Summary

    Safety Summary General Safety Summary Review the following safety precautions carefully before operate the device to avoid any personal injuries or damages to the device and any products connected to it. To avoid potential hazards use the device as specified by this user’s guide only. ...
  • Page 4 Safety Summary Safety Information In order to ensure the correct using and the best efficient service, please carefully read the user’s manual. System Symbols These symbols may appear in this manual or on the Data Logger. Warning: “Warning” identifies conditions and actions that pose hazards to the users.

  • Page 5: Chapter 1 Getting Start

    Getting Start Chapter 1 Getting Start  General Check  The User interface  Install Software  Install Driver USER’S MANUAL...

  • Page 6: General Check

    Getting Start 1.1 General Check When you have got a new Hantek365 series Data Logger, it is suggested that you should perform a general inspection on the instrument according to the following steps:  Check the shipping container for damage: Keep the damaged shipping container or cushioning material until the contents of the shipment have been checked for completeness and the instrument has been checked mechanically and electrically.

  • Page 7: The User Interface

    Getting Start 1.2 The User interface Click the software icon on the desk after you finished the software setting and equipment connecting. Then a user interface will be showed as follows: Description: 1. Data List 2. Description DC: DC voltage/DC current measurement AC: AC voltage/AC current measurement : Diode measurement : On-Off test...
  • Page 8 Getting Start 10. On-Off test 11. Capacitance button 12. Temperature measurement 13. DC: click DC to switch to AC. 14. Auto: Click Auto to switch to Manual mode 15. Relative Measurement 16. Stop/Run: Stop or start acquire data 17. Help menu 18.

  • Page 9: Install Software

    Getting Start 1.3 Install Software Caution: You must install the software before using the Data Logger. While in Windows, insert the installation CD into the CD-ROM drive. The installation should start up automatically. Otherwise in Windows Explorer, switch to the CD-ROM drive and run Setup.exe.
  • Page 10 Getting Start Choose a Setup Type directory. Click 'Next' to continue. USER’S MANUAL...
  • Page 11 Getting Start Check the setup information. Click Next to start copying of Files. 6. Updating System Configuration. 7. The installation is complete USER’S MANUAL...

  • Page 12: Install Driver

    Getting Start 1.4 Install Driver Connect the A-Type Plug of USB cable to your PC’S USB port. Connect the B-Type Plug of USB cable to Hantek365’s USB port. New hardware is found. New hardware search wizard starts. 5. New hardware search wizard starts to search the driver. USER’S MANUAL...
  • Page 13 Getting Start USER’S MANUAL...
  • Page 14 Getting Start 6. New hardware wizard installs “DRIVER”. 7. The wizard has finished installing for “DRIVER”. USER’S MANUAL...

  • Page 15: Communication With Bluetooth（Hantek365C/D

    Getting Start 1.5 Communication with Bluetooth（Hantek365C/D） Inset the Bluetooth adapter to PC USB port. After waiting for several seconds, install the bluetooth driver automatically. Open the computer control panel; you will see the bluetooth icon on the lower right corner of the computer. Press the switch, and the red light will be on.
  • Page 16 Getting Start Next, and input the pairing code “1234”, the device will be successfully added to the computer. USER’S MANUAL...
  • Page 17 Getting Start Right click “HC-06” icon to look up HC-06 Properties. On the Hardware bar you will check and remember the COM port number what the bluetooth device uses. Run “Hantek365 USB”, there will have a prompt “No usb device was found”, and please click “OK”.

  • Page 18: Communication With Bluetooth（Hantek365E/F

    1.6 Communication with Bluetooth（Hantek365E/F） Inset the Bluetooth adapter to PC USB port. After waiting for several seconds, right click the unknown device in the device manager to install the Bluetooth driver manually. Download the Bluetooth driver on our website: http://hantek.com/en/ProductDetail_9_156.html USER’S MANUAL...
  • Page 19 Getting Start USER’S MANUAL...
  • Page 20 Getting Start Press the power button of the Hantek365 to open. Now, view the indicator of the Bluetooth, when the indicator stops flashing, the connection between Hantek365 and Bluetooth adapter is successful. Open the Hantek365 software, there will have a prompt “No usb device was found”, and please click “OK”.
  • Page 21 Getting Start Then click “open”, the communication is successful. USER’S MANUAL...
  • Page 22 Getting Start Attention: 1. Make sure that the battery has enough power, otherwise the communication is unstable. 2. Computer built-in Bluetooth can not communicate with Hantek365E/F. And the Bluetooth adapter must be purchased from us to use. Bluetooth adapter purchased by users from other sources can not be able to connect.

  • Page 23: Chapter 2: Operating Data Logger

    Operating Data Logger Chapter 2: Operating Data Logger The user should know how to determine the system setup from the status bar of a Data Logger. This chapter will give guides to show how to use the menus and perform basic measurements. ...

  • Page 24: Making Voltage Measurement

    Operating Data Logger 2.1 Making Voltage Measurement 1. Making a DC Voltage Measurement To measure a DC voltage, follow these steps: 1. Click the “V” key and DC appears at the top of the screen. 2. Connect the black lead into the COM banana jack input and the red lead into the V/Ω/C banana jack input.
  • Page 25 Operating Data Logger : Start to acquire data. : Get users’ help. : Set data interval 1s, 2s, 5s, 10s. 2. Making an AC Voltage Measurement To measure the AC voltage, follow these steps: 1) Click the “V” key and DC appears on the screen. 2) Click “DC”...

  • Page 26: Making Current Measurement

    Operating Data Logger The user can select Auto measure and Manual measure. Voltage range can be set 60.00mV, 600.0mV, 6.000V, 60.00V, 600.0V. 2.2 Making Current Measurement Making a DC Current Measurement To measure a DC current which is less than 600mA, follow these steps: 1) Click the “A”...
  • Page 27 Operating Data Logger To measure a DC current which is larger than 600mA, follow these steps: 1) Click the “A” key and then “DC” appears on the screen. The unit on the main reading screen is 2) Click “A” key to switch to 10A measurement, the unit on the main reading screen is A. 3) Connect the black lead into the COM banana jack input and the red lead into the 10A banana jack input.
  • Page 28 Operating Data Logger 10A. The default is 600mA. 2) Click “DC” key and AC will display on the screen. 3) Connect the black lead into the COM banana jack input and the red lead into the mA banana jack input. 4) Connect the red and black leads to the measured points and the AC current value of measured points will be displayed on the screen.

  • Page 29: Measuring Resistance Values

    Operating Data Logger measure points will be displayed on the screen. 6) Click “A” to return to 600mA measurement. Connect Data Logger probes(HT325) with Hantek365 as illustrated in the following figure: Figure 2-11 Then, the following figure will be displayed on the screen: Figure 2-12 AC current Measurement for 10A 2.3 Measuring Resistance Values To measure a resistance, follow these steps:...

  • Page 30: Making A Diode Measurement

    Operating Data Logger Connect Data Logger probes(HT325) with Hantek365 as illustrated in the following figure: Figure 2-13 Then, the following figure will be displayed on the screen: Figure 2-14 Resistance Measurement 2.4 Making a Diode Measurement To make a measurement on the diode, follow these steps: 1) Click the “Diode”...
  • Page 31 Operating Data Logger Connect Data Logger probes(HT325) with Hantek365 as illustrated in the following figure: Figure 2-15 Then, the following figure will be displayed on the screen: Figure 2-16 Diode Measurement To perform an On-Off test, follow these steps: 1) Click the “CONTI” key and then On-Off indictor appears on the top of the screen. 2) Connect the black lead into the COM banana jack input and the red lead into the V/Ω/C banana jack input.

  • Page 32: Making A Capacitance Measurement

    Operating Data Logger Then, the following figure will be displayed on the screen. Figure 2-18 On-Off Measurement 2.5 Making a Capacitance Measurement To measure a capacitance, follow these steps: 1) Click the “CAP” key and a capacitor symbol appears on the top of the screen. 2) Connect the black lead into the COM banana jack input and the red lead into the V/Ω/C banana jack input.

  • Page 33: Selecting Automatic/Manual Range Adjustment

    Operating Data Logger Then, the following figure will be displayed on the screen. Figure 2-20 Capacitance Measurement 2.6 Selecting Automatic/Manual Range Adjustment The default range mode of the instrument is automatic range. If you are using the DC/AC mode, to switch to the manual range, do these steps: Click “Auto”...

  • Page 34: Temperature Measurement

    Operating Data Logger 1) Click the V/A/OHM/CAP key. 2) Connect the black lead into the COM banana jack input and the red lead into the V//Ω/C banana jack input. 3) Connect the red and black test leads to the tested device. The value is shown on the screen. 4) Click key then is displayed on the top of the screen.
  • Page 35 Operating Data Logger Connect the thermocouple sensor of the metal parts with the tested device. Then, the following figure will be displayed on the screen. Figure 2-23 Temperature Measurement Click C key to switch to Fahrenheit. And Click F key to switch to Celsius. USER’S MANUAL...

  • Page 36: Chapter 3: Appendix

    Appendix Chapter 3: Appendix  Appendix A: Specifications  Appendix B: Accessories  Appendix C: General maintenance USER’S MANUAL...

  • Page 37: Appendix A Specifications

    Appendix Appendix A Specifications Specification: Data Logger Mode Maximum Resolution 6000 Counts Voltage, Current, Resistance, Capacitance, Diode & DMM Testing Modes Continuity Maximum Input Voltage AC: 600V DC: 800V Maximum Input Current AC: 10A DC: 10A Input Impedance 10MΩ Data Logger Specification Function Range Accuracy...
  • Page 38 Appendix -200℃~0 1℃ Diode 0V~2.0V On-Off Test <10Ω Difference: Bluetooth Lithium battery Optional Accessory Type Hantek365A Hantek365B Yes① Hantek365C Yes① Hantek365D Hantek365E Yes② USB Bluetooth Adapter Hantek365F Yes② ① Connect the device with windows PC via Bluetooth with Bluetooth adapter. ②...

  • Page 39: Appendix B: Accessories

    Appendix Appendix B: Accessories Standard accessories  Data Logger Probes x 2  A USB Cable  A PC software CD of the Data Logger  A Thermocouple Sensor Optional accessory  Bluetooth adapter(Optional accessory for Hantek365E and Hantek365F) USER’S MANUAL...

  • Page 40: Appendix C: General Maintenance

    Appendix Appendix C: General Maintenance General Care Do not store or leave the Data Logger where the device will be exposed to direct sunlight for long periods of time. Caution To avoid damages to the device or probes, do not expose them to sprays, liquids or solvents. To avoid damages to the surface of the device or probes not use any abrasive or chemical cleaning agents.
