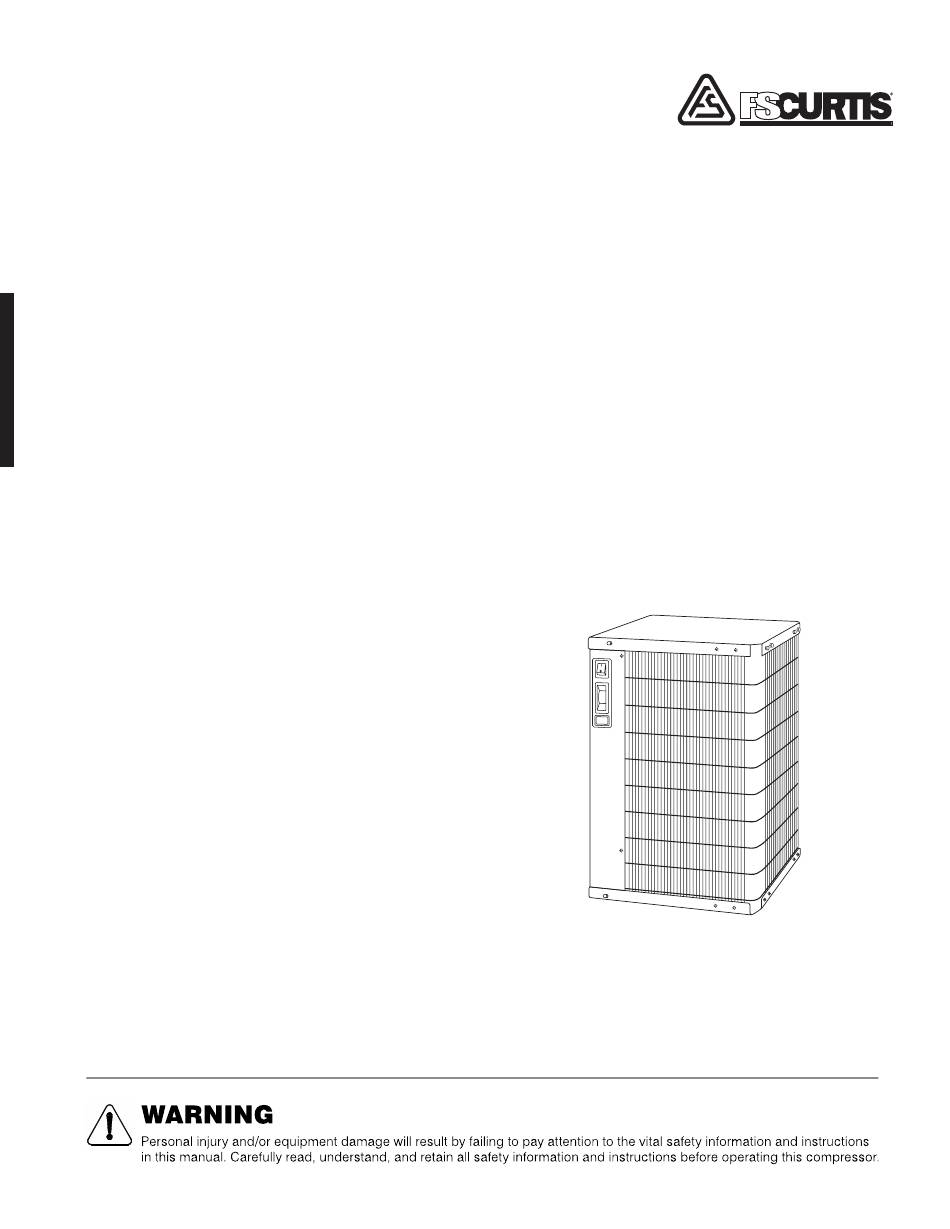

RNP
REFRIGERATED COMPRESSED AIR DRYERS
OPERATOR
MANUAL
RNP25 RNP35 RNP50
SERIES
3227447
Rev. A
AUGUST 2012
Table of
Contents
Previous
Page
Next
Page
1
2
3
4
5
Advertisement
Table of Contents
Need help?
Do you have a question about the RNP50 and is the answer not in the manual?
Ask a question
Questions and answers
Related Manuals for FScurtis RNP50
Dehumidifier FScurtis RNP Series Operator's Manual
Refrigerated compressed air dryers (17 pages)
Dehumidifier FScurtis RNP25 Operator's Manual
Refrigerated compressed air dryers (13 pages)
Summarization of Contents
General Safety Information
Pressurized Devices
Equipment is a pressure containing device. Do not exceed max operating pressure. Depressurize before service.
Electrical Safety
Requires electricity. Install per codes. Disconnect power before service. Not for hazardous environments.
Breathing Air
Air treated by this equipment may not be suitable for breathing without further purification.
Receiving, Moving, and Unpacking
Receiving and Inspection
Check shipment for visible loss or damage at delivery. Insist on notation by carrier's agent.
Moving and Storage
Do not tip dryer onto its side when moving. Do not store above 130°F (54.4°C).
Installation Guidelines
Ambient Air Temperature
Locate indoors between 40°F and 100°F. Avoid operation below 40°F to prevent freeze-up.
Location and Clearance
Mount on a level base in a clean, well-ventilated area. Ensure adequate clearance.
System Arrangement
Install downstream of aftercooler/separator. Inlet air temp max 120°F. Use filters for contaminants.
Piping and Connections
Use rated connections. Support piping. Recommend shutoff and bypass valves.
Electrical and Condensate Connections
Removing Condensate
User must install separate discharge line for automatic drain valve. Anchor drain line.
Electrical Connections
Connect to specified voltage, phase, frequency. Use cord and plug. Proper voltage is critical.
Instrumentation and Controls
ON/OFF Switch and Indicator
Switch controls power. Light signals when dryer is on.
Drain Valve Operation
Electronic valve discharges condensate. Adjust open/closed times for efficiency.
Operational Procedures
Start-Up and Operation
Follow start-up procedure to avoid voiding warranty. Check indicator lights and condensate discharge.
Shutdown Procedure
Turn power switch off and disconnect main power supply. Vent internal pressure before servicing.
Maintenance
General Maintenance
Refrigeration system maintenance by competent mechanic. Call distributor for corrective maintenance.
Daily Maintenance
Check separator for condensate discharge. Clean strainer/solenoid valve if needed.
Monthly Maintenance
Inspect condenser coils. Remove dust and dirt with soft brush or limited pressure air.
Electronic Drain Valve Servicing
Disassemble drain valve body for cleaning or component inspection. Follow reassembly steps.
Field Service Guide
Water Downstream of Dryer
Troubleshoot compressor not running or no condensate discharge. Check for leaks or drain failure.
Excessive Pressure Drop
Address high inlet air temperature, low outlet pressure, or icing issues. Check aftercooler.
Color Indicator Out of Green Zone
Diagnose red or blue indicator. Red indicates high temp/fouled condenser. Blue indicates expansion valve issue.
Engineering Data
Specifications
Details rated capacity, connections, dimensions, power supply, compressor rating, and refrigerant type.
Operating Conditions
Defines minimum and maximum operating parameters for inlet air pressure, temperature, and ambient temperature.
Electrical Schematics
Figure 1: Dryer Wiring
Diagram illustrating the electrical connections for the dryer, including switches, starter, and timer.
Air and Refrigerant Flow Schematics
Figure 2: Flow Diagram
Illustrates the path of air and refrigerant through the dryer components like evaporator and condenser.
Replacement Parts
Parts List by Model
Table listing key components and their corresponding part numbers for models 25, 35, and 50.
Warranty Information
Warranty Terms
Details manufacturer's warranty for parts and labor, exclusions, and limitations.
Service Department Authorization
Authorization required before returning material or making in-warranty repairs.
