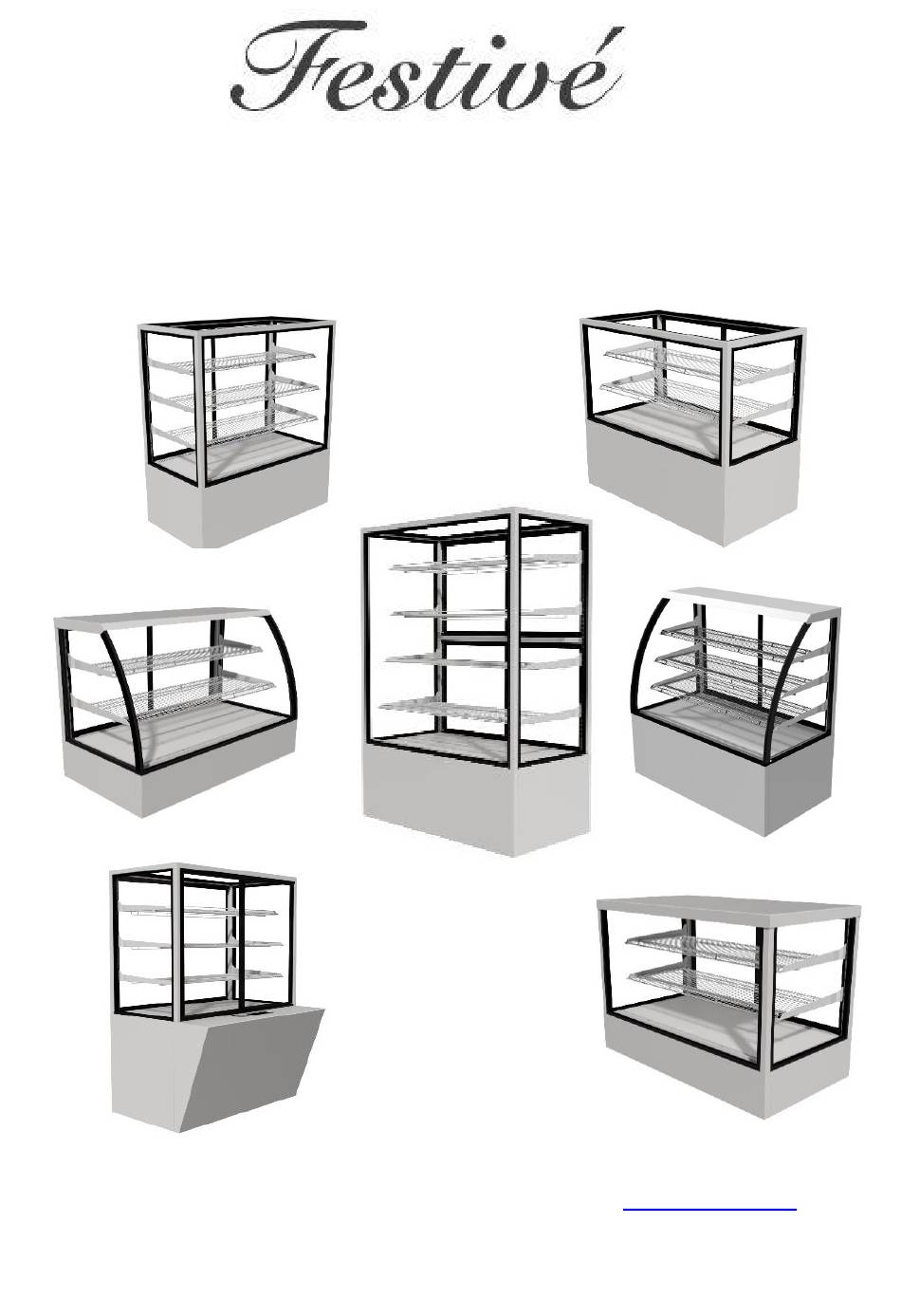

- Page 1 Chilled Display Cabinet Installation and Operating Manual This instruction Manual is also available on our Website www.festive.co.nz...
-
Page 2: Models Covered
MODELS COVERED TC6, TC9, TC12 Tower YC6, YC9, YC12, YC15, YC18, YC24 York Regent RC6, RC9, RC12, RC15, RC18, RC24 BC6, BC9, BC12, BC15, BC18, BC24 Baker LC6, LC9, LC12, LC15, LC18, LC24 Lincoln DCI6, DCI9, DCI12, DCI15, DCI18, DCI24, DCC9, Devon DCC12, DCC15, DCC18, DCC24 CCI6, CCI9, CCI12, CCI15, CCI18, CCI24, CCC9,... -
Page 3: Quick Start Instructions
See Ventilation Instructions https://festive.co.nz/resources/ Location. Cabinets should always be located away from direct sunlight, draughts, and equipment that generate heat and water vapour. -
Page 4: Table Of Contents
Servicing 9-10 Spare Parts Troubleshooting CIC Installation & Ventilation Warranty CONTACT DETAILS For further information or help, contact your supplier or: Email: sales@festive.co.nz Website: www.festive.co.nz Telephone: +64 3 349 3380 Mail: Festivé NZ Limited 35 Establishment Drive Hornby Christchurch 8042... -
Page 5: Introduction
INTRODUCTION Congratulations on purchase of a Festivé food display cabinet. Festivé designs and manufactures quality cabinets designed to meet the exacting needs of its customers. Please take the time to carefully read and understand this manual. This will help ensure that maximum benefit from the cabinet can be gained. - Page 6 E. Shelf Brackets and Shelves The shelf brackets are removable and height adjustable. Notches in the brackets allow each one to be positioned in either a level or tilt position. Ensure that the brackets are firmly pushed down. Fit the shelves provided on the shelf brackets.
- Page 7 3 Remote Condenser Assembly This applies to the Devon and Cornwall Chilled units with the Remote Condenser option, and occasionally Tower, some York, Baker, Regent, and Lincoln Chilled models where the refrigeration is remoted. The cabinet comes with a remote condenser unit (supplied separately in a box) that will need a qualified refrigeration engineer to install and connect.
-
Page 8: Operating Instructions
OPERATING INSTRUCTIONS • Switch the cabinet on at the wall. • Ensure that the doors are closed. The cabinet cannot operate effectively with the doors left open. • Flick down the two red toggle switches (one for the refrigeration unit and one for the lights). -
Page 9: Cleaning
CLEANING It is critical that the cabinet is regularly cleaned in order to achieve hygienic and efficient operation. Some advice on this is provided below: • Always turn the cabinet off at the wall before cleaning. • Do not use bleaches and other aggressive cleaning products (chemicals and scourers) that could damage the cabinet surfaces. -
Page 10: Servicing
• A vacuum cleaner and/or soft brush may be used to collect debris from within and around the blue evaporator coil. evaporator coil • Be careful not to bend the fins on the coil. The fins are sharp and can cause cuts if caution is not exercised. - Page 11 LED LIGHT STRIP • If an LED light requires replacement: Remove LED Light strip (1) Unscrew light strip from shelf and or brackets (2) Unclip cable connecting light strip to cable attached to inside leg of cabinet. • Attach replacement simply follow the above instructions in reverse. Unscrew Unclip Detach...
-
Page 12: Spare Parts
SPARE PARTS Festivé endeavours to maintain stocks of spare parts for its customers. If spare parts are required, please quote both the serial number of the cabinet and the item number(s) from the list below. It is important to use only Festivé spare parts to ensure compatibility, performance, and meet warranty conditions. -
Page 13: Troubleshooting
TROUBLE SHOOTING Problem Possible Cause Solution Circuit broken at the Replace fuse/turn circuit main power board breaker on Cabinet won’t The cabinet switch is off Turn the cabinet switch on start Electronic controller is Replace the electronic faulty controller Remove food/trays away Air circulation is from vents and airflows. -
Page 16: Warranty
Any loss, damage or expense directly or indirectly arising from failure to follow product operating and maintenance instructions. • Repairs or maintenance carried out by a service agent un-authorised by Festive • Travelling distance in excess of 160kms return trip from an authorised service agent •...
