- Page 1 CSB7X52-1208 CSB7X52-1208 7X52 GPS SOLAR 7X52 GPS SOLAR 基本操作マニュアル 基本操作マニュアル Basic Manual Basic Manual 日本語 English 31P 繁体中文 91P 簡体中文 61P Printed in Japan Printed in Japan...
-
Page 2: Table Of Contents
READ FIRST CONTENTS １． READ FIRST Features ………………………………………………………………………………………………………………………… 32 The following functions are included …………………………………………………………………………………… 33 ２． BEFORE USE Names of the parts…………………………………………………………………………………………………………… 34 Indicator hand display and reception result display ………………………………………………………………… 35 Check the charging status ………………………………………………………………………………………………… 36 About charging ………………………………………………………………………………………………………………… 37 Place where GPS signals can be easily received/Place where GPS signals cannot be received …… 38 ３． BASIC OPERATION Time Zone Adjustment (When the region or time zone where the watch is used is changed ) 39〜40 Set Daylight Saving Time (DST) ………………………………………………………………………………………… 41 In-flight mode ( ) (When boarding) ……………………………………………………………………………………… 42 Manual time zone setting (To set the watch to the local time of the destination in an airplane, etc.) … 43 Manual time adjustment (To set only the time) … …………………………………………………………… 44〜45 Automatic time adjustment ... -
Page 3: Features
READ FIRST READ FIRST Features The following functions are included This is a GPS* solar watch. This watch has the following features. ＊ GPS is an abbreviation for Global Positioning System. This watch can be set to the This watch operates by solar This watch automatically When the region or time zone where the watch To set only the time precise local time by just one adjusts the time in accordance is used is changed charging. button operation anywhere in with action patterns during the world. use. Expose the dial to light to When ... -
Page 4: Names Of The Parts

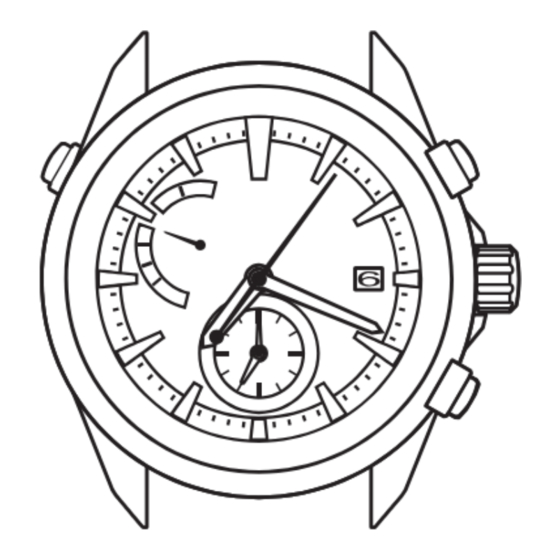

BEFORE USE BEFORE USE Names of the parts Indicator hand display and reception result display Display of receiving process Main-Dial Button B Receiving 1 (time 4+ (time zone Receiving leap process adjustment) adjustment) second data Hour Minute Second Date Display of charging status hand hand hand Display Hand Level position F (full) E (low) position (middle) Check the reception result → P.47 Automatic time adjustment → P.46 Button A Manual time adjustment → P.44〜45 Receive leap second data → P.48 Display Time zone adjustment → P.39〜40 Check the charging status. → P.36 How to charge the watch → P.37 Display of Crown Display of in-fl... -
Page 5: Check The Charging Status
BEFORE USE BEFORE USE Check the charging status About charging The indicator hand position shows whether this watch is able or unable to receive GPS signals. How to charge the watch In addition, for the low charging state, the movement of the second hand shows the energy Expose the dial to light to charge the watch. depletion state in further detail. Under the following situations, the energy of the watch is likely to To ensure optimal be depleted, resulting in stoppage of the watch. performance ＊GPS radio signal reception requires a lot of energy. Keep in mind to regularly charge the watch by expose to light. ・ T he watch is concealed under a sleeve. of the watch, ・ T he watch is used or stored under conditions where it cannot be make sure that → About charging P.37 exposed to light for a long time. the watch is ... -
Page 6: Place Where Gps Signals Can Be Easily Received/Place Where Gps Signals Cannot Be Received
BEFORE USE BASIC OPERATION Place where GPS signals can be easily received/Place where GPS signals cannot be received Time Zone Adjustment （ When the region or time zone where the watch is used is changed） There are places where GPS signals can be easily received and places where GPS signals Time zone adjustment cannot be received. The time zone where you are is localized to adjust the watch to the precise current time by receiving GPS signals. Easy to receive Diffi... -
Page 7: Set Daylight Saving Time (Dst)
BASIC OPERATION BASIC OPERATION How to adjust the time zone Set Daylight Saving Time (DST) Continue to press Button B (6 sec), and then release it when the second hand moves to Daylight Saving Time (DST) the 30-sec position. Depending on the area, Daylight Saving Time (DST) is individually set. Daylight Saving Time means summer time, which is a system to lengthen ※ While the indicator hand points to E Move to the ※ Although the second hand moves to daylight time by advancing 1 hour when daylight time is long in summer. Daylight saving time has been adopted in about 80 or ... -
Page 8: Manual Time Zone Setting (To Set The Watch To The Local Time Of The Destination In An Airplane, Etc.)
BASIC OPERATION BASIC OPERATION In-fl ight mode ( ) (When boarding) Manual time zone setting (To set the watch to the local time of the destination in an airplane, etc.) In-fl ight mode （ ） Manual time zone setting Set to the in-fl ight mode（ ）where the reception may infl uence ＜ In-fl ight mode（ ）＞ In places where the time zone cannot be adjusted, the time zone can be set manually. The indicator hand points operation of other electronics devices in an airplane, etc. to ※ Refer to Set Daylight Saving Time (DST) P.41, to set Daylight Saving Time (DST). In the in-fl ight mode（ ）the GPS signal reception (time zone adjustment, manual time adjustment, and automatic time ※... -
Page 9: Manual Time Adjustment (To Set Only The Time)
BASIC OPERATION BASIC OPERATION How to manually adjust the time Manual time adjustment (To set only the time) Continue to press Button B (3 sec), When the second hand Manual time adjustment Direct the watch face and then release it when the second points to Y or N, upward and wait hand moves to the 0-sec position. reception is completed. The watch can be set to the precise current time of the currently set time zone. Move to the When the second hand has The reception result is displayed It takes up to for 5 seconds. outdoors under reached the 0-sec position, 1 min to complete ... -
Page 10: Reception Result Display
BASIC OPERATION BASIC OPERATION Reception result display (Check that reception was successful) Automatic time adjustment The type of reception and reception result (success or failure) of the last GPS signal reception is displayed for 5 seconds. This watch can be set to the precise current time by automatically When the reception receiving GPS signals by exposure to bright light outdoors under an Press Button B once result is Y Check that reception was successful (within 5 sec) open sky to adjust the time. and then release it ・ T h e r e c e p t i o n w a s In addition, when the watch is concealed under a sleeve and the dial ... -
Page 11: Leap Second (Automatic Leap Second Reception Function)
DETAILED INFORMATION IN CASE OF AN UNUSUAL MOVEMENT OF THE SECOND HAND Leap second (Automatic leap second reception function) Energy depletion forewarning function (Second hand movement and watch state) Leap second Reception of leap second data Movement of the second hand shows the state of the watch (working functions). ＜Ready for leap second data reception＞ The leap second is 2-sec interval movement/5-sec interval movement are brought about The indicator hand displays as shown at to compensate for the right when GPS signals are received When the energy stored in the watch runs low, the energy depletion forewarning function will work. deviations from the (time zone adjustment or time adjustment) When the energy stored in the watch runs low, charge the watch by expose to light. universal time (UT) around June or December (display of being which is astronomically ready for leap second data reception or ※ W hen the energy depletion forewarning function works, the watch does not operate even with operation of the buttons and crown. determined and the ... -
Page 12: Power Save Function
IN CASE OF AN UNUSUAL MOVEMENT OF THE SECOND HAND TROUBLESHOOTING Power save function (The second hand stops at the 15-sec position/45-sec position) When the watch is unable to receive GPS signals When the watch is not exposed to light for a long time, the power save function will work. Points to be checked Power Save 1 Power Save 2 When the watch does not start receiving or is unable to receive GPS signals even with operation of GPS signal reception, the following can be considered. The second hand stops The second hand stops pointing at State pointing at the 15-sec ● R eception is not started even with operation of GPS the 45-sec position. Reception Charging status Indicator position. signal reception (time zone adjustment/manual time In-fl ight mode（ ） is not display adjustment). E (low) allowed ・Check the indicator hand position. ... - Page 13 TROUBLESHOOTING TROUBLESHOOTING How to manually set the time How to manually set the date When the date is not automatically changed under a condition in which the watch is unable to receive GPS Unlock the crown Pull out the crown to the second click signals (when changing from months with 30 days or less to months with 31 days), set the date manually. ・ T he date can be set independently regardless of the time. Unlock the crown The second hand moves to the 13-sec ・ W hen using the watch again under a condition in which the watch is able to receive GPS signals, receive position and stops. GPS signals to set the time and date. 0 1 2 ※ W hen the date is not correct even when the watch has successfully received GPS signals, the preliminary position of the date may be misaligned. Unscrew Pull out Unlock the crown Pull out the crown to the second click to the 2nd click Unlock the crown The second hand moves to the 13-sec Continue to press Button A (3 sec) and then release it Press Button B or Button C to set the time when the hand moves to the 0-sec position position and stops. 0 1 2 The second hand moves to ...
-
Page 14: When The Time/Date Or Indicator Hand Position Is Misaligned
TROUBLESHOOTING TROUBLESHOOTING Preliminary position of this watch When the time/date or indicator hand position is misaligned The preliminary position of the date is 1 (1st). The preliminary position of the indicator hand is Points to be checked between E (low) and . ● R eception was successful (the reception result is The preliminary position of the hour/minute hands is displayed as Y ), but time has gained or lost. 0:00 am. ・Check the time zone setting. → P.40 I f the currently set time zone does not correspond to the region where you are, set the time zone by either of the following operations. Things around you which generate magnetism Adjust the preliminary position of the date, indicator hand, and hour/minute hands P lace where GPS signals can be easily received → Examples of common magnetic products that may aff ect watches → How to adjust the time zone P.40 ... -
Page 15: In Case Of An Abnormal Movement (Resetting The Built-In Ic)
TROUBLESHOOTING TROUBLESHOOTING In case of an abnormal movement (resetting the built-in IC) In the case that the watch Reset the system ( ② 〜 ④ ) Continue to press Button A moves abnormally or that Press Button B or C W h e n o p e r a t i o n i s (2 seconds) and release it the watch does not move at to adjust the indicator ... - Page 16 TROUBLESHOOTING SPECIFICATIONS Set the date to 1 (1st) ( ⑤ , ⑥ ) SPECIFICATIONS ※ I f t h e d a t e i s s t o p p e d Continue to press Button B and C simultaneously Press Button B or C to set the continuously for 1 minute or (3 sec) and release them when the second hand ...
