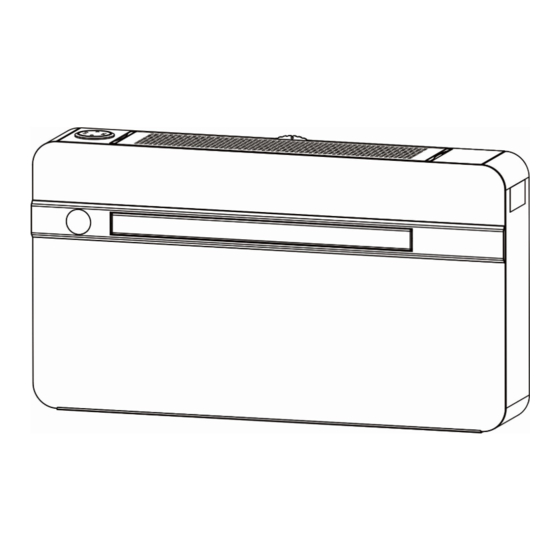

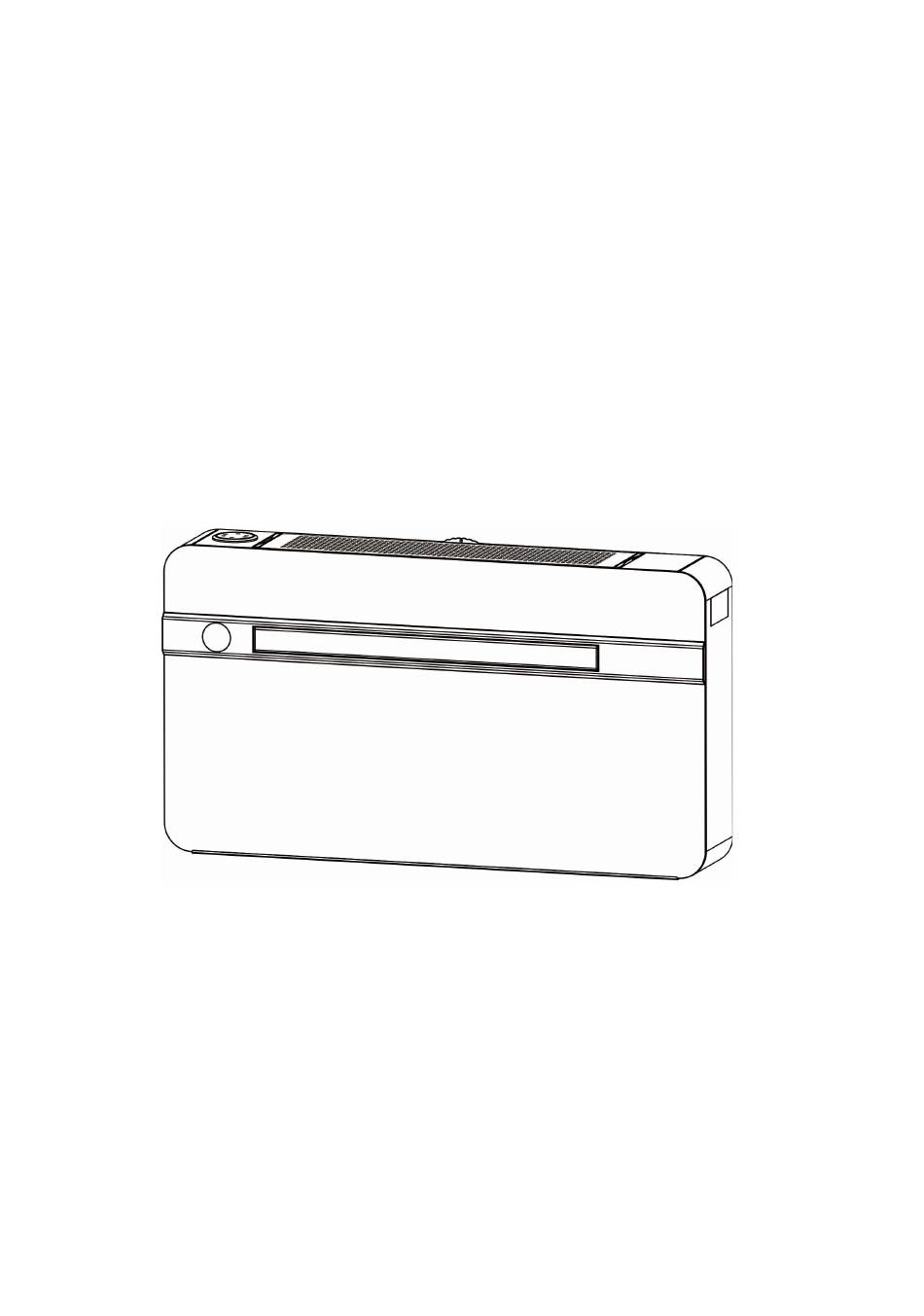

- Page 1 Installation and User Manual SILENT INVERTER MODEL: SILENT HYBRID INVERTER CLIMA PURO BEFORE INSTALLING AND USING THIS AIR CONDITIONER PLEASE READ ALL INSTRUCTIONS CAREFULLY...
-
Page 2: Table Of Contents
CONTENTS 1. GENERAL INFORMATION 1.1 INTRODUCTION…….…………………………………………………….……8 1.2 IMPORTANT SAFETY INSTRUCTIONS……………………………...…8 1.3 RECEIVING THE GOODS…………………………………………………….9 1.4 HANDLING………………………………………………………………………..9 1.5 LIST OF ACCESSORIES…………………………………………………….….9 1.6 TECHNICAL FEATURES…………………………… ………………….…..10 1.7 WIRING DIAGRAM……………………… …………………………….…..11 2. INSTALLATION 2.1 POSITIONING OF THE AIR CONDITIONER……………………..…12 2.2 PAPER TEMPLATE……………………………………………..……….…..13 2.3 DRILLING THE WALL………………..……………………..……….….….15 2.4 FASTENING THE BRACKET..……………………………..………….….16 2.5 INSTALLATION OF THE PIPES……………………………….………...16 2.6 FITTING THE AIR CONDITIONER ON BRACKET………………….17... - Page 3 WARNING: R32 Refrigerant WARNING: R32 Refrigerant Do not use means to accelerate the defrosting process or to clean, other than those means to accelerate the defrosting process or to clean, other than those means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
- Page 4 sufficiently far away from the site of installation, repairing, removing and disposal, during which refrigerant can possibly be released to the surrounding space. Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no flammable hazards or ignition risks.
- Page 5 affected. This shall include damage to cables, excessive number of connections, terminals not made to original specification, damage to seals, incorrect fitting of glands, etc. Ensure that the apparatus is mounted securely. Ensure that seals or sealing materials have not degraded to the point that they no longer serve the purpose of preventing the ingress of flammable atmospheres.
- Page 6 with oxygen-free nitrogen to render the appliance safe for flammable refrigerants. This process may need to be repeated several times. Compressed air or oxygen shall not be used for purging refrigerant systems. For appliances containing flammable refrigerants, other than A2L refrigerants, refrigerants purging shall be achieved by breaking the vacuum in the system with oxygen-free nitrogen and continuing to fill until the working pressure is achieved, then venting to atmosphere, and finally pulling down to a vacuum.
- Page 7 Labelling: Equipment shall be 7abeled stating that it has been de-commissioned and emptied of refrigerant. The label shall be dated and signed. For appliances containing flammable refrigerants, ensure that there are labels on the equipment stating the equipment contains flammable refrigerant. Recovery: When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely.
-
Page 8: General Information
1. GENERAL INFORMATION 1.1 INTRODUCTION PLEASE NOTE: Do not dispose of any packaging until the installation of the air conditioner is completed. After having removed the packing, check that all the content is intact and complete. (See list of accessories). In the event of missing parts, contact your retailer. This air conditioner has been designed to cool or heat the air of a room and should only be used for this purpose. -
Page 9: Receiving The Goods
Avoid prolonged direct contact with the flow of the air from the air conditioner and the room being closed with no ventilation for a long period of time. Repair or maintenance work must be carried out by a service engineer or by qualified technicians in compliance with the instructions given in this booklet. -
Page 10: Technical Features
Silent Inverter, Silent Hybrid Inverter, Clima Puro are conform to the European directives : • Low voltage 2014/35/EU. • Electro-magnetic compatibility 2014/30/EU. • Use restrictions of hazardous substances in electrical and electronic equipment 2011/65/EU and its amendment Directive (EU) 2015/863. (RoHS2) •... -
Page 11: Wiring Diagram
OPERATING CONDITIONS IN COOLING AND DEHUMIDIFICATION MODE: -Inside 27℃ DB, 19℃ WB -Outside 35℃ DB, 24℃ WB OPERATING CONDITIONS IN HEATING MODE: -Inside 20℃ DB -Outside 7℃ DB, 6℃ WB 1.7 WIRING DIAGRAM 1. SILENT INVERTER & SILENT HYBRID INVERTER... -
Page 12: Installation
2. CLIMA PURO 2 INSTALLATION 2.1 POSITIONING THE AIR CONDITIONER(P3) To maintain the best performance from your air conditioner, prevent breakdowns or hazards, you must position it correctly. Please follow the guidelines and instruction below in full, as failure to do so could cause potential installation problems. -
Page 13: Paper Template
2.2 PAPER TEMPLATE (P4) Fasten the template to the wall once the following guidelines have been thoroughly checked. -Do not drill any holes until you are completely confident that there are no obstacles in the area you wish to drill and there are no obstructions, which could be hidden by the construction of the wall, for example: Electrical wiring, water &... -
Page 15: Drilling The Wall
2.3 DRILLING THE WALL (P5) Please note: If you are drilling the hole above ground floor level, please ensure that an area has been secured and while the holes are drilled the outside area is supervised, until drilling has been completed. -
Page 16: Fastening The Bracket
System “B”: Atomizing system (P8) In case of impossibility to install the drainage pipe as showed on “A” system, atomizing system is available for this unit. If use system “B”, please block the black rubber cup from system “A”. Atomizing nozzle is fixed in the center of grating, connect the water pipe with atomizing nozzle first, then fix the grating on the wall (see 2.7). -
Page 17: Fitting The Air Conditioner On Bracket
2.6 FITTLING THE AIR CONDITIONER ON BRACKET(P11，P11) After checking again that the fastening bracket is securely fastened to the wall, and that any necessary preparations for electric connection and condensate drainage (if it needs) have been made, fasten the air conditioner to its supporting bracket. -
Page 18: Control Operation And Maintenance
3 CONTROL OPERATION AND MAINTENANCE 3.1 INTRODUCTION OF LCD ICONS Icons Means Auto Cooling Heating Fan speed Wind direction Display Electrical heat Lock Celsius/ Fahrenheit TIMER ON TIMER OFF... -
Page 19: Remote Control Functions
3.2 REMOTE CONTROL FUNCTIONS 1. Celsius/Fahrenheit function “℃/℉” : Press “℃/℉” button to switch between “Celsuis” and “Fahrenheit”. 2. Timer ON/OFF: This function can be effective only when the original remote control has timer function. After pressing “TIMER ON” or “TIMER OFF” buttons, the timer indicator is displayed, and the A/C is now in timer state. -
Page 20: On Board Control Function
3.3 ON BOARD CONTROL FUNCTION 1. ON/OFF button: Turn on or turn off the air conditioner. 2. MODE button: Set up the air conditioner working mode. COOLING, HEATING, FAN, DRY and AUTO mode are for selection. When DRY mode is acted, blue LED1 and red LED1 will be ON. 3. -
Page 21: Program Setting
3.4 PROGRAM SETTING Unit can work with different program modes, P1~P6 as below are available for the unit. 1. Program description Control item Program parameter 01 ( default setting ) Temperature unit Celsius degree °C Fahrenheit degree °F Indoor fan speed Low-Mid-High Low-Mid-High Low-Mid-High... -
Page 22: Esp Filter Function
2. How to set program We can change the program setting by pressing the buttons on the command on board. 1. When unit is with standby condition, press both “MODE” and “FAN SPEED” buttons for 5 seconds, the window will show P1 first. 2. -
Page 23: Maintenance
How to wash the ESP filter: 5. Soak the ESP filter in water and diswashing soap for 30-40 minutes. 6. Remove all dirt by placing it under running water. 7. Dry the filter completely with a blow dryer or a fan. Important note: Before placing the ESP filter back in the machine, make sure that it is completely dry and has no water drops on its surface. -
Page 24: Fresh Air System
3.7 FRESHA AIR SYSTEM When the fresh air system is open, the air conditioner will change the room air automatically, in this way new clean and fresh air will intake to the room. You can open or close the fresh air system any moment. -
Page 25: Accessory Installation
4 ACCESSORY INSTALLATION 4.1 SILENT HYBRID WATER CONNECTION Hot water exchanger is a useful option to replace water radiator below the window, improving machine performance and energy saving for your room installation . -To install this you must remove the plastic outlet frame and glass panel first. -
Page 26: Soft Gratings Installation
4.2 SOFT GRATINGS INSTALLATION To fix the external two soft gratings, please proceed as following: Familiarize yourself with the fitting of the grating to the tube before installation. Insert the cords through the centre hole of grating. Fold the outer grating in half grasping the cord with your free hand.
