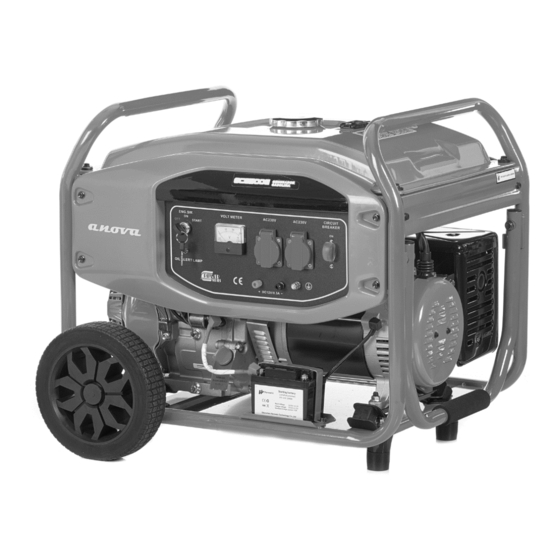

- Page 1 Instructions and user manual GC2500 / GC3200 / GC5500 GC5500E / GC7000E / GC8500E Millasur, SL. Rúa Eduardo Pondal, nº 23 - Pol. Ind. Sigüeiro 15688 - Oroso - A Coruña - 981 696 465 - www.millasur.com...
- Page 2 ANOVA wishes to congratulate you on choosing one of our products and guarantees the assistance and cooperation that has always distinguished our brand over time. This machine is designed to last for many years and to be very useful if used in accordance with the instructions contained in the user manual.
-
Page 3: Table Of Contents
CONTENT 1. INDICATIONS AND GENERAL SAFETY RULES 2. GENERAL INFORMATION 3. INSTRUCTIONS FOR USE 4. MAINTENANCE 5. STORAGE 6. TROUBLESHOOTING 7. TECHNICAL SPECIFICATIONS 8. WARRANTY 9. ENVIRONMENT 10. EXPLODED VIEW 11. CE DECLARATION... -
Page 4: Indications And General Safety Rules
1. INDICATIONS AND GENERAL SAFETY RULES To guarantee the best working and safety conditions, please read the following paragraphs carefully: One of the basic safety factors is respecting the maintenance schedule (see maintenance chart). Also, never attempt repair or maintenance without the necessary experience and / or tools. - Page 5 BURNS - Never touch the engine or the muffler during the operation of the generating set or for a few minutes after it is stopped and switched off. - Some preservative oils are flammable. Also, some are dangerous if inhaled. Make sure you have good ventilation.
-
Page 6: General Information
Other safety regulations are described throughout this manual. Please read them carefully. These generating sets are not designed to run continuously: IT IS RECOMMENDED THAT THE USE given to the engines be DOMESTIC and of a particular nature (aluminum engines and side valves) and / or PROFESSIONAL USE (ohv and diesel engines). - Page 7 LEVEL VERIFICATION AND OIL FILLING - The verification, as well as the oil filling, will be carried out with the group located on a horizontal surface. - Remove the oil filler cap and clean the dipstick. - Insert the dipstick into the unscrewed oil filler neck. - Remove it and check the level indicated on the dipstick.
- Page 8 - In acid-type batteries, remove the shutter devices if necessary, and the caps. - Fill the electrolyte beakers (upper level: 10 to 15 mm below the plates). - Let the battery rest for 30 minutes. - Re-adjust the level with the electrolyte. Tip: To check electrolyte levels, use a clean toothpick.
- Page 9 Watts Examples Item Type Medium Switched on Watts in article Switched on Medium use 100W lamp Incandescent lamps 100W (W) 100 VA (W) Heat resistors 40W Lamp Fluorescent lamp X 1.5 80VA (W) 60 VA (W) Refrigerator 150W 450-750VA Appliances with motor X 3-5 300 VA (W) 3.2.
- Page 10 During engine operation, check: 1- if vibrations or abnormal noises occur; 2- if it backfires or the engine runs with difficulty; 3- the color of the exhaust gases (if they are black or too white). If one of the points mentioned above is observed, stop running the engine and consult your regional dealer.
- Page 11 STOPPING THE ENGINE IN AN EMERGENCY: 1- To stop the engine in an emergency, turn the switch to the OFF / OFF position IN NORMAL USE: 1- Turn the power cut-off to the OFF / Off position. 2- Disconnect all the electrical outlets found on the panel. Disconnect the battery charging cables.
- Page 12 - Drain the oil and dispose of it at an authorized recycling point. NEVER dispose of motor oil directly into the environment. - Screw the drain plug back in and tighten very hard and fill the crankcase with oil through the tank filler hole until the oil reaches the upper level of the level indicator.
- Page 13 4.5. CLEANING THE FUEL FILTER - Turn the fuel cock to the Closed position. - Remove the sediment cap, o-ring and filter. - Clean the components with non-flammable liquid. - Re-install the components. - Turn the valve to the Open position, and check for possible leaks. 4.6.
- Page 14 1. Pour the additive into the fuel tank or a storage tank. Run the engine for a few moments to allow the additive to circulate through the carburetor. The engine and fuel can be stored for a maximum of 24 months from then on. 2.
- Page 15 6. PROBLEM SOLVING SYMPTOM Engine does not start using manual starter PROBABLE CAUSES 1- Is the engine switch in the ON position? 2- Does the oil warning light flash when the starter is operated? 3- Is the fuel cock open (ON)? 4- Is there enough fuel? 5- Does the fuel get to the carburetor? To check, loosen the drain screw with the tap in the ON (open) position (Figure M)
-
Page 16: Technical Specifications
ELECTRICAL CABLES SECTION 7. TECHNICAL SPECIFICATIONS Model GC2500 GC3200 GC5500 Frequency (Hz) Voltage (V) 230V 230V 230V Rated power (kW) Maximum power (kW) DC output 12V / 8.3A 12V / 8.3A 12V / 8.3A Engine model MA197 MA214 MA389 Fuel tank capacity (L) -
Page 17: Warranty
- Misuse, neglect, careless operation or lack of maintenance. - Defects caused by improper use, damages caused by manipulations carried out by personnel not authorized by Anova or use of non-original spare parts. IT IS EXPRESSLY CLEARED AND INFORMED THAT DEFECTS ORIGINATED BY: 1.Improper, abusive or out-of-the-box use of the machine. -
Page 18: Environment
4.Natural wear of the pieces. 5. Damage caused by hard or dirty water and damage caused by dry running in pressure washers and water pumps. 6. Damages due to blows, entry of foreign materials into the equipment, crushing or abrasion. 7. -
Page 19: Exploded View
10. EXPLODED VIEW... -
Page 20: Ce Declaration
Machine name: GENERATOR GC2500 / GC3200 / GC5500 / GC5500E / GC7000E / GC8500E Model: Recognized and approved standard to which it conforms: Directive 2006/42 / EC...
