Summary of Contents for EXCURSION SXT 8D4

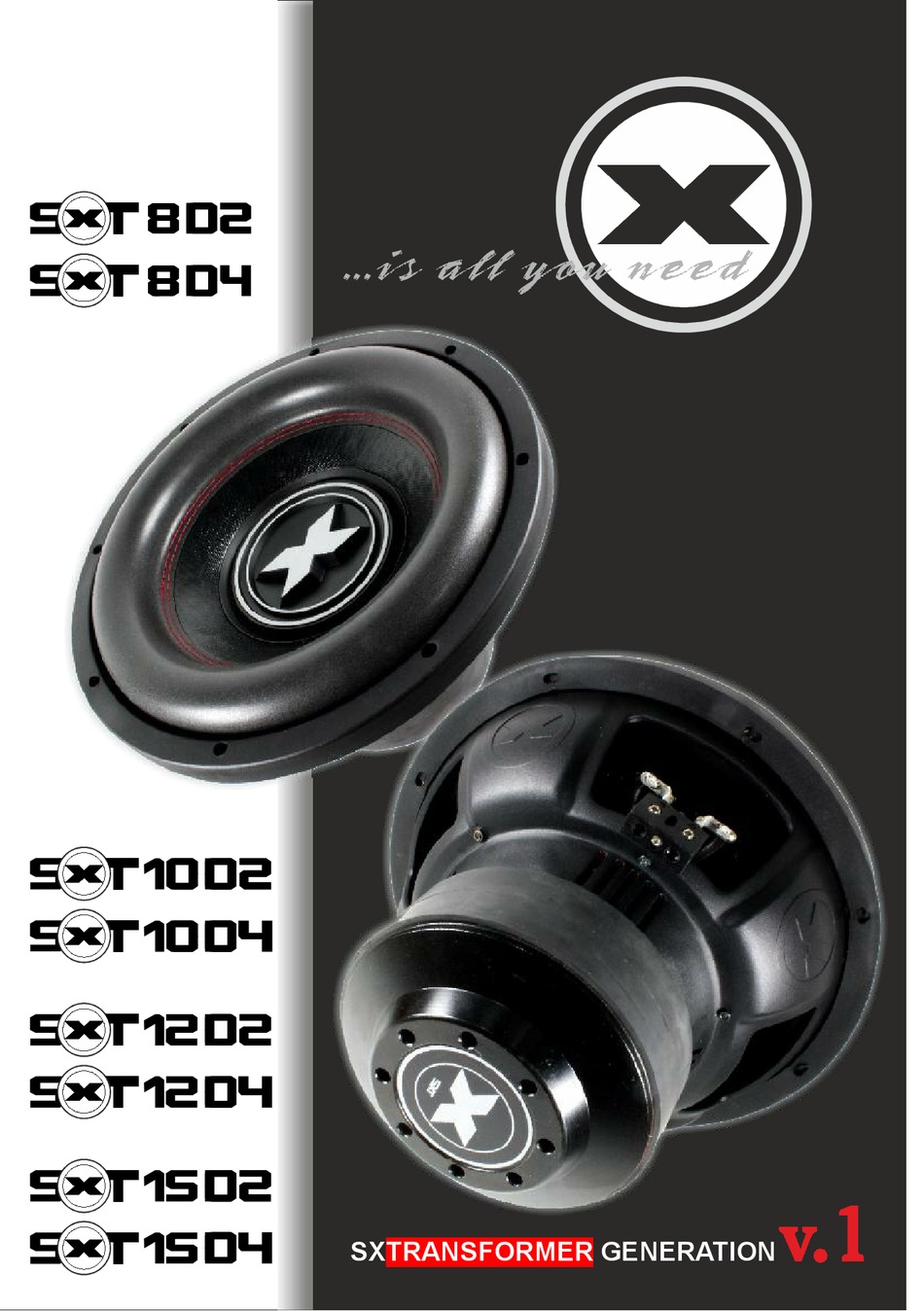

  • Page 1 ...is all you need TRANSFORMER GENERATION...
  • Page 2 170dB. Please observe all local sound ordinances while listening to your EXCURSION System. EXCURSION Intl. acceptss no liability for hearing loss, bodily injury, or property damage due to the result of use or missuse of this product.
  • Page 3 But me does not stop. The me in which ever greater amplifier performance is always offered cheaper and thus make new demands on entry-level and mid-size subwoofer is not only at EXCURSION today the present. Today calls for a new category of subwoofers that takes into account and builds new demands for more affordable performance.
  • Page 4 EXCURSION Pre-Installa on Instruc ons: It is recommend that you have your new EXCURSION SXT.v1 Sub professionally installed by your authorizied EXCURSION dealer. This will ensure use of proper installa on techniques & materials. If you choose to perform your own installa on, the following instruc on will give you direc on making your purchase complete.
  • Page 5: Preparing For Installation

    If you are intending to use mul ple subwoofers in your system, EXCURSION recommends having seperate chambers for each subwoofer if the subwoofers will be operated by different amplified signals. This prevent possible cancella on. WARNING: The use of silicone rubber to seal in a speaker will void the Warranty! If sealing is needed to the speaker gasket, use caulking cord or vinyl weather strip.
  • Page 6 EXCURSION S T.v1 8 2 -D SPECIFICATIONS 214*144 W/RMS 2000 W/MAX SPLO 50-300 Pulp in Matrix Dual 2 Dual 1.9 61.1 13.5 / 27 Aluminium Black OFC Copper layers High Flux Ferrite N.A. 15.73 0.072 Suspension Compliance Cms 5.38 Mechanical Q Factor 0.65...
  • Page 7 EXCURSION S T.v1 8 4 -D SPECIFICATIONS 214*144 W/RMS 2000 W/MAX SPLO 50-300 Pulp in Matrix Dual 4 Dual 3.2 61.1 13.5 / 27 Aluminium Black OFC Copper layers High Flux Ferrite N.A. 0.081 Suspension Compliance Cms 5.25 Mechanical Q Factor 0.69...
  • Page 8 EXCURSION S T.v1 0 2 1 -D SPECIFICATIONS 264*193 W/RMS 2500 W/MAX SPLO 43-300 Pulp in Matrix 11.0 Dual 2 Dual 1.4 76.5 17.5 / 35 Aluminium Black OFC Copper layers High Flux Ferrite N.A. 12.12 0.066 Suspension Compliance Cms 5.93...
  • Page 9 EXCURSION S T.v1 0 4 1 -D SPECIFICATIONS 264*193 W/RMS 2500 W/MAX SPLO 44-300 Pulp in Matrix 11.0 Dual 4 Dual 2.8 76.5 17.5 / 35 Aluminium Black OFC Copper layers High Flux Ferrite N.A. 8.07 0.061 Suspension Compliance Cms 5.22...
  • Page 10 EXCURSION S T.v1 2 2 1 -D SPECIFICATIONS 318*213 W/RMS 2500 W/MAX SPLO 38-300 Pulp in Matrix 11.5 Dual 2 Dual 1.4 76.5 17.5 / 35 Aluminium Black OFC Copper layers High Flux Ferrite N.A. 11.38 0.083 Suspension Compliance Cms 6.03...
  • Page 11 EXCURSION S T.v1 2 4 1 -D SPECIFICATIONS 318*213 W/RMS 2500 W/MAX SPLO 39-300 Pulp in Matrix 11.5 Dual 4 Dual 2.8 76.5 17.5 / 35 Aluminium Black OFC Copper layers High Flux Ferrite N.A. 7.92 0.072 Suspension Compliance Cms 6.14...
  • Page 12 EXCURSION S T.v1 15-D SPECIFICATIONS 391*235 W/RMS 2500 W/MAX 91.0 SPLO 30-300 Pulp in Matrix 13.0 Dual 2 Dual 1.4 76.5 16.5 / 33 Aluminium Black OFC Copper layers High Flux Ferrite N.A. 14.4 0.089 Suspension Compliance Cms 5.73 Mechanical Q Factor 0.78...
  • Page 13 S T.v1 15-D SPECIFICATIONS 391*235 W/RMS 2500 W/MAX 91.0 SPLO 30-300 Pulp in Matrix 13.0 Dual 4 Dual 2.8 76.5 16.5 / 33 Aluminium Black OFC Copper layers High Flux Ferrite N.A. 9.08 0.088 Suspension Compliance Cms 5.99 Mechanical Q Factor 0.93 Electrical Q Factor 0.81...
  • Page 14 EXCURSION...
  • Page 15 EXCURSION Intl. offers limited warranty on EXCURSION products under normal use on the following terms: EXCURSION Speakers are to be free of defects in material and workmanship for a period of one year This warranty applies only to EXCURSION products sold to consumers by Authorizied EXCURSION Dealers in Germany.
  • Page 16 ...is all you need EXCURSION - A Division of CHPW All Rights reserved - Intl. Trademark No: 010 640 597 Friedrich-Ebert-Str. 42 - D-92637 Weiden / Germany Tel: (+49) 961-416 04 20 - Fax: (+49) 961-46 04 41 www.facebook.com/Excursion.us EASCA...
