Arctic VR005 Installation Manual

Accessories Set VR005
Installation Manual
For further information, please consult www.arctic.ac

Compatibility

nVIDIA GeForce GTX 460

Accessories

Heatsinks x 5 Heatsinks x 1
Heatsinks x 4 Mounting plate x 1
Screws (M3) x 2 *Thermal adhesive x 1
*Be aware that the thermal adhesive comes with a very
short shelf life and shall be used within 1 week. We
recommend storing the thermal adhesive in a cool area to
avoid solidification. Refrigerate after opening. Additional
heatsinks and thermal adhesive are available for purchase
at vga.arctic.ac

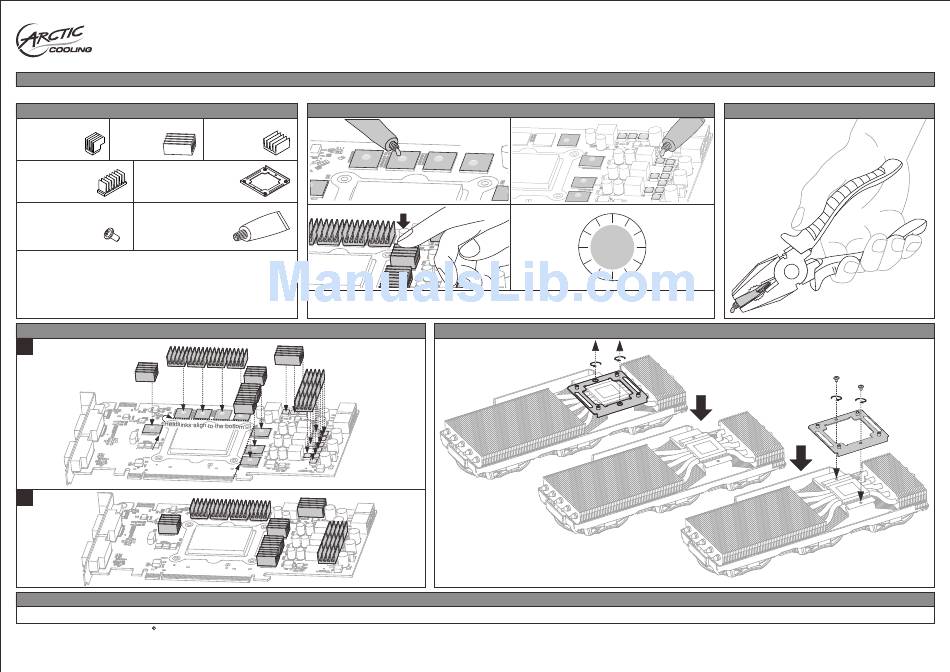

Installation of RAM and voltage regulator heatsinks

1
Heatsinks align to the right Heatsinks align to the right
2

Installation of main cooler

Please follow the installation instructions provided with the main cooler.
ARCTIC Switzerland Copyright
Huobstrasse 4 2010 ARCTIC Switzerland. All Rights Reserved.
8808, Pfäffikon, Switzerland
No part of this manual including the products described in it, may be reproduced, transmitted, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ARCTIC
www.arctic.ac Switzerland. In no event shall ARCTIC its directors or employees be liable for any indirect damages, incidental or consequential damages arising from any defect or error in this manual or product.

Tips for applying thermal adhesive

Heatsinks x 11 RAM
Apply pressure Apply pressure
(10 sec) (10 sec)
Caution: Please make sure the heatsinks are not touching any circuit components as it
may cause a short circuit to your VGA card.
Heatsinks align to the left Heatsinks align to the left
Voltage regulator Voltage regulator

Cure time

60mins

Installation of mounting plate

1. Uninstall default mounting plate
How to squeeze out all the glue?
2. Install replacement mounting plate
comes with the accessories set
