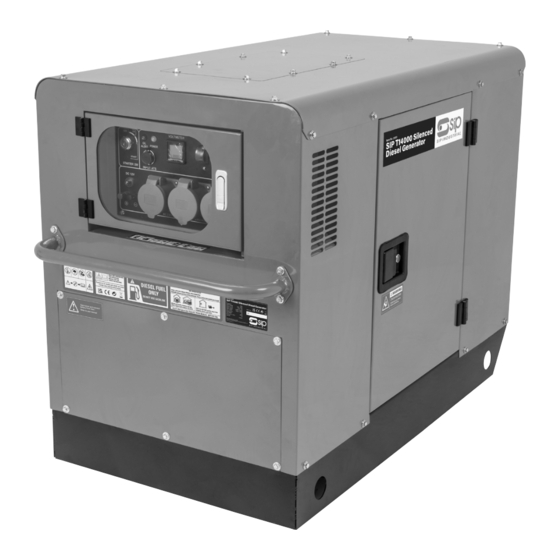

SIP Medusa T14000
Silenced Diesel Generator
25151
Advertisement
Table of Contents
Related Manuals for SIP 25151
Summary of Contents for SIP 25151
- Page 1 SIP Medusa T14000 SIP Industrial Products Limited Gelders Hall Road Shepshed Silenced Diesel Generator Loughborough Leicestershire LE12 9NH 25151 United Kingdom For help or advice please contact your distributor, or sip directly on: Tel.: 01509 500400 Email:sales@sip-group.com or technical@sip-group.com www.sip-group.com...
-
Page 3: Table Of Contents
CONTENTS Page No. Description Safety Instructions Electrical Connections Guarantee Your Item Technical Specification Operating Instructions Maintenance Troubleshooting Wiring Diagram Exploded Drawing Part List UK - Declaration Of Conformity EU - Declaration Of Conformity... -
Page 4: Safety Instructions
/ or damage to the item. Save this user manual for future reference. SIP recommends that this generator should not be modified or used for any application other than that for which it was designed. If you are unsure of its relative applications do not hesitate to contact us and we will be more than happy to advise you. - Page 5 SAFETY INSTRUCTIONS • Keep all persons away from the generator during operation. • Do not allow persons wearing loose clothing or jewellery to start or operate the generator. Loose clothing or jewellery may become entangled in moving components, causing equipment damage and/or personal injury. •...
- Page 6 SAFETY INSTRUCTIONS Flammable: The fuel used to run this generator (diesel) is highly flammable. Never re-fuel the generator whilst it is still running. Store unused fuel safely and away from children and in accordance with local regulations / laws. Refuelling Safety Instructions •...
- Page 7 SAFETY INSTRUCTIONS Grounding Instructions 1. Use the ground terminal on the generator to connect the unit to a suitable ground source. Securely fasten the end terminal of the ground wire to the ground terminal on the generator. 2. The ground wire should be made of more than 0.75 square millimetre wire. Too thin wire may not provide an adequate ground path.
-
Page 8: Electrical Connections
ELECTRICAL CONNECTIONS Connecting Tools To The Generator This generator is fitted with 1 x 230v 32A & 2 x 400v 32A type sockets. Inspect them, and anything to be connected to the generator, to ensure that no damage is present before every use. If any damage is visible have the socket / equipment inspected / repaired by a suitably qualified person. -
Page 9: Guarantee
GUARANTEE This item is covered by a 24 month or 1000 working hours parts and labour warranty - whichever comes first. The warranty period is based on a single shift work pattern i.e. 8 hours daily The warranty covers failures due to manufacturers defects only. This does not cover failure due to misuse or operating the item outside the scope of this manual - any claims deemed to be outside the scope of the warranty may be subject to charges Including, but not limited to parts, labour and carriage costs. - Page 10 YOUR GENERATOR...
- Page 11 YOUR GENERATOR 11 12 Item No. Description Item No. Description Castors Oil Alert Light Rear Push Bar Power Light Exhaust Pipe Voltmeter / Hour Meter Front Push Bar On/Off Switch Control Panel AC Circuit Breakers Right Access Panel DC Connection Top Access Panel Ground Left Access Panel...
-
Page 12: Technical Specification
TECHNICAL SPECIFICATION Model No. 25151 EURO 5 Diesel, 4-stroke, Twin Cylinder, Air Engine Type Cooling, Direct Injection. Start System Electric Start Three Phase A.C. Generator, Brushed with AVR Alternator (Automatic Voltage Regulator) Peak Output 13.7 KVA Continuous Output 12.5 KVA AC Voltage 1 x 220 - 240 V / 2 x 380 - 400 V DC Voltage / DC Current... -
Page 13: Operating Instructions
OPERATING INSTRUCTIONS Contents & Accessories • Main Generator Unit • Instruction Manual • Tool Kit Start Up Preparation Visual Inspection Inspect the generator and check all connections. » ALWAYS check that no damage is present and that everything is tight and secure. »... - Page 14 OPERATING INSTRUCTIONS Checking and filling the engine with oil Open the access panel in order to get access to the oil gauge (dipstick). Fig.1 » Unscrew the oil gauge and check the oil. Checks should be carried out before » each operation to ensure the oil is between the lower and the upper level mark.
- Page 15 OPERATING INSTRUCTIONS Checking the air filter Open the air filter access panel in order to get access to air filter. Fig.3 » Remove the air filter cover by turning it. Fig.4 » Check the filter is clean and correctly placed. Fig.5 »...
- Page 16 OPERATING INSTRUCTIONS Battery Open the access panel in order to get access to the battery. Fig.6 » Make sure battery is not damaged and is not leaking. If battery shows signs of » damage or leaking – DO NOT use and replace it. Check that the voltage is correct every month by using a voltmeter.
- Page 17 OPERATING INSTRUCTIONS Start Up and Operation Starting 1. Turn the AC switch to the ‘OFF’ position. Fig.7 2. Make sure that the machine has got fuel and engine oil before operation. 3. Turn the starting key clockwise to the ‘START’ position. 4.
- Page 18 OPERATING INSTRUCTIONS AC Load 1. Turn the AC switch to the ‘ON’ position along with the circuit breakers. Fig.11 2. Before connecting any load to the machine, make sure the voltage is reading ± 5% of the voltage selected. Fig.12 3.
- Page 19 OPERATING INSTRUCTIONS DC Load The terminal should be used only for charging 12V AGM car batteries or similar. 1. Switch ‘OFF’ the engine. 2. Make sure the AC switch is turned to the ‘OFF’ position along with the circuit breakers. Fig.11 3.
- Page 20 OPERATING INSTRUCTIONS Stopping the machine 1. Switch ‘OFF’ the equipment connected to the generator. 2. Turn ‘OFF’ the main switch and the AC circuit breakers (if applicable). Fig.14 3. Run the generator for a minute without any load. 4. Turn the key to the ‘OFF’ position. 5.
-
Page 21: Maintenance
MAINTENANCE NOTE: Any repairs / adjustments should only be attempted by a suitably qualified person; if you are unsure call the help-line number on the back page for your nearest technician. Before carrying out any maintenance operation, always unplug the machine and allow to cool down. - Page 22 1. Once the sump is empty of oil. 2. Unscrew the oil filter and dispose of it correctly following local guidelines. Fig.16 3. Add oil to the new filter and screw into position. NOTE: Contact SIP customer service for spare parts.
- Page 23 MAINTENANCE Fig.17 Oil Filter Fuel Filter Changing the Air Element Follow the instructions on page 15 to know how to check the air filter. Changing the Fuel Filter 1. With the access panel door opened, slide spring hose clips down the fuel pipe. 2.
-
Page 24: Troubleshooting
TROUBLESHOOTING FAULT CAUSE REMEDY Bad connections of current line Check each connector 1. Charge the battery Battery power is low 2. Change the battery No fuel Add fuel No oil Add oil Fuel deterioration or contain Drain the fuel tank and add clean Diesel engine does deteriorated fuel fuel... -
Page 25: Wiring Diagram
WIRING DIAGRAM Alternator Panel... -
Page 26: Exploded Drawing
EXPLODED DRAWING *For full exploded drawings & parts lists contact: • https://www.sip-group.com/ • SIP After Sales: 01509 500400 • Email: technical@sip-group.com... - Page 27 NOTES...
- Page 28 NOTES...
- Page 29 NOTES...
-
Page 30: Uk - Declaration Of Conformity
England As the manufacturer within the UK, England, Scotland & Wales, declare that the SIP Medusa T14000 Silenced Diesel Generator - SIP Part No. 25151 Conforms to the requirements of the following regulation(s), as indicated. Electromagnetic Compatibility Regulations 2016 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment... -
Page 31: Eu - Declaration Of Conformity
Republic of Ireland As the manufacturer’s authorised representative within the EC declare that the SIP Medusa T14000 Silenced Diesel Generator - SIP Part No. 25151 Conforms to the requirements of the following directive(s), as indicated. 2014/30/EU - EMC Directive 2011/65/EU & 2015/863/EU - RoHS Directive... - Page 32 FOR HELP OR ADVICE ON THIS PRODUCT PLEASE CONTACT YOUR DISTRIBUTOR, OR SIP Please dispose of packaging for the product in a DIRECTLY ON: responsible manner. It is suitable for recycling. Help TEL: 01509 500400 to protect the environment, take the packaging to EMAIL: sales@sip-group.com or...
