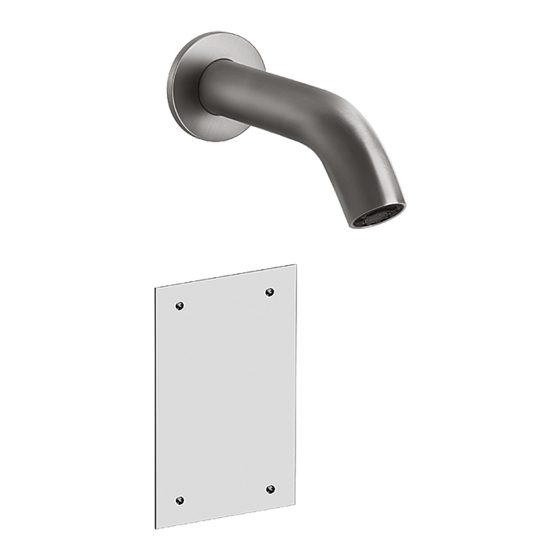

BATH MIXING PROGRAM
PROGRAMME DU MITIGEUR POUR LA SALLE DE BAIN
PROGRAMA MEZCLADORES BAÑO
Art. 54014
Art. 54114
Art. 54214
Art. 54314
Art. 54414
Gessi SpA - Parco Gessi
13037 Serravalle Sesia (Vercelli) - Italy
Phone +39 0163 454111 - Facsimile +39 0163 459273
www.gessi.com - gessi@gessi.it
Art. 54015
Art. 54115
Art. 54215
Art. 54315
Art. 54415
Advertisement
Table of Contents
Related Manuals for Gessi 316 54115
Summarization of Contents
Safety Warnings and Precautions
Pressure and Temperature Limits
General warnings regarding maximum pressure and temperature, and recommended operating pressures.
Product Usage and Installation Guidelines
Restrictions on product use, installation by professionals, and adherence to local codes.
Electrical and Physical Handling Precautions
Warnings about connecting electric cables and placing objects on the product.
Installation Force and Fitting Advice
Guidance on avoiding excessive force during installation and fitting material restrictions.
Pre-Installation Dimensional Drawings
Dimensions for Art. 54014-54414 Series
Detailed drawings and measurements for the 54014 to 54414 product series.
Dimensions for Art. 54015-54415 Series
Detailed drawings and measurements for the 54015 to 54415 product series.
Pre-Installation Procedures and Technical Data
Piping Preparation and Aerator Rinsing
Instructions for rinsing supply pipes and the aerator before installation.
Technical Data and Operating Parameters
Key technical specifications including pressure, temperature, and detection parameters.
Installation Cautions and Warranty Notes
Pipe Rinsing and Foreign Body Prevention
Emphasis on thorough pipe rinsing to prevent foreign bodies from damaging the mixer.
Warranty Limitations on Filter Installation
Notes on warranty coverage related to filter tap installation.
Package Contents
English Package Contents List
List of items included in the product package in English.
Installation Tools
English Installation Tools List
List of tools required for installation, with dimensions in inches and mm.
Installation Steps (Figs. 1-4)
Figure 1: Initial Component Assembly
Illustrates the initial steps of assembling product components.
Figure 2: Hose and Valve Connection
Shows the connection of hoses and the solenoid valve.
Figure 3: Internal Component Placement
Depicts the placement of internal components within the main unit.
Figure 4: Sealing and Water Connections
Illustrates sealing procedures and water pipe connections with tools.
Installation Steps (Figs. 5-10)
Figure 5: Connecting the Sensor Unit
Shows the connection of the sensor unit to the main assembly.
Figure 6: Mounting the Spout
Illustrates the process of mounting the water spout.
Figure 7: Securing the Spout Assembly
Depicts securing the spout assembly to the unit.
Figure 8: Attaching the Cover Plate
Shows how to attach the cover plate with screws.
Figure 9: Correct vs. Incorrect Assembly
Visual guide showing correct and incorrect assembly states.
Figure 10: Final Spout Attachment
Illustrates the final attachment of the spout.
Installation Steps (Figs. 11-16)
Figure 11: Installing Water Inlet Components
Shows the installation of components for the water inlets.
Figure 12: Connecting the Solenoid Valve Housing
Illustrates connecting the housing for the solenoid valve.
Figure 13: Securing the Main Unit
Depicts securing the main internal unit.
Figures 14-16: Assembling Internal Parts
Shows the assembly of various internal parts and gaskets.
Installation Steps (Figs. 17-20)
Figure 17: Connecting the Battery Holder
Illustrates connecting the battery holder to the unit.
Figure 18: Battery Installation Warning
Shows a warning symbol related to battery installation.
Figure 19: Securing Electrical Connections
Depicts securing the electrical connections.
Figure 20: Attaching the Cover Plate
Shows attaching the cover plate with screws after electrical connections.
Standard Operation and Settings
Figure 21: Standard Detection Range
Diagram showing the standard minimum and maximum detection distances and angle.
Figure 22: Sensor Mounting Detail
Illustrates the mounting of the sensor with a specific hole size.
Figure 23: Temperature Regulation Indicator
Shows indicators for hot and cold water and temperature regulation.
Detection Range Adjustment
Figures 24-25: Adjusting Detection Range
Illustrates the mechanical adjustment of the detection range.
Figure 26: Initial Detection Setup
Shows the initial hand positioning for detection setup.
Figures 27-28: Fine-Tuning Detection
Depicts fine-tuning the detection range with hand movements.
Customized Detection Distance Setup
Procedure for Customizing Detection Distance
Step-by-step instructions for setting a personalized detection distance.
General Maintenance Information
Component Replacement and Contact Information
Instructions for replacing components and contacting authorized retailers or Gessi.
Qualified Staff for Maintenance
Guidance stating that product maintenance should only be performed by qualified personnel.
Aerator Cleaning and Replacement
Figure 1: Removing the Aerator
Illustrates the process of removing the aerator.
Figure 2: Cleaning the Aerator
Shows the aerator after cleaning or replacement.
Sensor Cleaning Procedure
Figure 1: Cleaning the Sensor
Diagram showing how to clean the sensor with a cloth.
Solenoid Valve Replacement
Figure 1: Accessing the Solenoid Valve
Illustrates removing the cover plate to access the solenoid valve.
Figure 2: Identifying Hot and Cold Connections
Shows the hot and cold water connections and the close function.
Figures 3-4: Replacing the Solenoid Valve
Depicts the steps for removing and replacing the solenoid valve.
Cartridge Replacement Procedure
Figures 1-2: Accessing and Preparing Cartridge
Shows accessing the cartridge and preparing for removal.
Figure 3: Removing the Cartridge
Illustrates the removal of the old cartridge.
Figure 4: Installing the New Cartridge
Depicts installing the new cartridge with torque specification.
Filter Cleaning and Replacement
Figures 1-2: Accessing and Cleaning Filters
Shows how to access and clean the filters.
Figure 3: Replacing the Filters
Illustrates the process of replacing the filters.
Figure 4: Reconnecting the Water Supply
Depicts reconnecting the water supply after filter maintenance.
Stainless Steel Surface Cleaning
Treating Stains and General Cleaning
Instructions for treating specific stains and general cleaning of stainless steel surfaces.
Approved and Prohibited Cleaning Agents
Lists cleaners to use and avoid for stainless steel to prevent damage.
Cleaning Techniques and Material Handling
Guidance on cleaning strokes, water usage, and cross-contamination prevention.
