5002736
Rev. C
12/13
INSTRUCTION MANUAL

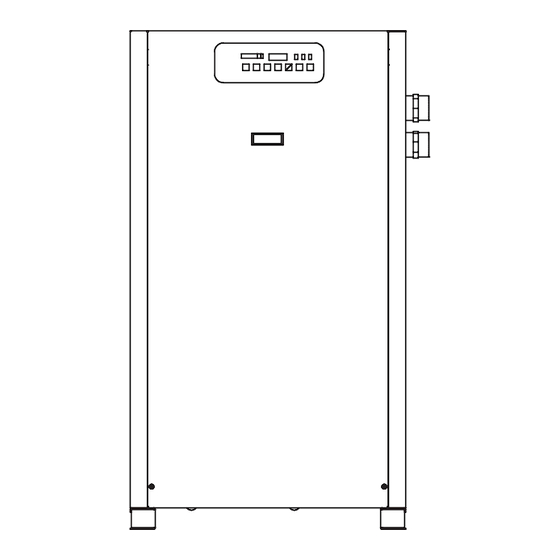

Demand Manager Control Series
Models:
TF 171E & TF 210E
CONTENTS
GENERAL SAFETY INFORMATION .................................. 2
RECEIVING, MOVING, AND UNPACKING ........................ 2
1.0 INSTALLATION ......................................................... 3
2.0 OPERATION ............................................................ 5
3.0 MAINTENANCE ...................................................... 8
SIZING ............................................................................ 8
ENGINEERING DATA ...................................................... 9
Model TF 171E .......................................................... 10-11
Model TF 210E .......................................................... 12-13
575-460/3/60 Transformer Pack ............................. 14
DIMENSIONS / WEIGHTS ................................................ 15
TROUBLESHOOTING GUIDE ............................................ 16
PARTS LIST ..................................................................... 17
WARRANTY ................................................................... 20
SERVICE DEPARTMENT: (724) 745-3038
REFRIGERATED
TYPE
COMPRESSED
AIR DRYERS
