Summary of Contents for Hardware House HH34392

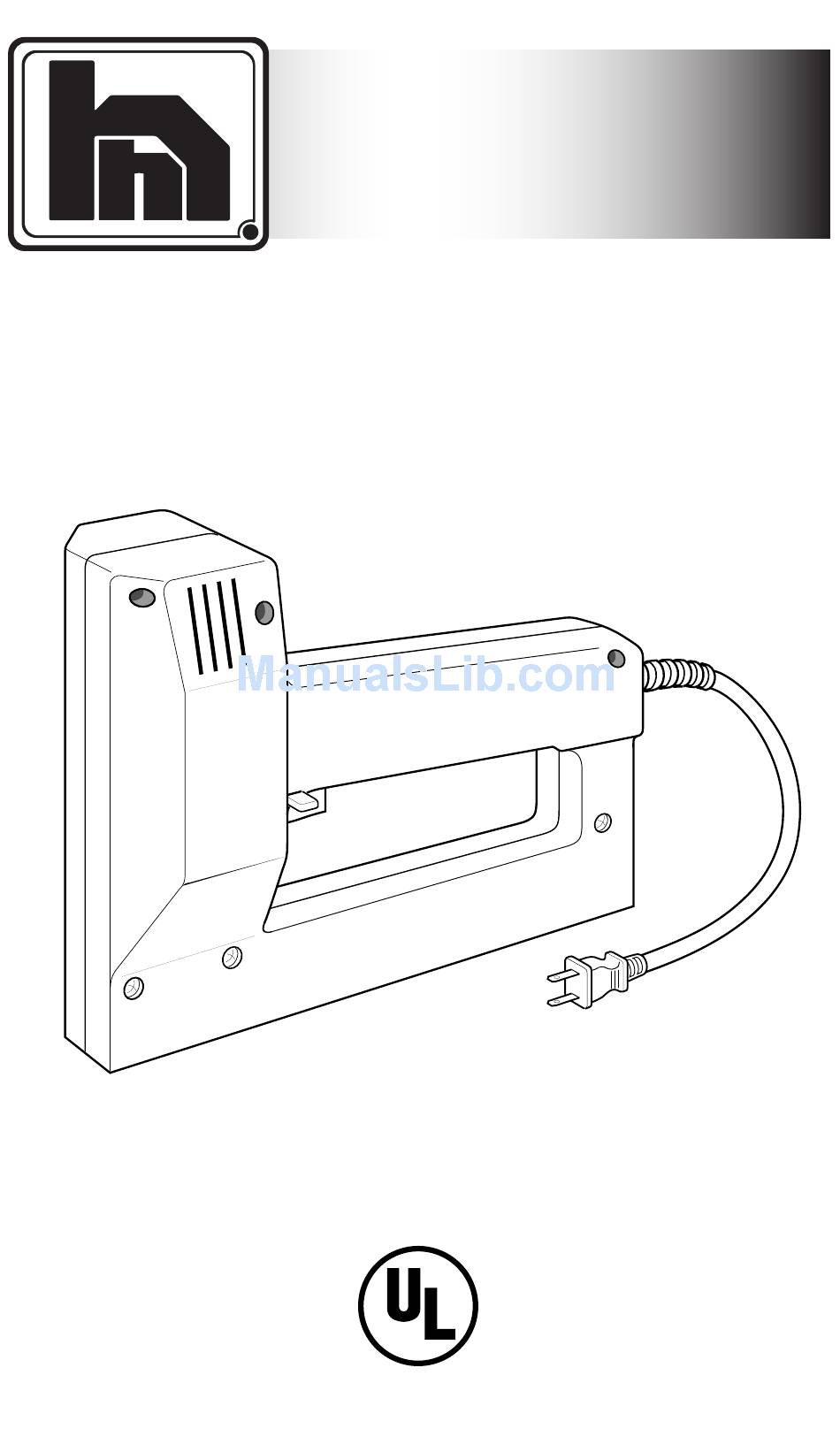

- Page 1 HARDWARE ® HOUSE ELECTRIC STAPLEGUN Model HH34392 OPERATING INSTRUCTIONS ®...
- Page 2 Safety Information WARNING: Follow all safety precautions outlined in these oper- ating instructions. Improper use of this tool can cause severe injury or death from fire, electrical shock, or firing staple into body. Before Operating Tool 1. Read and understand these operating instructions before operating tool. 2.
- Page 3 During Operation of Tool 1. Keep all parts of body away from staple exit on tool. 2. Never point tool at anyone. 3. Keep children, animals, and bystanders away from tool and extension cord at all times. Only tool user should be in work area. 4.
- Page 4 Product Identification Staple Exit Product Features The Hardware House designed for home and workshop. It performs basic fastening jobs from installing insulation, porch screening, and ceiling tiles to repairing upholstery. Trigger This tool has an easy squeeze trigger. The trigger is located under- neath the hand grip.
- Page 5 Extension Cords CAUTION: Use only extension cords marked for outdoor use. Be sure to use the right size extension cord. If cord size is wrong, tool may be damaged. Tool performance may also be affected. Extension Cord Size Requirement 1 to 25 feet, use 16 AWG rated cord 26 to 50 feet, use 14 AWG rated cord Inspect extension cords often and replace if damaged.
- Page 6 4. Drop staples in channel (see Figure 4). Note: We recommend that you only use Hardware House narrow-crown staples in this tool. Wrong staples can cause jamming. 5. Slide staple chamber cover closed. Make sure cover locks into place. Operating Tool WARNING: Keep trigger lock in the OFF position and finger off trigger until ready to drive staple.
- Page 7 5. Squeeze trigger to fire. 6. IMPORTANT: Do not fire this tool when empty of staples. This may damage tool. Note: In difficult fastening jobs, press down on head of tool with palm of free hand (see Figure 6). This will improve staple driving.
- Page 8 Staple Brand ® Arrow PowerShot 97-010 97-011 97-012 97-013 97-014 is a registered trademark of Stanley Corporation. ® is a registered trademark of DESA IP, LLC. ® ® heavy- ® ® Stanley TRA704 TRA705 TRA706 TRA708 TRA709 112787-01 Rev.
