- Page 1 Mix’n Machine ® ALL MODELS VM0132 VM0806B VM0801 VM0804A VM0807A VM0133 VM0801A VM0805 VM0807B VM0156 VM0802 VM0805B VM0800 VM0807C VM0802A VM0805C VM0800A VM0804 VM0806A Use and Care Manual Read and save these instructions MIX’N MACHINE® ADVANCE® MIX’N MACHINE®...
-
Page 2: Important Safeguards
4. Make sure the machine is sitting or mounted solidly on a sturdy surface or wall before using. 5. Unplug the power cord from the wall outlet when the Vitamix machine is not in use, before disassembling, putting on or taking off parts, and before cleaning, other than washing the agitator. -
Page 3: Important Notes
Save These Safety Instructions • The Vitamix blender’s U.S.A. power cord comes equipped with a three-prong (grounding) plug which mates with a standard three-prong wall outlet (Figure A). This cord will vary for countries outside the United States of America. -
Page 4: Control Panel

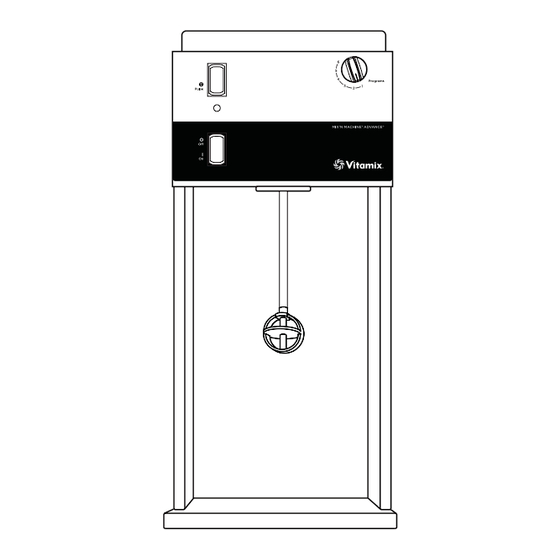

CO N T R O L PA N E L IMPORTANT NOTES! Vitamix machines come with several different control options. Please be sure you are following the instructions for your model. MOUNTING KITS: Mounting Kits, with detailed instructions, are available for both the countertop and wall mount Mix’n Machines. - Page 5 Program Dial Pulse Switch Indicator Light Power Switch Actuator Agitator Mix’n Machine Advance Programmable Model Pre-programmed with six blending options and pulse switch. COUNTERTOP ON/OFF Power Switch: This is a lighted switch. When light is lit, power is ON. Located on the front of the machine, the ON/OFF switch controls the power to the machine.
- Page 6 CO N T R O L PA N E L IMPORTANT NOTES! Vitamix machines come with several different control options. Please be sure you are following the instructions for your model. MOUNTING KITS: Mounting Kits, with detailed instructions, are available for both the countertop and wall mount Mix’n Machines.
- Page 7 Power Switch Power Switch Agitator WALLMOUNT Foot Pedal Agitator (sold separately) COUNTERTOP Mix’n Machine Standard Model COUNTERTOP ON/OFF Power Switch: Located on the front of the machine, the ON/OFF switch controls the power to the machine and starts the agitator. While plugged in, switch to ON to start blending and OFF to stop blending.
-
Page 8: General Instructions
G E N E R A L I N ST R U C T I O N S The Mix’n Machine combines a durable motor with different styles of agitators. By rapidly moving the cup up and around the agitator, a thorough mixing job can be accomplished. Some combinations may take more time depending on additives, product temperature, technique, and desired consistency of finished product. - Page 9 Mix’n Machine Blending Procedures Disposable Lid Put product (ice cream, yogurt, etc.) into a sturdy serving cup along with ingredients such as liquid flavoring, and mix-ins such as candy, cookies, fruit or other condiments. Permanent Collar 2. For units with a Removable Agitator: push the agitator up onto the shaft until it snaps into place.
- Page 10 G E N E R A L I N ST R U C T I O N S Notes: Should the cup be hard to hold, either move the agitator into the mix more slowly or start with softer ice cream. Do not continue to operate if you are having trouble holding the cup.
- Page 11 P R O G R A M M I N G The Mix’n Machine Advance Programmable Model is pre-programmed with six blending options. The Mix’n Machine Advance Timer Model is pre programmed with one pre-set timed blending cycle. The programs can be customized by using a programming chip or programmer software kit available from Vita-Mix Corporation.
- Page 12 AG I TATO R S CAUTION! SHOCK HAZARD. Unplug the machine before making any adjustments to the Agitator Shaft. Permanent Soft Ice Cream Agitator: Made of durable NSF accepted Acetal, this non-metal agitator can be pushed up against the inside of paper or plastic cups with no damage to the cup.
-
Page 13: S P L As H G Ua R D
S P L AS H G UA R D Because of their unique designs, the splash guards catch the product thrown from the agitator and shield the operator during mixing. On the countertop units, the splash guard pivots up and down to prevent thin drinks or desserts from splashing the operator. - Page 14 C A R I N G FO R YO U R M AC H I N E 4. Repeat step 2, except use an approved 100 ppm sanitizing solution and cleaner and run agitator and shaft under solution for a minimum of two minutes. 5.
-
Page 15: Parts List
PA RTS L I ST Mix’n Machine Advance and Mix’n Machine Standard Countertop Models #30019 Permanent Soft Ice Cream Agitator #30019 Removable/Reusable Agitator (10 pack) #30018 Aggressive/Permanent Hard Ice Cream Agitator #30023 Agitator Shaft – for countertop models #30015 Splash Guard – for countertop models #30019 #30003 #30023... - Page 16 PA RTS L I ST Kits Sold Separately: Conversion Kit (Permanent Soft/Hard Ice Cream Agitator To Removable/Reusable Agitator) Conversion Kit (Removable/Reusable Agitator To Permanent Soft Ice Cream Agitator) #30006 Conversion Kit (Removable/Reusable Agitator To Aggressive Permanent Hard Ice Cream Agitator) #15668 Wall and Counter Sure-Support Mounting Kit –...
- Page 17 PA RTS L I ST Mix’n Machine Standard Wall Mount Model #30019 Permanent Soft Ice Cream Agitator #30003 Removable/Reusable Agitator (10 pack) #30018 Aggressive/Permanent Hard Ice Cream Agitator #30034 Agitator Shaft – for wall mount models #30029 Splash Guard – for wall mount models #30019 #30003 #30023...
- Page 18 PA RTS L I ST Kits Sold Separately: Conversion Kit (Permanent Soft/Hard Ice Cream Agitator To Removable/Reusable Agitator) #30004 Conversion Kit (Removable/Reusable Agitator To Permanent Soft Ice Cream Agitator) #30005 Conversion Kit – must be used with #30034 – sold separately (Removable/Reusable Agitator To Aggressive/Permanent Hard Ice Cream Agitator) #30000 Guarded Air-Activated Foot Control –...
-
Page 19: Troubleshooting
Regulate your mallet taps to move the shaft towards the center without overshooting. If you cannot fix your machine, call Vitamix Technical Support at (800) 866.5235. If outside the United States and Canada, contact your local Vitamix Distributor or telephone the Vitamix International Division at +1 (440) 782.2450 or email... -
Page 20: Motor Protection
M OTO R P R OT E C T I O N PA RTS L I ST The Mix’n Machine is equipped with a reset breaker mounted on the motor enclosure. See Figures 1 and 2. Should the motor be kept from turning (locked rotor) or otherwise be overloaded, the breaker will trip. -
Page 21: Warranty
The following are the sole remedies of the Purchaser and set forth the only warranty obligations of Vitamix. No employee of Vitamix or any other person is authorized to make any warranty in addition to or amendment of the following warranties. - Page 22 The warranties contained herein run only to the original end-user and are not transferable. To make a warranty claim, proof of purchase is required. Any warranty offered by Vitamix is only valid if used in accordance with: a) the owner’s manual that may also be accessed at vitamix.com; b) the express warranty; and c) any and all maintenance instructions regardless of when they are supplied.
- Page 23 Vitamix will pay standard ground freight to return Equipment subject to this warranty to Vitamix. After the first thirty (30) days, Purchaser will pay the shipping costs to return Equipment covered by this warranty to Vitamix or the local authorized service provider.
-
Page 24: Specifications
100 VAC, 100 W, 50/60 Hz Standard Models: 120 VAC, 2.6 A, 50/60 Hz 220-240 VAC, 285-325 W, 50/60 Hz 100 VAC, 2.6 A, 50/60 Hz When applicable: To see the complete line of Vitamix products, ® visit vitamix.com Vita-Mix Corporation ®...
