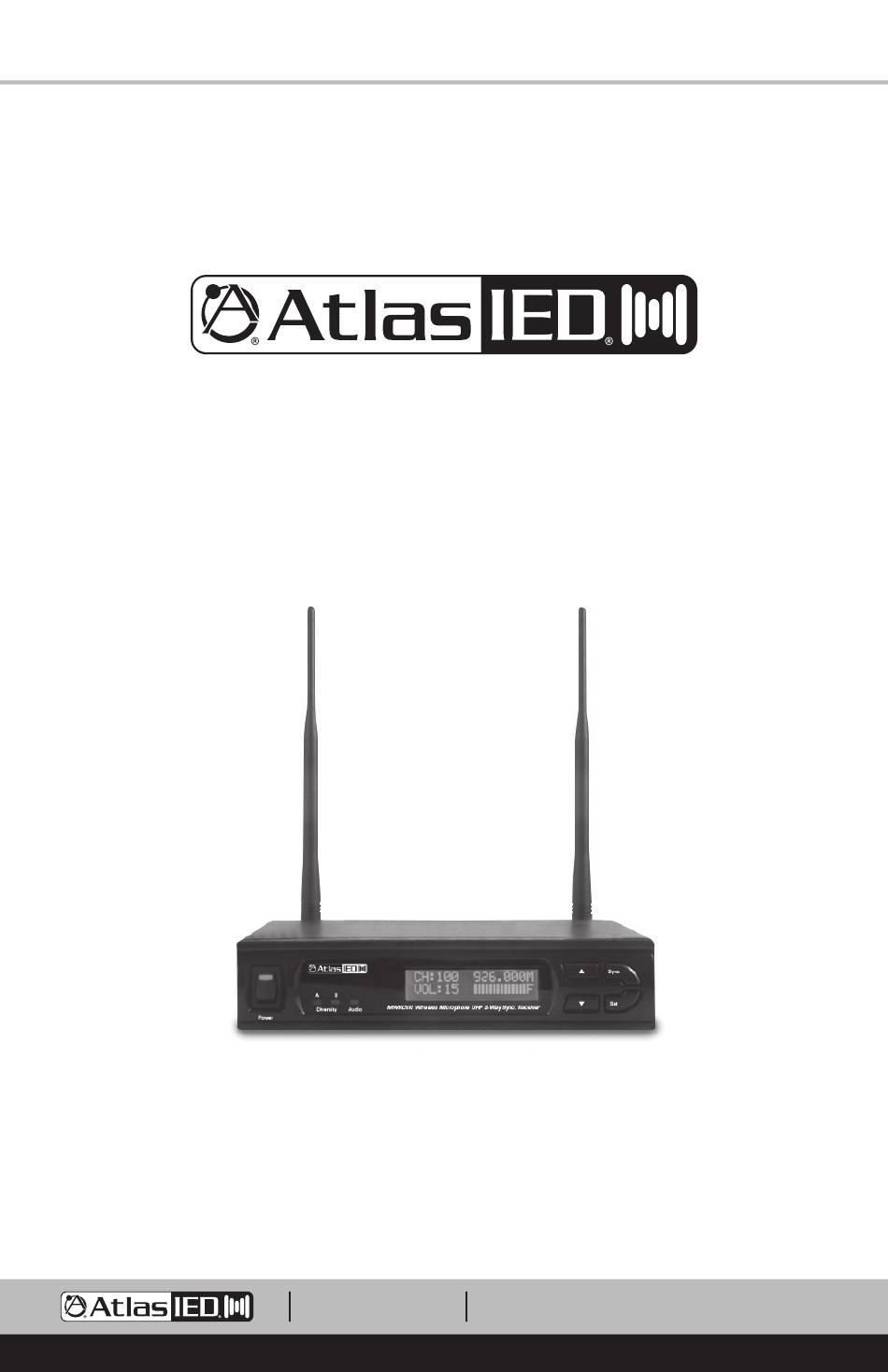

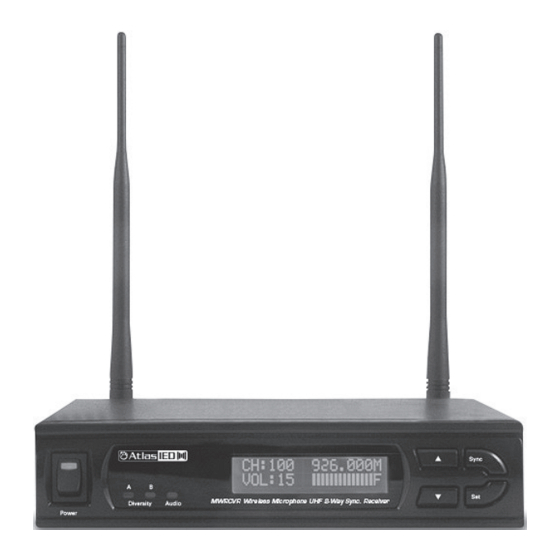

  • Page 1 MWRCVR UHF 2-Way Sync Wireless Receiver 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 1 –...

  • Page 2: Key Features

    MWBTP on available channels. The unit can be used as a standalone piece on a shelf or desk or it can be rack mounted by itself or with a second MWRCVR using the rack mount kit, model MWRMK (sold separately).

  • Page 3: Parts And Functions

    MWRCVR Owner’s Manual Parts and Functions Sync Sync MWRCVR Wireless Microphone UHF 2-Way Sync. Receiver Diversity Audio MWRCVR Wireless Microphone UHF 2-Way Sync. Receiver Diversity Audio Power Power 1601 Jack McKay Blvd. • Ennis, TX 75119 1601 Jack McKay Blvd. • Ennis, TX 75119 800.876.3333 •...
  • Page 4 MWRCVR Owner’s Manual Changing Channel / Frequency 1. Press and release SET button until the CHANNEL | FREQUENCY page appears (Fig 1). 2. Press UP or DOWN button to select a new channel. As the channel changes, the frequency changes accordingly (Fig 2).

  • Page 5: Channel Scanning

    MWRCVR Owner’s Manual B. Changing the microphone’s channel 1. Press the synchronizing button on the receiver (Fig 7). 2. “IRDA DATA SEND” will appear on the receiver’s display (Fig 8). 3. “IRDA TX FINISH” will appear to denote data transferred (Fig 9).

  • Page 6: Adjusting Volume Level

    MWRCVR Owner’s Manual Adjusting Volume Level 1. Volume adjustment can be made from the home screen (Fig 12). 2. Press UP or DOWN button to choose a new level (Fig 13). 3. After the level is adjusted, wait 5 seconds to store the setting.

  • Page 7: Audio Output Connection

    MWRCVR Owner’s Manual Audio Output Connection Balanced Output: XLR connector provides balanced audio output signal from this jack to the mixer / amplifier. Use an audio output cable with “XLR” or “Cannon” connector, connect one end to the balanced output jack of the receiver, and the other end to the “LINE IN” or “MIC IN”...
  • Page 8 MWRCVR Owner’s Manual Audio Output Connection " line output connector provides unbalanced audio output signal from Unbalanced Output: this jack to the mixer / amplifier. Use an audio output cable with " PHONE PLUG connector. Connect one end from the unbalanced output jack of the receiver, and the other end to the “LINE IN”...

  • Page 9: Receiver Installation

    MWRCVR Owner’s Manual Receiver Installation 1. For best operation, the receiver should be at least 1m above the ground and 1m away from a wall or metal surface to minimize reflections. 2. The transmitter should also be at least 1m away from a wall or metal surface to minimize reflections.
  • Page 10 MWRCVR Owner’s Manual System Frequency Range UHF Operating Frequencies 470 - 608MHz Switching Bandwidth 25MHz Switchable Frequencies Channels Display Screen Operating Range 100m Direct Sight Output Impedance Mic / Line Oscillation Type PLL Synthesized Frequency Stability ±0.005% Receiving Method True Diversity...
  • Page 11 MWRCVR Owner’s Manual Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 12 MWRCVR Owner’s Manual Notes 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 12 –...
  • Page 13 MWRCVR Owner’s Manual Notes 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 13 –...
  • Page 14 MWRCVR Owner’s Manual Notes 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 14 –...

  • Page 15: Limited Warranty

    LIMITED TO WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. AtlasIED does not assume, or does it authorize any other person to assume or extend on its behalf, any other warranty, obligation, or liability. This warranty gives you specific legal rights and you may have other rights which vary from state to state.
  • Page 16 MWRCVR Owner’s Manual Service Should your MWRCVR require service, please contact the AtlasIED warranty department through the online warranty claim process. Online Warranty Claim Processes Warranty submissions are accepted at: https://www.atlasied.com/warranty_statement where the type of return Warranty or Stock return can be selected.
