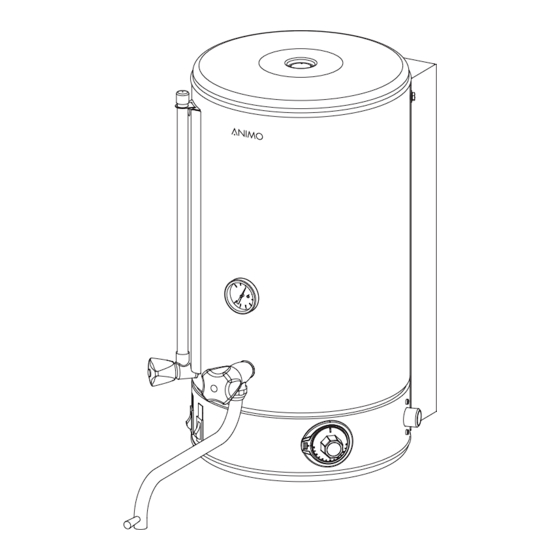

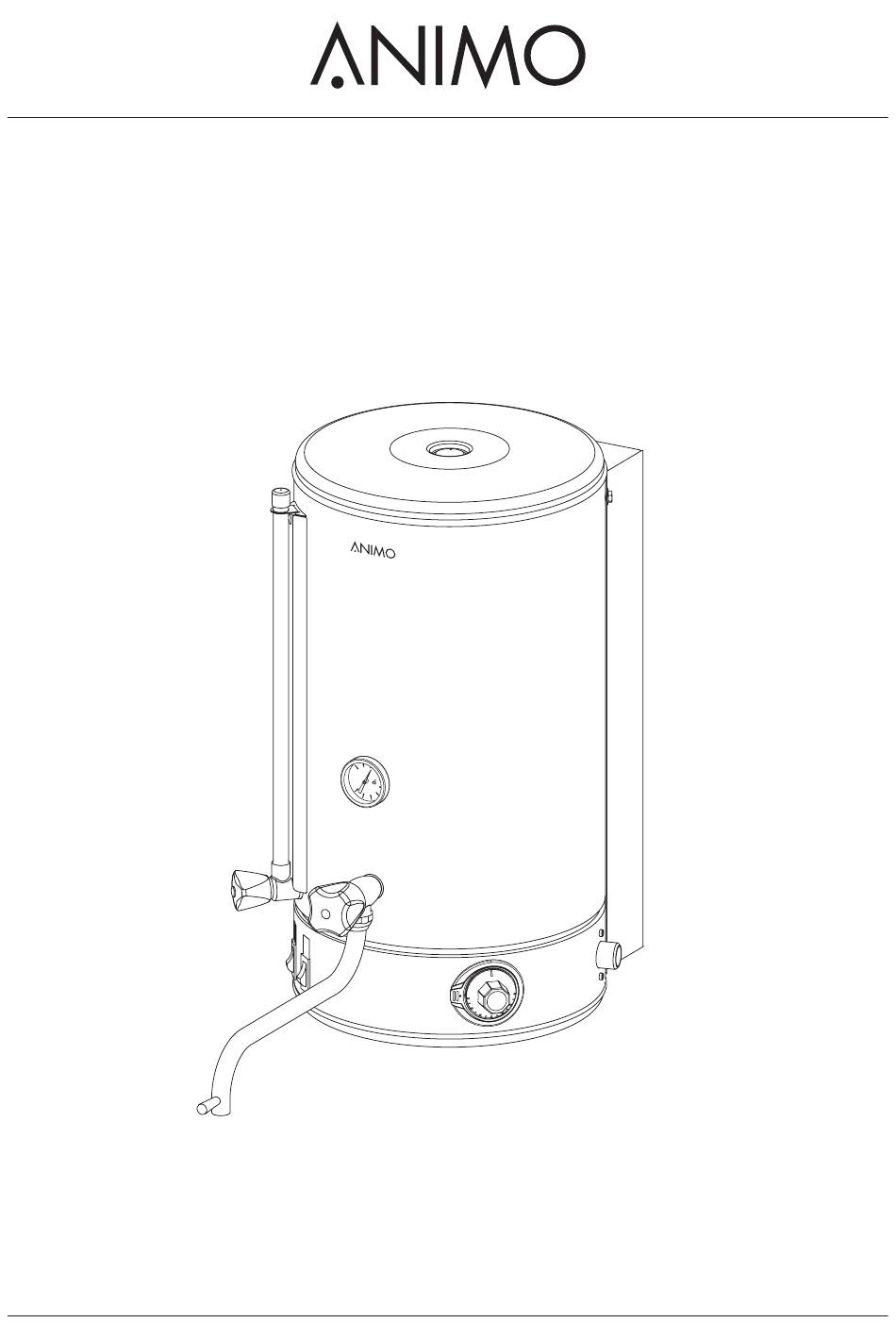

- Page 1 WKI-n WKI 10n WKI 20n 3kW WKI 20n 6kW WKI 40n WKI 60n WKI 80n gebruiksaanwijzing user manual betriebsanleitung mode d'emploi...
- Page 2 WKI-n fig. 1 / Abb. 1 2015/03 Rev. 5.0...
- Page 3 WKI-n Ø15 Volt Electriciteitaansluiting Wateraansluiting Overloopaansluiting V olt V olt V olt Electrical connection Water connection Overflow connection Stromkabel Wasseranschluss Wasserablauf Branchement électrique Branchement d'eau froid Branchement trop-plein WKI 10n WKI 20n 3KW WKI 20n 6KW WKI 40n WKI 60n WKI 80n 30110 30115...
- Page 4 Animo kan geen verantwoording op zich nemen voor eventuele fouten in dit boek of de gevolgen daarvan. Animo has the right to change parts of the machine at any time without advice or direct announcements to the client. The contents of this manual can also be changed without any announcements.
- Page 5 WKI-n TABLE OF CONTENTS GENERAL DESCRIPTION ........... . . TECHNICAL DETAILS .
-
Page 6: General Description
WKI-n These operating instructions are intended for the user of the ANIMO storage water boilers type WKI. Read these operating instructions carefully to ensure that appliance is used properly and safely. 1. GENERAL DESCRIPTION A storage water boiler of the WKI range makes constant hot water always available. -
Page 7: Installation
WKI-n Type : WKI 40n WKI 60n WKI 80n Article number : 30125 30130 30135 Buffer stock hot water : 40 ltr. / 320 cups 60 ltr. / 480 cups 80 ltr. / 640 cups Hour capacity hot water : 90 ltr. / 720 cups 90 ltr. -
Page 8: Water Connection
WKI-n • (fig. 3) In case of 3N~ 380-415V (5-core cable). 3.3 Water connection • (fig. 4) In case of 3~ 230V (4-core cable). The system must be a stopcock, a drain, a • (fig. 5) In case of 1N~ 220-230V (3-core cable). non-return valve and must end with an easily accessible aeration tap with a 3/4" connector. The following points should be observed when wiring The minimum water pressure must not fall a new plug: below 1 bar (with 5 l./min. -
Page 9: Control Panel (Fig. 1)
WKI-n 4. CONTROL PANEL (FIG. 1) The thermostat can be used to heat the water to any temperature between 30°C and 97°C. The ideal water temperature when making coffee is approx. 97°C. The water boiler is now ready for use. °C A - Thermometer verwarming... -
Page 10: Brewing Coffee
WKI-n 6. USE Basic rules for brewing coffee • Use regular ground coffee (± 50 gram/litre). • Keep the containers and the filters clean. • Brewing coffee, see section 6.1 • Brewing tea, see section 6.2 The inner pot of the container must always be fresh and clean. Always apply the following safety precautions with a To avoid temperature loss during the brewing WKI when making use of a serving trolley setup;... -
Page 11: Brewing Tea
WKI-n 6.2 Brewing tea Fill the water boiler with the required quantity of water and wait until the water has reached the temperature set. Open the tap as far as possible, A tea filter with disk and a filling pipe is needed to allowing it to vent properly. - Page 12 Switch the water boiler on again, allow it to fill until all scale deposit has been completely submerged. Switch on the heating system and heat the water to a temperature of approx. 60°C. Read the warnings and other instructions indicated on the Animo scale remover. 2015/03 Rev. 5.0...
- Page 13 WKI-n 9. TRANSPORTATION Before transporting the WKS, carry out the following actions: Switch off the WKI and remove the plug fitting from the wall socket. Close the water supply tap and disconnect the connection hose. Remove the bottom plate by unscrewing the fastening bolt in the middle of the plate.
- Page 14 WKI-n 2015/03 Rev. 5.0...
- Page 15 WKI-n 2015/03 Rev. 5.0...
- Page 16 Animo B.V. Dr. A. F. Philipsweg 47 P.O. Box 71 9400 AB Assen The Netherlands Tel: +31 (0) 592 376376 Fax: +31 (0) 592 341751 E-mail: info@animo.nl www.animo.eu 2015/03 Rev. 5.0 09795...
