- Page 1 User manual for Avara alarm system for motorhomes, campervans and caravans - complete version Avara Lite Avara Basic Avara Basic Plus Avara Moist Avara Premium Side 1...
- Page 2 The Avara alarm system is very easy to use. However, read this manual so that you understand what the alarm system really does. It is important for your safety. Avara Lite is a basic alarm package offering optical smoke-, CO-gas- and propane gas detection and burglary, as well as remote control.
-
Page 3: Table Of Contents
Table of contents Part 1: Get started with Avara alarms Avara Lite Avara Basic, Basic Plus and Premium Avara Moist Part 2: Technical information Main unit Propane gas detector Intrusion detector (Burglar detector) External detector Siren Universal gas detector Moisture sensors... -
Page 4: Part 1: Get Started With Avara Alarms
Avara Lite Registration Your Avara Lite comes standard with a modem that allows access to more functions via your mobile phone. The system must therefore be registered with the modem serial number along with your contact information in order to work properly. - Page 5 The battery indicator also flashes if the main unit does not connect wirelessly with other devices in the system. If the low-battery indicator is flashing and replacing the batteries does not help, contact your dealer for further examination. Avara user manual ver. 6-22 Page 5...
-
Page 6: Avara Basic, Basic Plus And Premium
Remote control and use of your modem The Avara Lite alarm package comes with a modem as a standard device. It provides functions such as remote control of the alarm, alarm notification to your mobile phone, GPS tracking and positioning in maps. Visit our website www.avara.no and log in to ”My page”. There you will get access to your specific alarm and related services. - Page 7 If you have installed the Avara Moist moisture detection system, it is constantly switched on and has no specific on- or off function. You will automatically be notified by messages to your mobile phone/e-mail if moisture is detected. If you accidently trigger the alarm yourself, for example when cooking, you can ”hush” the alarm for 10 minutes by pressing the lower part of the lid of the main unit.
- Page 8 Note – the burglar alarm is not triggered by external movement like in the Night alarm mode, but the LED-light in the external detectors will turn on when motion is detected in the alarm zone. Avara user manual ver. 6-22 Page 8...
- Page 9 Battery alert The main unit has a LED indicator light marked with a battery symbol. If any detector in the Avara user manual ver. 6-22 Page 9...
-
Page 10: Avara Moist
Alarm packages without a modem can be upgraded with a modem at any time. Avara Moist It is of utmost importance that the installation of Avara Moist has been carried out by a dealer with expertise in leakages in motorhomes and caravans. Only this way will the leakage detection system provide your with good and relevant measurement data. - Page 11 You should check closely that the mechanic doing the installation has noted the exact location of all the installed sensors. If not, this should be done as soon as possible. The Avara Moist and any other Avara alarm set containing moist sensors, include a special form for this use. Make sure you get a copy of this form from the dealership doing the installation.
-
Page 12: Part 2: Technical Information
AV108 - Modem Modem that communicates with Avara’s cloud solution. Alarm messages and alerts are forwarded to mobile phones and/or e-mail recipients. The modem also includes a GPS unit for tracking and location. The modem connects to the 12V habitat battery and/or a 6V backup battery box. -
Page 13: Main Unit
• NFC chip reader Motion detector Passive Infra-Red Dimensions H, W, D 102x72x31mm 13.54Mhz Power consumption approx. 0.1 mA. Power supply 3 pcs. internal replaceable AA alkaline batteries Radio communication 868 MHz band Avara user manual ver. 6-22 Page 13... -
Page 14: Propane Gas Detector
Primary power supply External 5.5 - 15 V DC Secondary power supply External 5.5 - 15 V DC Sensitivity Approx. 0.4% / 20% LEL Radio communication 868 MHz band Gas detection Propane- and butane gas Avara user manual ver. 6-22 Page 14... -
Page 15: Intrusion Detector (Burglar Detector)
External detector is a wireless motion detector that turns on LED lights and warns of movement close to the side of the motorhome or caravan. The external detectors are active in both burglar alarm- and night alarm mode, but have different behavior depending on the alarm Avara user manual ver. 6-22 Page 15... - Page 16 50x218x45 mm Motion detector Passive Infrared Power consumption normal < 0.1 mA Power consumption with light 350 mA Power supply 6 pcs. replaceable AA alkaline batteries IP classification IP66 Radio communication 868 MHz band Avara user manual ver. 6-22 Page 16...
-
Page 17: Siren
< 0.1 mA Power consumption in active mode approx. 250 mA, limited to approx. 500 mA Power supply 8 pcs. internal replaceable AA alkaline batteries IP classification IP66 Radio communication 868 MHz band Avara user manual ver. 6-22 Page 17... -
Page 18: Universal Gas Detector
If it detects gas, it will start flashing red and give a signal in the main unit. Modem The modem connects the Avara alarm system with the internet and Avara’s cloud solution on www.avara. no. Alarms, remote control, GPS tracking and more is available for users with a valid subscription. -
Page 19: Moisture Sensors
Radio communication 868 MHz band Moisture sensors 12 moist sensors are included in the Avara Moist package, and more sensors can be ordered if needed. The location is determined by your dealer who has experience with where your motorhome / caravan is most exposed to moisture and where water / moisture accumulates. -
Page 20: Key Tags/Fobs
Only the main unit should be sent to Avara for service. The main unit can be detached from the mounting bracket by pulling it straight out. The bracket is left on the wall so you can easily put the device back by pressing it into place. -
Page 21: Contents Of The Avara Alarm Packages

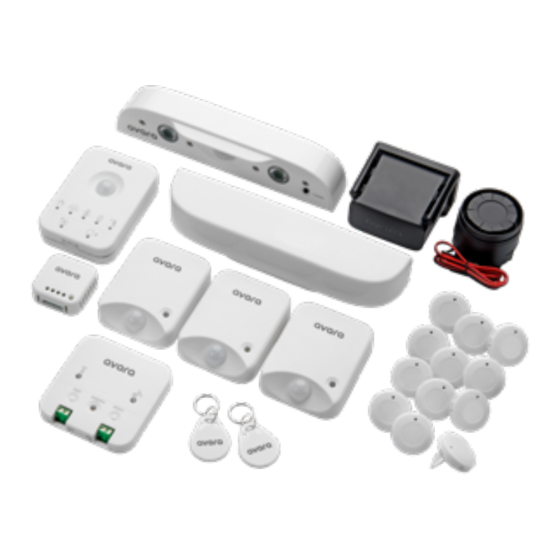

Contents of the Avara alarm packages Component Avara Lite Avara Avara Avara Avara Basic Basic Plus Moist Premium Main unit 1 pc. 1 pc. 1 pc. 1 pc. Modem 1 pc. 1 pc. 1 pc. 1 pc. External detector 2 pc. -
Page 22: Part 3: Test Procedure
(not the outside siren). The intrusion detectors are triggered by people appearing in the door/hatch, and not by the actual movement of the door or hatch. Avara user manual ver. 6-22 Page 22... -
Page 23: Test Of The External Siren/Burglar Alarm Test
Turn off the alarm in the same way as you turned on the alarm with the key tag. Part 4: Pairing procedure All Avara alarm packages are already paired. If you buy additional detectors, they must be paired manually to the system. If a detector needs to be replaced, the old one must be un- paired. -
Page 24: Pairing Of The Main Unit To The Modem
”missing” in the system. The main unit keeps record of all its paired devices and will notify you if one is missing. A missing device will be notified by flashing in the battery LED indicator on the Avara user manual ver. 6-22 Page 24... -
Page 25: Unpairing The Main Unit From The Modem
The moisture sensors are paired to the modem and cannot be manually erased from memory. Thus, this is a support operation you need to get performed by contacting Avara on post@avara.no. (we want to avoid that a user inadvertently may erase sensors and forever destroy valuable history from the moisture sensors). -
Page 26: Available Products (With Version Number)
Slave Unit, smoke detector and CO detector AV107 Universal gas detector AV108 Modem AV109 Moisture Sensor, Avara Moist, 3-pack AV110 Siren, exterior, without controller unit AV111 Battery box, backup, 6V Changes to this manual Ver. 6-22 - 23/6-2022 Reorganization of the entire manual after input from users.
