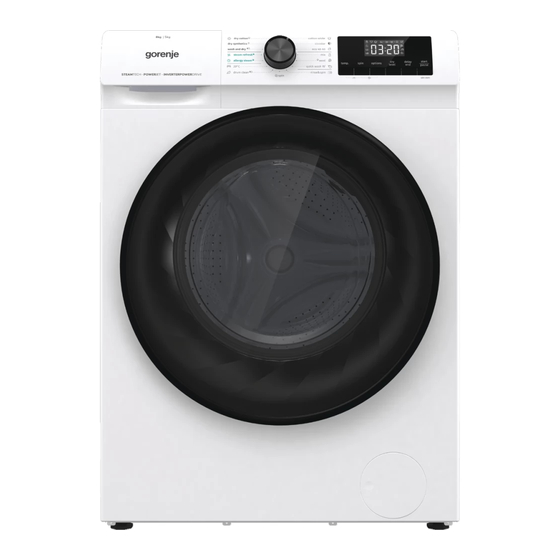

Gorenje WD9514AS Detailed Instructions

Hide thumbs

Advertisement

Table of Contents

80
2194736
QY洗干一体机
英文
80g
B
XECN006390
1.3.31
刘松
1.3.31
王婷
1.3.31
X08060961
1.3.31
刘泽旺
1.3.31
1.3.31

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WD9514AS and is the answer not in the manual?

Questions and answers

Related Manuals for Gorenje WD9514AS

Summary of Contents for Gorenje WD9514AS

  • Page 1 2194736 QY洗干一体机 英文 XECN006390 1.3.31 刘松 1.3.31 王婷 1.3.31 X08060961 1.3.31 刘泽旺 1.3.31 1.3.31...

  • Page 2: Detailed Instructions

    DETAILED INSTRUCTIONS www.gorenje.com...
  • Page 3 DRYER...
  • Page 6 7/6/5kg. 10/9/8kg.
  • Page 7 ensure Ensure Ensure that the ventilation openings in the base of the washing machine (if available on your model) are not obstructed by a carpet or other material. Single inlet - only Dual inlet - and cold...
  • Page 8 that 615 mm 855 mm...
  • Page 9 that The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for there cyclingof electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

  • Page 10: Emergency Door Opening

    DESCRIPTION OF THE WASHING DRYER EMERGENCY DOOR OPENING...
  • Page 11 BEFORE THE FIRST WASH CYCLE To remove any residual water used during testing by the manufacture r, we recommend that you carry out a short wash cycle without laundry. 1 Open the tap. 2 Close the door. 3 Pour a little detergent (about 30 ml) into the main wash chamber of the deter- gent dispenser .

  • Page 12: Open The Door

    Open the door.
  • Page 13 / soak...
  • Page 14 unds DRAINING RESIDUAL WATER (depends on model) Before emptying the residual water, switch the appliance off and unplug it fromthe mains socket. Remove the plinth,place a container beneath it. 1 Pull out emergency drain pipe of machine. 2 Put end of emergency drain pipe into a container. 3 Rotate emergency drain pipe plug and remove it after it becomes loose.
  • Page 15 Press the release lever in the main wash compartment downward and remove the drawer(fig.“B”). Remove siphon in softener slot. (fig.“C”). Refit the siphon in the detergent drawer and fit the drawer back inside its housing. We recommend that you check and clean the filter regularly, at least two or three times a year.
  • Page 18 solv...
  • Page 19 remove some...
  • Page 21 Fault Code List Displayed on Display Window Fault Description “F01” Water inflow fault “F03” Drainage fault “F13” Door lock fault “F14” Door unlock fault “F24” Overflow or too much foam. else fault code, “F04-F98” Electronic module fault. “Unb” Unbalance alarm a.
  • Page 22 The washer stops when the program is running. The display window shows fault code “F13”, “F14”, “F24”, else fault codes from “F04” to “F98” or “Unb”. Door lock is abnormal. Start program for 20 sec and unlock the washer door (PTC) to check whether the door is closed.
  • Page 24 Instruction for use, installation guide, warranty card (depends on model) Wrench Bottom cover(depends on model)
  • Page 25 Important: Transport bolts which are not removed can cause damage to the appliance. Screw off all transportation bolts for approx. 30mm with wrench following the direction of arrow shown (not fully screw it off). Push four transportation bolts on horizontal direction inward and loose transportation bolt.
  • Page 26 The appliance must be installed on a solid and level floor surface (if necessry use a spirit level). If the appliance is to be installed on a wooden floor, distribute the weight by placing it on a 60x60cm sheet of plywood at least 3cm in thickness and secure it to the floor.

  • Page 27: Install Bottom Cover

    INSTALL BOTTOM COVER To realize quieter operation, a bottom cover is supplied with the unit (only applies to some of the washers). After installing the cover at the bottom of the washer, the noise level will be greatly reduced. Please ask for advice from specialists before installing the cover, nevertheless, the machine can be used without the bottom cover.

  • Page 28: Connect The Drain Hose

    CONNECT THE DRAIN HOSE In case the drain hose is installed as shown below: Unhook it only from the right clip (see arrow) Connect the drain hose to the hook it over the edge of a sink by means of the "U"...
  • Page 29 Quick User Manual This washing dryer is equipped with automatic safety functions which detect and diagnose at an early stage and react appropriately. F. “options” button G. “spin” button H. “temp.” button Functions Max. Max. Care Program Wash spin Label Material / Level of Soiling Load speed...
  • Page 30 A. Program selector B. “start/pause” button C. Program and function status display window D. “delay end” button E. “dry level” button Detergent Compartment Wash Program Functions Dry Level Prewash Mute Child Delay Spin Temp. Prewash Extra Cupboard Iron Extra Dry Time Dry Lock rinse...

  • Page 31: Mute Function

    Inlet water warning WD8514S WD9514S WD10514S If tap is not opened, or water pressure is over low,and display Model No/Item No WD8514PS WD9514AS WD10514PS screen will prompt “F01” to give alarm. WD8514S/PL WD9514S/PL Washing/drying Capacity 8/5kg 9/6kg 10/6kg Drainage warning Max.spin speed...

  • Page 32: Child Lock

    Child Lock To strengthen the safety of children, this machine is equipped Press the "dry level" button to select the dry time and additional with Child Lock function. functions of dry. When the Iron , Cupboard and Extra When the programme starts, press “temp. +spin” functions are selected, the corresponding icon will button for 2 seconds.Then Child Lock is set up.

  • Page 33: Fabric Care Chart

    Dry timetable 8 kg The dry time of clothes of different <1 5 60-90 40-70 80-110 1 5-3 100-140 80-120 120-160 weight in this table is estimated, and 3-4 5 150-190 150-170 190-210 210-230 190-210 230-250 4 5-5 the actual dry time varies from the type 9-10 kg and weight of clothes.
  • Page 34 Non washable • dry/non-dry clothes Clothes that can neither be washed nor dried Large thick rubber cushions with Rayon and its blended products Leather and fur products carbamate on the back (Discoloration or deformation (Deformation may be caused) (Damage or fault may be caused) may be caused) Others: Wrinkled or embossed clothes;...
  • Page 35 1.The eco 40-60 programme is able te clean normally soiled cotton laundry declared to be washable about 40℃ to 60℃, together in the same cycle,and that this programme is used to assess the compliance with the EU ecodesign legislation.
  • Page 36 WD8514S / WD8514PS / WD8514S/PL / WD9514S / WD9514AS / WD9514S/PL / WD10514S / WD10514PS Max. Wash Load 50.00 3:38 0.82 1400 eco 40-60 50.30 1400 3:48 0.91 49.20 3:59 0.99 1400 10kg 53.00 2:48 0.45 1400 51.30 2:50 0.56...
  • Page 37 8/5 kg-1400 9/6 kg-1400 10/6 kg-1400 2194736-X08060961B...
