AXMINSTER WORKSHOP AW315PD User Manual

Pillar drills
Hide thumbs
Table of Contents

Advertisement

Quick Links

Pillar Drills
User manual
AW285PD
AW315PD
AW220RD
AW285PD Code 107690
AW315PD Code 107691
AW220RD Code 107692
AW680RD Code 107693
Original Instructions
AW680RD
AT: 10/02/2022
BOOK VERSION: 04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AW315PD and is the answer not in the manual?

Questions and answers

Related Manuals for AXMINSTER WORKSHOP AW315PD

Summary of Contents for AXMINSTER WORKSHOP AW315PD

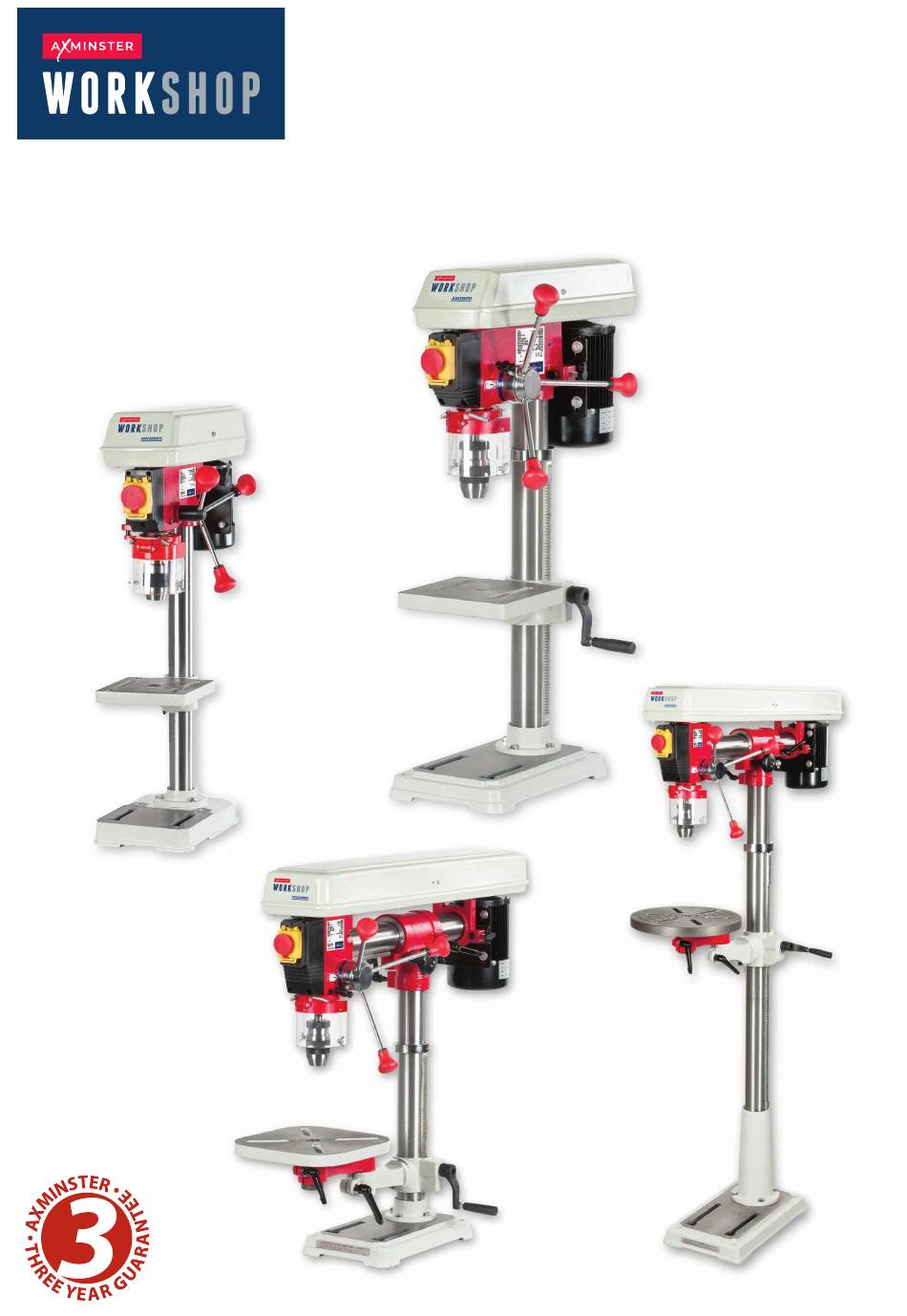

  • Page 1 AW285PD Code 107690 AW315PD Code 107691 AW220RD Code 107692 AW680RD Code 107693 Original Instructions Pillar Drills User manual AW315PD AW285PD AW680RD AW220RD AT: 10/02/2022 BOOK VERSION: 04...

  • Page 2: Eu Declaration Of Conformity

    EN 55014-1:2017 EN 55014-1:2006+A1+A2 EN 55014-2:2015 EN 55014-2:1997+A1+A2 Type Pillar Dills AW285PD, AW315PD, Model conforms to the machinery example AW220RD, AW680RD for which the EC Type-Examination Certificate No AE 50397160, AE 50397197 has been issued by Laizhou Planet Machinery Co., Ltd.

  • Page 3: What's Included

    WHAT’S INCLUDED Model Number AW285PD (ZQJ4113A) Model Number AW315PD (ZQJ4116Q) Quantity Item Part Quantity Item Part Small Bench Pillar Drill Medium Bench Pillar Drill Model Number AW680RD (ZQJ3116A) Model Number AW220RD (ZQJ3116) Quantity Item Part Quantity Item Part Bench Radial Drill...
  • Page 4 WHAT’S INCLUDED...
  • Page 5 WHAT’S INCLUDED...
  • Page 6 WHAT’S INCLUDED...
  • Page 7 GENERAL SAFETY INSTRUCTIONS FOR 230V MACHINES • Carry out a final check e.g. check the cutting tool The following will enable you to observe good working practices, keep yourself and fellow workers safe and maintain is securely tightened in the machine and the correct your tools and equipment in good working order.

  • Page 8: Specification

    SPECIFICATION Code 107690 Code 107691 Model AW285PD Model AW315PD Rating Workshop Rating Workshop Power 350W 50Hz (230V 1ph) Power 550W 50Hz (230V 1ph) Speed Range (5) 600 - 2,500 rpm Speed Range (12) 210-2,580rpm Swing 210 mm Swing 254mm Chuck Size...
  • Page 9 ASSEMBLY Having unpacked your machine and accessories, check the Fig 02 contents against the equipment list ”What’s Included” , if there are any discrepancies, please contact Axminster Tool Centre using the guide on our website. PLEASE DISPOSE OF THE PACKAGING RESPONSIBLY; MUCH OF THE MATERIAL IS RECYCLABLE The machine and its accessories arrive coated with heavy corrosion preventative grease and wax paper or plastic...
  • Page 10 ASSEMBLY collar over the column and slide it down onto the top of the rack. Lock it in place with the grub screw, ensuring that it has captured the upper end of the rack securely, but not too tight that the rack cannot be swivelled around the pillar see fig 8 . Fig 06-07 6.
  • Page 11 ASSEMBLY Fig 17-18-19 Grub screw Note: On the two radial drills fit the extension arm (2d) into the mounting arm (2b and 2c) then the tables, see figs 14-15-16. Fig 15-16 Radial Pillar Drill Head Only 2. Lay the drill head on its side, locate the column spacer block and insert it into machined recess inside the base of the drill head, see fig 20.
  • Page 12 3. Locate another lift and shift handle (10) and screw it into the threaded hole for the Horizontal clamp assembly, see fig 22. Fig 22 1-13mm Keyless Chuck AW285PD Only Locate the chuck (7) and insert up over the morse taper arbor, using a high faced mallet, lightly tap home.
  • Page 13 30. Fig 29-30 Lever Feed Handles Locate the three lever feed handles (6) and screw them into the threaded holes on the depth stop ring, see fig 31-32. Fig 31-32 Model Letter AW285PD AW315PD AW220RD AW680RD...

  • Page 14: Illustration And Parts Description

    Chuck guard Retaining collar Crank handle Keyless chuck Drill table Rise and fall rack Drill column Mounting flange Base casting ‘T’ slot Base casting 107690 AW285PD 107691 AW315PD Pillar drill securing holes Micro switch 107690 Drive Pulley 107691 Drive Pulley...
  • Page 15 ILLUSTRATION AND PARTS DESCRIPTION Depth stop clamp (A) ON/OFF switch (A) Motor yoke clamp (A) Depth scale (B), Depth scale pointer (C) Emergency stop button (B) Table tilt locking bolt 90˚ Locking bolt Motor yoke clamp (A) Drive belt tensioning lever (B) Table tilt scale (A) Depth stop assembly (A) Quill rise and full return spring (A)
  • Page 16 ILLUSTRATION AND PARTS DESCRIPTION Vertical scale Horizontal column Motor yoke locking knob Horizontal column lock Pulley drive belt cover ON/OFF switch shroud Motor Drill column Chuck guard Retaining collar Rise and fall rack Keyless chuck Lever feed handle Crank handle 107693 AW680RD Drill table Lift and shift handles...
  • Page 17 ILLUSTRATION AND PARTS DESCRIPTION Vertical scale (A) Horizontal column adjusting knob (A) Column pointer (B) Horizontal column clamping handle (B), Motor yoke clamp (C) Turn the horizontal adjusting knob Turn the horizontal adjusting knob Vertical locking pin anti-clockwise to move the column forward clockwise to move the column back Loosen the horizontal column clamping handle (B).

  • Page 18: Changing The Speed

    Refer to the (speed select table on page 21) and ascertain the Motor yoke lock belt positions for speed required. Fig 33-34 AW285PD Drive Pulley WARNING! TAKE CARE NOT TO TRAP YOUR FINGERS WHEN REPOSITIONING THE BELT ON THE PULLEYS! Turn the pulleys to check the belts move freely. Tension the...
  • Page 19 REMOVING KEYLESS CHUCK 1. Lower the quill to its maximum depth by turning the lever feed handle. While holding the handle turn the depth scale ring (A) fully round and then tighten the butterfly depth stop clamp (B) to lock the quill in position, see fig 37. Fig 37 Depth scale ring 2.

  • Page 20: Maintenance

    MAINTENANCE Oil Points WARNING! DISCONNECT THE MACHINE FROM THE MAINS SUPPLY BEFORE CONTINUING! Cleaning Excessive dust in the motor can cause heat to develop. Every effort should be made to prevent foreign material from entering the motor. Where you may find accumulations of dust, dirt or waste, a visual inspection should be made at frequent intervals.

  • Page 21: Speed Select Tables

    SPEED SELECT TABLES (5 Speed) 107690 AW285PD Bench Pillar Drill (12 Speed) 107691 AW315PD Bench Pillar Drill (5 Speed) 107692AW220RD Bench Radial Pillar Drill 107693 AW680RD Floor Radial Pillar Drill...

  • Page 22: Drill Speed Material Table

    DRILL SPEED MATERIAL TABLE 5 Speed Spindle Motor 12 Speed Spindle Jockey Pulley Motor Recommended Drill Size per Material Zinc Aluminium Cast Iron Steel Steel Cast Steel Average Guide Wood Plastic Diecast or Brass and Bronze Mild and Stanless and Speed Malleable Carbon...

  • Page 23: Troubleshooting

    TROUBLESHOOTING TROUBLE PROBABLE CAUSE REMEDY 1. Incorrect belt tension 1. Adjust the tension Noisy Operation 2. Dry spindle 2. Lubricate spindle 3. Loose spindle pulley 3. Checking tightness of retaining nut on pulley, and tighten if necessary 4. Loose motor pulley 4.
  • Page 24 EXPLODED DIAGRAMS/LISTS AW285PD Bench Pillar Drill (ZQJ4113A)
  • Page 25 EXPLODED DIAGRAMS/LISTS AW285PD Bench Pillar Drill (ZQJ4113A) DESCRIPTION BOLT M8x16 BASE MOTOR PULLEY COLUMN HEADLESS SET SCREW BOLT M8X20 PULLEY COVER TABLE BRACKET WASHER SQUARE TABLE SCREW M6X10 BOLT M12x25 SPINDLE PULLEY CLAMPING LEVER HEADLESS SET SCREW BODY RETAIN RING...
  • Page 26 EXPLODED DIAGRAMS/LISTS AW315PD Bench Pillar Drill (ZQJ4116Q)
  • Page 27 EXPLODED DIAGRAMS/LISTS AW315PD Bench Pillar Drill (ZQJ4116Q) DESCRIPTION HEADLESS SET SCREW BASE SLIDE BAR BOLT BOLT SCREW COLUMN SLIDE BAR RACK RING INSTRUCTION MANUAL HEADLESS SET SCREW CHUCK KEY RACK SPRING MOUNTING ARM BRACKET SPRING SEAT WORM GEAR PLASTIC JAM NUT GEAR SCREW SHAFT...
  • Page 28 EXPLODED DIAGRAMS/LISTS AW220RD Bench Radial Drill (ZQJ3116) AW680RD Floor Radial Drill (ZQJ3116A)
  • Page 29 EXPLODED DIAGRAMS/LISTS AW220RD Bench Radial Drill (ZQJ3116) AW680RD Floor Radial Drill (ZQJ3116A) DESCRIPTION BRACKET CHUCK TENSION ADJUSTMENT BAR LOWER SPINDLE ASSEMBLY HEX HEAD BOLT SPINDLE 8MM FLAT WASHER 6202LL BALL BEARING MOTOR MOUNT PLATE QUILL 10MM FLAT WASHER 6201LL BALL BEARING 10MM LOCK WASHER RETAINING RING HEX NUT...
  • Page 30 EXPLODED DIAGRAMS/LISTS AW220RD Bench Radial Drill (ZQJ3116) DESCRIPTION BASE COLUMN ASSEMBLY 8-1.25 X 20MM SOCKET HEAD BOLT RACK 6-1.0 X 10MM SET SCREW CRANK HANDLE RACK RETAINING RING TABLE BRACKET ASSEMBLY (INCL. REF. NOS. 12 AND 21) WORM AND PINION GEAR SET WORM GEAR PINION GEAR AND SHAFT LOCKING HANDLE...
  • Page 31 EXPLODED DIAGRAMS/LISTS AW680RD Floor Radial Drill (ZQJ3116A) DESCRIPTION BASE COLUMN ASSEMBLY 8-1.25 X 20MM SOCKET HEAD BOLT RACK 6-1.0 X 10MM SET SCREW CRANK HANDLE RACK RETAINING RING TABLE BRACKET ASSEMBLY (INCL. REF. NOS. 12 AND 21) WORM AND PINION GEAR SET WORM GEAR PINION GEAR AND SHAFT LOCKING HANDLE...

  • Page 32: Wiring Diagram

    WIRING DIAGRAM...
  • Page 33 NOTES...
  • Page 34 NOTES...
  • Page 35 NOTES...
  • Page 36 The Axminster guarantee Buy with confidence from Axminster! So sure are we of the quality, we cover all parts and labour free of charge for three years! For more information visit axminstertools.com/3years The packaging is suitable for recycling. Please dispose of it in a responsible manner. EU Countries Only Do not dispose of electric tools together with household waste material.
