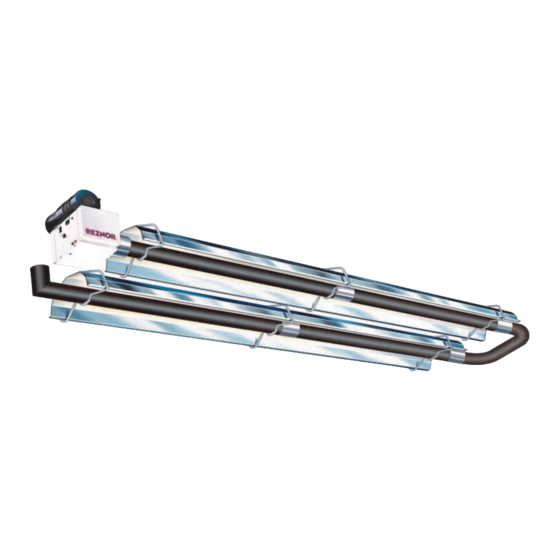

Gas-fired radiant heater
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GAS-FIRED RADIANT HEATER INSTALLATION, OPERATION,
AND MAINTENANCE
• Failure to follow safety warnings exactly could result in serious injury, death, or property
damage.
• Improper installation, adjustment, alteration, service, or maintenance can cause serious injury,
death, or property damage.
• Installation and service must be performed by a qualified installer, service agency, or the gas
supplier.
• Be sure to read and understand the installation, operation, and service instructions in this
manual.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier from a phone remote from the building. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
DO NOT DESTROY. PLEASE READ CAREFULLY. KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.
Revision: VCS-VCT-VPS-VPT-IOM (05-23) 1042552-0
MODELS VCS, VCT, VPS, AND VPT
 ⚠ DANGER ⚠ 
FIRE OR EXPLOSION HAZARD
WHAT TO DO IF YOU SMELL GAS
Supersedes: — (Original Version)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VCT and is the answer not in the manual?

Questions and answers

Related Manuals for Reznor VCT

Summary of Contents for Reznor VCT

  • Page 1 Revision: VCS-VCT-VPS-VPT-IOM (05-23) 1042552-0 Supersedes: — (Original Version) GAS-FIRED RADIANT HEATER INSTALLATION, OPERATION, AND MAINTENANCE MODELS VCS, VCT, VPS, AND VPT  ⚠ DANGER ⚠  FIRE OR EXPLOSION HAZARD • Failure to follow safety warnings exactly could result in serious injury, death, or property damage.
