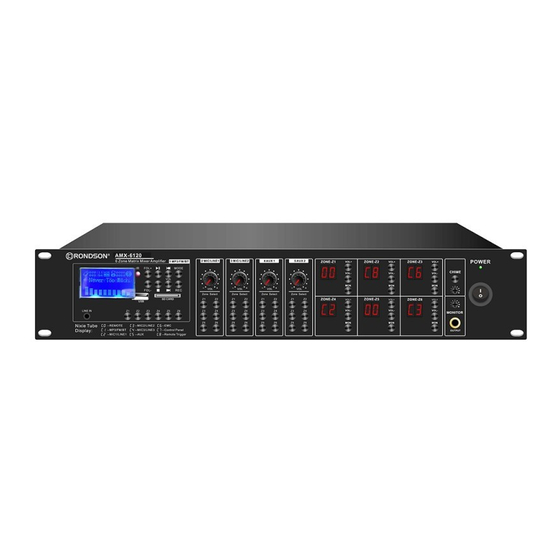

- Page 1 INSTALLATION AND OPERATION MANUAL AMX-6120 AMX-6240 6*6 Matrix Mixer Amplifiers with Mp3/FM/BT Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty...
- Page 2 SAFTY WARNINGS! Read and keep these instructions. Heed all warnings and follow all instructions. Do not use this apparatus near water. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat. Do not defeat the safety purpose of the polarized or grounding-type plug.
- Page 3 INTRODUCTIONS Features: 6×6 Matrix mixer amplifier with 6 x 120W, 6 x240W outputs. 5 sources and EMC input matrix distributed to 6 speaker zones. MP3/FM/Bluetooth, 3 mic/line, aux input & EMC mute input with priority. 6 channel mixer amplifier controller with audio sources, zone volume control . ...
-
Page 4: Front Panel
FRONT PANEL Mp3/FM/Blue tooth media player module. You can choose AUX2 play to any of zone SD card slot. 11. Display of zone: Function button. This will show which audio source is playing on current IR receiver zone. MP3 slot. 12. -
Page 5: Connection And Setup
music cut 26.AUX1 input. 33.Dry contact Remote trigger- ( play the EVAC 27.AUX2 input. message build in). 28.Mic 1/Line 1 Input. 34:AC Power Socket.& DC24V 29.Bass & Treble volume control 30.Mic 2/Line 2 Input. 31.Remote Microphone & Remote volume control interface. 32.FM antenna. -
Page 6: Speaker Outputs
An antenna input (32) is provided on the rear panel for connection to an external aerial for FM tuning There are Bass and Treble volume control on rear panel to adjust the sound of MIC and Line input signal Speaker outputs The DMA-6120MX has a separate speaker output for each zone, connected via 3 large modular terminal plugs. -
Page 7: Operation
For a single 8Ω speaker, connect the positive (+) wire to the “8Ω” terminal and the negative (-) wire to “COM” For a single 4Ω speaker or for 2 x 8Ω speakers connected in parallel, connect the positive (+) wire to the “4Ω” terminal and the negative (-) wire to “COM”... -
Page 8: Bluetooth Operation
Short press: Prev& Next Long Press: Vol+&Vol- Bluetooth Operation In order to play back audio from a smartphone, tablet or other Bluetooth device, the built-in Bluetooth receiver will need to be paired with a device which is within range.” To pair a device with the DMA-6120MX Bluetooth receiver, it is necessary to scan for devices in the Bluetooth menu of the sending device and select to pair with “BT66078”. -
Page 9: Specification Sheet
SPECIFICATION SHEET Model AMX-6120 AMX-6240 Description 6×6 Matrix Mixer Amplifier with Mp3/FM/Blue Tooth Rated Power Output 6×120W 6×240W Speaker Output 100V and 4-8 Ohms Mic/line1-3: 2.5mV, balanced XLR input with 48V phantom power, Line1-2: 250mV; RCA type Input Mute: 250mV, phoenix connector... -
Page 10: Warranty
WARRANTY Warranty terms of global three years. While the term and warranty may vary by country and may not be the same for all products. Terms and conditions of warranty for a given product may be determined first by locating the appropriate country which the product was purchased in, then by locating the product type.
