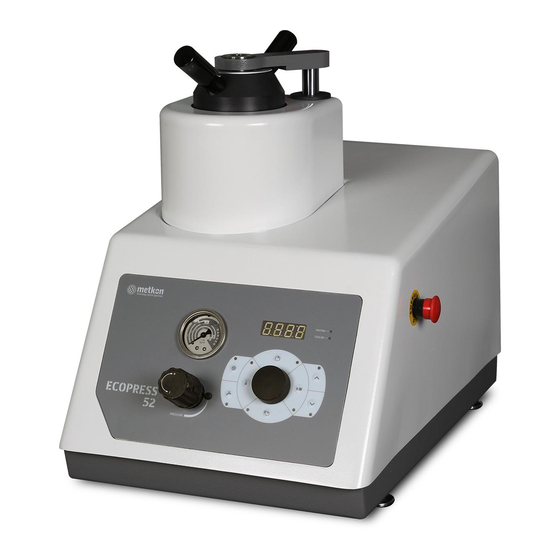

Metkon ECOPRESS 102 Operation & Instruction Manual

Automatic mounting press
Hide thumbs
Table of Contents

Advertisement

Quick Links

1
OPERATION & INSTRUCTION MANUAL
AUTOMATIC MOUNTING PRESS
metkon.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECOPRESS 102 and is the answer not in the manual?

Questions and answers

Related Manuals for Metkon ECOPRESS 102

Summary of Contents for Metkon ECOPRESS 102

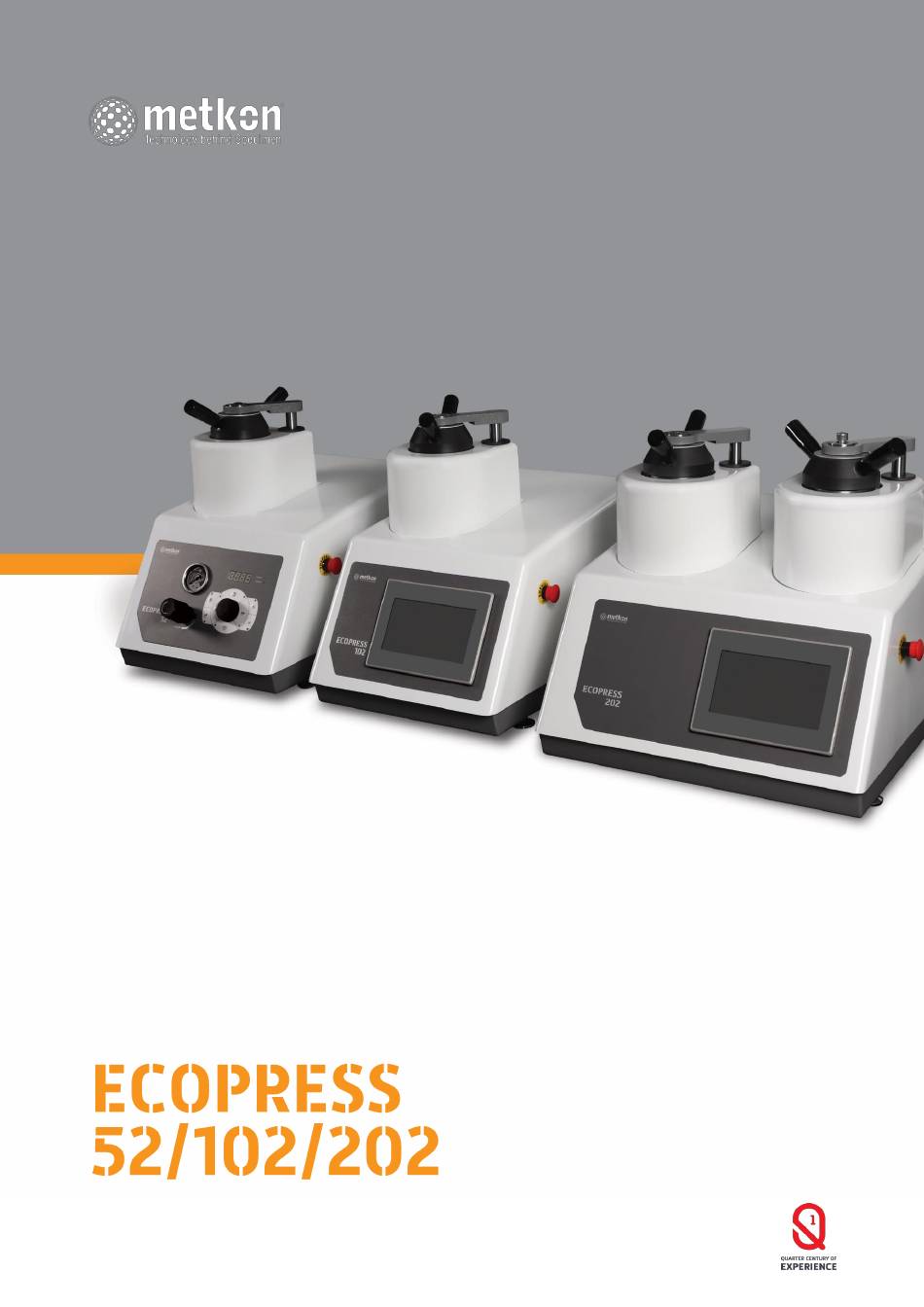

  • Page 1 OPERATION & INSTRUCTION MANUAL AUTOMATIC MOUNTING PRESS metkon.com...
  • Page 2 EC Declaration of Conformity Manufacturer Metkon Instruments Inc. Address Demirtas Dumlupinar Organize Sanayi Bolgesi Ali Osman Sonmez Cd. No: 14 Bursa / TURKEY Model No ECOPRESS 52/102/202 Herewith declares that; Hot Mounting Press,  is in conformity with the provisions of the Machinery Directive...

  • Page 3: Table Of Contents

    Operation Parameter Ranges ..............................16 Recommended Parameters ..............................16 OPERATION ..........................17 Making a Mould ........................17 Setting Parameters (for ECOPRESS 52) ................... 18 Setting Parameters (for ECOPRESS 102/202) ................19 SERVICE AND MAINTENANCE ....................21 Maintenance ..................................21 Troubleshooting ..................................22 ACCESSORIES AND CONSUMABLES ..................

  • Page 4: Description

    “Start” button. That is it! ECOPRESS 52 is an easy to use mounting press. All button ECOPRESS does the rest for you! After pressing the start key, the fully automatic program sequence is executed with the controls, direct reading pressure gauge and valve are on the preselected parameters.

  • Page 5: Technical Data

    Technical Data Model ECOPRESS 52 ECOPRESS 102 ECOPRESS 202 Order No 25 10 25 11 25 12 Number of Moulds Maximum Pressure, bar 300 bars 300 bars 300 bars Maximum Temperature, °C 200 °C 200 °C 200 °C Heating Power, Watt...

  • Page 6: Warranty

    Be sure that the top closure and the upper ram is alteration, use of different source parts, improper correctly mounted before starting the process. repair, METKON will accept NO responsibility for any  Do not operate the mounting press with a higher damages to the operator or the equipment.

  • Page 7: Installation & Set Up

    INSTALLATION & SET UP Step by Step Unpacking  Carefully remove the outer stretch wrap, cut the strips and remove the cover. Unpacking & Checking Contents of Package Carefully unpack and check contents of the package. If any components are missing or damaged, save the packing list and materials and advise your distributor and the carrier of the discrepancy.

  • Page 8: Installation And Set-Up

     Carefully remove the protective bubble wrap. Be carefull  You can see the dimensions and weights of ECOPRESS not to damage equipment while using a knife. series: ECOPRESS 52 Dimensions 36 cm 56 cm 47 cm Weight Approx. 37 kgs...
  • Page 9  Make sure that the supply voltage and frequency is correct. Check the values from the machine identification plate located at the rear of the machine: ECOPRESS 52/102 Operational Voltage / Frequency Fuse Rating Power Range 230 V, 50/60 Hz. 1 ph.
  • Page 10  If the equipment used with well water, hydrophore or very hard water; a water filtering and pressure regulator system must be used. Please contact Metkon Service Mains Cable (metkonservice@metkon.com) or your local Connection Transport representative if you need water filtering and pressure...
  • Page 11  Mounting Mould Assembly Disassemble the screws and take out the upper part metal thread of the mould. ECOPRESS is shipped as completely assembled. However if you need to change the mould or assemble it later for any reason, follow the below steps to assemble the mould: Remove these screws ...
  • Page 12   Replace your mould assembly. Insert the mould assembly Loosen (counterclockwise) the Cylinder Lock screw until it sits level with the mould closure. shown on below photo:  Close the upper cover and assemble the screws.  Insert the Mould Cylinder Insulator Ring into the Mould Closure.
  • Page 13  Using Intermediate Ram Be sure that the resin that you put on the sample exceeds the sample height enough.  You can get double mounts in one cycle by using Maximum height of the samples should be 10 mm. intermediate ram.

  • Page 14: Control Panel (Ecopress 52)

    CONTROL PANEL (ECOPRESS 52) while using phenolic mounting powder in Ø40 mm mould assembly. ECOPRESS 52 has a modern looking and easy to use operator panel with buttons and knob. It has specially designed to increase operator comfort and maximize productivity. All mounting parameters can be set easily and quickly.

  • Page 15: Touch Secreen Control Panel (Ecopress 102/202)

    TOUCH SCREEN CONTROL PANEL Control Button Functions (ECOPRESS 102/202) Main menu The operation panel is a 7’’ touch screen LCD. HMI touch Metkon contact info screen controls increasing the productivity, sample consistency and operator comfort. Service and maintenance menu Information...

  • Page 16: Password List

    Password List Recommended Parameters Below are passwords, which are required for operating and For Ø25 and Ø30 mm Mould Assemblies programming the machine. You can use any of them. Moulding BAK/CON Resin Username Password Heating 170 °C 180 °C 180 °C 150 °C Temperature Start-up Password...

  • Page 17: Operation

     OPERATION Put enough amount of mounting powder inside the mould. Making a Mould  Turn on the equipment from the main switch at the rear side.  Clean the sidewalls of the mould and upper ram. Otherwise, upper ram cannot go inside the mould and bayonet closure cannot be closed.

  • Page 18: Setting Parameters (For Ecopress 52)

    Warranty will not cover the damages due to operator fault. display. NOTE  Set heating time by turning knob. The pressure is already set in the METKON  Push the knob to save heating time. Factory according to purchased mould ...

  • Page 19: Setting Parameters (For Ecopress 102/202)

    Slow Cooling Setting Parameters (for ECOPRESS 102/202)  Slow cooling feature is used while moulding with Transparent Acrylic Powder (NET). This mounting powder  Turn on the equipment from the main switch at the rear will be clear only with the slow cooling. side.
  • Page 20 Enters the “Load” button. MAIN MENU You can change You can see the the language contact information from this menu of METKON. Starting Menu  The MAIN MENU will appear as below: Mould Selection Mould Selection Operation Menu (Left) (Right) ...

  • Page 21: Service And Maintenance

    The specifications of the oil are given as below. SERVICE AND MAINTENANCE Brand Name: Mobil DTE H46 Maintenance Kinematic Density Pour Flash Viscosity mm Viscosity at 15 Point Point or cSt It is very important to carry out all maintenance steps on time Index g/cm to use machine without problem for a long time.

  • Page 22: Troubleshooting

    Troubleshooting ECOPRESS Troubleshooting ERROR CAUSE ACTION Heating time and cooling time are set at Set the correct heating & cooling Process will not start zero times. Insufficient compression Incorrect setting of force/pressure. Set the correct parameter. Incorrect setting of time or temperature Insufficient heating Set the correct parameter.
  • Page 23 Termosetting Resins Troubleshooting PROBLEM CAUSE SOLUTION Increase mould diameter or reduce specimen size. The distance between the specimen and Too large sample section. the cylinder wall must be a minimum of 3 mm to avoid Radial Cracking cracks in the resin. Sample corners too sharp.

  • Page 24: Accessories And Consumables

    Spare Siliphos Cartridge Filter YM 3824-00 (for Water Filtering and Pressure Regulator System (GR 1397-00)) Order No Spare Part Kit for ECOPRESS Recommended Set of Spare Parts, ECOPRESS 52/102/202 *HANDLE, 1 pc. GR 1967 *THERMOCOUPLE, 1 pc. *SELENOID VALVE, 24 DC, 1 pc.

  • Page 25: Consumables

    Consumables The most important properties of a hot mounting compound are; Hardness, Shrinkage and Viscosity. The Hardness of the compound should match the hardness of the specimen in order to avoid uneven abrasion during grinding. If the shrinkage during curing is large, a gap between the specimen and the mount will occur and the edge will not be adequately protected. Viscosity should allow the compound to contact all areas of the sample.

  • Page 26: Technical Documentation

    Customer Service Our factory-trained assembly personal is at your disposal for customer service. Please contact the following address: Head Quarter Metkon Instruments Inc. Demirtas Dumlupinar Organize Sanayi Sitesi Ali Osman Sonmez Cad. No:14 Bursa/TURKEY Tel: +90 (224) 261 1840 Fax: +90 (224) 261 1844 E-Mail: metkonsales@metkon.com...
  • Page 27 ECOPRESS 102 ECOPRESS 202...
  • Page 28 info@microscopeworld.com | 800-942-0528...
