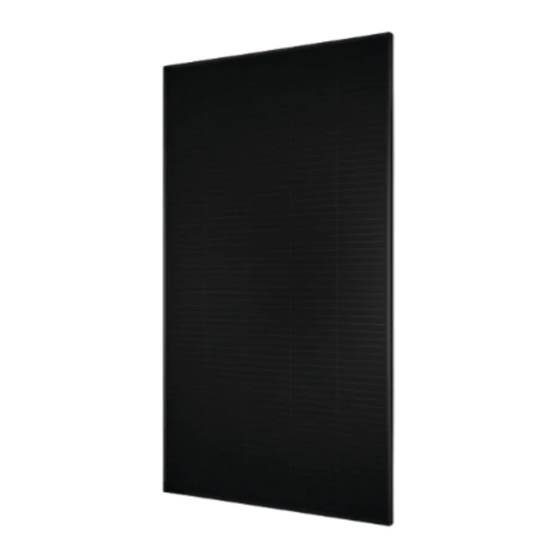

- Page 1 High Performance Solar SAFETY, INSTALLATION, AND OPERATIONS MANUAL (Europe) TSC PowerXT XXXR-PS Module ® Safety, Installation, and Operations Manual ©2023 TSC PowerHome All rights reserved. Contents subject to change without notice. TSC-MAN-0008-TW Rev 01, 02-2023...
- Page 2 For warranty text refer to tscpowerhome.eu For TSC patent information refer to solaria.com/patents/ © 2023 TSC Corporation All rights reserved. Safety, Installation, and Operations Manual ©2023 TSC PowerHome All rights reserved. Contents subject to change without notice. TSC-MAN-0008-TW Rev 01, 02-2023...
-
Page 3: Table Of Contents
7 Maintenance ..........................17 7.1 Cleaning ..............................17 7.2 Visual Inspection ............................18 7.3 Inspection of Connector & Cable ......................18 Safety, Installation, and Operations Manual ©2023 TSC PowerHome All rights reserved. Contents subject to change without notice. TSC-MAN-0008-TW Rev 01, 02-2023... -
Page 4: General Information
1.2 Limitation Of Liability TSC Solar shall not be responsible for any kind of injury, including but not limited to physical injury or property damage caused by module operation, system installation error or failure to follow instructions in this manual. -
Page 5: Electrical Safety
Do not use any means other than standard connectors for electrical connection. y Do not install or operate modules in damp or windy conditions. Safety, Installation, and Operations Manual ©2023 TSC PowerHome All rights reserved. Contents subject to change without notice. TSC-MAN-0008-TW Rev 01, 02-2023... -
Page 6: Fire Safety
When sunlight strikes the front of the module, the module generates electricity and the DC voltage may exceed 30V. Safety, Installation, and Operations Manual ©2023 TSC PowerHome All rights reserved. Contents subject to change without notice. TSC-MAN-0008-TW Rev 01, 02-2023... -
Page 7: Electrical Properties
If the number of parallel connections is greater than or equal to 2, an over- current guard must be installed on each assembly. Safety, Installation, and Operations Manual ©2023 TSC PowerHome All rights reserved. Contents subject to change without notice. TSC-MAN-0008-TW Rev 01, 02-2023... -
Page 8: Cables & Wires
3.4 Bypass Diode The junction box system of the TSC module contains bypass diodes and forms a parallel structure with the circuit. When the solar cells of the module are blocked or damaged, the hot spot phenomenon might occur in part of the module, the bypass diode will turn on, so that the current no longer flows through the hot spot solar cell, so as to limit the heating and performance loss of the module. -
Page 9: Grounding
(figure 3 shows the system voltage polarity configuration). Figure 3: Schematic diagram of grounding potential of inverter Safety, Installation, and Operations Manual ©2023 TSC PowerHome All rights reserved. Contents subject to change without notice. TSC-MAN-0008-TW Rev 01, 02-2023... -
Page 10: Handling, Transportation, Storage & Unpacking
Horizontal packaging can lift up to 4 sets of modules at a time, vertical packaging can lift up to 2 sets of modules at a time. Tran-shipment Safety, Installation, and Operations Manual ©2023 TSC PowerHome All rights reserved. Contents subject to change without notice. TSC-MAN-0008-TW Rev 01, 02-2023... -
Page 11: Storage
Retail packaging If the modules are not filled when they are shipped, TSC uses wooden frames of the same size as the modules as packing fillers. The wooden frames are located in the middle of the packaging body, and the scattered packaging method is exactly the same as the integral packaging method. -
Page 12: Module Installation
TSC’s modules have passed the salt spray corrosion test of IEC61701, indicating that TSC modules can be installed in offshore or corrosive environments. -
Page 13: Inclination Choice
High Performance Solar y Please consult the TSC technical support department for more information on the use of modules in special climates, such as an altitude greater than 2000m, heavy snow, severe hail storm, hurricane, etc. 5.2 Inclination Choice The inclination Angle of the photovoltaic module refers to the included Angle between the photovoltaic module and the horizontal ground. -
Page 14: Location Choice
For more detailed information, follow local laws and regulations as well as instructions from structural engineers. 6.1 Installation Method: Bolting Safety, Installation, and Operations Manual ©2023 TSC PowerHome All rights reserved. Contents subject to change without notice. TSC-MAN-0008-TW Rev 01, 02-2023... - Page 15 Installation in heavy snow or high wind load areas, use additional mounting holes. Use stainless steel flat washers with thickness≥1.5mm and diameter size ≥18mm.(Please refer to the frame section drawing provided by TSC Solar energy to select the upper limit flat washer that can be operated) Figure 6: Bolt installation methods...
-
Page 16: Installation Method: Clamps
High Performance Solar 6.2 Installation Method: Clamps Use a certain number of clamps to secure the modules to the mounting rail. TSC recommends that fixtures be clamped to the frame of module. The clamps shall be made of anodized aluminium alloy or stainless steel. -
Page 17: Maintenance
Do not attempt to clean modules with damage such as broken glass or with exposed wires, which may cause Safety, Installation, and Operations Manual ©2023 TSC PowerHome All rights reserved. Contents subject to change without notice. TSC-MAN-0008-TW Rev 01, 02-2023... -
Page 18: Visual Inspection
If using maintenance and repair measures not included in this manual, consult your local installer for Š professional support. Safety, Installation, and Operations Manual ©2023 TSC PowerHome All rights reserved. Contents subject to change without notice. TSC-MAN-0008-TW Rev 01, 02-2023... - Page 19 High Performance Solar TSC PowerHome B.V. Barbara Strozzilaan 201 1083HN Amsterdam, Netherlands tscpowerhome.eu Safety, Installation, and Operations Manual ©2023 TSC PowerHome All rights reserved. Contents subject to change without notice. TSC-MAN-0008-TW Rev 01, 02-2023...
