Summary of Contents for bp pulse HCW7S2
- Page 1 Quick Start Guide Original instructions Version 2.7...
-
Page 2: Table Of Contents
Original Instructions bp pulse home charger smart Table of contents Safety requirements Specifications Limitations Safety instructions bp pulse home charger smart status Connector recommendations Function button Resetting your bp pulse home charger smart via the distribution board Randomised delay start Troubleshooting and further assistance... -
Page 3: Safety Requirements

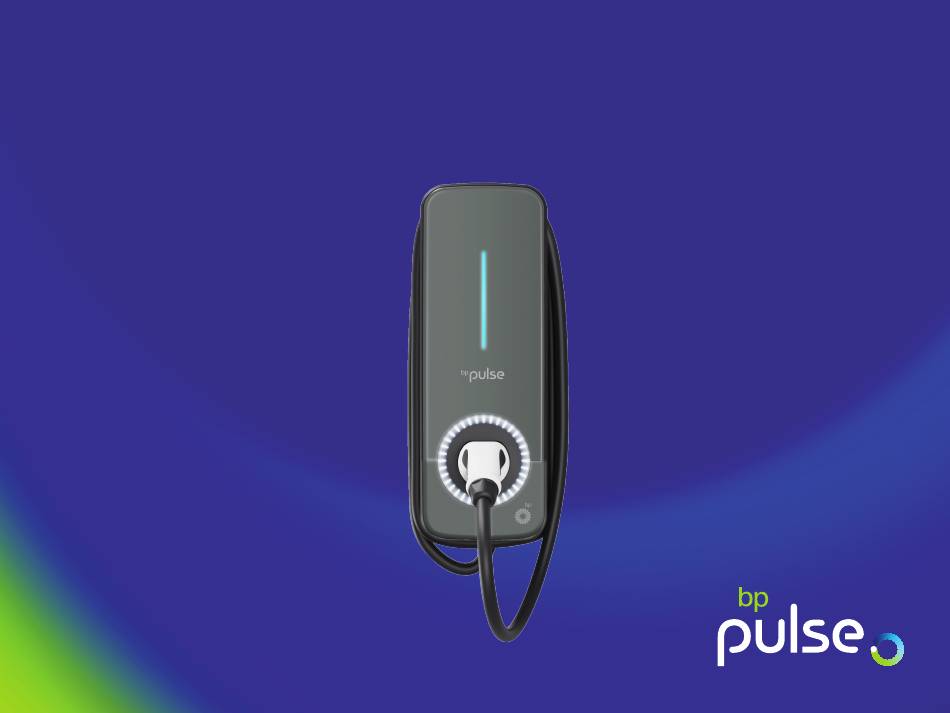

Safety requirements Limitations Before operating the bp pulse home charger smart, the user must This charger is designed for use in the UK, specifically with read and fully understand the safety instructions included in the electrical and environmental conditions expected in this country. - Page 4 Original Instructions bp pulse home charger smart LED Light Shows the status of your bp pulse charger smart bp pulse home Product Label charger smart Unique identification serial number of your charger Socket/Holster Lighting Illuminates the socket/holster for easy access...
- Page 5 Original Instructions bp pulse home charger smart Status indication Charging Idle Green Blue The green light will Your home smart is ready. pulse to indicate charging. Fault Disabled White Your charger is in fault Your charger is in mode. Do not try to disabled mode.
-
Page 6: Function Button
Original Instructions bp pulse home charger smart Function button The Function button is located at the bottom of the unit on the rear surface. With this button you can: • Start charge (delay override): press and hold down for 3 seconds and release •... -
Page 7: Randomised Delay Start
Original Instructions bp pulse home charger smart Randomised delay start app and portal options Sometimes you may need to start a charge right away, this can be achieved by selecting ‘charge now’ with the home smart app or web portal. This can also be achieved by holding down the function button for 3 seconds. -
Page 8: Starting A Charge On Socketed
Original Instructions bp pulse home charger smart Lift the flap to access the socket. Insert the charging cable plug into the Starting a charge on electric vehicle before connecting to the charging socket. Always make sure the Socketed plug is fully inserted into the socket. -
Page 9: Starting A Charge On Tethered
Original Instructions bp pulse home charger smart Remove the plug from the docking socket. Fully uncoil the cable. Starting a charge on Tethered Open the charging socket cover on your vehicle. Insert the charging cable plug into your electric vehicle (EV). -
Page 10: Configure Wi-Fi
Original Instructions bp pulse home charger smart Configure Wi-Fi Once successfully connected to the charger’s Wi-Fi Access Point, you will be automatically redirected to the login page. Otherwise, open a Press and hold down the function web browser on your mobile device and enter button for six seconds. - Page 11 Original Instructions bp pulse home charger smart Select the desired home network and enter the password of the home Wi-Fi network. Select ‘Save’, to save changes. Select ‘Reboot Device’ to apply changes. The charger will then deactivate the Wi-Fi Access Point, power down and reboot.
-
Page 12: Power That You Control
Original Instructions bp pulse home charger smart Power that you control Once your bp pulse home charger smart has been installed and is powered on, you will be able to operate it through our home smart app and portal. Your charger will automatically be added to your... - Page 13 Original Instructions bp pulse home charger smart bp pulse home app The home smart app is the most convenient way to operate your charger when you’re out and about or just relaxing on the sofa! Let’s check out what the home smart app can do for you…...
-
Page 14: Specifications
Original Instructions bp pulse home charger smart Specifications Single Phase Three Phase HCW7T1 HCG7T1 HCW22T2 HCG22T2 HCW7T2 HCG7T2 Product codes HCW22S2 HCG22S2 HCW7S2 HCG7S2 Input 220-240 VAC 50/60Hz 400 VAC 50/60Hz Rated current 1P + N + E 32A @20%... - Page 15 Original Instructions bp pulse home charger smart Output charging connector Type 2 on a 4.7m cable measured from the Tethered output connector Type 2 point the cable exits the unit to the end of the Type 2 connector General Specifications Operating temperature range -30°C to +50°C, Operating humidity range...
-
Page 16: Safety Instructions
Original Instructions bp pulse home charger smart Safety instructions • Regularly inspect the unit, wall mounting, cableand plug. Do not operate if any type of damage is observed, this includes cracks, corrosion, breakage and any other type of physical defects. - Page 17 Original Instructions bp pulse home charger smart Safety instructions • Only use recommended cleaning products (see Maintenance section) • Take care when using a jet wash or pressure washer near the unit. • Do not jet wash or pressure wash the unit.
-
Page 18: Connector Recommendations
Original Instructions bp pulse home charger smart Connector recommendations • Do not use cables if there is any sign of damage or fraying. • Do not use the charging cable with an extension cable or an adapter. • Unauthorised modifications or conversions are not allowed. -
Page 19: Resetting Your Bp Pulse Home Charger Smart Via The Distribution Board
If you are experiencing any issues with the bp pulse home charger smart or the status indicator is displaying If your charger fails to deliver charge to your electric a fault condition, please contact our customer care team... -
Page 20: Decommissioning And Disposal
Decommissioning and disposal Legal notices The intention of this document is to be used as guidance The unit should only be removed by bp pulse certified to operate the charger. bp pulse reserves the right to engineers please contact customer services. -
Page 21: Warranty
• Do not keep the cable plugged into the socket, for socketed This warranty does not affect the statutory rights of chargers, when not in use. the consumer. The warranty provided by bp pulse is • Do not jet wash the home smart. subject to the terms and conditions found below. -
Page 22: Certification
The Declaration of Conformity is included in the full user manual: www.bppulse.co.uk/bp-pulse-home-lite-user-manual. For further information please contact our customer care team via the contact page at: www.bppulse.co.uk/help-centre or email us at heretohelp@bp.com. bp pulse home charger smart User Guide Issue 2.7 - Date of Issue: 24/03/23...
