ZWA 3006 Quick Installation Guide
Omni Mode¡ ] photo 1¡ ^ ¡ G
In Omni Mode the antenna transmits and receives in a full 360 degrees. It can also be
rotated to direct the peak signal towards the client or signal source.
Directional Mode¡ ] photo 2¡ ^ ¡ G
Directional mode antenna will gain signal strength and performance in noisy sections
of your wireless network. The antenna will cover an area of 120 degrees under
Directional Mode.
Setting Antenna Orientation---Angel¡ ] photo 3¡ ^ ¡ G
In indoor environments, wireless signals tend to reflect off surfaces and bounce
around. When the signals reflect and bounce off an object they tend to twist and the
polarization of the signal can change. ZWA 3006 can be set to 3 basic mode
orientation¡ G Vertical Polarization , Horizontal Polarization and 45 degree
Polarization.
point to your wireless device

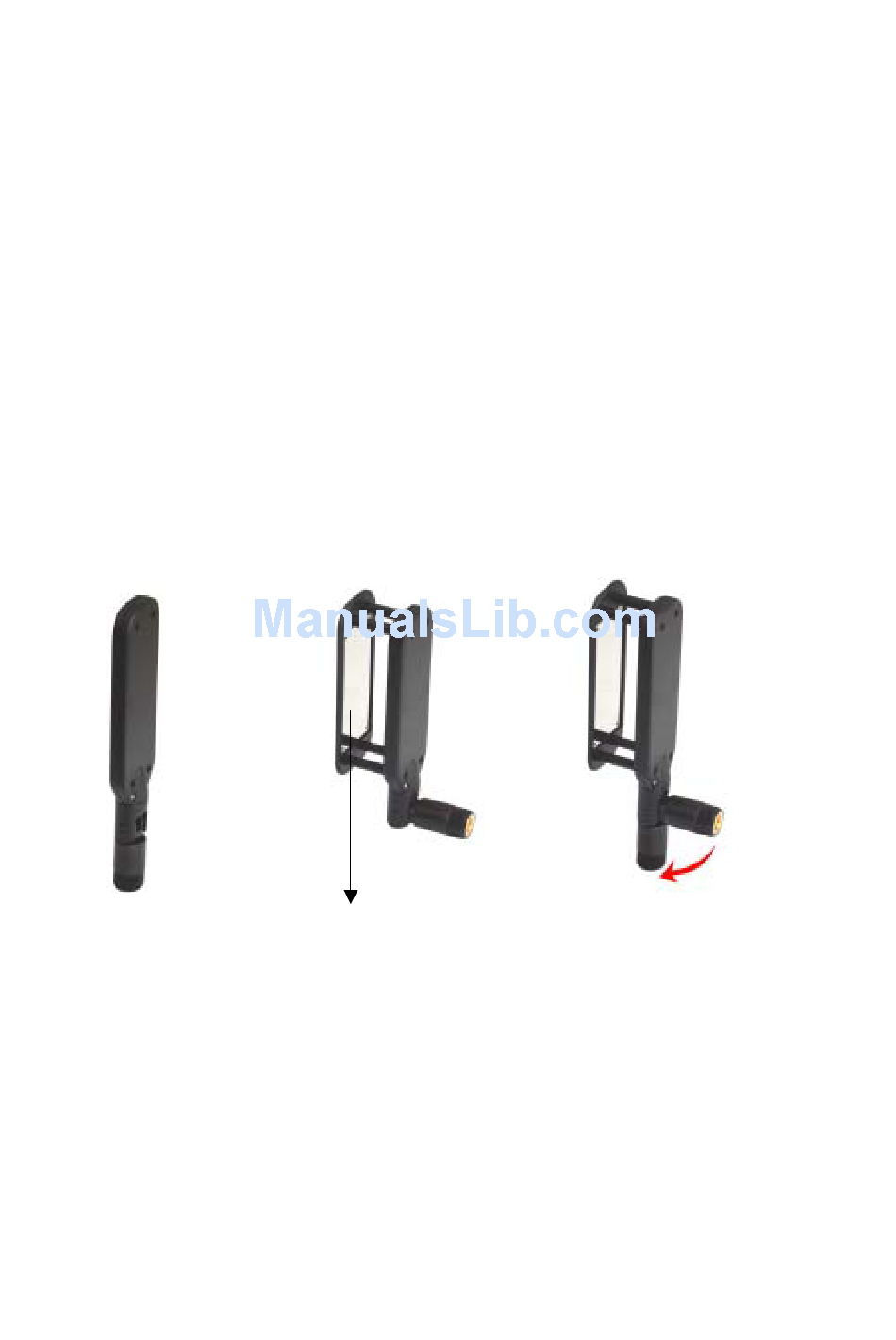

¡ ] photo 1¡ ^
¡ ] photo 2¡ ^
¡ ] photo 3¡ ^
¡ G
Note
Remember the mirror side must point to the wireless device you use. Do not reverse
the mirror side back to the device.
P/N¡ G 12-080-00237 Rev¡ G 00
