Summary of Contents for vissonic VIS-PHD44

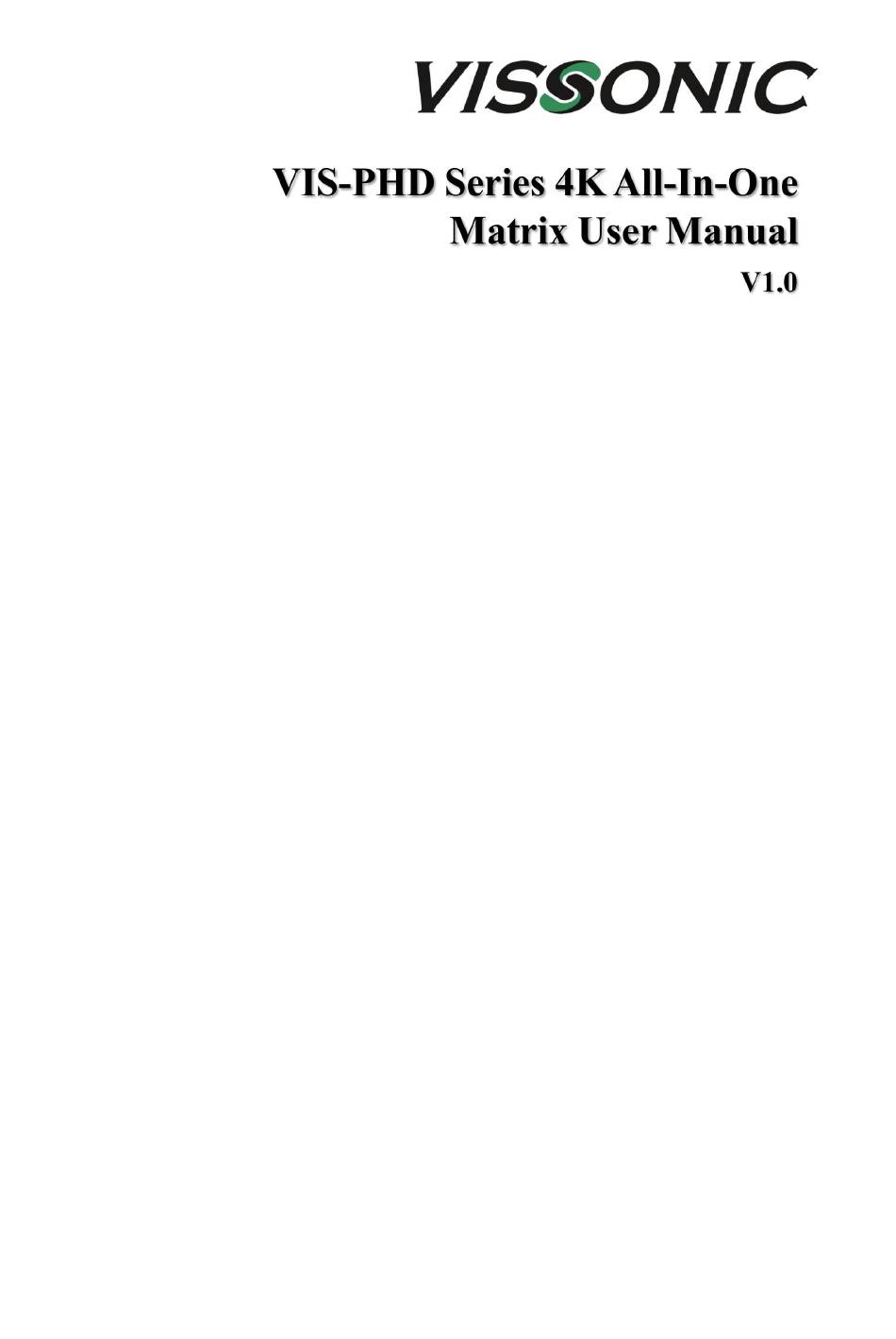

- Page 1 VISSONIC ELECTRONICS LIMITED VISSONIC Electronics Limited...
- Page 2 Please contact the qualified service personnel. ■ General information instructions It lists the factors leading to the unsuccessful operation or set and the relevant information to pay attention to VISSONIC Electronics Limited...
- Page 3 Attention in the wiring ◆ Electrolytic explosion: the burning of ◆ Only after cutting down all external power electrolytic capacitor on circuit boards may source, can install, wiring operation begin, or lead to explosion; VISSONIC Electronics Limited...
- Page 4 Preface This manual describes the performance parameters of the VISSONIC VIS-PHD series matrix switchers and how to use and troubleshoot them. The manufacturer will update the version number of the manual upon the change of technical parameters and system use. Please use the latest product manual.
-
Page 5: Table Of Contents
Connection ........................13 Interface and functions ....................14 Chapter 6 Instructions for lower computer keys ................17 6.1 Matrix switch ........................17 6.2 Saving and calling the switch state ..................18 6.3 Query and setting ........................18 Chapter 7 Troubleshooting ......................20 VISSONIC Electronics Limited... -
Page 6: Chapter 1 Overview
VISSONIC VIS-PHD series is ideal for applications requiring reliable, high-performance matrix switching of 4K/60 HDMI video and audio signals. The VISSONIC VIS-PHD series matrix switchers can work with computers equipped with a 4K graphics card, 4K media players, 4K Blu-ray players, and other similar signal sources, as well as display devices with a physical resolution of 4K. - Page 7 HDMI audio de-embedding, with digital-analog stereo audio output: The VISSONIC VIS-PHD series can extract embedded HDMI dual-channel LPCM audio to the analog audio output. HDMI audio can be in compressed or uncompressed format. The output frequency ranges from 32 kHz to 192 kHz, and the analog audio can be 48 KHz.
-
Page 8: Controller Installation
1.2 Controller installation VISSONIC Electronics Limited... -
Page 9: System Connection Diagram
4 HDMI + 4 analog 8 HDMI + 8 analog 16 HDMI + 16 analog audio audio audio Video protocol HDMI 1.4b, HDCP 1.3, DVI1.0 compliant Support for HDMI1.4b, 4Kx2K@30 Hz and HDMI 2.0 ; YCbCr420 Maximum resolution 4Kx2K@60 Hz VISSONIC Electronics Limited... -

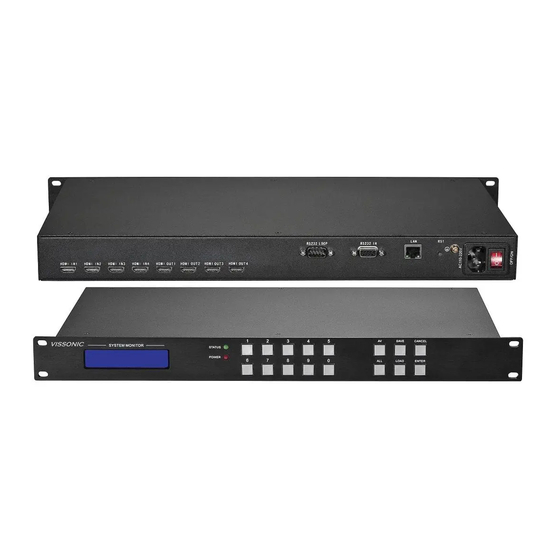

Page 10: Chapter 3 Front And Rear Panels
2. Display: Displays the current matrix status and command input and results. 3. Signal indicator: "POWER": Power indicator; "ACTIVE": Command receiving status indicator; "SENSOR": Infrared receiving status indicator. 4. Channels 0-9: Input channel number and output channel number buttons. "/": An isolator VISSONIC Electronics Limited... -
Page 11: Chapter 4 Command Table
Queries the control <Version> None <MCU:Ver1.2> card version. /:BellOff; Turns off the buzzer. None <BellOff> /:BellOn; Enables the buzzer. None <BellOn> Switches input signals of channel [x] [x]V[y]. output V:[x] -> [y] channel [y] for video switching. VISSONIC Electronics Limited... - Page 12 > gateway number. <#SUBR[255].[255].[255 Sets network <GAR:[X1].[X2].[X3].[X4]> ].[0]> subnet mask. Sets network <SHAR:[X1]:[ <#SHAR[08]:[15]:[51]:[0 <#SHAR[08]:[15]:[51]:[00]:[5 hardware address X2]:[X3]:[X4] 0]:[50]:[31]> 0]:[31]> (hexadecimal). :[X5]:[X6]> Restores factory <#NETDEFAULT> settings Default: 192.168.1.189 network. Queries network <^NET> information. Restores factory <#DEFAULT> settings VISSONIC Electronics Limited...
-
Page 13: Chapter 5 Web Control
Connect to the router via a CAT 5 network cable for TCP/IP communication. The default IP address of the matrix is 192.168.1.189. Set the same network segment when assigning an address to the router. If you adopt PC-side control, set the following IP address. VISSONIC Electronics Limited... -
Page 14: Interface And Functions
Open the mobile or PC browser to enter the matrix IP address 192.168.1.189 to enter the control interface. 5.2 Interface and functions The connection is successful if you can log in to this interface, where you can perform control. Click "AV" to enter the matrix switch control interface. VISSONIC Electronics Limited... - Page 15 EDID management: The EDID of the output display can be read to the input HDMI. Save the matrix plan. VISSONIC Electronics Limited...
- Page 16 Call the matrix plan. Settings include network settings and factory reset. You can modify the matrix IP network, and then restart the matrix. VISSONIC Electronics Limited...
-
Page 17: Chapter 6 Instructions For Lower Computer Keys
Select "output channel 2". ENTER Switch OK! The switch process is finished. Example 2: Operate the keys as follows to switch "input channel 1" of the matrix to "output channel 2" and "output channel 3". Press Displayed content Remarks VISSONIC Electronics Limited... -
Page 18: Saving And Calling The Switch State
Recall Switch Plan Recall OK! Calling "state 2" is successful! 6.3 Query and setting 1. Query the network parameters. Press Displayed content Remarks MENU IP SETTING Display the IP address. 192.168.001.189 MENU GATEWAY SET Display the gateway. VISSONIC Electronics Limited... - Page 19 Set Succeed! The setup is successful. The operations for modifying the port number, gateway, and subnet mask are similar to the above operations. Press the "IP" key to enter the corresponding interface, and then press modify the parameter. VISSONIC Electronics Limited...
-
Page 20: Chapter 7 Troubleshooting
If the resolution is not supported, change the output resolution of the matrix. You can also connect the matrix directly to the display device and test whether the display device is normal. VISSONIC Electronics Limited...
