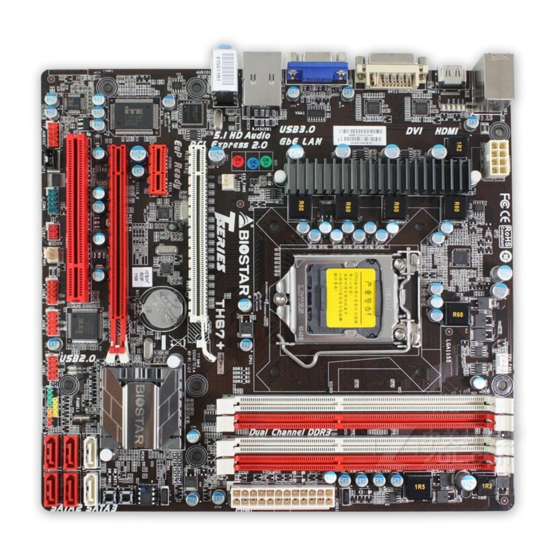

Biostar TH67 - BIOS Bios Setup Manual
  1. Manuals
  2. Brands
  3. Biostar Manuals
  4. Motherboard
  5. TH67
  6. Bios setup manual

Biostar TH67 - BIOS Bios Setup Manual

Uefi bios manual
Hide thumbs Also See for TH67 - BIOS:
Table of Contents

Advertisement

Quick Links

See also: Setup Manual
TH67+/TH67 UEFI BIOS M anual
UEFI BIOS Setup.......................................................................................1
1 Main Menu...............................................................................................3
2 Advanced Menu.......................................................................................4
3 PCIPnP Menu........................................................................................16
4 Boot Menu..............................................................................................21
5 Chipset Menu.........................................................................................24
6 O.N.E Menu...........................................................................................25
7 Exit Menu...............................................................................................32
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TH67 - BIOS and is the answer not in the manual?

Questions and answers

Related Manuals for Biostar TH67 - BIOS

Summary of Contents for Biostar TH67 - BIOS

  • Page 1 TH67+/TH67 UEFI BIOS M anual UEFI BIOS Setup..................1 1 Main Menu....................3 2 Advanced Menu..................4 3 PCIPnP Menu..................16 4 Boot Menu....................21 5 Chipset Menu..................24 6 O.N.E Menu...................25 7 Exit Menu....................32...

  • Page 2: Uefi Bios Setup

    TH67+/TH67 UEFI BIOS M anual UEFI BIOS Setup Introduction T he purpose of this manual is to describe the s ettings in the AMI UEFI BIOS Setup program on this motherboard. The Setup program allows users to modify the basic system configuration and save these settings to NVRAM.

  • Page 3: Using Setup

    TH67+/TH67 UEFI BIOS M anual Supported CP Us T his AMI UEFI BIOS supports the Intel CPU. Using Setup When starting up the computer, press <Del> during the Power-On Self-Test (POST) to enter the UEFI BIOS setup utility. In the UEFI BIOS setup utility, you will see General Help description at the top right corner, and this is providing a brief description...

  • Page 4: Main Menu

    TH67+/TH67 UEFI BIOS M anual 1 Main Menu Once you enter AMI UEFI BIOS Setup Utility, the Main Menu will appear on the screen providing an overview of the basic system inform ation. BIOS SETUP UTILITY Main Advanced Chipset Boot Security O.N.E Save &...

  • Page 5: Advanced Menu

    TH67+/TH67 UEFI BIOS M anual 2 Advanced Menu T he Advanced Menu allows you to configu re the settings of CPU, Super I/O, Power Management, and other system devices. Notice Beware of that setting inappropriate values in items of this menu may cause system to malfunction.
  • Page 6 TH67+/TH67 UEFI BIOS M anual PCI ROM Priority In case o f multiple option ROMs (Legacy and EFI Compatible), this item specifies what PCI Option ROM to launch Options: Legacy ROM (Default) / EFI Compatible ROM PCI Latency Timer T his item sets the value to be programmed into PCI Latency Timer Register. Options: 32 PCI Bus Clocks (Default) / 64 PCI Bus Clocks / 96 PCI Bus Clocks / 128 PCI Bus Clocks / 160 PCI Bus Clocks / 192 PCI Bus Clocks / 224...

  • Page 7: Wake System W Ith Fixed Time

    TH67+/TH67 UEFI BIOS M anual ACPI Settings/WakeUp Event control BIOS SETUP UTILITY Advanced When EuP Enabled,System meets EuP Control [Disabled] EuP requirement. ACPI Sleep State [S1 (CPU Stop Clock)] PME Wake up from S5 [Disabled] Wake system with Fixed Time [Disabled] Wake up date [EveryDay]...
  • Page 8 TH67+/TH67 UEFI BIOS M anual Wake up date You can choose which date the system will boot up. Wake up hour / Wake up minute / Wake up second You can choose the system boot up time, input hour, minute and second to specify. Ring-In Wake up from S5 T his item enables the system to wake from S5 using Ring-In event.

  • Page 9: Cpu Configuration

    TH67+/TH67 UEFI BIOS M anual CPU Configuration BIOS SETUP UTILITY Advanced CPU Configuration Number of cores to enable in each processor package. EMT64 Processor Speed Processor Stepping Microcode Revision Processor Cores Intel HT Technology Active Processor Cores [All] Limit CPUID Maximum [Disabled] Select Screen Execute-Disable Bit...
  • Page 10 TH67+/TH67 UEFI BIOS M anual Hardware Prefetcher T he processor has a hardw are prefetch er that automatically analy zes its requirements and prefetches dat a and instructions from the memory into the Level 2 cache that are likely to be required in the near future. T his reduces the latency associated with memory reads.

  • Page 11: Sata Configuration

    TH67+/TH67 UEFI BIOS M anual Local x2APIC T his item enables Local x2APIC. Some OSes do not support this featu re. Options: Disabled (Default) / Enabled SATA Configuration BIOS SETUP UTILITY Advanced (1) IDE Mode. (2) AHCI Mode. SATA Configuration (3) RAID Mode.

  • Page 12: Usb Configuration

    TH67+/TH67 UEFI BIOS M anual Spin Up Device If this item is enabled for any of ports, Staggered Spin Up will be performed, and only the drives that have this option enabled will spin up at boot. Otherwise, all drives spin up at boot. Options: Disabled (Default) / Enabled Hot Plug...

  • Page 13: Smart Fan Control

    TH67+/TH67 UEFI BIOS M anual Port 60/64 Emulation T his items enables I/O port 60h/64h emulation support. This should be enabled for the complete USB keyboard legacy support for non-USB aware OSes. Options: Enabled (Default) / Disabled SMART FAN Control BIOS SETUP UTILITY Advanced CPU FAN Smart control...

  • Page 14: Super Io Configuration

    TH67+/TH67 UEFI BIOS M anual Fan Ctrl On(℃ ) When CPU temperature is higher than this value, the CPU fan controller will turn on. 20 (℃) (Default) Options: Fan Ctrl Start Value T his item sets CPU FAN Start Speed Value. Options: 50 (Default) Fan Ctrl Sensitive...

  • Page 15: Serial Port 0 Configuration

    TH67+/TH67 UEFI BIOS M anual Serial Port 0 Configuration BIOS SETUP UTILITY Advanced Enable or Disable Serial Port Serial Port 0 Configuration (COM) Serial Port [Enabled] Device Settings Change Settings [Auto] Select Screen Select Item Select Enter Change Opt. General Help Optimized Defaults Save &...

  • Page 16: Shutdow N Temperature

    TH67+/TH67 UEFI BIOS M anual Change Settings T his item selects an optimal setting for Super IO device. Options: Auto (Default) H/W Monitor BIOS SETUP UTILITY Advanced ShutDown Temperature PC Health Status ShutDown Temperature [Disabled] CPU temperature System temperature CPU Fan Speed SYS FAN1 Speed SYS FAN2 Speed CPU Vcore...

  • Page 17: Chipset Menu

    TH67+/TH67 UEFI BIOS M anual 3 Chipset Menu T his section describes con figuring the PCI bus system. PCI, or Personal Computer Interconn ect, is a system which allows I/O devices to operate at speeds nearing the speed o f the CPU itself uses when communicating with its own special components. Notice Beware o f that setting inappropriate values in items of this menu may cause system to malfunction.

  • Page 18: North Bridge

    TH67+/TH67 UEFI BIOS M anual North Bridge BIOS SETUP UTILITY Chipset VT-d Enable/Disable Memory Information Total Memory DDR3_A1 DDR3_A2 DDR3_B1 DDR3_B2 VT-d [Disabled] Initate Graphic Adapter [PEG/IGD] IGD Memory [64M] Select Screen Render Standby [Enabled] Select Item IGD Multi-Monitor [Disabled] Enter Select DVMT Mode Select...
  • Page 19 TH67+/TH67 UEFI BIOS M anual DVMT Mode Select T his item selects DVMT Mode used by Internal Graphics Device. Options: DVMT Mode (Default) / Fixed Mode DVMT/FIXED Memory Size DVMT stands for “ Dynamic Video Memory T echnology”. T his is an enhancement of the unified memory architecture (UMA) concept.

  • Page 20: South Bridge Configuration

    TH67+/TH67 UEFI BIOS M anual South Bridge Configuration BIOS SETUP UTILITY Chipset Enabled/Disabled SMBus ME Version Controller. SB Chipset Configuration SMBus Controller [Enabled] Audio Configuration Azalia HD Audio [Enabled] Azalia internal HDMI codec [Enabled] High Precision Event Timer Configuration High Precision Timer [Enabled] Select Screen USB Configuration...
  • Page 21 TH67+/TH67 UEFI BIOS M anual EHCI Controller 1 T his item enables/disables USB 2.0 (EHCI) Support. Options: Enabled (Default) / Disabled EHCI Controller 2 T his item enables/disables USB 2.0 (EHCI) Support. Options: Enabled (Default) / Disabled Onboard PCI-E De vices BIOS SETUP UTILITY Chipset Enable or Disable Boot Option...
  • Page 22 TH67+/TH67 UEFI BIOS M anual Onboard USB3.0 T his item enables/disables Onboard USB3.0. Options: Auto (Default) / Disabled / Enabled Onboard PCI Bridge T his item enables/disables Onboard PCI Bridge. Options: Auto (Default) / Disabled / Enabled...

  • Page 23: Boot Menu

    TH67+/TH67 UEFI BIOS M anual 4 Boot Menu T his menu allows you to setup the system boot options. BIOS SETUP UTILITY Main Advanced Chipset Boot Security O.N.E Save & Exit Number of seconds to wait for Boot Configuration setup activation key. Setup Prompt Timeout Bootup NumLock State [On]...

  • Page 24: Interrupt 19 Capture

    TH67+/TH67 UEFI BIOS M anual Interrupt 19 Capture Interrupt 19 is the software interrupt that handles the boot disk function. When set to Enabled, this item allows the option ROMs to trap interrupt 19. Options: Disabled (Default) / Enabled Boot Option #1/#2/#3 T he 3 items specify the boot devi ce prio rity sequence from the availabl e devices.

  • Page 25: Security Menu

    TH67+/TH67 UEFI BIOS M anual 5 Security Menu BIOS SETUP UTILITY Main Advanced Chipset Boot Security O.N.E Save & Exit Set Setup Administrator Password Description Password If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup.

  • Page 26: Start Page

    TH67+/TH67 UEFI BIOS M anual 6 O.N.E Menu T his submenu allows you to change voltage and clock of various devices. (Howev er, we suggest you use the default setting. Changing the voltage and clock improperly may damage the device.) Notice Beware of that setting inappropriate values in items of this menu may cause system to malfunction.

  • Page 27: Enhanced Intel Speedstep Technology

    TH67+/TH67 UEFI BIOS M anual CPU Core Current Max (Amp) T his item sets the Max instantaneous current allowed at any given time. Options: 150 (Default) Power Limit 1 Value (Watt) T his item sets the power limit value which CPU must not exceed over a specific time.

  • Page 28: Cpu Clock

    TH67+/TH67 UEFI BIOS M anual CPU Clock T his item sets CPU Clock. Options: 100 (Default) Spread Spectrum T his item allows you to control Spread Spectrum f un ction. Options: Auto (Default) / Disabled / +/- 0.20 / +/- 0.25 / +/- 0.375 / +/- 0.50 DDR3 DRAM M ultiplier T his item allows you to set DDR3 DRAM Multiplier.
  • Page 29 TH67+/TH67 UEFI BIOS M anual RAS# Active Time (tRAS) T his item allows you to select Row Active T ime of DDR3. Options: 20 (Default) / 9 ~ 63 Write Recovery Time (tWR) T his item allows you to select Internal Write to Read Command Delay of DDR3. Options: 8 (Default) / 3 ~ 31 Row Refresh Cycle Time (tRFC)
  • Page 30 TH67+/TH67 UEFI BIOS M anual CPU VCore Offset T his item sets CPU Vcore Offset Voltage. CPU VCore Fixed T his item sets CPU Vcore Fixed Voltage. IGD VCore Mode T his item sets the mode of the IGD core power supply. Options: SPEC Voltage (Default) / Auto / Offset Mode / Fixed Mode IGD VCore Offset...
  • Page 31 TH67+/TH67 UEFI BIOS M anual VCore LoadLine T his item sets VCore LoadLine. Options: Enabled (Default) / Disabled / 87.5% LoadLine / 75.0% LoadLine / 62.5% LoadLine / 50.0% LoadLine / 37.5% LoadLin e / 25.0% LoadLine / 12.5% LoadLine CPU PLL T his item sets CPU PLL power supply.
  • Page 32 TH67+/TH67 UEFI BIOS M anual DDR3 Slot 1/2/3/4 Information T hese items display SPD information of DDR3 memory. BIOS SETUP UTILITY O.N.E DDR3 Module Information Memory Type Memory Manufacturer Part Number Memory Ext. DRAM Speed DRAM Voltage DRAM tCL DRAM tRCD DRAM tRP Select Screen DRAM tRAS...

  • Page 33: Exit Menu

    TH67+/TH67 UEFI BIOS M anual 7 Exit Menu T his menu allows you to load the optimal default settings, and save or discard the changes to the BIOS items. BIOS SETUP UTILITY Main Advanced Chipset Boot Security O.N.E Save & Exit Exit system setup without Discard Changes and Exit saving any changes.
