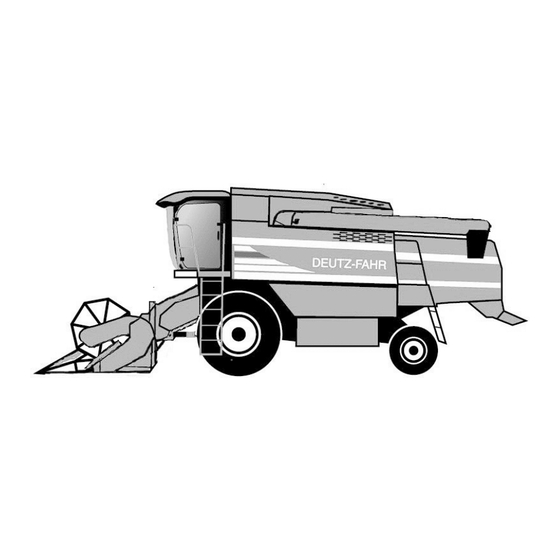

- Page 1 SAME DEUTZ-FAHR DEUTSCHLAND GmbH WORKSHOP MANUAL Combine 5650 H, 5660 HTS 5670 H / HTS 5680 H, 5690 HTS...
- Page 2 Service Training Summary 5650H – 5690HTS SAFETY INSTRUCTIONS ........i4 General .
- Page 3 Service Training General Safety Instructions Before starting assembly, repair or maintenance work, make sure you read and follow these safety instructions. Please also transmit all safety instructions to all other people concerned. In this manual, we have marked all points relevant to your safety with the following symbol: WARNING! This combine harvester is designed exclusively for normal use in agricultural work (intended use).
- Page 4 Service Training Safety instructions for maintenance and repair General: 1. As a general rule, the drive train must be disengaged and the engine stopped before carrying out any assembly, repair, maintenance and cleaning work or before remedying malfunctions. Remove the ignition key. 2.
- Page 5 Service Training Safety instructions for maintenance and repair Hydraulic system: 1. The hydraulic system is under high pressure. When searching for leaks, use a suitable aid (e.g. piece of cardboard) to protect against the risk of injury. 2. Before carrying out any work on the hydraulic system, depressurise the system and lower any front attachments.
- Page 6 2. If any parts have to be replaced, only authentic original DEUTZ-FAHR spare parts may be used. The use of spare parts, accessories and auxiliary devices that do not originate from DEUTZ-FAHR and...
- Page 7 Service Training Notes 307.1133.3.6 englisch (en) 10.2006...
-
Page 8: Table Of Contents
Service Training 5650H – 5690HTS General information on repair and maintenance Table of Contents Combine Harvester Type 5650H 5680H 5660HTS 5690HTS Conversion table ............02 – 03 Tightening torques, bolting classes . -
Page 9: Conversion Table
Service Training Conversion Tables Conversion factor 0,03937 0,00328 25,4 0,08333 304,8 11,9999 0,155 sq.in. sq.in. 6,4516 sq.in. 0,001 0,06102 cu.in. 0,00026477 USgall 0,00021998 Imp.gall 1000 61,024 cu.in. 0,26417 USgall 0,21998 Imp.gall cu.in. 16,3870 0,016387 cu.in. 0,04329 USgall 0,03604 Imp.gall US gall 3785,4 3,7854 23,1... - Page 10 Service Training Conversion Tables Conversion from degrees Celsius (°C) to degrees Fahrenheit (°F) °C °F °C °F °C °F °C °F °C °F °C °F 64,4 125,6 156,2 186,8 33,8 66,2 96,8 127,4 188,6 35,6 98,6 129,2 159,8 190,4 37,4 69,8 100,4 161,6...
- Page 11 Service Training 5650H – 5690HTS Tightening value for bolts according to in-house standard H0385-1 Bolting class II Bolts and nuts are to be tightened by means of a torque wrench Shoulder stud with standard metric thread Shoulder stud with metric fine thread Friction factor µges.
-
Page 12: Lubricants
Service Training Lubricants Solid lubricants Material Part No. Operating temperature Equivalent manufacturer's specification range in °C DEUTZ S 1 0134 0198 –180° bis +1400° Never Seize DEUTZ S 2 0100 5149 –125° bis +1450° Molykote Paste G-n Rapid DEUTZ S 5 0101 6126 –130°... - Page 13 Service Training Sealants Material KHD Part-No. Operating temperature Equivalent manufacturer's specification range in °C designation DEUTZ DW 25 0100 1306 – 190° to + 250° Thread tape DEUTZ DW 30 – 190° to + 700° Devametal NiCuFe 10.83/8-3W DEUTZ DW 40 –...
-
Page 14: Single-Component Adhesives
Service Training Single-component adhesives Use of single-component adhesives For particularly important screwed connections and for snug-fit connections subject to high stress, a single-component adhesive is factory-applied, to guarantee increased protection against loosening and undoing. When the machine is repaired, the parts to be glued together must first be cleaned carefully with commercially available cleaning agents or purified gasoline. -
Page 15: Maintenance And Inspection Schedule
Maintenance and Inspection Schedule for DEUTZ-FAHR Combine Harvesters To be carried out by authorised DEUTZ-FAHR workshops only 1 Engine Oil quality Deutz DQC III-05, ACEA E4-99/E6-04* Maintenance and inspection according to engine operating instructions Check oil level (twice per day during running in phase) - Page 16 Maintenance and Inspection Schedule for DEUTZ-FAHR Combine Harvesters 5 Threshing Mechanism, Cleaning System, Grain Tank Check grain pan sections for firm fit 5.10 Check fan variator 5.11 Check grain elevator chain, tighten if necessary 5.12 Check grain tank tube lock...
- Page 17 Service Training 5650H, 5660HTS, 5680H, 5690HTS Operating fluids, filling levels and oil grades Designation 5650H 5680H Level Change operating media Inspection 2) Interval 3) 5660HTS 5690HTS Specifications Fuel tank ca.555 l ca.555 l daily Diesel fuel, sulphur content below 0,5 % DEUTZ-engine 20,0 l 20,0 l...
- Page 18 Thank you very much for your reading. Please Click Here. Then Get COMPLETE MANUAL. NO WAITING NOTE: If there is no response to click on the link above, please download the PDF document first and then click on it.
-
Page 19: Release List Deutz Lube Oil Quality Stage
Service Training Release list DEUTZ lube oil quality stage DQC III-05 Manufacturer Lubricant type SAE class Availability DEUTZ DEUTZ OIL TLX-10W40FE 10W-40 Europe ADDINOL ADDINOL Super Truck MD 1048 10W-40 Europe, Asia ADDINOL Ultra Truck MD 0538 5W-30 Europe, Asia worldwide AGIP Agip Sigma Ultra TFE... -
Page 20: Speeds
Service Training 5650H – 5690HTS Speeds 5670 5680 5650, 5660 Combine Harvester 5690 -12225 5680, 5690 + 12226 ±15 ±15 Engine 1/min 2610 – 2655 2425 2390 with threshing mechanism disengaged ±15 ±15 Engine 1/min 2590 – 2635 2415 2385 with threshing mechanism engaged Straw stripper drum 1) +25/–40... - Page 21 Service Training A00005 A00006 307.1133.3.6 englisch (en) 10.2006...
- Page 22 Service Training 5650H – 5690HTS Tightening values of adapter bearings Bearing point Bearing Tightening torque Threshing drum/turbo separator Grooved ball bearing 140 Nm Straw stripper drum left side Grooved ball bearing 140 Nm Straw stripper drum right side Ball joint bearing 180 Nm Straw walker bearing Grooved ball bearing...
