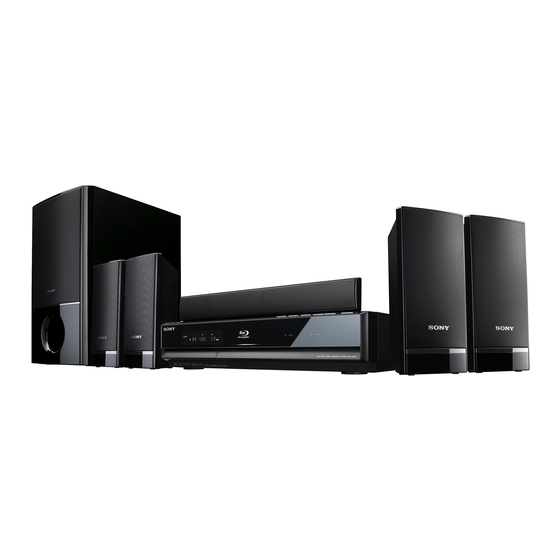

Sony HCD-E300 - Blu-ray Disc™ / Dvd Receiver Component Service Manual

BDV-E300/E301/T10/T11
SERVICE MANUAL
Ver. 1.0 2009.06
• BDV-E300/E301/T10/T11 are composed of following models.
As service manuals are issued for each component model, please
refer to them..
COMPONENT MODEL NAME
BD/DVD receiver
Front speaker
Center speaker
Surround speaker
Subwoofer
DIGITAL MEDIA PORT adapter
Note 1: As for TDM-iP20, the part number has been described to this service manual.
Note 2: TDM-iP20 is attached only to US, UK and Australian models.

SPECIFICATIONS

General (BDV-E300/E301/T10/T11)
Power requirements
US model: 120 V AC, 60 Hz
220 V − 240 V AC, 50/60 Hz
Other models:
Power consumption On: 160 W
Standby: 0.3 W (at the Power Saving mode)
Output voltage/current
(DIGITAL MEDIA PORT)
DC 5 V/700 mA
LAN (100) 100BASE-TX Terminal
EXT External memory slot (For connecting
the external memory)
DC output: 5 V 500 mA Max
Dimensions (approx.) 430 mm × 93 mm × 400 mm
(17 in × 3 3/4 in × 15 3/4 in)
(w/h/d) incl. projecting parts
Mass (approx.) 5.4 kg (11 lb 15 oz)
General (TDM-iP20: US, UK, Australian models)
Power requirements: DC IN: 5 V, 0.6 A (via DIGITAL MEDIA PORT)
Approx. φ 80 × 22 (h) mm (φ 3 1/4 × 7/8 (h) inch)
Dimensions:
Mass: Approx. 132 g (4.7 oz) (includes cable)
Cable length: Approx. 1 m (3.3 ft)
Design and specifi cations are subject to change without notice.
Sony Corporation
9-889-544-01
2009F05-1 Audio&Video Business Group
©
2009.06 Published by Sony Techno Create Corporation
BDV-E300 BDV-E301
HCD-E300 HCD-E301
SS-TSB93 SS-TSB95
SS-CTB91 SS-CTB92
SS-TSB92 SS-TSB95
SS-WSB91 SS-WSB92
TDM-iP20 TDM-iP20
Australian Model
BDV-T10 BDV-T11
HCD-T10 HCD-T11
SS-TSB95 SS-TSB95
SS-CTB92 SS-CTB92
SS-TSB95 SS-TSB95
SS-WSB92 SS-WSB92
TDM-iP20 TDM-iP20

Unpacking

• Front speakers (2)
• Surround speakers (2)
• Center speaker (1)
• Subwoofer (1)
• AM loop antenna (aerial) (1) (US model)
• FM wire antenna (aerial) (1)
• Speaker cords (6, white/red/blue/gray/green/purple) (BDV-E300)
• Speaker cords (5, white/red/blue/gray/green) (BDV-E301/T10/T11)
• Video cord (1)
• Remote commander (remote) (1)
• R6 (size AA) batteries (2)
• Calibration mic (1)
• Foot pads (1 set)
• Operating Instructions
• Speaker and TV Connections Guide
• Software Licence Information (AEP, UK and Australian models)
• Setup Disc (DVD) (US model)
• DIGITAL MEDIA PORT adapter (TDM-iP20) (1)
(US, UK and Australian models)
• Operating Instructions for DIGITAL MEDIA PORT adapter
(TDM-iP20) (US, UK and Australian models)
• HDMI cable (1) (BDV-T11)
– Refer to next page for accessories list –
BD/DVD HOME THEATRE SYSTEM
US Model
BDV-E300/T10/T11
AEP Model
BDV-E300
UK Model
BDV-E300/E301
