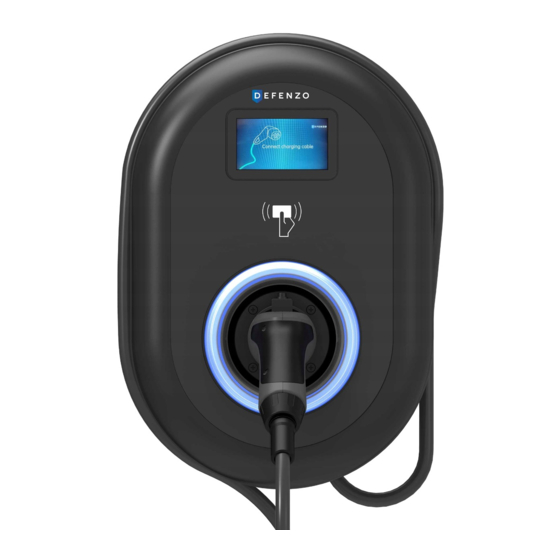

- Page 1 CHARGING STATION Defenzo Wallbox AC7/AC22 Installation Guide...
-
Page 2: Table Of Contents
3.1 - SUPPLIED INSTALLATION EQUIPMENT and ACCESSORIES ........7 3.2 - RECOMMENDED TOOLS ....................7 4 - TECHNICAL SPECIFICATIONS ................8 4.1 - Defenzo Wallbox AC22 ....................8 4.2 - Defenzo Wallbox AC7 ....................9 5 - INSTALLING CHARGE STATION ................10 5.1 - BOX CONTENTS FOR CHARGING STATION WITH SOCKET AND CABLE .... -
Page 3: Safety Information
This device is intended only for charging vehicles not requiring ventilation during charging. • To prevent risk of explosion and electric shock, ensure that the specified Circuit Breaker and RCD are connected to building grid. WWW.DEFENZO.PL Installation guide English - 3... -
Page 4: Ground Connection Warnings
This unit is rated for indoor or outdoor installation. If this unit is mounted outdoors, the hardware for connecting the conduits to the unit must be rated for outdoor installation and be installed properly to maintain the proper IP rating on the unit. WWW.DEFENZO.PL English - 4 Installation guide... -
Page 5: General Information
Product Label Charging station supply inlet Charging station supply inlet gland nut gland nut Charging station Charging station communication cable gland nut communication cable gland nut Charging cable Charging station communication cable gland nut WWW.DEFENZO.PL Installation guide English - 5... -
Page 6: Dimensional Drawings
2.2 - DIMENSIONAL DRAWINGS 315.0mm 135.0mm 460.0mm Figure-2 WWW.DEFENZO.PL English - 6 Installation guide... -
Page 7: Required Equipment, Tools And Accessories
3.2 - RECOMMENDED TOOLS Drill Bit 8mm Impact Drill Water Level Torx T25 Security Volt Indicator Tester Screwdriver Flathead Screwdriver Right Angle Screwdriver Adapter Pointed Spudger (Tip width 2.00-2.5 mm) / Torx T20 Security Bit Table-2 WWW.DEFENZO.PL Installation guide English - 7... -
Page 8: Technical Specifications
4 - TECHNICAL SPECIFICATIONS 4.1 - Defenzo Wallbox AC22 This product is compliant to IEC61851-1 (Ed3.0) standard for Mode 3 use. Model Defenzo Wallbox AC22 IEC Protection class Class - I Socket Model Socket TYPE 2 (IEC 62196) Vehicle Interface... -
Page 9: Defenzo Wallbox Ac7
4.2 - Defenzo Wallbox AC7 This product is compliant to IEC61851-1 (Ed3.0) standard for Mode 3 use. Model Defenzo Wallbox AC7 IEC Protection class Class - I Socket Model Socket TYPE 2 (IEC 62196) Vehicle Interface Cable Model 5 m Cable with TYPE 2 (IEC 62196) Female Plug Voltage and Current Rates 230 V AC 50/60 Hz –... -
Page 10: Installing Charge Station
5 - INSTALLING CHARGE STATION 5.1 - BOX CONTENTS FOR CHARGING STATION WITH SOCKET AND CABLE User Manual RFID Cards Figure-3 WWW.DEFENZO.PL English - 10 Installation guide... -
Page 11: Product Installation Steps
RISK OF ELECTRIC SHOCK Please power off the charging station mains supply Remove the cover screws with Torx T20 security L-Wrench or Right Angle Screwdriver Adapter using Torx T20 Security Bit. Open the cover. Figure-4 WWW.DEFENZO.PL Installation guide English - 11... -
Page 12: Wall Mount Installation
Torx T20 Security L-Wrench or Right Angle Screwdriver Adapter using Torx T20 Security Bit. Mounting the charging station on wall is now finished. Before next step (7), please check the instructions for Single Phase or Three Phase cable connection. Figure-5 WWW.DEFENZO.PL English - 12 Installation guide... - Page 13 Figure-6 Wrench AC Mains Cable Wrench Data cable Figure-7 WWW.DEFENZO.PL Installation guide English - 13...
- Page 14 Before closing the cover of the charging station, check instructions if any function related to these sections are used. Figure-8 WWW.DEFENZO.PL English - 14 Installation guide...
-
Page 15: Single Phase Charging Station Ac Mains Connection
Electric Terminal number with AC Cable Color. Tighten the screws on the terminal block as shown in the image with the tightening tourqe of 2.5Nm. Electric Terminal AC Cable Color AC L1 (Brown) AC Neutral (Blue) Earth (Green-Yellow) Table-3 WWW.DEFENZO.PL Installation guide English - 15... - Page 16 For single phase IT Grid installation, wiring diagram which is shown below should be used. Also grounding type should be set to “IT Grid” from the ”Installation settings” menu in web user interface. WWW.DEFENZO.PL English - 16 Installation guide...
-
Page 17: Three Phase Charging Station Ac Mains Connection
Tighten the screws on the terminal block as shown in the image with the tightening tourqe of 2.5Nm. Electric Terminal AC Cable Color AC L3 (Grey) AC L2 (Black) AC L1 (Brown) AC Neutral (Blue) Earth (Green-Yellow) Table-4 WWW.DEFENZO.PL Installation guide English - 17... -
Page 18: Adjusting Current Limiter
25 A 32 A 30 A 26 A 40 A 32 A 32 A 40 A 10 A Table-6 13 A 16 A 3 Phase 20 A 25 A 30 A 32 A Table-5 WWW.DEFENZO.PL English - 18 Installation guide... -
Page 19: Dip Switch Settings
Brief descriptions of the DIP switch pin settings can be found in below table. Pin Number Description Pin-1 RFID Master and User Card Reset Pin-2 External Enable Input Functionality Pin-3 Locked Cable Function (only for socket models) Pin-4-5-6 Power Optimizer (Requires Optional Accessories) Table-7 WWW.DEFENZO.PL Installation guide English - 19... -
Page 20: Data Cable Connection
Remove rubber cork. Insert cable through the cable hole. Insert the cable through the RCCB housing holes. Finally, to connect the wires, follow the related sections above depending on the functions to be used. WWW.DEFENZO.PL English - 20 Installation guide... -
Page 21: External Enable Input Functionality
If the externawl relay (RL) is in non-conducting state (open), the charging station will not be able to charge the electric vehicle. You can connect potential free input signals as shown in above circuitry (see figure-14). WWW.DEFENZO.PL Installation guide English - 21... - Page 22 Figure-15 Cable Terminal Cable Color 1 (CN2-1) Green 2 (CN2-2) Green + White Green Table-8 WWW.DEFENZO.PL English - 22 Installation guide...
-
Page 23: Locked Cable Function (Model With Socket)
Note: When this function is active (PIN 3 is ON), charging cable cannot be unplugged. When you deactivate this function (PIN 3 is OFF), the plug will be unlocked. Table-9 WWW.DEFENZO.PL Installation guide English - 23... -
Page 24: Mode Selection Switch Settings
TIC (Tele Information Client) I1-I2 signal and reacts accordingly for peak/off peak time charging and regulates its charging power for dynamic load management according to the information sent by the meter via TIC signal. WWW.DEFENZO.PL English - 24 Installation guide... -
Page 25: Load Shedding
Figure-17 Cable Terminal Input Load Shedding Input + Load shedding Input – Table-10 Load Shedding Input State Behaviour Opened Contact Charge at max. available current Closed Contact Charge at min. current (8A) Table-11 WWW.DEFENZO.PL Installation guide English - 25... -
Page 26: Monitoring Of Welded Relay Contacts Failure
5.2.9 - MONITORING OF WELDED RELAY CONTACTS FAILURE According to IEC 61851-1 and EV/ZE Ready requirements, Defenzo Wallbox AC Charging Station has welded contactor sensing function, and welded contactor information is provided as a contactor welded output signal from the control board. To detect welded contact failure for the relays, CN33 connector output terminals must be used. - Page 27 WWW.DEFENZO.PL Installation guide English - 27...
