- Page 1 Ultrasound Controller Manual AQ M-Tech AB...
- Page 2 Ultrasound Controller Manual...

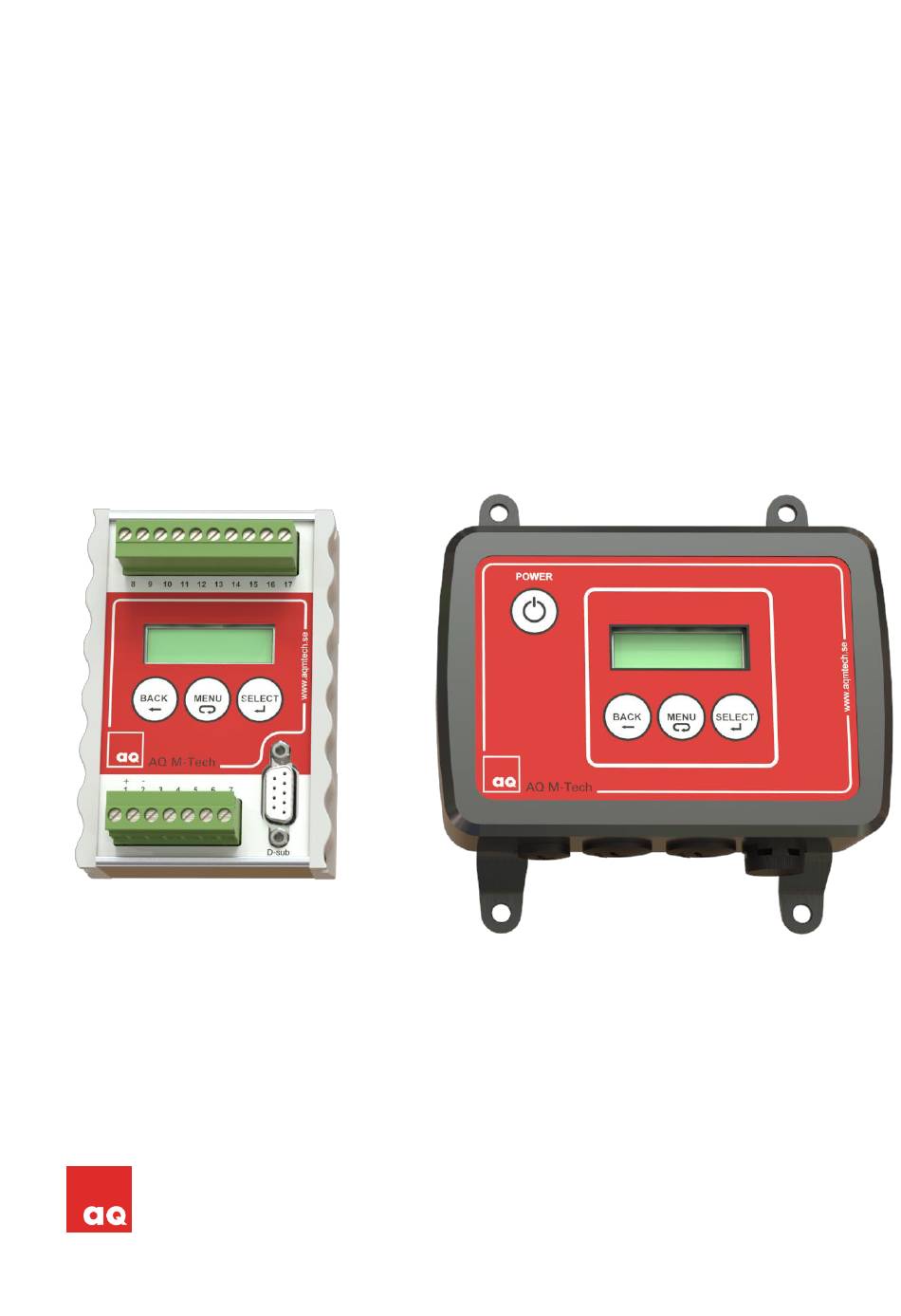

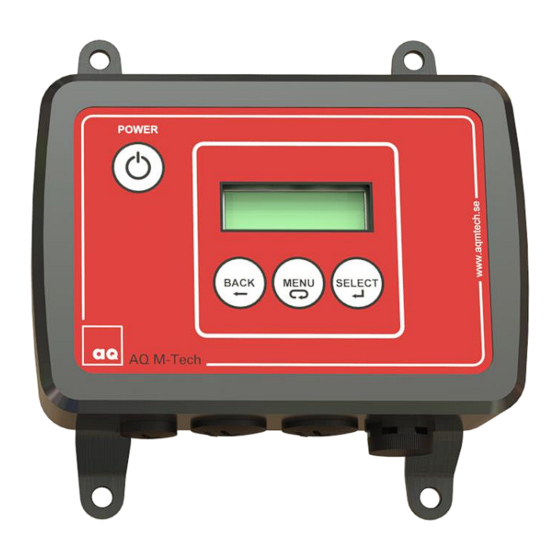

- Page 3 Ultrasound Controller D72, DP72, D128, G72, GP72, G128, GS72 AQ M-Tech AB • Manual version 6.32 • Software version 6.3x • D72 hardware version RevE • DP72 hardware version RevE • D128 hardware version RevA • G72 hardware version RevA •...
-
Page 4: Table Of Contents
Certificate of Quality and Function ....................6 Manufacturer: ..........................6 Introduction ............................7 Ultrasound Controller ........................7 Installing Ultrasound Controller D72, G72 ..................7 Installing Ultrasound Controller DP72, GP72 ................. 8 Installing Ultrasound Controller D128, G128 .................. 8 Navigating the menu system ......................9 Sensor MODE and the start-screen .................... - Page 5 12. Technical specifications Ultrasound Controller ................46 13. Parameter settings .......................... 48 Level Sensor mode ........................49 Gel Sensor mode .......................... 50 PROFIBUS ........................... 50 Gel Distance Sensor mode......................50 14. Software Version History ....................... 51 AQ M-Tech AB Ultrasound Controller Manual...
-
Page 6: Manufacturer Information
Replacement as provided under this warranty is the only remedy of the purchaser. The purchaser pays freight to AQ M-Tech AB. AQ M-Tech AB shall in no event be held liable for indirect or consequential damages of any kind or character to the purchaser. -
Page 7: Introduction
The software version can also be found in the HELP-menu. Software versions may differ slightly and therefore it is usually better to use a manual version corresponding to the software version, even though a later manual version can have less errors. Installing Ultrasound Controller D72, G72 Description terminal The Ultrasound Controller should be protected from dust and water. -
Page 8: Installing Ultrasound Controller Dp72, Gp72
Installing Ultrasound Controller DP72, GP72 DP72 The Ultrasound Controller DP72 and GP72 should be protected GP72 Description from dust and water. It is made to be attached to a DIN-rail, to terminal which it snaps easily and can be removed by pushing up and bending the top out. -
Page 9: Navigating The Menu System
RESTORE settings and calibrations ADVANCED SETTINGS CONTROL (enabl/disabl profibus) PROFIBUS SETTING set sensor MODE BITRATE RESTORE settings and calibrations ADDRESS PROFIBUS SETTING PARAMETER ACCESS BITRATE CONTROL (enabl/disabl profibus) ADDRESS PARAMETER ACCESS CONTROL (enabl/disabl profibus) AQ M-Tech AB Ultrasound Controller Manual... -
Page 10: Electric Noise
Only if the sensor cable is not grounded via the cable gland, is it recommended to connect terminal 16 on the D72, DP72, G72, GP72, GS72 or terminal 19 on D128, G128 to ground, near the transmitter as shown in the picture. -
Page 11: Air Sensor Mode
Sensor tends to pull bubbles towards the center of the tube but when flow rate is low, bubbles can rise to the top. The Air Sensor is slightly more sensitive to bubbles if it is rotated so that the cable/connector is facing up. AQ M-Tech AB Ultrasound Controller Manual... -
Page 12: Connecting The Air Sensor
Air Sensor cables. If shielded cable glands are not used then terminal 11 or 16 on the D72, DP72 or terminal 14 or 19 on D128 can be connected to the cabinet instead. Note that Air Sensor PAC needs a short jumper cable. To minimize the risk of electric interference and noise, see Electric Noise page 10. -
Page 13: Setting Lowest Possible Sensitivity For Bubbles
> 16mm. Don’t use it if there is more than +- 5°C temperature variation during SENSITIVITY FILTER delay 0,3s measurement and calibration. Try first set or longer. If SENSITIVITY very low there are still unwanted detections of bubbles, then change the setting of very very low. AQ M-Tech AB Ultrasound Controller Manual... -
Page 14: Settings
SETTINGS Through the SETTINGS-menu the parameters of the Air Sensor can be set. SET TYPE Select to set the type of Air Sensor connected. This tells the Ultrasound Controller to make the correct adjustments for this Air Sensor type. SET DIAMETER Select to set it to the diameter of the connected Air Sensor or as close as possible. -
Page 15: Air Sensor Start-Screen
AIR and LIQ. Press MENU button to change between Air Sensor 1 and 2. RESTORE settings and calibrations Select to restore all settings and calibrations to factory-settings. PROFIBUS SETTINGS Select see page 42 (for DP72). AQ M-Tech AB Ultrasound Controller Manual... -
Page 16: Calibration
CALIBRATION Calibration must be done both with air (with empty Air Sensor) and liquid (with full Air Sensor) and it can be done in any order. To calibrate liquid, make sure there is liquid inside the Air Sensor and calibrate LIQUID select (and press SELECT button one second). -
Page 17: Very Low Sensitivity Data
This improves bubble detection. However only one Air Sensor CQS can be connected to one D72. Settings should be set for air sensor 1 (setttings for air sensor 2 is disabled when air sensor 1 is set to CQS). - Page 18 Ndata Electric interference will show itself as being unstable with Air in the Air Sensor. To minimize the risk of interference it is important that sources of interference like frequency inverters should use shielded cables between inverter and motor. Also any unshielded part of the cable between the Air Sensor and Ultrasound Controller should be short.
-
Page 19: Level Switch Mode
Sensor 1 White If D72 is mounted inside a metal Sensor 2 Brown Sensor 2 Green (or black) cabinet it is good to connect D72 to Sensor 1 Shield & the cabinet (ground) and this is best Shield Sensor 2 Shield done using grounded cable glands for the Level Switch cables. -
Page 20: Level Switch Type And Technique
Level Switch Type and Technique There are two different measuring techniques: Echo and WR (Wall Reverberate). The different Level Switches are optimized for each technique. Level Switch RS works well with the WR- technique and do not work well with Echo-technique. Level Switch MK has a soft silicone surface adapting to the container surface and works well with Echo-technique and does not work well with the WR-technique. -
Page 21: Dual Technique
Level Switch and press it on to the container. The silicone should completely cover the gap between the Level Switch and the container. During the first hours, the Level Switch must be held securely in place with some tape or a clamp. AQ M-Tech AB Ultrasound Controller Manual... -
Page 22: Stainless Steel And Glass Containers
Level Switch. Attaching tape above or below the Level Switch does not help. The tape is supplied with the Level Switch in 500mm length and can also be ordered separately from AQ M-Tech, order number 101310. The material is polyurethane. Acetone should not be used for cleaning the tape. -
Page 23: Settings
To see how well the Level Switch behaves at different temperatures or with a different liquid the measurement data can be checked. AQ M-Tech AB Ultrasound Controller Manual... -
Page 24: Show Data
SHOW DATA Echo DATA to show Edata: echo measurement data (echo strength) relative to ELiq. During Select calibration it is set to be 100% with liquid. Efrq: shows the frequency (1, 2, 3 or 4). On the second line threshold Ethd: is displayed. If Edata Ethd ELiq... -
Page 25: Level Switch Troubleshooting
In this case it is necessary to provide settings and data since this information is needed for AQ M-Tech AB to find a solution for the problem. It can be written down or pictures of the display can be taken. If you don’t know how to navigate the menu system, read “Navigating the Menu System”... - Page 26 Stainless Steel and Glass Containers page 22. If the Level Switch is installed with ex-barriers, also include information about the ex-barrier type and how it is connected to the Level Switch and D72/DP72. Ultrasound Controller Manual...
-
Page 27: Level Sensor Mode
Liquid dampens those echoes. Level Switch KSF should be used as sensor for level and Level Switch KS for velocity. Level Switch RS cannot be used and Level Switch LS is not recommended. AQ M-Tech AB Ultrasound Controller Manual... -
Page 28: Connecting The Level Sensor
Sensor 1 Shield and If D72 is mounted inside a metal Shield Sensor 2 Shield cabinet it is good to connect D72 to the cabinet (ground) using grounded cable Sensor 2 White 1 Yellow glands for the Level Switch cables. If... -
Page 29: Installing The Sensor On A Non-Horizontal Bottom
SETTINGS Through the SETTINGS-menu the parameters can be set. SET Range Select to set the level change in mm which correspond to 100% level change. (Measurement is done up to 170% of this level) AQ M-Tech AB Ultrasound Controller Manual... -
Page 30: Calibration
SET Offset Select to set an offset which is added to the measured level before it is converted to percent and sent to mA outputs. Offset is not added to the measured level in mm. SET Sensor WR threshold Select to set the threshold (in dB) for very low level echo to be detected using WR-technique. -
Page 31: Show Data
In an empty container there is no dBnoise echo. If the echo strength is not higher than 10dB above there can be difficulties AQ M-Tech AB Ultrasound Controller Manual... - Page 32 measuring the level. Make sure the echo is reflected properly back to the level sensor and that the Level Switch is horizontal. The bottom thickness and material also influences the echo strength, see Mounting the Level Sensor. If bottom thickness is such that resonance is not at 2MHz the echo is weaker.
-
Page 33: Gel Distance Mode
The mA output can be set to output distance (0% Level = 4mA, 100% Level = 20mA) or Signal strength (0dB = 4mA, 85dB = 20mA). It is adviseable to check the signal strength also during testing. AQ M-Tech AB Ultrasound Controller Manual... -
Page 34: Connecting The Gel Distance Sensor
Connecting the gel distance sensor The Gel Distance cable may not be extended. The unshielded part of the cable should be no GS72 Terminal Cable longer than 40mm. The shield shall if possible be connected to ground via shielded cable glands. To minimize the risk of electric interference and noise, see Electric Noise Blue or White... -
Page 35: Calibration
Due to various reasons, the echoes can become too weak to be able to be detected. dB noise Echo strength shows how strong the echo is and and shows how strong the noise is. In air, there is no echo. AQ M-Tech AB Ultrasound Controller Manual... -
Page 36: Gel Sensor Mode
Sensor 4 White If D72 or G72 is mounted inside a metal cabinet it can be good to connect D72, DP72, G72, GP72 to the cabinet (ground) and this is best done using shielded cable glands for the sensor cables. If shielded cable glands are... -
Page 37: Measuring Gel
The echo is bouncing off the reflecting surface, either the opposite container wall or the pin on GF90. Sound pulses are constantly being transmitted and the returning echo is constantly being measured. AQ M-Tech AB Ultrasound Controller Manual... -
Page 38: Mounting The Level Switch
The echo strength is measured and relative attenuation is calculated by comparing to the calibrated echo strength. The relative attenuation is calculated by taking into account the ultrasound travel distance. The result is relative attenuation measured in dB/m and it is fairly GEL- proportionat to gel concentration. -
Page 39: Settings
0% = 4mA, 16% = 20mA. Gelconcentration will not be affected by any WR-measurements of air and therefore since air gives high attenuation of the echo it will show as high concentration of gel. AQ M-Tech AB Ultrasound Controller Manual... -
Page 40: Calibration
Settings for GF90: Note that GF90, when used as gel sensor, can only be connected to G72, Type GP72 or G128, this is because GF90 in this case uses frequency 4MHz. Set to as many ECHO-DISTANCE : 90mm, FREQUENCY: must be 4MHz If GEL-TYPE GF90 as are connected. -
Page 41: Advanced Settings
(like frequency inverters) should use shielded cables between inverter and motor. Also any unshielded part of the cable between the Level Switch and Ultrasound Controller should be short. If ex-barriers are used, Ex-barriershields should be used. AQ M-Tech AB Ultrasound Controller Manual... -
Page 42: 11. Profibus Dp
11. Profibus DP Connecting Profibus The Ultrasound Controller DP72, GP72 supports Profibus DP-V0 with communication speeds up to 1,5Mbit/s. The Profibus cable connects to DP72, GP72 via a 9-pin D-sub connector see table. To terminate the Profibus cable, put 390Ω between pin6 and pin8 and 220Ω between pin6 and pin5 and 390Ω... -
Page 43: Response Data
DP72 do not accept them. Something is wrong with the parameter telegrams. The reason can be the master in configured with wrong gsd-file or old gsd-file version. If no Profibus status-symbol is shown at all it means Profibus is not enabled. AQ M-Tech AB Ultrasound Controller Manual... - Page 44 Response Air Sensor Mode Level Switch Mode Data byte Level Switch 1 Air Sensor 1 bit0: 0= Air 1= Liquid bit0: 0= Air 1= Liquid Efrq Wfrq bit1: not used bit1: bit0² Efrq Wfrq bit2: 1= settings error bit2: bit1² Efrq Wfrq bit3: 1= no sensor...
- Page 45 Level Sensor 3 Level Switch 2 dBWR Liq WR sensor dB Level Sensor 1 Level Switch 3 Echo strength Liq WR sensor dB Level Sensor 3 Level Switch 4 Echo strength Liq WR sensor dB AQ M-Tech AB Ultrasound Controller Manual...
-
Page 46: 12. Technical Specifications Ultrasound Controller
12. Technical specifications Ultrasound Controller Hardware version See page 3 Software version See page 3 Weight 210g (D72,DP72,G72), 370g (D128, G128) Operating temperature 0°C to 50°C Supply voltage 24V ± 3V DC Current consumption max 200mA Relay 1-4 potential free contacts (open when power is off) - Page 47 GF90 for DIN rail IP30 4MHz) G128 4-20mA and relays Plastic box IP65 Gel Distance Sensor mode Aluminum box GS72 2 4-20mA, 4 relays distance (must use Frequency for DIN rail IP30 sensor 4MHz) AQ M-Tech AB Ultrasound Controller Manual...
-
Page 48: 13. Parameter Settings
13. Parameter settings Air Sensor Mode TYPE DIAMETER FILTER No Air Sensor No Air Sensor integrate 1ms SAC or CCS 2 mm integrate 3ms SAC Ex or CCS Ex 3 mm integrate 10ms 4 mm integrate 30ms PAC or FCP 4,5 mm integrate 0,1s 5,7 –... -
Page 49: Level Sensor Mode
... mm Liquid Sound VELOCITY 2,0MHz ... m/s 1,8MHz RELAY OFF Level 1,7MHz ... mm Inner DISTANCE 1,6MHz ... mm 1,5MHz 4-20mA out 1,4MHz disabled Sensor HEIGHT 1,3MHz Level 0-100% ... mm 1,2MHz Velocity 1000-2000m/s AQ M-Tech AB Ultrasound Controller Manual... -
Page 50: Gel Sensor Mode
Gel Distance Sensor mode 100% Distance RELAY 1 ON Distance 4-20mA out A … mm … mm disabled RELAY 1 OFF Distance Distance 0-100% … mm 0% Distance Signal 0-85dB … mm (same as above for RELAY 2-4) 4-20mA out B disabled Liquid Sound VELOCITY Distance 0-100%... -
Page 51: 14. Software Version History
Version 5.50 December 2018 Air Sensor CCS Ex has been added to settings Version 5.41 November 2018 Level Switch MK has been added to settings Version 5.40 November 2018 Level Switch MS has been added to settings AQ M-Tech AB Ultrasound Controller Manual...
