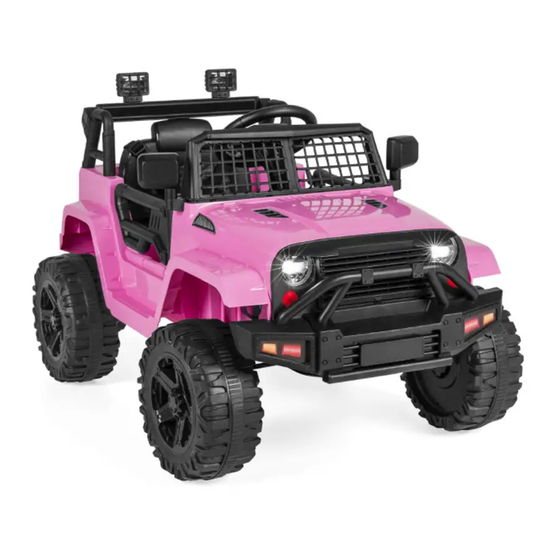

- Page 1 INSTRUCTION MANUAL 12V Ride-On with Remote SKY5506 + SKY5507 + SKY5508 + SKY5509 + SKY5510 + SKY5511 SKY6743 + SKY6744 + SKY6745 + SKY6746 + SKY6747 Ver. 4...
- Page 2 As shoppers, we’re always trying to find the perfect balance between quality & value. At BCP, we believe we’ve achieved that. Our diverse catalog of everyday essentials is tailored especially to our customers & guaranteed to hit that sweet spot of high quality & low price.
- Page 3 Charge for 12 hrs before initial use. After initial charge, follow the normal recommended charging time. bestchoiceproducts.com...
-
Page 4: Battery Warnings
SAFETY Please retain these instructions for future reference. This vehicle must be assembled by an adult who has read and understood the instructions in this manual. Keep the packaging and bags away from children and dispose of all packaging before use. Always use common sense and safe practices when operating this vehicle. -
Page 5: Specifications
WARNING To reduce the risk of injury, adult supervision is required. Never use on roadways, near motor vehicles, on or near steep inclines or steps, swimming pools or other bodies of water; always wear shoes, and never allow more than one rider. •... -
Page 6: Tools Required
TOOLS REQUIRED AAA - PLASTIC PHILLIPS 2 AAA BATTERIES 61 LBS 2 PERSON APPROXIMATELY WRENCH SCREWDRIVER (FOR REMOTE) CAPACITY ASSEMBLY 45 MIN. (2, PROVIDED) ASSEMBLY HARDWARE SPRING M4 x 12mm SCREW 2 PC 4 PCS PARTS REAR AXLE WHEEL 1 PC 4 PCS 4 PCS FRONT AXLE... - Page 7 PARTS SIDE MIRRORS (L/R) SEAT BACKREST 1 SET 1 PC 1 PC BACK FRAME BACK BAR FRAME LIGHT 2 PCS 1 PC 2 PCS REMOTE CONTROL 12 VOLT CHARGER 1 PC 1 PC...
-
Page 8: Product Assembly
PRODUCT ASSEMBLY Flip vehicle over and lay it on a level surface. Remove all parts and packaging from the vehicle body. Lift the rear gearbox frame. Remove two screws from the mounts, insert the gearbox frame into the mounts, then replace the screws to attach the frame. - Page 9 PRODUCT ASSEMBLY Slide a part B wheel onto the rear axle and secure it by replacing a nut/washer. Snap on a part C cap. Repeat on the other side. NOTE: Use two plastic wrenches (one on each side) and rotate in opposite directions to tighten nuts.
- Page 10 PRODUCT ASSEMBLY Remove the nuts/washers from the part D front axle. Slide a part B wheel onto the front axle and secure it by replacing a nut/washer. Snap on a part C cap. Repeat on the other side. Flip the car onto its wheels. Join the connector from the part E steering wheel to the connector from the steering mount.
- Page 11 PRODUCT ASSEMBLY Snap on the part F windshield and part G side mirror set. Within the seat, insert the connector from the battery into the designated terminal on the circuit board. NOTE: Make sure the connector is oriented correctly to fit into the terminal.
- Page 12 PRODUCT ASSEMBLY Attach the part H seat with two part 2 screws. Attach the part I backrest with two part 2 screws.
- Page 13 PRODUCT ASSEMBLY Slide two part L frame lights onto the part K back bar. Slide the back bar into two part J back frames. Insert the back frame assembly into the rear of the car. CHARGING INSTRUCTIONS AND WARNINGS • Charging port is located below the seat.
- Page 14 CARING FOR YOUR RIDE-ON • Park the vehicle indoors or cover it with a tarp to protect it from wet weather. • Do not leave the vehicle in the sun for long periods of time or fading may occur. Store in shade or cover with tarp.
-
Page 15: Media Player
MEDIA PLAYER • Back/Volume-: Short press to play the previous song/radio station, long press to decrease volume • Play/Pause/Seek: Play/pause music, seek radio stations • Forward/Volume+: Short press to play the next song/radio station, long press to increase volume • Mode: Press to toggle between music and FM radio FORWARD/VOLUME+ PLAY/PAUSE/SEEK... -
Page 16: Troubleshooting
TROUBLESHOOTING PROBLEM REASON SOLUTION Low battery Fully charge the battery Stop use for several minutes and restart Electrical protection Vehicle does not move Completely press in switches Switch not in the correct position Plug in battery connectors Battery connectors disconnected Battery connectors disconnected Plug in battery connectors Battery does not recharge... - Page 17 FCC COMPLIANCE STATEMENT This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This product may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 18 Check out more great products: bestchoiceproducts.com...
- Page 19 Earn points while you shop. Join today! Give your friends 15% o their first order! For each successful referral you’ll receive 100 points. bestchoiceproducts.com...
-
Page 20: Help Center
HELP CENTER Question about your product? We're here to help. Visit us at: help.bestchoiceproducts.com CHAT Orders FAQ Product Assembly Chat Support Product Inquiry Returns & Refunds PRODUCT WARRANTY INFORMATION All items can be returned for any reason within 60 days of the receipt and will receive a full refund as long as the item is returned in its original product packaging and all accessories from its original shipment are included.
