HERCULES Condensing
General features.
HERCULES Condensing combines the advantages of
a room sealed boiler, featuring VICTRIX
microprocessor adjustment, with those of a floor
standing boiler with storage tank.
There are two different versions in the range with
powers of 20,210 kcal/h (23.5 kW) and 27,000 kcal/h
(31.4 kW), both equipped with an innovative total
premixing combustion system that guarantees minimal
emissions of pollutants and can be run on either natural
gas or LPG. Their high energy efficiency is rewarded
by the 4 star mark (
European Directive 92/42 EEC.
This boiler, thanks to its hydraulic circuit equipped with
a water-gas coil exchanger in AISI 316L stainless steel,
a hydraulic compensator and two circulation pumps,
is ideal where central heating systems require a high
output.
HERCULES Condensing 20-27 is designed to work
with the zone system control unit (max 3 zones) so
that 3 pumps and 3 ON-OFF room thermostats can be
controlled and the (optional) Remote Control to control
zone 1 can be used.
It is also possible to install a kit (optional) inside for
combined central heating systems with differentiated
temperatures (radiators and floor radiating panels).
STHC ed 01/03
) in compliance with the

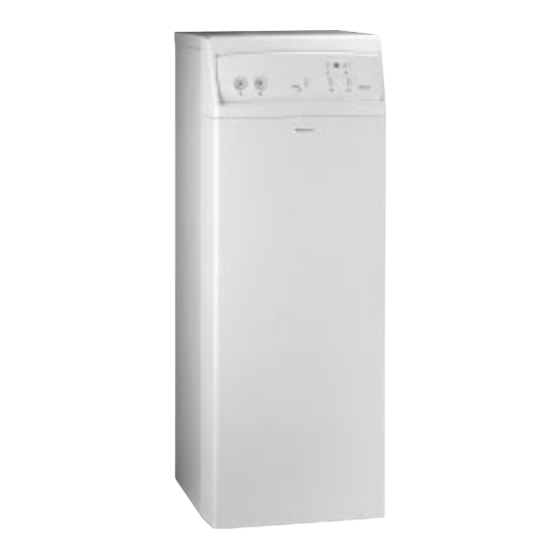

Room-sealed fan-assisted floor-standing
condensing boiler
HERCULES Condensing 20
HERCULES Condensing 27
HERCULES Condensing 27 ABT
Note: Note: This kit is already installed as a standard
feature on the HERCULES Condensing ABT versions.
The boiler of all models is designed for working with
and being connected to solar panel systems (optio-
nal).
The appliance is adjusted and controlled by an
electronic microprocessor board that, via a display,
shows boiler operating status (temperatures, safety
devices, etc.) and allows connection (optional) to the
Remote Control and to the Multisystem Distribution
Manifold.
The hot water circuit is equipped with a 5-litre expan-
sion tank and a 120-litre AISI 316 L stainless steel stor-
age tank which, besides its storage advantages, guar-
antees instant production of hot water.
HERCULES Condensing must be installed using the
aspiration and exhaust kit or the plastic
ducting systems (60 mm Ø rigid and 80 mm flexible)
made specifically for Immergas condensing boilers.
1
