Viewline Hours counter
Description
Gauge to count Engine running hours..
Features
_ Integrated Function LED.
_ Changeable Frontbezels.
_ LED Illumination
_ Flush mount possibility
_ High reliability
Concept
Housing
Bezel
Lens
Dial
Number wheels
Illumination
Function LED
Mounting
Connection
VDO – A trademark of the Continental Corporation
Product Information
PC; flame retarding (UL94)
PC or ABS; several colors and shapes (see table)
PMMA; double lens
backlit; different colors (see table)
white on black (full hours)
red on white (1/10 hours)
Dial: LED amber (605nm)
red
spinlock Nut; locking height 0,5mm – 20mm,
optional Studs and Bracket; locking height 2 – 15mm
8 pin MQS connector system
www.vdo.com

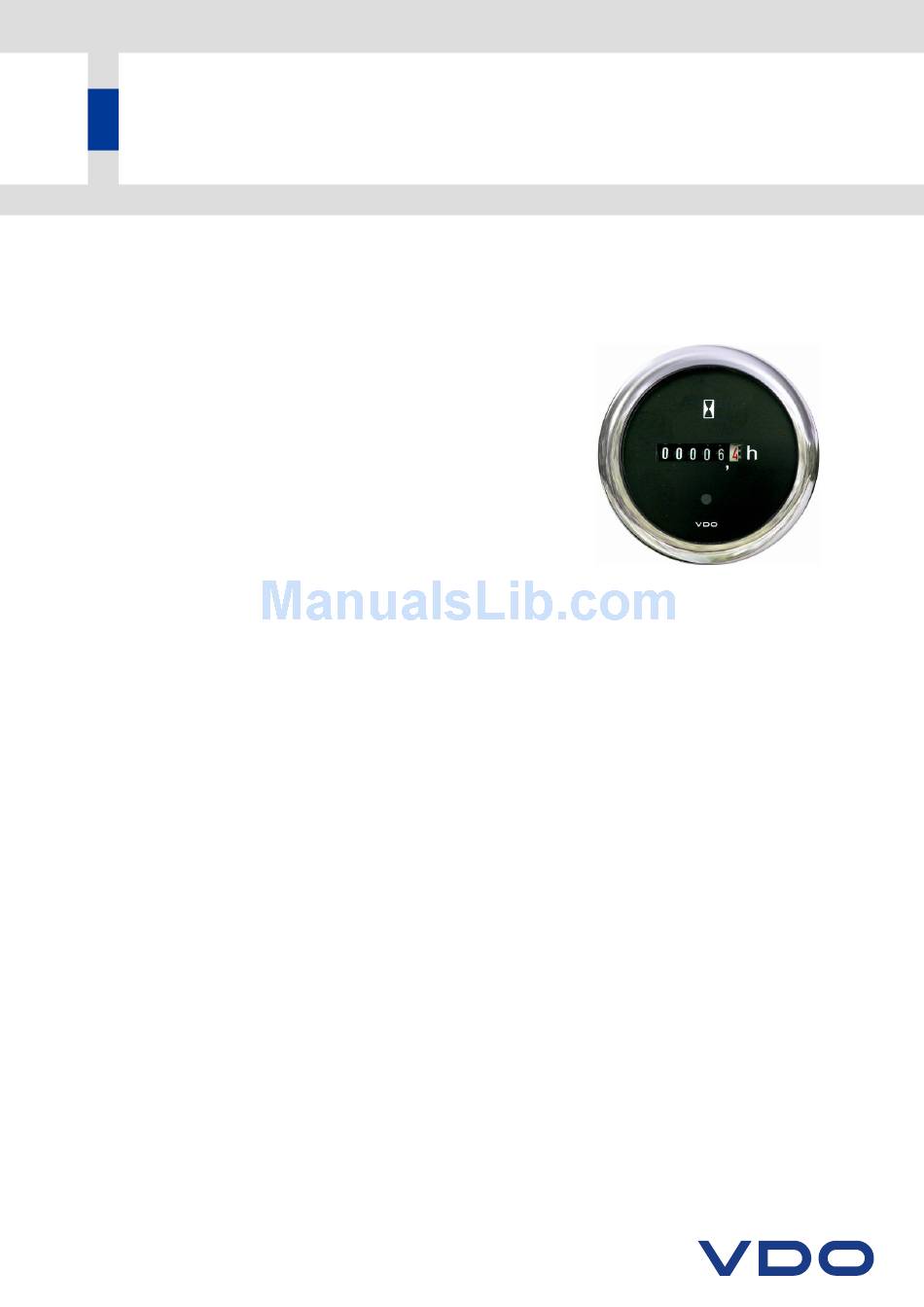

Picture: Hours Counter
Advertisement
Summary of Contents for VDO VIEWLINE HOURS COUNTER
- Page 1 (1/10 hours) Illumination Dial: LED amber (605nm) Function LED Mounting spinlock Nut; locking height 0,5mm – 20mm, optional Studs and Bracket; locking height 2 – 15mm Connection 8 pin MQS connector system VDO – A trademark of the Continental Corporation...
- Page 2 Viewline Hours Counter Technical Data Installation depth 50mm Operating Voltage 9 – 30 Volt DC Accuracy +/- 5 Sec / d (at 14V DC, 23°C, NL45) Current consumption < 30 mA, at 12V (without Illumination) Operating temperature -40°C to +80°C; plated bezels (chrome) -40°C to +70°C Storage temperature -40°C to +85°C for 48h;...
- Page 3 Viewline Hours Counter available Gauges: Dial Measurement Double No. packed Illumination Voltage Bezel color range Symbol lens Triangular, A2C59510871 black 99999,9 h Hour glass 12/24V black A2C59510874 black 99999,9 h 12/24V Hour glass A2C59510876 black 99999,9 h Hour glass 12/24V A2C59510872 black 99999,9 h...
