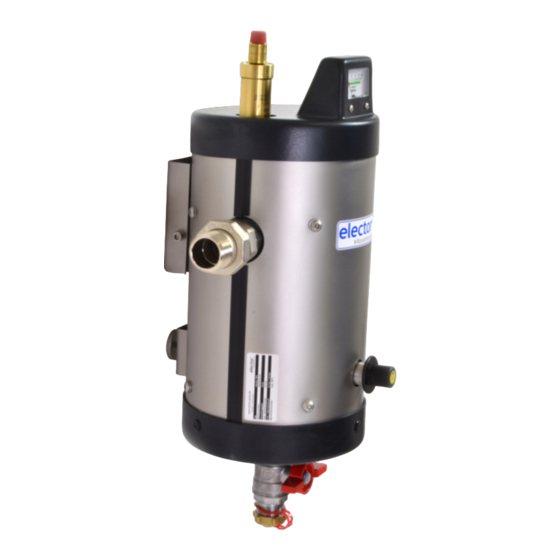

- Page 1 User Guide Water-Treatment Electrochemical Water Treatment for Heating Systems Water-Treatment...
-
Page 2: Table Of Contents
3.3 Possible Installation Locations ..................6 3.4 Notes on the Bypass Installation ..................6 4 Make-up Water Quality 4.1 Water Quality by use of an elector ................... 9 4.2 Necessity of Make-up Water Treatment ................10 4.3 Method of Make-up Water Treatment ................10 4.4 Use of Antifreeze Agents .................... -
Page 3: General Information / Safety Instructions 1.1 General Information
Chapter 1 - General Information / Safety Instructions 1.1 General Information The elector systems are used as reaction devices for the electrochemical treatment of heating water as part of a chemical-free operation of heating systems. Electrochemical water treatment contributes to a water quality that is unlikely to cause damage from the formation of limescale and corrosion in heating systems. -
Page 4: Safety Instructions
The manufacturer assumes no liability for damage caused by improper commissioning. In addition, the warranty expires. The elector system may not be operated in potentially explosive atmospheres or under an open flame. The reaction container may only be put into operation in perfect condition. -
Page 5: Specific Safety An Work Instructions
Please note the information on filling water quality on the following pages of the user manual. Do not use softened water as filling water in combination with an elector. This can lead to a malfunction or to a heavily increased pH. In the case of a high total hardness or an electrical conductivity of the drinking water>... -
Page 6: Selection Of The Correct Elector Device
2.1 Selection of the Correct Elector Device The selection of an elector reaction device is based on the system volume of the heating system. In case of high degree of oxygen ingress we always recommend choosing the next larger version. -
Page 7: Installation Location
The ideal position of the electors is always close to the source of oxygen entry. If the elector is installed in a bypass, the diameter of the supply line should be at least equal to the diameter of the main line and not less than 1 „for large diameters. - Page 8 – Electrochemical Water Treatment for Heating Systems 3.3.3 Mains Return System Group Underfloor 3.3.4 System Group Flow-Flow Preferred installation option for multiple heating Bypass installation using the circulation pump. circuits due to the proximity to the source of oxygen ingress.
-
Page 9: Notes On The Bypass Installation
3.3.10 Notes on the Bypass Installation Installation in the main return in front of buffer tanks, if If the elector is connected to a bypass installation there is ingress of oxygen to be expected or circulating on a pipeline, ideally the following points should be impurities are present. -
Page 10: Make-Up Water Quality
Chapter 4 - Make-up Water Quality 4.1 Water Quality by use of an elector An elector reaction device is usually installed in heating systems, whenever a constant low pH is measured or an constant oxygen ingress is to be expected. -
Page 11: Necessity Of Make-Up Water Treatment
If the filling water has to be treated, only a full or partial deionization of the filling water of heating systems should be used in combination with an elector. A residual conductivity of 50 - 100 μS / cm must be maintained. -
Page 12: Assembly Of The Connection-Set 5.1 Connection-Set Full Flow
Chapter 5 - Assembly of the Connection-Set The installation of the elector device into the system should always be done via the elector connection set. The connection set is tailored to the device and provides its function. The connection-set differs in accordance to installation in full flow and in the bypass. -
Page 13: Function Guarantee
5-year functional guarantee on the elector corrosion protection devices. This functional guarantee states that the elector device will remain functional within the first 5 years from the date of purchase to perform the electrochemical water treatment. Excluded from the functional guarantee arre wearing parts and fittings, such as anodes, ball valves and similar equipment. -
Page 14: Maintenance
• Is the flow regulated via an angle seat valve or is the regulating valve with flow control open? If the function of the water meter or the flow is not given despite the above points, the elector must be rinsed. -
Page 15: Backwash, Blowdown, Tank Cleaning
CAUTION!! Always neutralize the tank after cleaning with acid! Please flush the elector as long as only clean water comes out of the device. Close the valve at the bottom of the elector and the drain valve (2) as soon as the elector is filled with water completely. -
Page 16: Anode Replacement
- Replace the flange gasket or the o-ring seal. - Reinstall all electrical contacts, the insulation fleece and the cap. - Refill the elector with water and open the in- and outlet of the device. Drain Page 15 www.elector-water-treatment.com... -
Page 17: Troubleshooting And Control Of Success
...no water comes out of the elector during flushing the device? If the flushing water does not leak out of the elector the lower outlet is blocked. In this case please insert carefully a strong wire into the opened lower valve to remove the blockage. CAUTION! Sudden leakage of a large amount of hot water from the elector is possible. -
Page 18: Maintenance Report
– Electrochemical Water Treatment for Heating Systems Chapter 9 - Maintenance Report Installer Installation Site Date of Installation: Serial no.: pH at Installation: elector type: Conductivity at Installation Anode Color of Undissolved mA Meter Water Meter, if Conductivity replace-... - Page 19 – Electrochemical Water Treatment for Heating Systems Anode Color of Undissolved mA Meter Water Meter, if Conductivity replace- Date flushing solids yes/ function Operator applicable µS/cm ment water yes/no Note! Be sure to keep this document on the device. It serves as proof of service in the context of functional guarantee.
- Page 20 Water-Treatment elector GmbH Düsseldorfer Straße 287 42327 Wuppertal · Germany Phone: +49 (0)2058 1790863 Fax: +49 (0)2058 1790864 E-Mail: info@elector-gmbh.de Internet: www.elector-water-treatment.com...
