Produal TRI-3A Product Sheet

TRI-1R and TRI-P-1R Series
Modbus / BACnet / Analogue
Touchscreen Room Interfaces

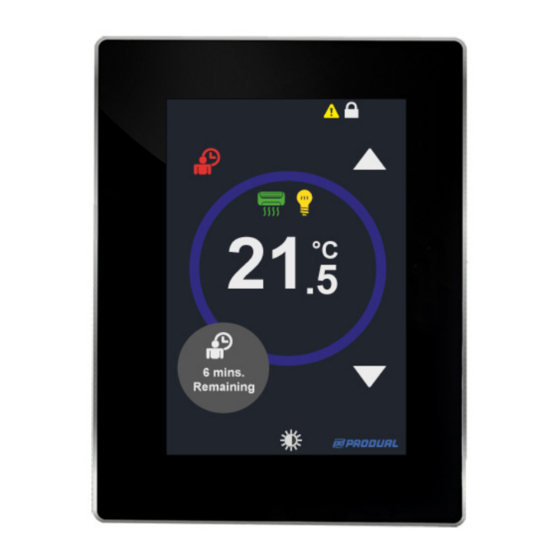

The TRI-1R series Modbus / BACnet / Analogue Touchscreen
Room Interfaces provide modern looking thin profile user interface
and I/O-module for flush mounting in room spaces.
The TRI series interfaces have attractive 3.5" backlit touchscreen
with smart designer interface. TRI-P-1R/TRI-3A versions have
7-day time clock to provide network clock facility.
The MOD models have built-in Modbus RTU communications and
the BAC models provide BACnet MS/TP communications. The
analogue versions can be used with BMS 0-10Vdc input cards.
Features
• 24VAC/DC Power Supply
• 3.5" Inch Backlit Touchscreen Display
• BACnet and Modbus Communication Models, Analogue Version
• P-Versions have 7 Day and 5+2 Day Schedule
• Flush Mounting in the UK, EURO and US Wall Mounting Box
• Attractive Modern Designer Look
Ordering guide
0 Touchscreen room units
1
Device type
2 Communication
3
Power supply
4 Additional measurements
5 Reserved
6 Body colour
Web-site: www.produal.com
Enquiries: T: +358 10 219 9100 E: info@produal.fi
Room unit, 2RI, 1DI, 1RO
Room unit, 2RI, 1DI, 1RO, 7-days schedule
Room unit, 2RI, 1DI, 3AO
No Communication (only TRI-3A)
Modbus
BACnet
24 Vac/dc
12 Vdc (only TRI-1R)
No additional measurement
Relative humidity
CO
2
Relative humidity and CO
2
Chrome
White (RAL 9010)
Black (RAL 8022)
• Built-In Temperature Sensor
• 2 x Remote NTC10 Sensor Inputs
• 250Vac Switched Network Relay (TRI-1R)
• 3 x 0-10Vdc Outputs (TRI-3A)
• Digital Input for Overrides / Measuremen
• Modbus Models integrate with Produal CU Control Units
Designed for Room Control Applications
Type
TRI-1R
TRI-P-1R
TRI-3A
-MOD
-BAC
-24
-12
-RH
-CO2
-RH-CO2
-W
-B
Product sheet 6001TRI
Type
0 1 2 3 4 5
6001 0
6
7
8
A
M
B
2
1
0
1
2
3
0
PS 6001TRI V4.23 - 1/28
TRI
6
0
W
B
