- Page 1 MD-001 Juniper User Manual 05/11/22, manual 0.0.5, firmware 0.1.3...
-
Page 2: About This Document

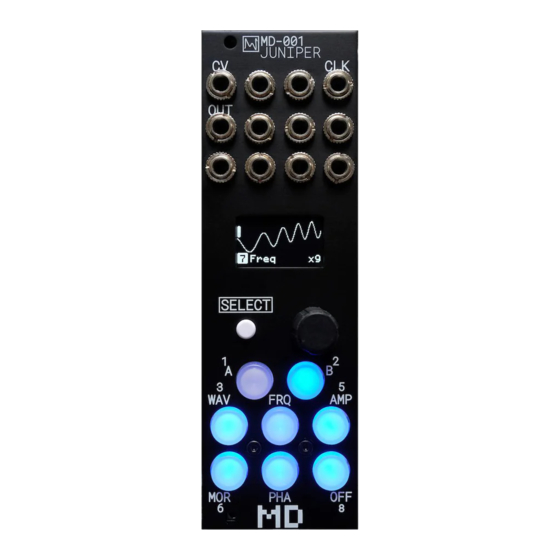

- its really up to you how you want to use it. While Juniper can do quite a number of tasks, it was not designed to be an audio rate oscillator or sampler (despite it being able to hit audio rates) - perhaps in the future this could be a goal but for now Junipers primary function is CV. - Page 3 Interface Junipers interface was designed for it to be placed in a controller case, with the buttons more accessible allowing for increased immediacy. The top row of input jacks are inputs and the second and third rows are output jacks. The output jacks are indexed from left to right.
- Page 4 Controls The following table represents controls for the primary channel screen: Buttons Function ROTATE ENCODER Adjust Selected Parameter PRESS ENCODER Enter Parameter Settings (Modulation or otherwise) Select Frequency Parameter Select Waveform Parameter Select Amplitude Parameter Select Morph Parameter Select Phase Parameter Select Offset Parameter Select A Parameter Select B Parameter...
-
Page 5: Parameter Guide
Parameter Guide Parameters are building blocks of the waveform generation and manipulation, they can be accessed by pressing one of the parameter buttons, e.g. "FRQ" while on the main channel screen. There are (currently) 3 "A-B" parameters that can be accessed, to adjust which "A-B"... - Page 6 Recorder is available for each channel, streaming directly to the SDCard allowing recorder for very large record durations. There are three states, Stop Play Currently there is a 255 bar limitation, but work is being done to make the recorder dynamically set the bar length. Stay tuned. Recordings are time-quantized to bar within a 4/4 time signature.
-
Page 7: Parameter Settings
Settings There are 3 setting menus, all accessible with minimal menu diving, they are Parameter Settings Channel Settings Global Settings Parameter Settings Parameter settings affect the selected parameter only. Usually these are modulation settings, trigger settings or other related settings to how the parameter affects waveform generation. - Page 8 Function Description Starts and stops the signal generation Sets the BPM PPQN Sets the pulses per quarter note for external BPM synchronization Configures the CLK input to either BPM or GATE ONLY. When configured CLK Mode for GATE ONLY, the CLK input has no affect on the BPM. Will start the device either manually via the option, or externally Trigger...
-
Page 9: Maintenance
Firmware updates will occur periodically to provide further features and bug fixes to the device. Firmware can be updated by downloading one of the release binaries found at www.mnemonicdevices.io/juniper. Firmware is upgraded by copying the binary .bin file to the... - Page 10 Support For all issues, software or hardware, or maybe you have a suggestion or a feature idea, please contact me directly at support@mnemonicdevices.io. Software Faults Sometimes unexpected software issues can occur - In the event of a crash or fault, a log file "dump.txt"...
