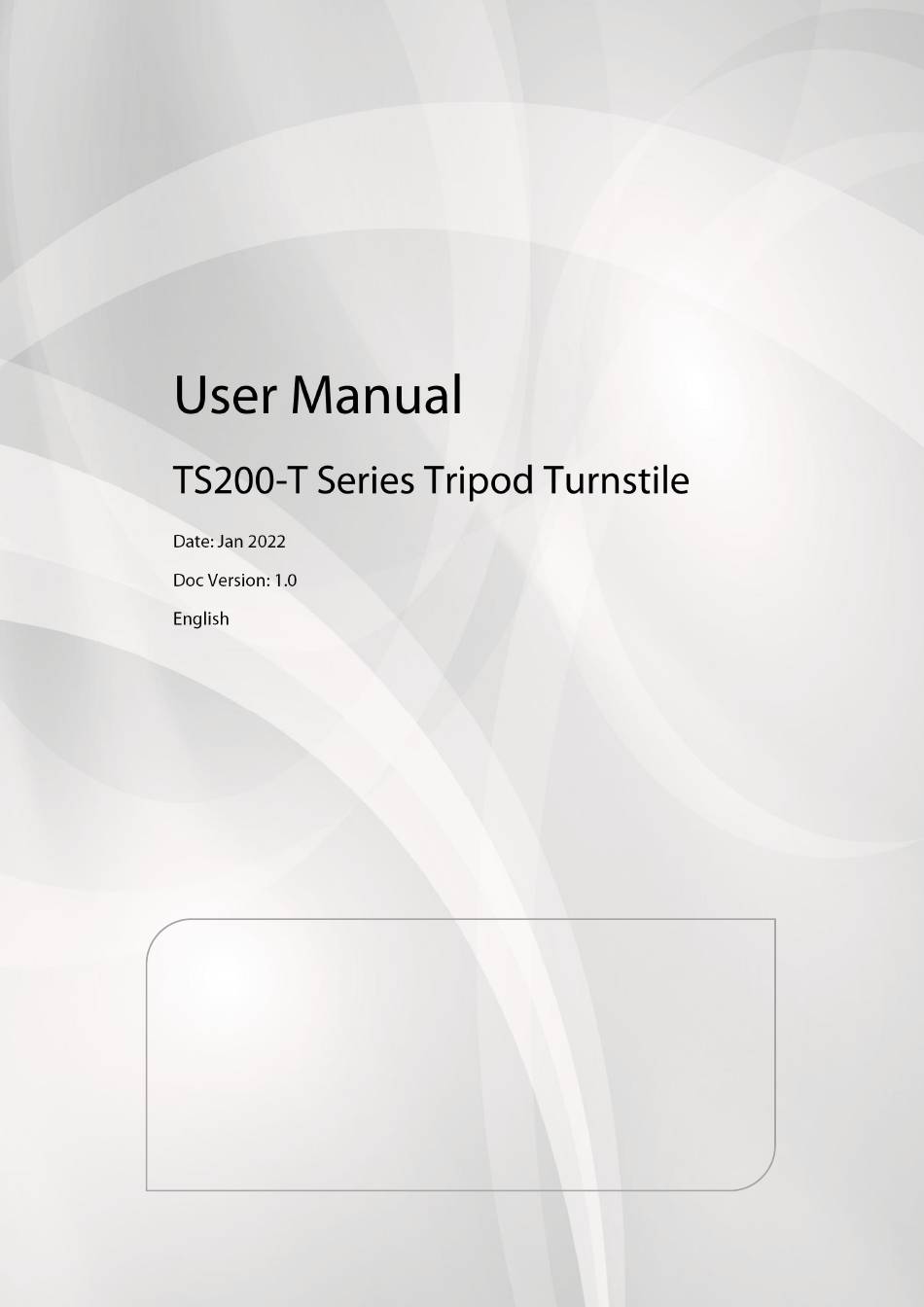

TS200-T Series Tripod Turnstile
Thank you for choosing our product. Please read the instructions carefully
before operation. Follow these instructions to ensure that the product is
functioning properly. The images shown in this manual are for illustrative
purposes only.
| 1
P a g e
Copyright©2020 ZKTECO CO., LTD. All rights reserved.
User Manual
Advertisement
Table of Contents
Related Manuals for ZKT TS200
Summary of Contents for ZKT TS200
- Page 1 TS200-T Series Tripod Turnstile User Manual Thank you for choosing our product. Please read the instructions carefully before operation. Follow these instructions to ensure that the product is functioning properly. The images shown in this manual are for illustrative purposes only.
- Page 2 About the Manual This manual introduces the operations of TS200-T Series Tripod Turnstile product. All figures displayed are for illustration purposes only. Figures in this manual may not be exactly consistent with the actual products.
- Page 3 Document Conventions Conventions used in this manual are listed below: GUI Conventions For Software Convention Description Bold font Used to identify software interface names e.g. OK, Confirm, Cancel Multi-level menus are separated by these brackets. For example, File > Create > >...
-
Page 4: Table Of Contents
Table of Contents 1 TECHNICAL SPECIFICATIONS ......................... 5 2 UNPACKING AND TESTING THE TRIPOD TURNSTILE .................. 6 ................................6 2.1 A NSTALLATION ..........................6 2.2 P OWER EST BEFORE NSTALLATION 3 EQUIPMENT INSTALLATION .......................... 7 ..............................7 3.1 I NSTALLATION ONDITIONS ..................................8 3.2 C ABLING .................................. -
Page 5: Technical Specifications
Please read this document carefully before installation and using the device. Technical Specifications AC 100~120V Input Voltage /200~240V, Arm Length (mm) 50Hz /60Hz Indoor and Outdoor Operating Environment Dimension(mm) (Figure 1) L = 1200, W = 280, H = 980 (shelter) Operating Temperature -28ºC ~ 60ºC... -
Page 6: Unpacking And Testing The Tripod Turnstile
Unpacking and Testing the Tripod Turnstile Arm Installation In order to prevent the arm from damaging during transportation, the arm will not be initially installed to the devices. Installation procedure Put the arm kit into the hole of cabinet; make sure the screw holes match with mechanism core, then tighten 3 hex screws, as shown in Figure 2-1. -
Page 7: Equipment Installation
Lift upwards Figure 2-2 Equipment Installation Installation Conditions The equipment must be installed on concrete ground, ensuring that expansion bolts can be secured firmly. You are suggested to install an assistant framework or fence to form a passageway, as shown in Figure 3-1. Figure 3-1 Notes: 1. -
Page 8: Cabling
3. You are also recommended to set a warning line for card swiping (see Figure 3-2). The warning line prompts users to swipe cards in a particular area, which would greatly reduce the probability of equipment failure caused by improper operations. Figure 3-2 Cabling There are inlets in the bottom plate for cabling, as shown in Figure 3-3. -
Page 9: Installation
Installation 1. Drill holes. Drill holes according to the locations of holes as shown in Figure 3-3. 2. Fix the mounting plate to its original position. Place the mounting plate properly, then apply screw securing glue on the surface and threads of the expansion bolts, install four expansion bolts to secure the mounting plate, and use a horizontal ruler to test the levelness of the mounting plate. -
Page 10: Function Overview
Function overview DIP Switch function Dial code description: The DIP switch is divided in eight dial codes from KE-1 to KE-8(KE-4 and KE-5 are disabled in SATT1.4). Move the switch up to turn ON and down to OFF. Description of function Setting: *Dial 0 to turn off *Dial 1 to turn on Dial code function item:... -
Page 11: Wired Remote Control（Option
Wired Remote Control（option） Wired Remote Control The wired remote control has five buttons, which are the Left button, Right button, Down button, Lock button, and Reset button. These five independent buttons have individual functions as well as combined functions. Pressing two buttons within the specified time interval can call up a predefined mode. The following tables describe the modes of different button press actions: 4.2.1 Independent functions: Buttons... -
Page 12: Wireless Remote Control（Option
4.2.2 Combined functions: Status Description Press " " twice to open the tripod turnstile on both sides. The left side is Left free, Right swipe free to pass without swiping card and can pass by swiping card from the right. Press "... -
Page 13: Equipment Precautions And Maintenance
To code: First, power the controller of the tripod turnstile. Short press the learning button on the controller, and a light corresponding to the button will flash slowly. Then press any switch on the remote control for acquiring the information. After the successful operation, the light turns off. -
Page 14: Maintenance
Figure 5-1 In case of emergencies This equipment is designed to drop the arms automatically if there is power failure thus people can pass freely. Also, there is an interface on the turnstile control board connecting with an emergency switch (J6 Drop Arm) which keeps the tripod turnstile open in case of emergencies. -
Page 15: Troubleshooting
Position Sensor Turnstile-opening Solenoid Disk Wheel Lock Rod Drop-arm Solenoid Figure 5-2 Troubleshooting Symptom Troubleshooting It may be caused by the power supply or circuit. The indicator is not lit when the Check whether the connection cable and power cable are equipment is powered on. -
Page 16: Attachment 1 Factory Settings
Attachment 1 Factory Settings Function Default Lock Driving Duration Door Sensor None Verification Interval Controller Communication TCP/IP: 192.168.1.201 Turnstile Opening Duration Passing Direction Indicator Passing is allowed in both directions Continue Passing Function Disabled Alarm Function Disabled Note: The Lock Driving Duration is 5 seconds by default. Please set it to 1 second. Do not connect an electrically charged objects to any ports of Opening Signal Input, otherwise it will damage the control board. -
Page 17: Attachment 2 Connection Diagram Of Control Board And Access Control Panel
Attachment 2 Connection Diagram of Control Board and Access Control Panel Warning: This is a class A product. In a domestic environment, this product may cause radio interference so that the user may have to take adequate additional measure.
