- Page 1 USER MANUAL GUIDE Gait Training System 1. OVERVIEW 2. FEATURES 3. DETAILS 4. MANUAL 5. COMPONENTS 6. PRECAUTION...

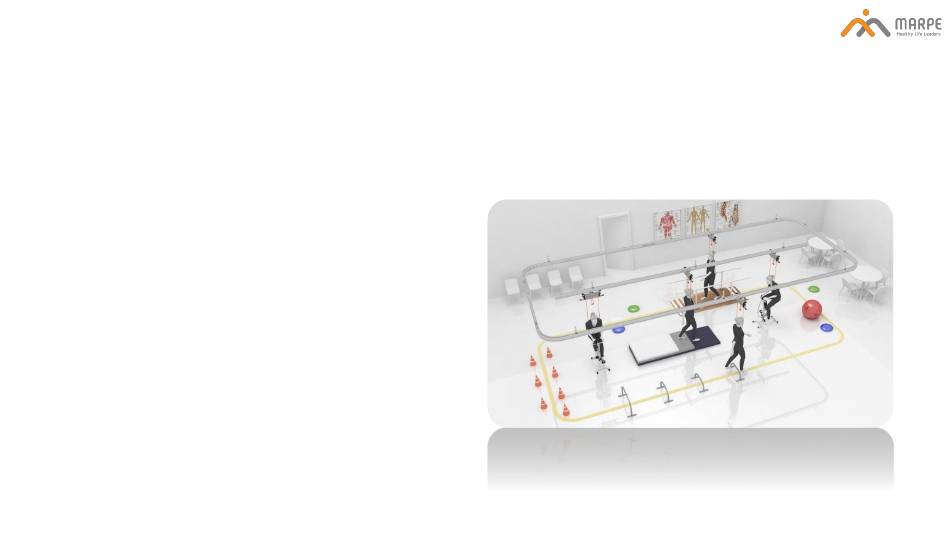

- Page 2 1. OVERVIEW The Gait Training System (GTS) is composed of a walking Rail, M-Sling, and M-Suit, and its main function is to prevent falls. GTS guides elders or patients with chronic disabilities to do various functional activity of daily living in hospitals and rehabilitation centers effectively.
- Page 3 2. FEATURES 1. GTS is a unique method to train patients who cannot walk independently caused by severe damages. 2. M-Sling system has the ability to fix easily, quickly, and safely to any position on the walking rail. 3. M-Sling can hold a maximum load of about 200kg, so even people with heavyweight can safely train.
- Page 4 2. FEATURES 6. GTS is available in both ceiling and stand type. The GTS stand type can be installed in such places where ceiling installation is not possible. 7. The basic size of GTS stand is 4m(L) x 2.5m(W) x 2.3m(H), so can be used in a narrow space.
-
Page 5: Bottom View
3-1 DETAILS of M-Sling Hole Ring Roller TOP VIEW Locking BOTTOM VIEW Rope Snap Hook FRONT VIEW BACK VIEW SIDE VIEW 357mm(Width) x 120mm(Height) x 65mm(Depth) / 5kg Maximum load of M- Sling System : 200kg Main Material : Aluminum, Steel, Polyester, Polyacetal, Urethane, Rubber... -
Page 6: Front & Back View
3-2 DETAILS of Rail FRONT & BACK VIEW BOTTOM VIEW Entire view of Rail TOP VIEW SIDE VIEW 1,000mm(Width) x 104mm(Height) x 83mm(Depth) / 5kg - Per 1m Main Material : Steel... - Page 7 3-3 DETAILS of Turn Terminal Point Grip Turning Rope Rail Remote Rail Automatic Turn Terminal Manual Turn Terminal 993mm(Width) x 110mm(Height) x 696mm(Depth) / 21kg Main Material : Steel...
-
Page 8: Back View
3-4 DETAILS of M-Suit Assist Safety Triangle Shoulder Strap Hook Strap Rope Pocket Waist Belt Adjustable Waist Buckle Strap Thigh Belt Entire view of M-Suit FRONT VIEW BACK VIEW Main Material : Neoprene, Air-mesh, Webbing, Plastic, Steel... - Page 9 4-1 MANUAL of M-Sling How to use M-Sling System 2. Locking Ropes 1. Releasing and Lowering Ropes (c) Fix the Adjusting Ropes to the Cleat, so they hang straight down; (a) Stand in front of the device, hold the Adjusting Ropes (middle) in the ropes will lock when a load is placed on them one hand and Main Ropes (connected straps with hook) in other hand 3.
- Page 10 4-2 MANUAL of fixing M-Sling to the Rail 고정이 되어있는 상태 ① ② ③ Unfixed state Fixed state ① When securing the M-Sling to the rail, position the M-Sling horizontally to the rail. ② Hold the red fixing levers on both sides of the M-Sling and lift up all the way to the sides to fix it. ③...
- Page 11 4-3 MANUAL of Turn Terminal ① ② ③ ④ ① Hold the Rope of the Turn Terminal ② Pull the rope straight down ③ Rotate the Point Grip in desired place ④ Release the rope...
- Page 12 4-4 MANUAL of M-Suit ① ② ③ ① ② ③ First, a suit is placed on the user’s The waist belt should be Pull the inner belt tight, shoulders and stands in front of located below the middle of the then stick the outer belt firmly him/her, sticking out one leg to waist and aligning the belt inward.
- Page 13 4-4 MANUAL of M-Suit ⑥ ④ ⑤ ⑥ Wearing the suit is completed ⑤ The lower part of the suit ④ Adjust the shoulder strap to fit the user’s by pulling the front length is filled in the middle of the body type.
- Page 14 4-4 MANUAL of M-Suit Wearing the suit correctly...
- Page 15 4-4 MANUAL of M-Suit How to attach the multi-strap to the M-Sling Attach the non-elastic assist rope of 30 cm to Hang and hold the multi-strap as the M-Sling main rope, as shown in the figure. shown in the figure.

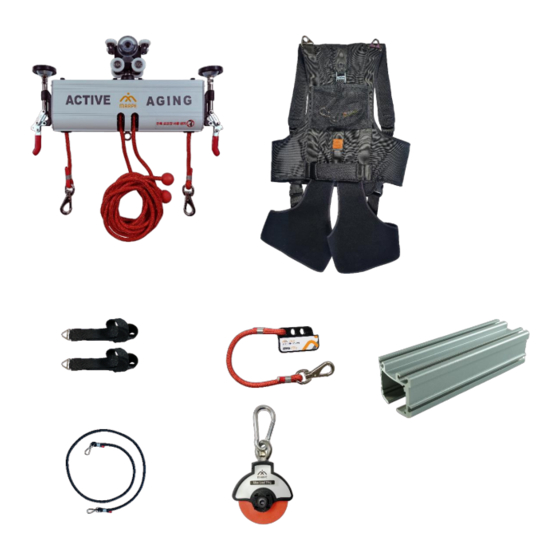

- Page 16 5. COMPONENTS ① ② ① M-Sling(1ea) : 357mm x 120mm x 65mm ② M-Suit(1ea) ③ Multi Strap(2ea) : 340mm x 290mm ④ Rope 30cm(2ea) : ∅8 x 300mm ⑤ Elastic 130cm(1ea) : ∅7 x 1300mm ⑥ Pulley(1ea) : 155mm x ∅ 48mm ⑦...
-
Page 17: Precautions For Use
If you need to repair a product under warranty, please send a detailed explanation describing the problem to Do not hang on or place weight on only one rope of the harold.marpe@gmail.com and simply wait for the instructions. M-Sling system. Find more information on the dedicated website www. - Page 18 Marpe. All Rights Reserved.
