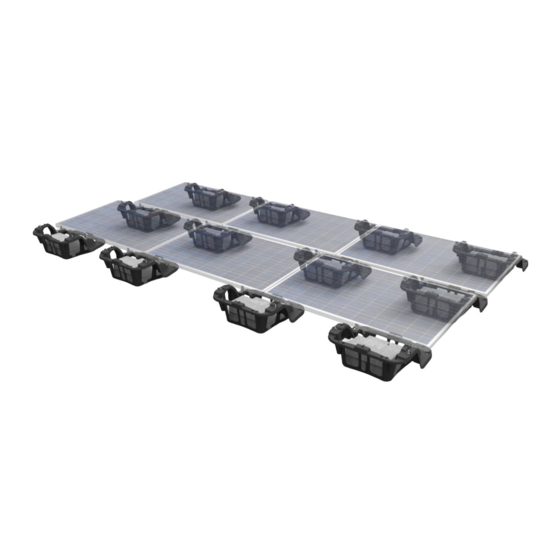

- Page 1 BX SYSTEM INSTALLATION MANUAL BX SYSTEM INSTALLATION MANUAL - I © 2019 IRONRIDGE, INC. VERSION 1.8...
-
Page 2: Table Of Contents
This manual describes proper installation procedures and provides necessary standards required for product reliability. Warranty details are available at IronRidge.com. All installers must thoroughly read this manual and have a clear understanding of the installation procedures prior to installation. Failure to follow these guidelines may result in property damage, bodily injury or even death . -
Page 3: Ratings
• Any System Tilt with Modules Types 1, 2, 3, 13, 19, 25 & 29 on Low Slope Roofs (< 9.5 degrees) • Any module-to-roof gap is permitted with no perimeter guarding required. This rating is applicable with any IronRidge or 3rd party roof attachment and with or without concrete blocks in the Chassis. -
Page 4: Checklist
THE INFORMATION CONTAINED IN THIS DRAWING (BX MIPO MOUNTING ASSEMBLY 20 PCK INST.) .XX: +/- .030 .X: +/- .75 IS THE SOLE PROPERTY OF IRONRIDGE INC. ANY REPRODUCTION IN PART OR .XX: +/- .25 .XXX: +/- .010 Cable Tie Edge Clip Cable Tie AS A WHOLE WITHOUT THE WRITTEN ANGLES: +/- 1°... -
Page 5: Overview
GROUNDING LUG • Burndy CL501TN, BGBS4 FLANGE NUT MLPE DEVICES (OPTIONAL) The following MLPE module mounting brackets have been tested or evaluated for use with the BX system: • EcoFasten Frame MLPE Mount • QMPV Accessory Frame Bracket ➢ Refer to respective installation instructions of MLPE module mounting brackets. -
Page 6: Installation Steps (Quick Guide)
41" - 41.5" 51" 53.5" 41.5" - 42" 51.5" 54" 42" - 42.5" 52" 54.5" 42.5"+ 52.5" 55" Spacing Formulas: Width Cos(5°) + 10" Width Cos(10°) + 13” © 2019 IRONRIDGE, INC. VERSION 1.8 BX SYSTEM INSTALLATION MANUAL - 5... -
Page 7: Mark Layout
Cage Nut into either of the square cut-outs on the lower edge of a Chassis. Secure your MLPE device with a 5/16" Flange Bolt torqued to 60 in-lbs. © 2019 IRONRIDGE, INC. VERSION 1.8 BX SYSTEM INSTALLATION MANUAL - 6... -
Page 8: Lay Ballast
Anchors shall not be located on a perimeter south row. ➢ The following 3rd party roof attachment has been tested or evaluated for use with BX: • Anchor Products U-Anchors © 2019 IRONRIDGE, INC. VERSION 1.8 BX SYSTEM INSTALLATION MANUAL - 7... -
Page 9: Install Modules
New jumpers should be used if re-installation of jumper is required. ➢ Jumpers are installed on the bottom flange of modules. ➢ Supports flange thicknesses 1.2mm to 3.1mm. © 2019 IRONRIDGE, INC. VERSION 1.8 BX SYSTEM INSTALLATION MANUAL - 8... -
Page 10: Pv Module Grounding Lugs
¼” T-bolt and nut tightened to 80 in-lbs. Attach top rails to L-Feet using 3/8” T-bolt Bonding Hardware tightened to 250 in-lbs. Space top rails according to the mounting requirements for the inverter being used. 80 in-lbs (4x) © 2019 IRONRIDGE, INC. VERSION 1.8 BX SYSTEM INSTALLATION MANUAL - 9... -
Page 11: Electrical Diagram
ELECTRICAL DIAGRAM © 2019 IRONRIDGE, INC. VERSION 1.8 BX SYSTEM INSTALLATION MANUAL - 10... - Page 12 3. SECURE LUGS MODULE COMPATIBILITY The BX System may be used to ground and/or mount a PV module complying with UL 2703 only when the specific module has been evaluated for grounding and/or mounting in compliance with the included instructions. Unless otherwise noted, “xxx”...
-
Page 13: Module Compatibility
Where “Y” can be A, D, M or S; and “ZZ” can be GI, HG, HI, KI, MI, MF, MG, PI, RI, RG, RG(BF), RG(BK), SG, TI, or TG © 2019 IRONRIDGE, INC. VERSION 1.8 BX SYSTEM INSTALLATION MANUAL - 12... -
Page 14: Module Compatibility
Philadelphia modules with 35 and 40 mm frames Philadelphia Solar PS-YzzAA-xxx Where “Y” can be M or P; “zz” can be 60 or 72; and “AA” can be blank or (BF) © 2019 IRONRIDGE, INC. VERSION 1.8 BX SYSTEM INSTALLATION MANUAL - 13... -
Page 15: Module Compatibility
SolarWorld Sunmodule Plus, Protect, Bisun, XL, Bisun XL, may be followed by mono, poly, duo, black, bk, or SolarWorld AG clear; modules with 31, 33 or 46 mm frames SW-xxx © 2019 IRONRIDGE, INC. VERSION 1.8 BX SYSTEM INSTALLATION MANUAL - 14... -
Page 16: Module Compatibility
Where "y" can be either P or T; "Z" can be either M, P, or MX; and "a" can be blank or 6 Yingli Panda, YGE, YGE-U, and YLM series modules with 35, 40, and 50 mm frames © 2019 IRONRIDGE, INC. VERSION 1.8 BX SYSTEM INSTALLATION MANUAL - 15...
