Product Description
Product Structure

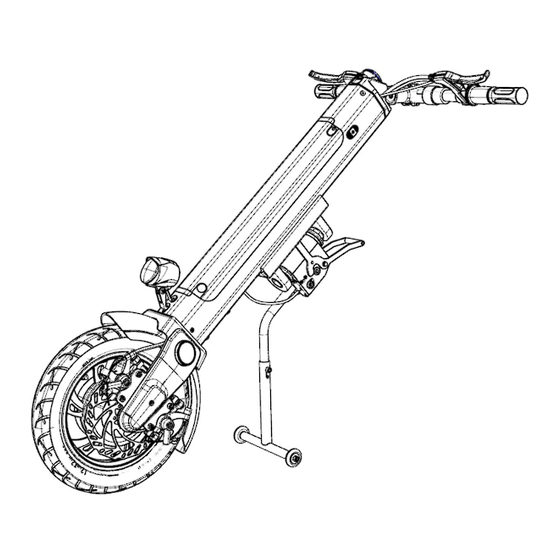

The handbike comprises disc brakes, handlebars, meter, power switch, tires, and motors.
Scope of Application
Designed to enhance freedom for wheelchair users.
Intended Usage Environment
Suitable for indoor, outdoor, hospital, nursing home, and home use.
Power Conditions
Specifies charging voltage, battery voltage, and motor power requirements.
Target Users
For disabled and elderly individuals with mobility difficulties.
Initial Installation Approval
Requires approval from company professionals for initial setup.
Technical Parameters and Indicators
Product Main Parameters
Details physical dimensions, weight capacity, motor, battery, controller, charger, and tire specifications.
Unpacking and Installation Instructions
Foot Support Installation
Instructions for attaching the foot support using a 5mm hexagon wrench.
Unfolding the Foldable Handlebar
Procedure to unfold the handlebar by rotating it 90° outwards.
MT01 Connection Structure
Connection Systems Diagram
Illustrates the components of the MT01 connection system, including clamps and bolts.
MT01 First Time Connecting to Wheelchair
Securing the Body and Clamping
Press safety catch, clamp pipe to wheelchair frame, ensuring gradienter bubble is centered.
Unlocking and Hooking
Unlock wire control switch and secure the upper hook into the lock.
Final Adjustment and Ride
Push handlebar until it clicks, lift safety catch, and turn on power.
MT01 Disconnecting from Wheelchair
Disconnection Procedure
Press safety catch, connector switch, push handlebar, and lower to ground.
MT02 Manual Instruction
Connection Structure Diagram
Illustrates MT02 accessory assembly and adjustment for wheelchairs.
Clamp Installation Positions
Shows three possible clamp installation positions on a wheelchair.
MT02 First Time Connecting to Wheelchair
Initial Pipe and Clamp Setup
Loosen pin, adjust width, attach clamps, ensure pipes are 40cm from ground.
Aligning Middle Connecting Piece
Loosen middle piece bolts; align installation hole parallel to the ground.
Attaching Connecting Rod
Press release switch, install middle connecting rod to middle connecting piece.
Securing Connection Lock
Unlock wire control switch and secure the upper hook into the lock.
Final Handlebar Adjustment
Push handlebar until it clicks, lift safety catch, and turn on power.
MT02 Disconnecting from Wheelchair
Disconnection Procedure
Press safety catch, connector switch, push handlebar, and lower to ground.
Battery Instructions
Related Battery Instructions
Illustrates battery components and provides notes on charging sequence.
Battery Usage Guidelines
Safety guidelines for handling and using the battery, avoiding shorts and heat.
Notes for Charging
Warnings and notes regarding safe charging practices, initial charging, and frequency.
Battery Installation and Removal
Removing the Battery
Step-by-step guide to safely detach the battery from the handbike.
Installing the Battery
Step-by-step guide to safely secure the battery into the handbike.
Battery Charging and Protection
Over Discharge Protection
Explains the function of the over-discharge protection for the battery.
Overcurrent Protection
Explains the overcurrent protection mechanism for the motor.
Warranty Coverage
Main Frame Warranty
3 years warranty, excludes improper use or sabotage.
Motor Warranty
1 year warranty, excludes overload or private disassembly.
Battery Warranty
1 year warranty, excludes incorrect charging or unauthorized disassembly.
Controller Warranty
1 year warranty, excludes improper use or modification.
Not Covered by Warranty
General Exclusions
Lists items not covered, like tires, brakes, and damage from accidents or misuse.
Serial Number Integrity
Warranty void if serial number is altered or inconsistent with the card.
Warranty Card Transferability
Warranty card is for the purchaser only; company repairs/replaces parts.
