MoeBot S10 Operating Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Operating Manual
Model Number:
S5 | S10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S10 and is the answer not in the manual?

Questions and answers

Related Manuals for MoeBot S10

Summary of Contents for MoeBot S10

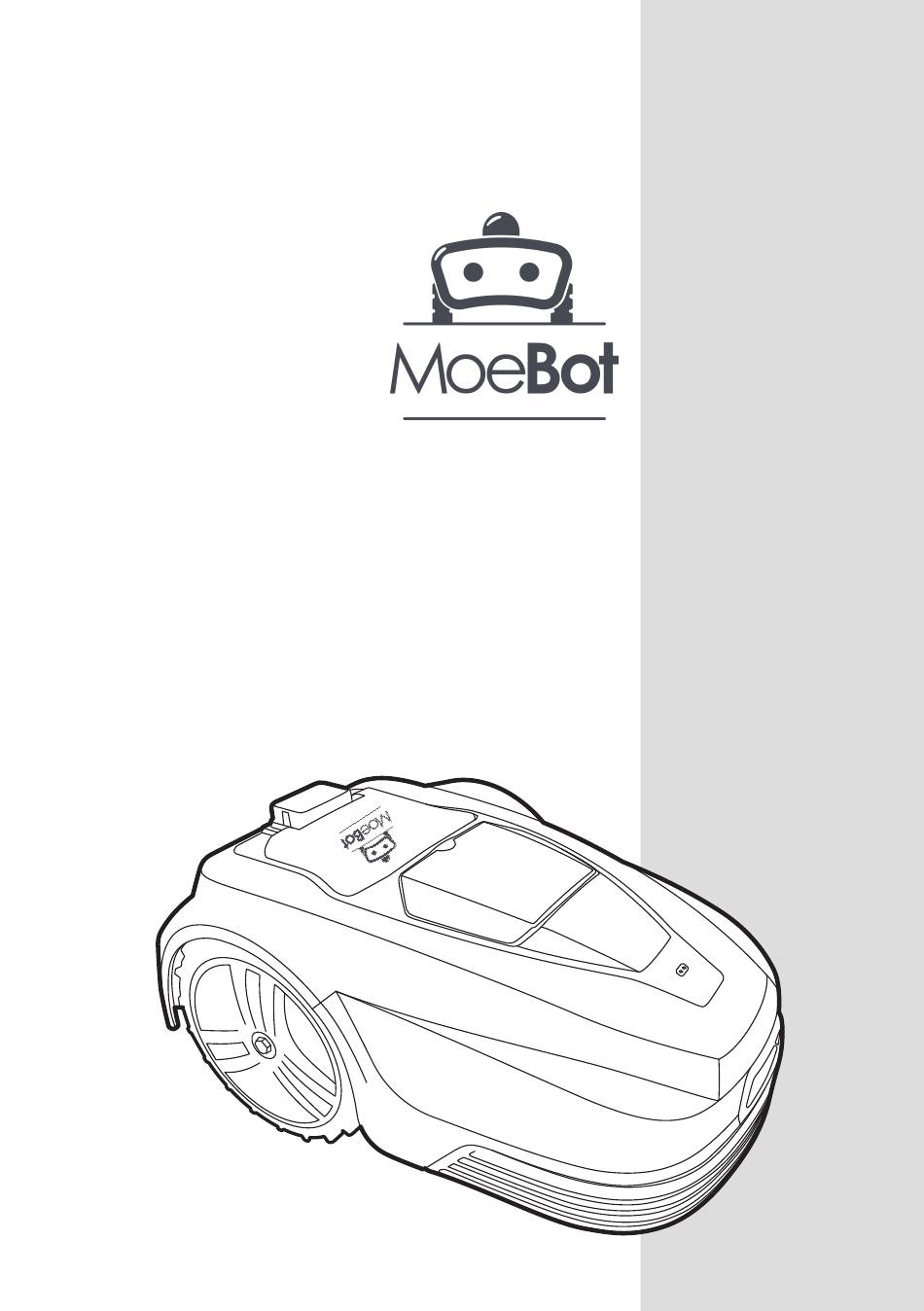

  • Page 1 Operating Manual Model Number: S5 | S10...

  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS: IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE. RETAIN INSTRUCTIONS FOR FUTURE REFERENCE. WARNING: Basic safety precautions should always be observed when using an electrical appliance to reduce the risk of fire, electrical shock or serious injury. Warning Label Descriptions Caution: Wait until blades Warning/Caution.

  • Page 3: Personal Safety

    Personal Safety: • Warning, the blade will continue to move • Only use the mower on grass and lawns, as described in this manual. after the motor is switched o . • Keep out of reach of children and Ensure that the blade has fully stopped •...

  • Page 4: Electrical Safety

    • Operation and storage temperature is 0-50 °C / 32-122 °F. Temperature range MoeBot does not guarantee full • for charging is 0-45 °C / 32-113 °F. Too copatibility between the product and high temperatures might cause damage other types of wireless systems such as to the product.
  • Page 5 Thank you for choosing “Welcome to the Moebot family. We created MoeBot to be a cost effective robotic lawnmower that helps make your life easier. We hope you are surprised and delighted by the performance of your MoeBot.” Robot mowers work by making regular small cuts of the grass to maintain a set height.
  • Page 6 Preparing your lawn for the Robot Mower Min 30cm Charge Station Anti-clockwise Min 2m Min 30cm Min 1.2m Min 1.2m The mower needs a full and complete perimeter loop in order to operate. The loop carries a weak electrical signal that the mower uses to know where it is in Max 1.5cm the garden.
  • Page 7 If your MoeBot does go outside of its boundary wire it will shut off and send you a notification Your MoeBot will change direction upon making contact with: •...
  • Page 8 If your mower encounters particularly long grass it may treat it as an obstacle as it could bump the mower’s obstacle sensor. The grass needs to be at a reasonable level before MoeBot can function correctly. - 7 -...

  • Page 9: Installing The Charging Station

    Installing the charging station Safe power source Min 2m Min 30cm Ensure a minimum of 2m straight perimeter from the front of the charging station, and 30cm straight from the rear. The location must be within 5m of a safe power source –...
  • Page 10 You will need to strip the plastic sheath The charging stand has a hood at the back from the end of the wire before connect- (shown in grey) that hinges forwards. ing. Twisting the exposed wires after exposing helps ensure a good connection. Push the charging station hood forward to The sprung terminal will need lifting to uncover the wiring terminals.
  • Page 11 When you have completed your boundary Feed the power lead up through the other wire it must return to the charging station side of the base station and be fed up through the unit and plugged into the black terminal. Pay attention to the cable fittings as there Push the power cable into place is a keyway orientation detail to ensure...
  • Page 12 Then screw on the outer ring to secure the Once the base station has been fully wired, cable in place and prevent water ingress. it can be secured in place with the four screws provided. Use the allen key provided to screw them in securely ensuring they are fully inserted and flush with the station base.
  • Page 13 Laying the boundary wire Min 2m Min 30cm Keep the wire straight for at least the first Place the pegs at intervals of about 1m on 2m. This is to allow the mower to return to straight and even ground, 30cm to 50cm on the charging stand with ease.

  • Page 14: Operating The Mower

    Operating the mower Place the mower on the base station with Press the STOP button the wheels on the grips and the two pins engaged into the front of the mower. Note: the mower will require to be charged to at least 70% capacity before it will leave its station.

  • Page 15: Control Panel

    Control panel Cutting height adjustment 1. Open the knob lid. 2. Cutting height can be adjusted from 2.5cm to 5.5cm by rotating the adjustment knob. - 14 -...

  • Page 16: Getting Started

    Getting started: Pressing the start button and closing the Set the cutting height flap will cause the mower to start a The first cut of the season or long thick wet perimeter circuit after which it will begin grass will need the highest setting (5.5cm). randomly mowing the lawn.
  • Page 17 Power on Power o 1. Press the power button for 3 seconds. 1. Press the power button for 3 seconds. 2. Enter the 4-letter PIN code. The default PIN code is “AAAA”. 3. The mower will now await further instruction in standby mode. Start mowing 1.
  • Page 18 Work time setting This is the amount of time the mower will be active. This includes charging time. For example: if set to 8 hours and the mower is set to operate from 8:00pm it will operate until 4:00am. In this time it may mow for 1 hour charge for 2 hours mow again for 1 hour; charge for 2 hours, mow for one hours and return to charge ready for the next cycle.
  • Page 19 Charging 1. Place the mower in the station (or press HOME button for 3 seconds) 2. Mower will charge up to 100% and then go into standby. 3. Mower will get charged again if battery is lower than 75%. The mower charges on its station through the two charging rods. These insert into the front of the mower.
  • Page 20 Zone ZONE 1 ZONE 3 ZONE 2 1. Press OK button to enter sub-menu 1. You can set up to 5 zones in your garden. This enables you to decide areas of your 2. Select ‘zone’. garden that need more or less attention. A zone is set by how far along the boundary 3.
  • Page 21 Rain mode Rain mode sets if the mower will go out in rain or not. Disabling this will allow the mower to continue to work in the rain. WARNING avoid activation during heavy rain and storms. Wet grass will cause additional load for the mower and mowing time may be reduced.
  • Page 22 PIN code Change PIN code 1.PIN code should be entered after power- 1. Press OK button to enter sub-menu 1. ing on, pressing STOP button, and before 2. Select ‘setting’ to enter sub-menu 2. clearing error status and changing PIN code.
  • Page 23 Work log Save power The backlight will switch off after 2 minutes in the mower will power off after 8 minutes, respectively, without user interference. LED indicator The backlight will switch off after 2 minutes and the mower will power off after 8 minutes, respectively, without user 1.
  • Page 24 Repairing the boundary wire If the boundary wire gets cut or breaks for The clip has two channels in it. Push one any reason (indicated by solid red light on end into one channel and the other end charging station), you need to locate and into the other.

  • Page 25: Replacing The Blades

    Replacing the blades 1. Power on/off (Disabling device) 5. Use a second screwdriver to anchor the blade plate while you attach the blade. 2. Wear protective gloves 6. Using a cross head screwdriver, secure 3. Turn the mower upside-down the blade on the blade plate. The blade should be able to rotate freely once fitted.

  • Page 26: Troubleshooting

    Log a support ticket at Battery abnormal The battery is damaged. www.moebot.com.au/robot-mower- support/ Wheel spinning faults where the mower will stop in a single spot and wheel(s) spin is a combination of uneven and/or wet ground. The solution is to add soil to level the ground.

  • Page 27: Maintenance

    Maintenance 1. Check and clean mower regularly once a week. 2. When you first start using the mower, the blade plate, protections plate and blades should be checked once a month. 3. It is important that the blades and blade plate rotate easily. 4.

  • Page 28: Product Care

    For more information, please visit our support area where you can find troubleshooting help including online manuals, FAQs and How-to videos, as well as genuine spares and replace- ment parts compatible with your product. www.moebot.com.au Online Live chat support How-to Videos...

  • Page 29: Technical Data

    Measured Noise Level Guaranteed Noise Level Mowing Mowing System 3 pivoted blades 2.5-5.5 cm 18 cm Working Capacity (600 m MoeBot is distributed by Robot My Life. For service and support please visit www.moebot.com.au or contact your local retailer. - 28-...
  • Page 30 Measured Noise Level Guaranteed Noise Level Mowing Mowing System 3 pivoted blades 2.5-5.5 cm 18 cm Working Capacity (1400 m MoeBot is distributed by Robot My Life. For service and support please visit www.moebot.com.au or contact your local retailer. - 29 -...
