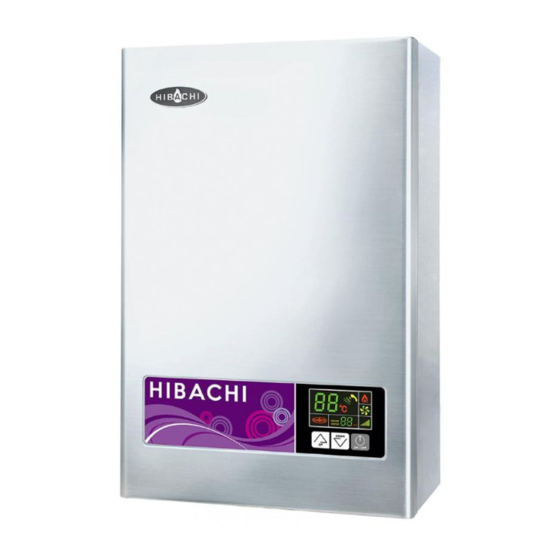

- Page 1 氣霸牌熱水器使用說明書 型號: Hibachi Water Heater Instruction Manual HY-12TWN(頂出煙道）香港煤氣 HY-12TWN(背出煙道）香港煤氣 HY-12GWN(頂出煙道）香港液化石油氣 HY-12GWN(背出煙道）香港液化石油氣 Model: HY-12TWN(TOP FLUE）HKTG HY-12TWN(BACK FLUE）HKTG HY-12GWN(TOP FLUE）HKLPG HY-12GWN(BACK FLUE）HKLPG...
- Page 2 使用認可印有機電工程署批准標記(例如:機電工程署批准EMSD APPROVAL GTXXXX)的氣體接駁喉管連接爐具,或使用機電工程署接納的其他 恰當方法。 Use approved gas tubing bearing EMSD approval marking (such as : 機電工程署批准EMSD APPROVAL GTXXXX) for connection to appliance,or other appropriate methods accepted by EMSD. 條例 Should be the Gas Safety Ordinance of Hong Kong, any gas installation works including the installation of appliances and connection tubing, must be undertaken by registered gas installers who are registered for that appropriate classes and be employed by registered gas contractors.
- Page 3 Address May we take this opportunity to thank you for purchasing this“TRIUMPHAL” 氣霸 balance instant gas water heater. Before the usage, please read the instruction manual carefully, master the installation and operating method correctly, and take full advantage of the excellent performance of the water heater. Thank you for your cooperation! 11 15 11 15...
- Page 4 用途 “氣霸”牌HY-12TWN和HY-12GWN型燃氣快速熱水器採用煤氣或石油氣爲燃料， 能快速 “HIBACHI” HY-12TWN and HY-12GWN instant gas water heater use town gas or liquefied 連續地供應熱水，適合於供應熱水沐浴、洗手、洗衣及其它洗滌之用途。 petroleum gas as the fuel. It can instantly and continuously supply hot water for showering, hand washing, laundry and other cleaning. 特點 1. Complete combustion, high efficiency and energy saving;...
- Page 5 外形尺寸圖（單位:mm） Balance forced exhaust type instant gas water heater HY-12GWN Y-12TWN 式 HKTG HKLPG HY-12TWN HY-12GWN 香港煤氣 香港液化石油氣 Rated Heat input Pressure relief safety device 額定熱負荷 Water flow controlled post-break Balance forced exhaust type（Back Flue/Top Flue） Flue type Back Flue/Top Flue （背排/頂排）...
- Page 6 1. Hot water joint 2. Pressure relief protection device 3. Cold water joint 4. Balance flue 5. Front panel 6. Rear panel 7. Parameter label 8. Temperature displayer 9. Temperature up button 10. Temperature down button 11. Power cord 12. Gas joint 13.
- Page 7 ●請勿將熱水器安裝在危險棚架下面或窗簾及易燃物旁邊。 ●Do not install the water heater under dangerous shelves or near the curtain or inflammable. ●請按要求連接地線，勿將地線與氣管相連接。 ●Please properly earth the water heater according to the relevant requirements and do not connect the earth lead with the gas pipe. ●請勿安裝在儲藏易燃危險品場所附近。使用熱水器的室內請不要存放或使用 易燃品和易揮發性的物品。...
- Page 8 背排安裝方法 Wall Outside the wall Back flue installation method 在牆壁上熱水器頂板下方135毫米處開1個φ160-180毫米的孔，如圖A。 Drill a φ160-180mm hole 135mm under the top plate of the water heater on the wall as drawing A. φ Through-wall hole 按右圖固定挂板上的4個φ8mm孔的尺寸，在穿牆孔周圍的牆壁上鑽4個 φ8mm的小孔，然後打入膨脹膠塞。 Drill four φ8mm holes on the ambient wall of the through-wall hole according to the dimension of the four φ8mm holes on the fastening board as the right drawing and drive the plug into them.
- Page 9 用防水物料填塞牆孔與排氣管之間的空隙，防止雨水滲入室內。安裝排 氣煙管必須稍微向下傾斜，以防止雨水從排氣管滲入熱水爐。此熱水爐 只適合安裝於厚度小於300mm以下的牆壁。 Fill up the gap between the wall and the flue with waterproofing Sealant material so that the rain cannot permeate into the room. Make sure that the flue has a downward inclination when installed to prevent the rain from permeating into the water heater. The water heater can be installed only on walls with thickness of less than 300mm.
- Page 10 頂排安裝方法 Top flue installation method 1.平衡煙管的安裝 1. The installation of the balance flue ●Must use the assorted specialized balance flue for the water heater. ●必須使用本熱水器所配的專用對衡煙管。 ●Flue of other types or specification shouldn’t be used and the flue ●禁止安裝其他形式或規格的煙管，不得對煙管進行自行改造 should not be modified by oneself. ●在牆或窗適當位置鉆1個大於φ100mm的孔（距離天花板300-430mm的範...
- Page 11 2.The installation of the main body 2.主體安裝 The central line of Drill three holes on the wall accordingly to the 按圖示尺寸在牆壁上打3個孔,並在孔上固定膨脹螺栓。 the water heater dimension as the drawing shows and fix the plugs on 然後挂上熱水器，再用膨脹螺釘固定好。 them.And then hang the water heater and fix it with screws.
- Page 12 5. Installation of the gas pipe The water heater inlet is G 1/2 pipe thread. Installed in the rigid gas pipe joints into the 熱水器進氣接頭為G 1/2管螺紋。安裝時在剛性燃氣管接頭內放入密封圈， ring, and with the water heater inlet connector lock. Note: After installation, use soapy 並與熱水器進氣接頭鎖緊。注意：安裝完成後需要用肥皂水檢驗是否漏氣。...
- Page 13 ■Operating method & attentions Preparation for ignition The water heater uses 220V AC power supply. Please turn on the power, ● now the power light is on (red). （顯示屏左下角LOGO亮紅色)。 Open the water inlet valve before the ignition. ● 冷 Open the gas valve main switch. ●...
- Page 14 Special attentions: do not pour the hot water on the body when reuse ● it after temporary stop of use. Because the water temperature will be quite high after that. So please keep the water outflowing for a few seconds before the use to avoid being scalded.The water heater can be activated by low voltage,with automatic thermostat function, and can be used at any time when the inlet pressure satisfies the minimum 本熱水器具有低壓啟動、自動恒溫功能，在進水壓力能滿足最低啟動壓力的任何時段都可以使用。...
- Page 15 ●本熱水器設有自動熄火安全保護裝置，當使用過程中安全保護裝置動作時，電磁 ●The water heater is with automatic flameout safety protection device. 閥就會自動切斷氣路從而使得熱水器停止工作。重新啓動後熱水器可繼續工作。 When the safety protection device acts during the usage, the solenoid valve will automatically cut off the gas supply and stop the water heater. The water heater will resume working after it is restarted. Operating attention 1.
- Page 16 4. Prevention for the accident ●When smell the odor of gas, please shut off the gas valve immediately, 開關 open the windows, and let the gas be discharged out of the room. At this 及時與維修部或煤氣安裝公司聯繫，查明原因，維修 time, do not turn on the power, neither the water inlet nor outlet valves. 好之後才能使用。...
- Page 17 ●Turbidity in hot water If there is white turbidity in the hot water and the water becomes transparent after a while. It is because small bubbles are generated under the circumstance that the pressure of the air in the water is increased after it is heated but the pressure is decreased sharply when the water is let out.
- Page 18 ■Daily maintenance instructions ■日常保養須知 ●Check the gas supply pipe (hose) regularly to see if it is in good ●經常檢查供氣管道（軟管）是否完好，有無老化，裂紋。注意定期更換軟管，請 經常用肥皂水在軟管接駁處檢查有無氣泡出現，判斷是否不漏氣。 condition, or if there is aging or crack on the hose. Replace the hose regularly. Please frequently use soap water to check the joints of hose ●經常注意有無漏水現象以便及時處理。...
- Page 19 Failure & troubleshooting Cause of malfunction Temperature probe Inform the service department to (1) check is cut off or short if the connection of the temperature circuit. probe is well.(2) replace the temperature probe. (1) Check if the gas, water and power are well connected and restart the machine again.
- Page 20 有 脉 Symptom 衝 聲 音 Remedy 但 不 Cause 著 火 Power connector plug is no Please insert the plug 電源插頭鬆脫或被撥出 connected well to the electric completely into the socket socket or has been pulled out. Gas valve not opened Open the gas valve Fully ope Fully open the gas valve...
- Page 21 If abnormal situation occurs and the water heater cannot be used normally, please check item by item according to the section “Failure & troubleshooting” .If there is any problem cannot be handled or understood, please contact the appointed maintenance department or customer service department of our company instead of taking it apart to mend it by oneself.
