Hawksmoor 51405 Original User Instructions

33cc 42cm petrol brush cutte
Hide thumbs

Advertisement

Table of Contents

Original User's Instructions
33cc 42cm Petrol Brush Cutter
SKU: 51405
WHAT'S IN THE BOX
Main unit x 1
PLEASE KEEP THESE INSTRUCTIONS FOR FURTHER REFERENCE
／昏／
Brush cutter/
grass trimmer
shaft x 1
Guard x 1
If you do not have all these items, please contact:
www.coreservice.co.uk
Hotline: +44 01904 947568
Email support@coreservice.co.uk
Hex key 4mm
x 1
Belt x 1
Spool x 1
Blade x 1
Hex key 5mm
Socket wrench/
x 1
slotted screw drive
x 1
Fuel bottle x 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 51405 and is the answer not in the manual?

Questions and answers

Related Manuals for Hawksmoor 51405

Summary of Contents for Hawksmoor 51405

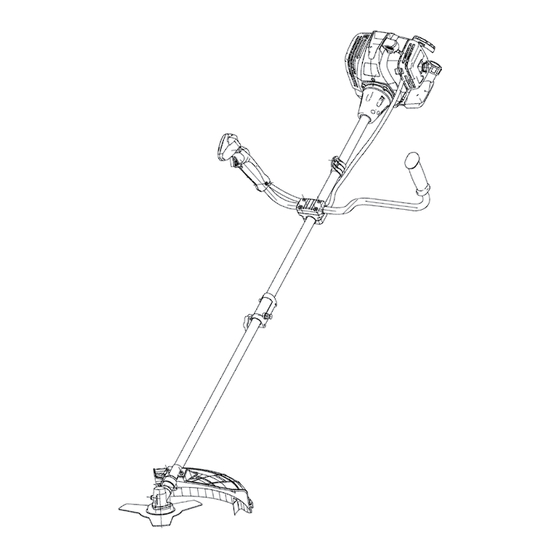

  • Page 1 Original User’s Instructions 33cc 42cm Petrol Brush Cutter SKU: 51405 ／昏／ WHAT'S IN THE BOX Brush cutter/ grass trimmer shaft x 1 Main unit x 1 Hex key 4mm Hex key 5mm Socket wrench/ slotted screw drive Belt x 1 Spool x 1 Guard x 1 Blade x 1...

  • Page 2: Specification

    SPECIFICATION Technical Data Model CG330FHB Engine Type 2-Stroke Euro V Displacement 33 cm Max. Cutting speed 6500 rpm(grass trimmer)/7000 rpm (brush cutter) Rated Power 0.9 kw Metal Blade size 1.4 x 255 x 25.4 mm Nylon Line Cutting Head (Max. Cut)
  • Page 3 Guarantee sound power level Keep all children, bystanders and helpers 15 meters away from the machine. The machine shall not be used in any position that causes any part to come within 10 m of overhead electrical lines. Beware of blade trust. Blade is continually in motion. Caution! Risk of injury due to running blades! Beware of recoil! Caution! Risk of suffocation!
  • Page 4 Wear protective gloves Wear protective foot wear. The port to refuel the “MIX GASOLINE” Position: FUEL TANK CAP The direction to close the choke Position: TOP COVER The direction to open the choke Position: TOP COVER Keep all parts of your body away from hot surfaces The product complies with the applicable European directives and an evaluation method of conformity for these directives was done.

  • Page 5: Health And Safety

    HEALTH AND SAFETY SAFETY INSTRUCTIONS TRAINING A. Read the instructions carefully. Get familiar with the controls and proper use of the tool. B. Only use the tool for the purpose for which it was designed. Any other use can be hazardous and may also cause damage to the tool.

  • Page 6: General Safety Instructions

    GENERAL SAFETY INSTRUCTIONS A. Never allow children to use the tool. B. Beware of overhead power lines. C. Do not use the tool while people or children are nearby. Keep at least 15 metres away. D. Dress properly! Do not wear loose clothing or jewellery, which can be caught in moving parts.
  • Page 7 • Have any damaged parts replaced repaired with parts having equivalent specifications WHEN USING THE TOOL A. Stop the engine before: • Cleaning or when clearing a blockage. • Checking, carrying out maintenance or working on the tool. • Adjusting the working position of the cutting device. •...
  • Page 8 make the blade push away from the object or run along the object. This reaction can be intense enough to lose control of the tool and can occur without a warning. The operator should cut from right to left to minimize the chance of kickback.

  • Page 9: Assembly And Use

    K. Keep your distance. The tool emits exhaust fumes. L. Ensure you use fuel oil mix. Ensure that you mix 40 parts unleaded fuel to 1 part two stroke oil, if not the engine will overheat and cause damage to your tool. M.

  • Page 10: Fitting The Blade

    FITTING THE BLADE • Lock the shaft by Inserting the 5mm hex key through the hole and into the blade mounting boss as shown. NOTE: The flange nut has a left hand thread. • Remove the flange nut using the Spark plug spanner by turning it in a clockwise direction.
  • Page 11 TO USE THE LINE TRIMMER HEAD • Lock the shaft by Inserting the 5mm hex key through the hole and into the blade mounting boss as shown. NOTE: The flange nut and spindle have left hand threads. • Remove the flange nut using the Spark plug spanner (J) by turning it in a clockwise direction.

  • Page 12: Install The Handles

    INSTALL THE HANDLES • Using the 4 mm hex key, loosen the four screws on the handle bar clamp. • Pass the right hand handle under the upper shaft and insert the right handle approximately 30 mm into the clamp. •...
  • Page 13 WARNING! Always use the brush cutter with the shoulder belt. ATTACH THE SHOULDER BELT The brush cutter must always be used with the shoulder belt. • Clip the hook on shoulder strap to the strap attachment point (5). FUEL USE FRESH UNLEADED FUEL (PETROL), 90 OCTANE OR BETTER –...
  • Page 14 FUELING WARNING! Always shut off engine before fuelling. Never add fuel to a machine with a running or hot engine. Do not SMOKE! Failure to heed this warning could result in serious personal injury. WARNING! Always ensure there is adequate ventilation when handling fuel.
  • Page 15 • Move the choke lever to the start position. • Set the ON/OFF switch (14) to the ON position. • Briskly pull the starter until the engine splutters.(This may take up to 10 pulls). • Immediately move the choke lever to the run position. •...
  • Page 16 • When the throttle lever is depressed approximately 50% the throttle lock button (13) can be pressed if required. This will hold the throttle at this point. • To disengage the throttle lock squeeze the throttle lever fully and release. TO STOP THE ENGINE.
  • Page 17 • The blade is suited only for weeds and vines. When the blade becomes dull, it can be turned over to extend the life of the blade. Do not sharpen the blade. USING THE TOOL AS A LINE TRIMMER. • Keep the trimmer tilted toward the area being cut. This is the best cutting area.

  • Page 18: Care And Cleaning

    CARE AND CLEANING BEFORE EACH USE • Remove dirt and debris from the tool exterior. • Check all screws for tightness and tighten if necessary. • Check blade flange nut is tight and tighten if necessary. • Check the blade for damage. Replace if damaged or cracked. •...

  • Page 19: Troubleshooting

    TROUBLE SHOOTING Use this section to help you to try and solve any problems you may have: PROBLEM POSSIBLE CAUSE REMEDY Engine fails to start. No fuel in tank. Fill fuel tank. Fuel system not primed. Press primer bulb 3-5 times until fuel system is full of fuel.
  • Page 20 DECLARATION OF CONFORMITY / PERFORMANCE Product Code: 51405/CG330FHB Product Description: Hawksmoor 33cc 42cm Petrol Brush Cutter 1. Toolstation Limited, Express Park, Bristol Road, Bridgwater, Somerset TA6 4RN This declaration of conformity is issued under the sole responsibility of Toolstation 2. Object of the declaration...

  • Page 21: Environmental Information

    ENVIRONMENTAL INFORMATION When your product comes to the end of its life or you choose to update or upgrade it by replacing it, please do not dispose of it with your normal household waste. Please recycle where facilities exist. When you need to dispose of this product, check with your retailer or local authority for suitable options.

  • Page 22: Customer Support

    GUARANTEE Toolstation products deliver reliable service for normal, household use in domestic settings. All Toolstation products are individually tested before leaving the factory. If you are a consumer and you experience a problem with your Toolstation product, which is found to be defective due to faulty materials or workmanship within the Guarantee Period, this Toolstation Guarantee will cover repair or - at the discretion of Toolstation –...
